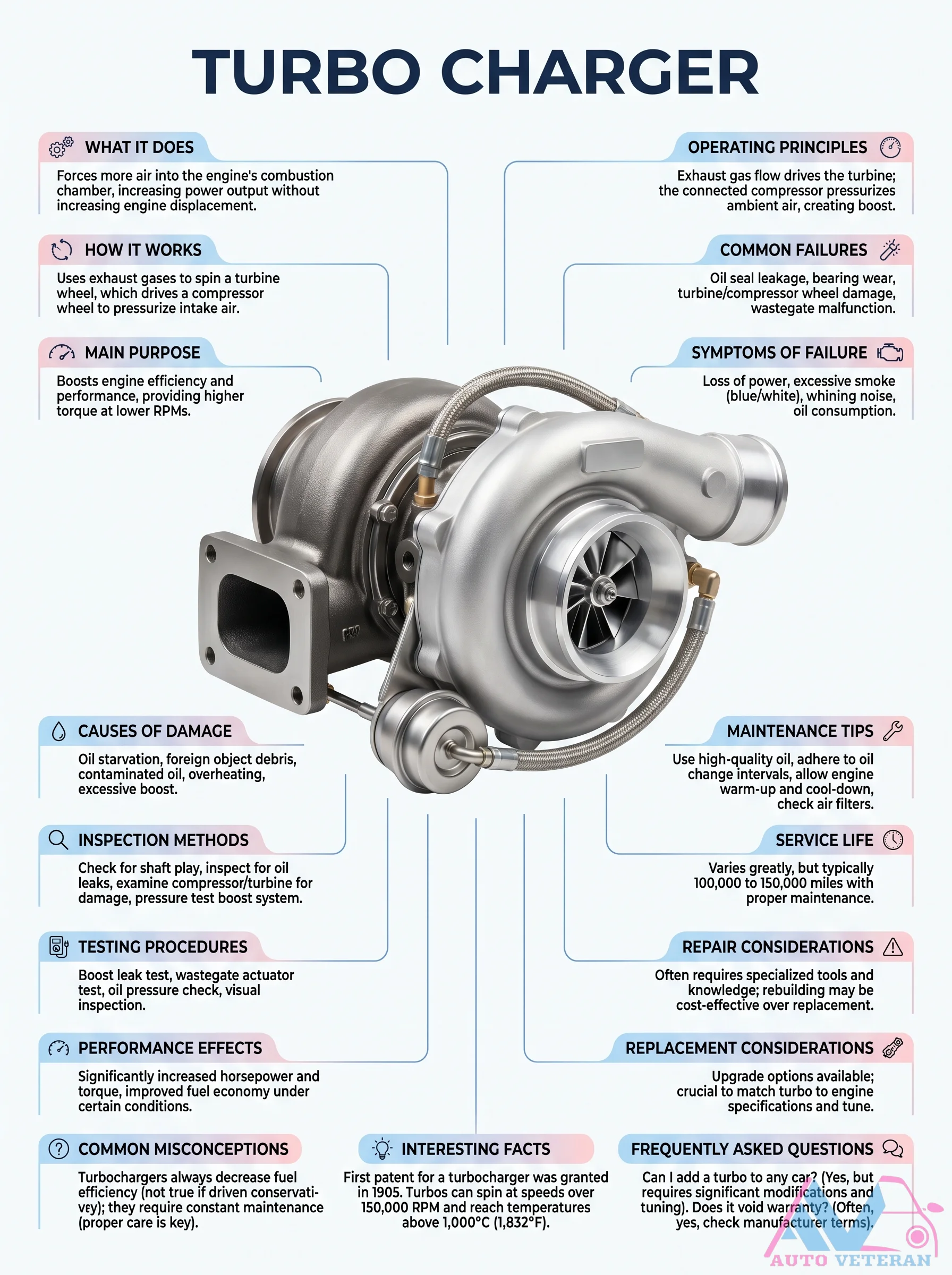

Turbocharger Operating Principles and Failures
A turbocharger forces more air into the engine's combustion chamber, increasing power output without enlarging engine …

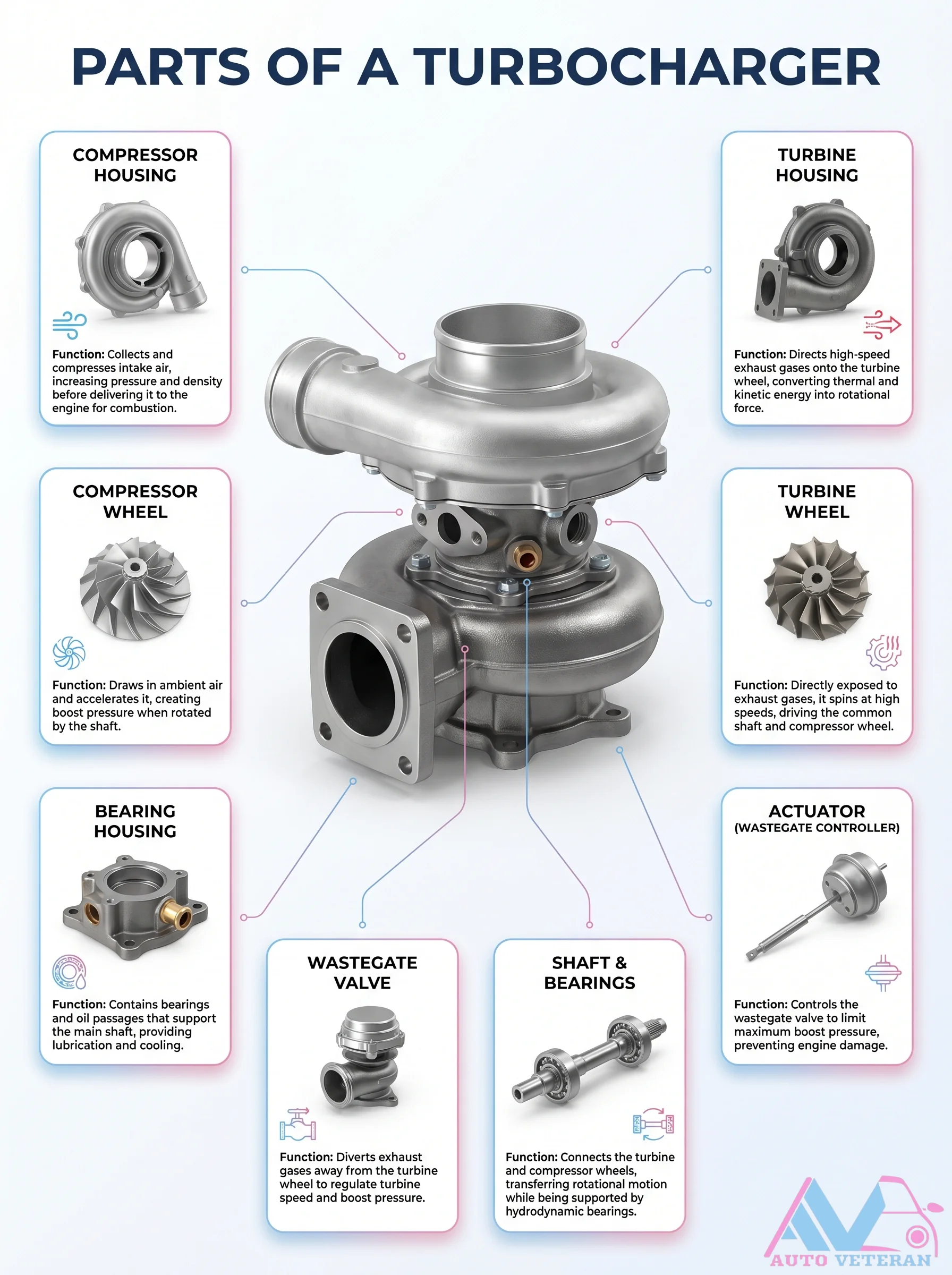

Turbocharger Parts and Their Functions
This visual breakdown identifies each critical component of a turbocharger system: the compressor housing draws in …

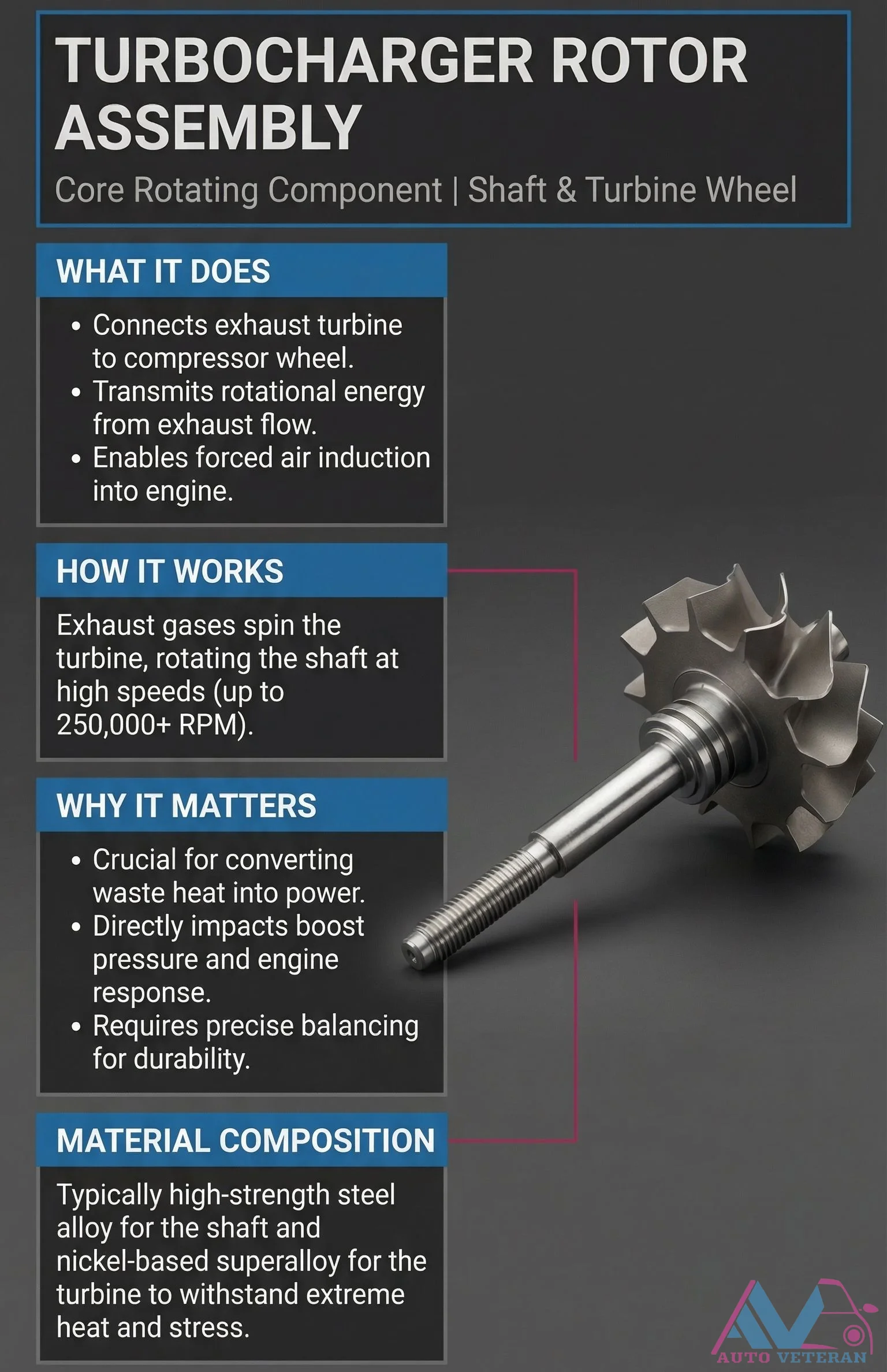

Turbocharger Rotor Assembly Shaft and Turbine Wheel
The turbocharger rotor assembly serves as the core rotating component that connects the exhaust turbine to …

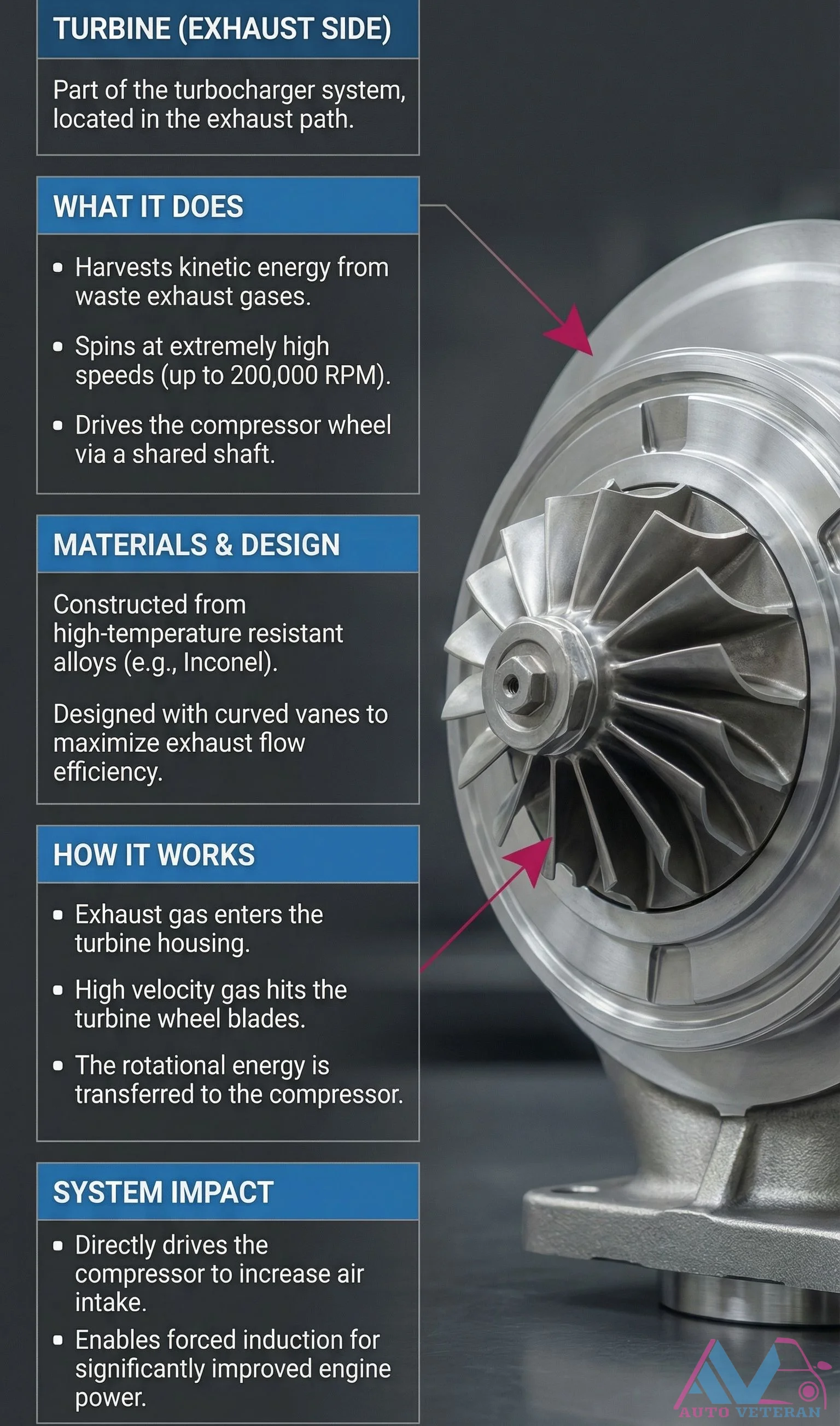

Turbocharger Turbine Exhaust Side Function and Design
The turbine wheel on the exhaust side of a turbocharger system captures kinetic energy from waste …

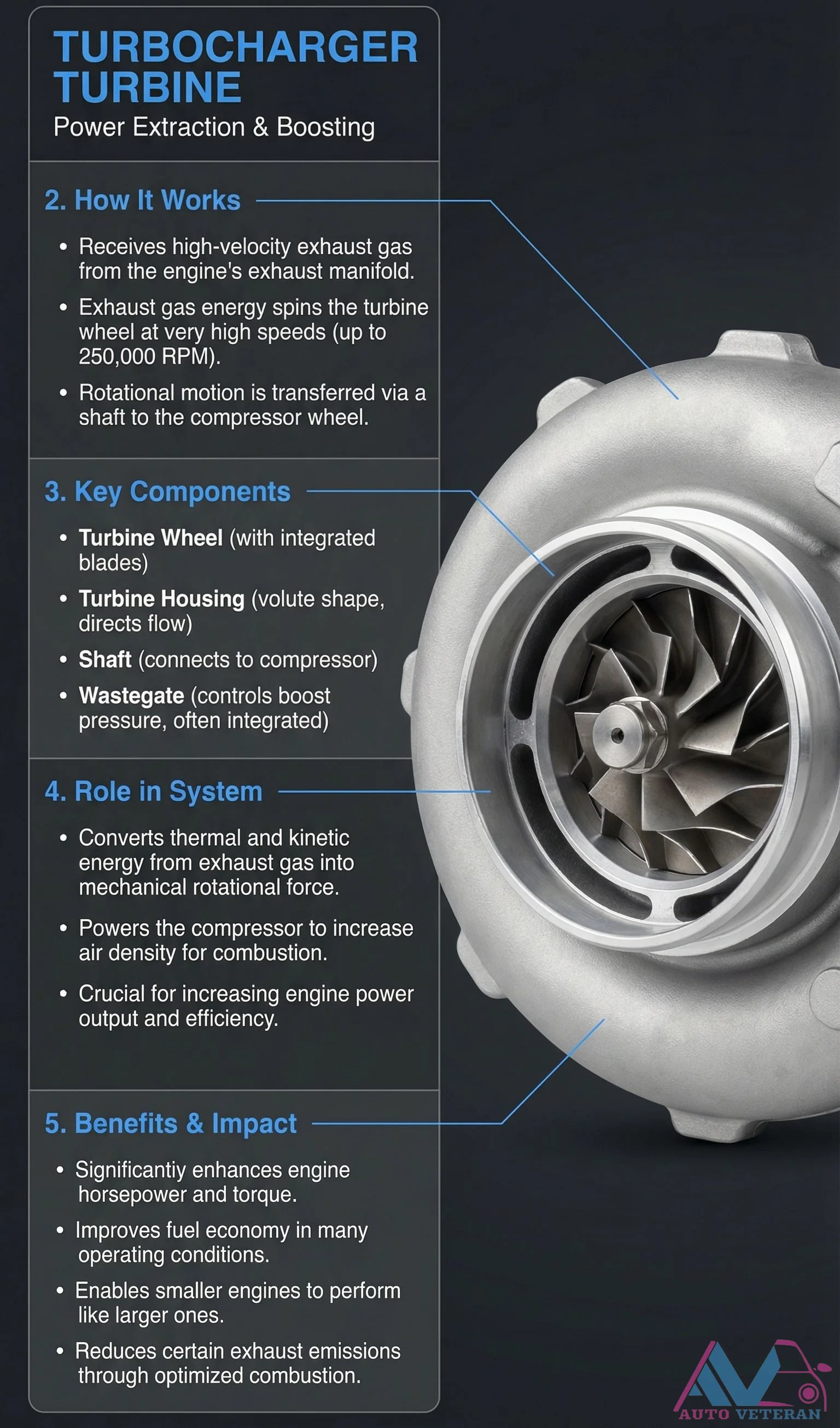

Turbocharger Turbine Power Extraction and Boosting
The turbocharger turbine receives high velocity exhaust gas from the engine's exhaust manifold, converting thermal and …

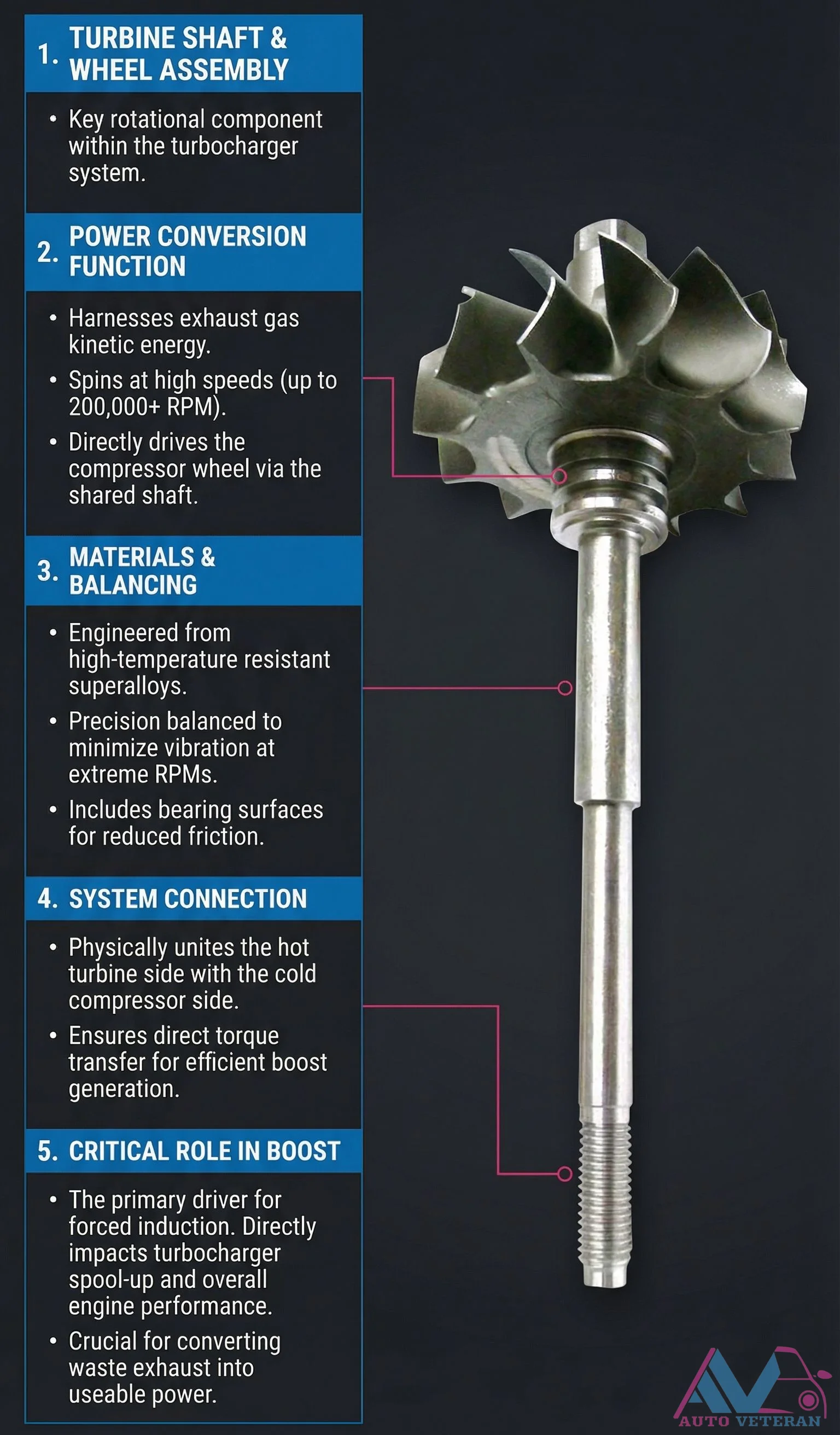

Turbocharger Turbine Shaft and Wheel Assembly
The turbine shaft and wheel assembly serves as the key rotational component within a turbocharger system, …

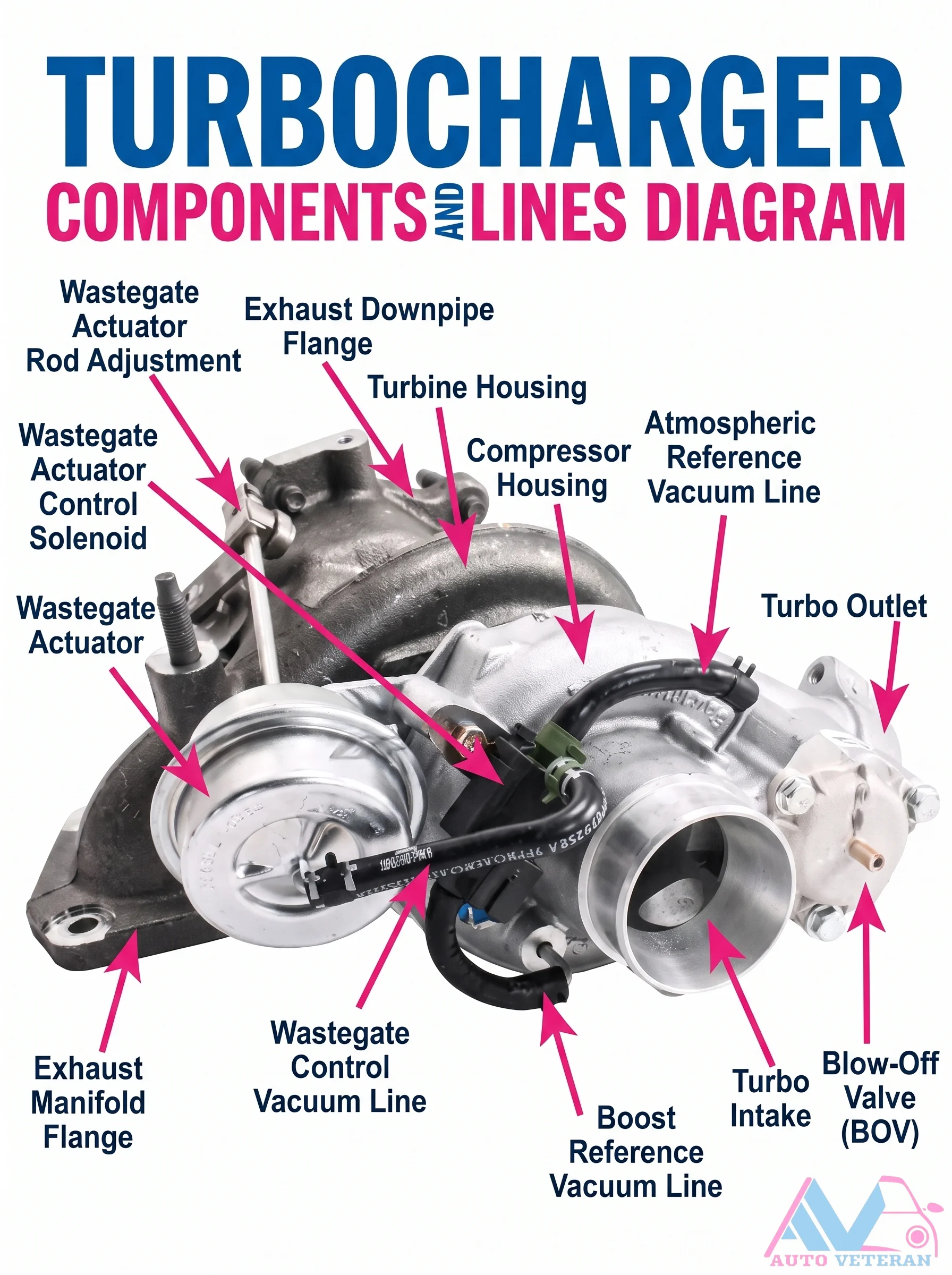

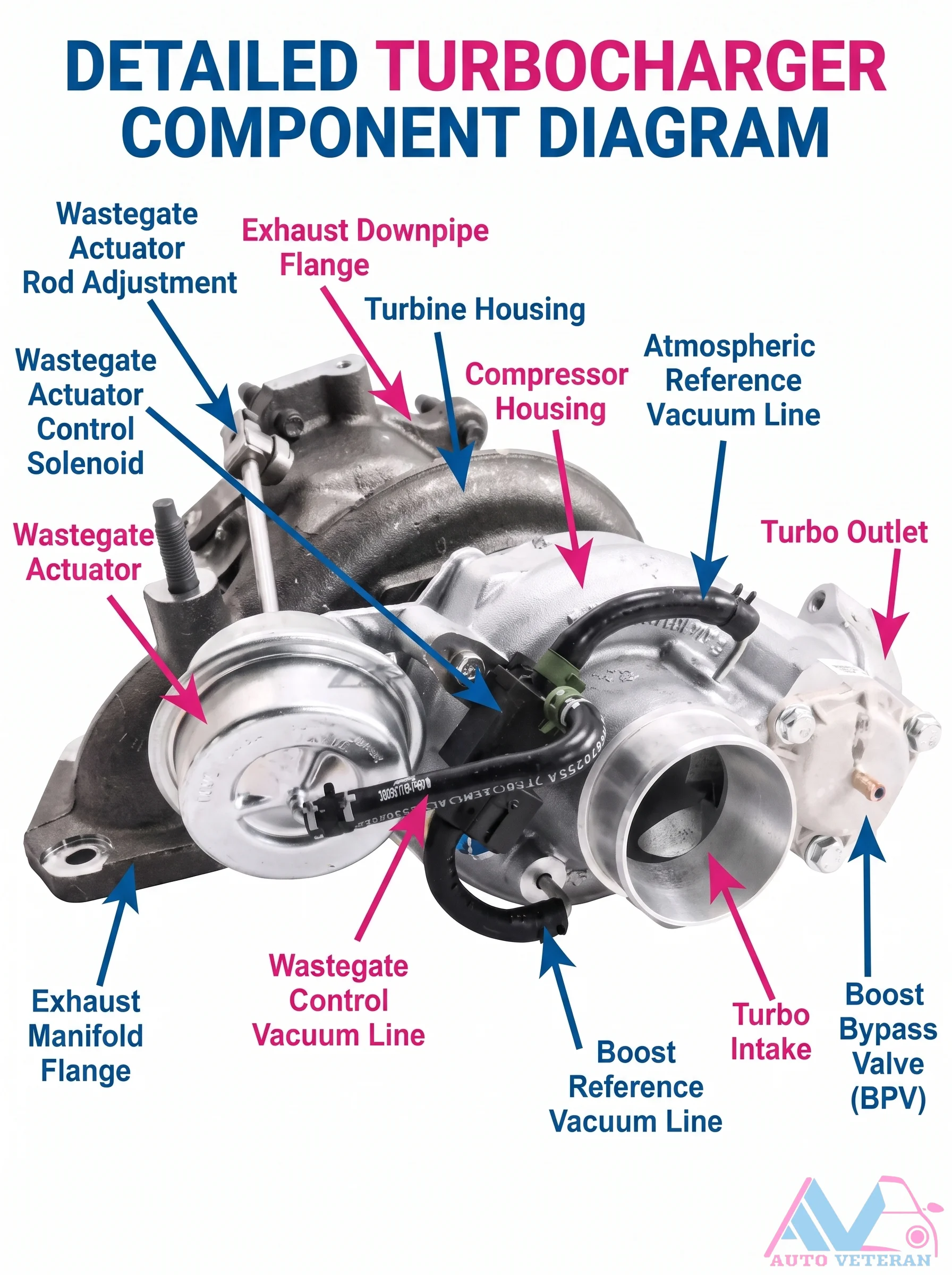

Turbocharger Wastegate Actuator Diagram
This detailed diagram reveals the intricate layout of a turbocharger wastegate system, tracing the airflow and …
Turbocharger Wastegate System Diagram
Explore the complete layout of a turbocharger wastegate control system, from the wastegate actuator and its …
Types of Automotive Fasteners and Their Functions
Automotive assembly relies on various specialized fasteners, each serving distinct purposes. Bolts and screws create threaded …

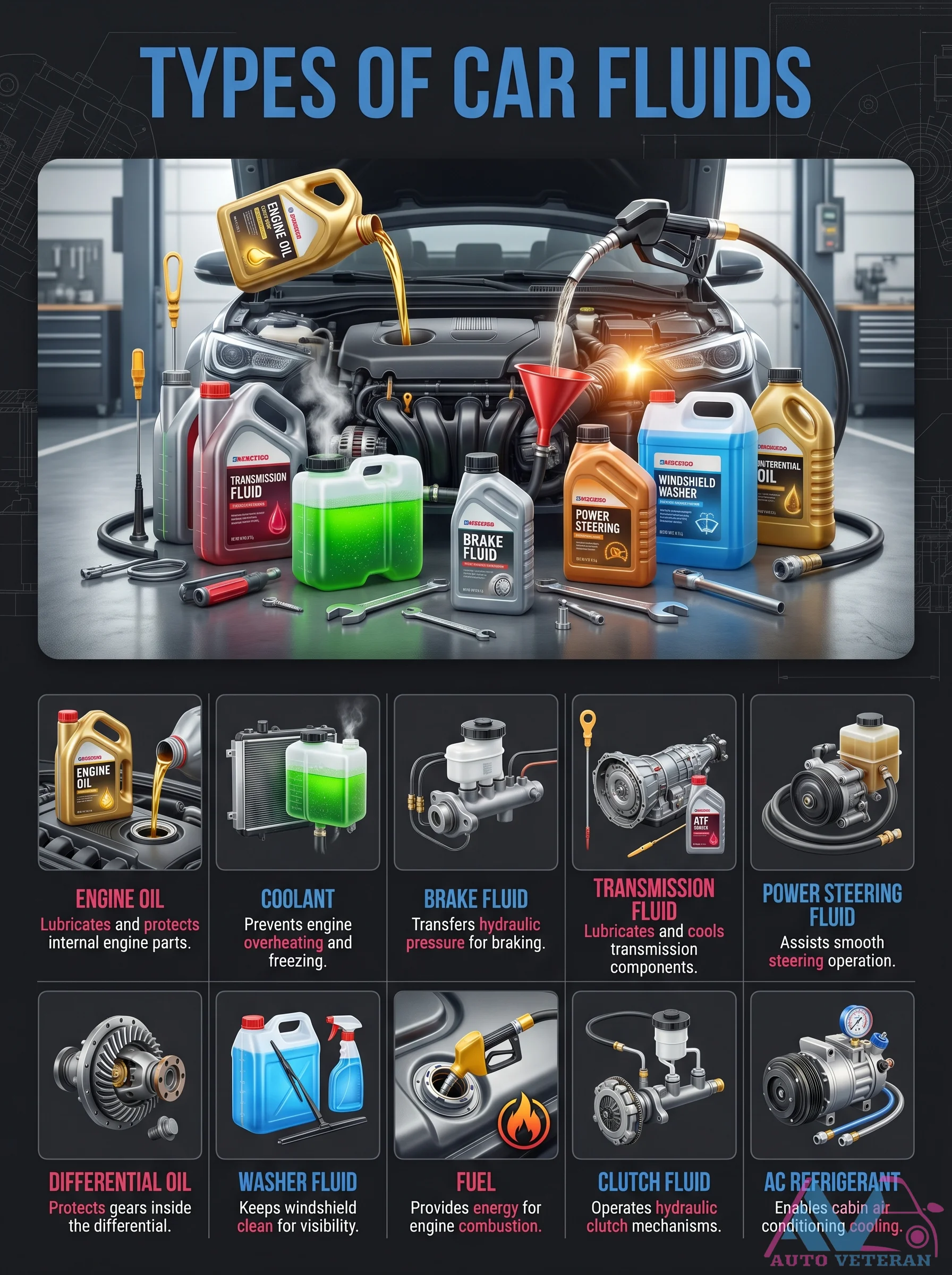

Types of Car Fluids Guide
This comprehensive guide covers the essential fluids every vehicle needs to operate reliably. From engine oil …

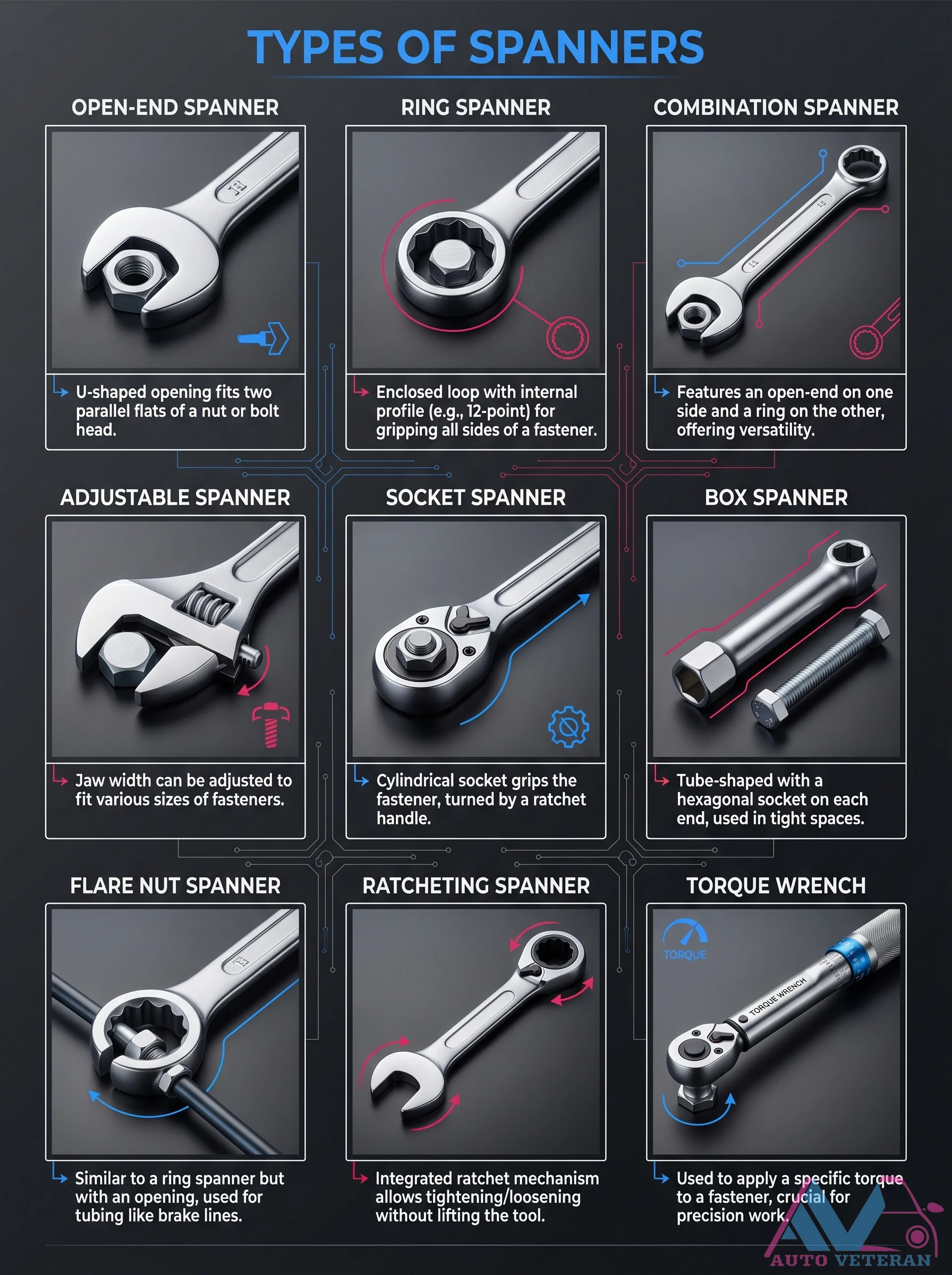

Types of Spanners and Their Specific Uses
Understanding the different types of spanners is essential for any automotive toolkit. Open-end spanners feature a …

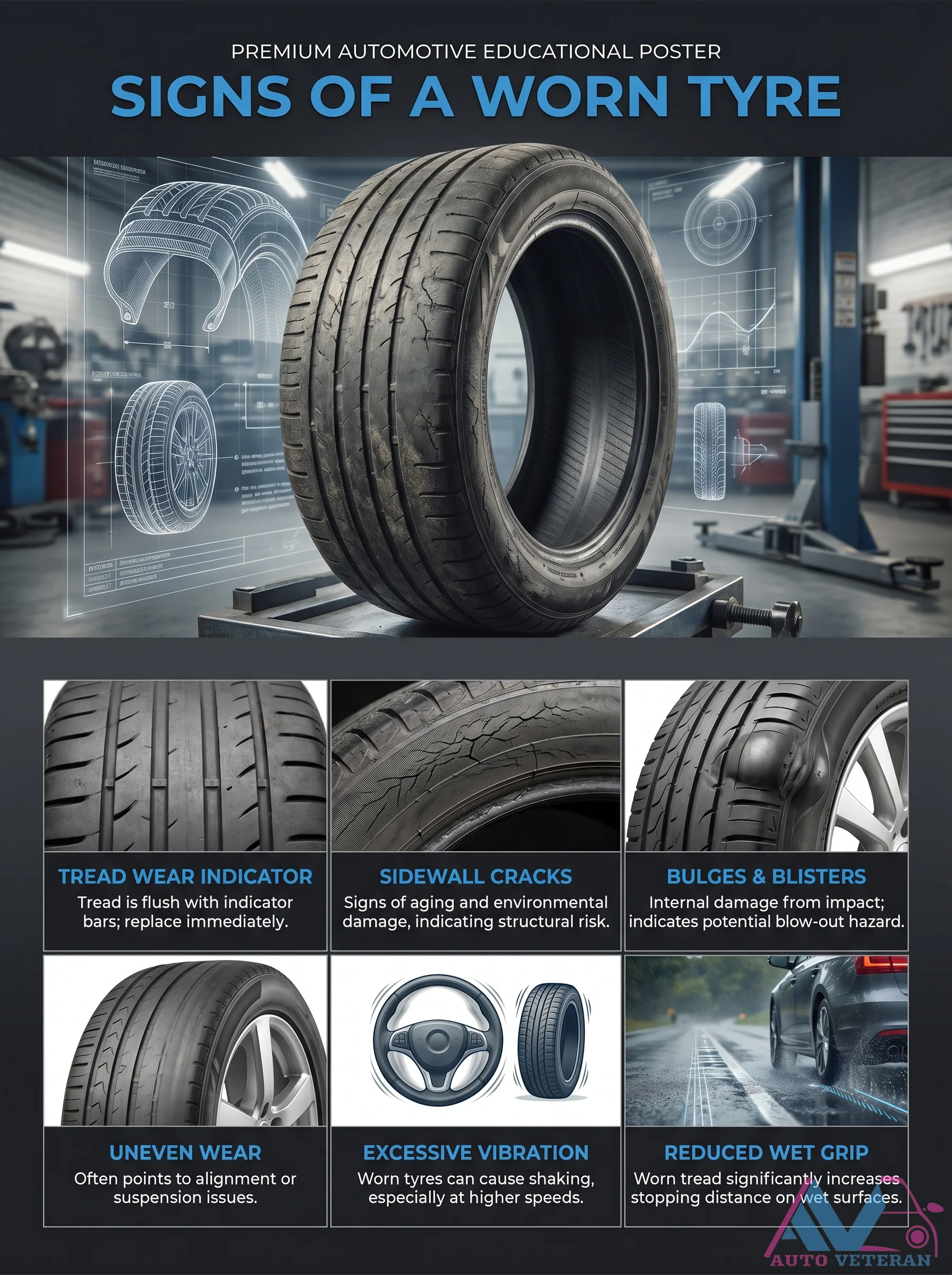

Tyre Tread Wear Indicator Signs
When the tread on your tyre becomes flush with the wear indicator bars, it is time …
