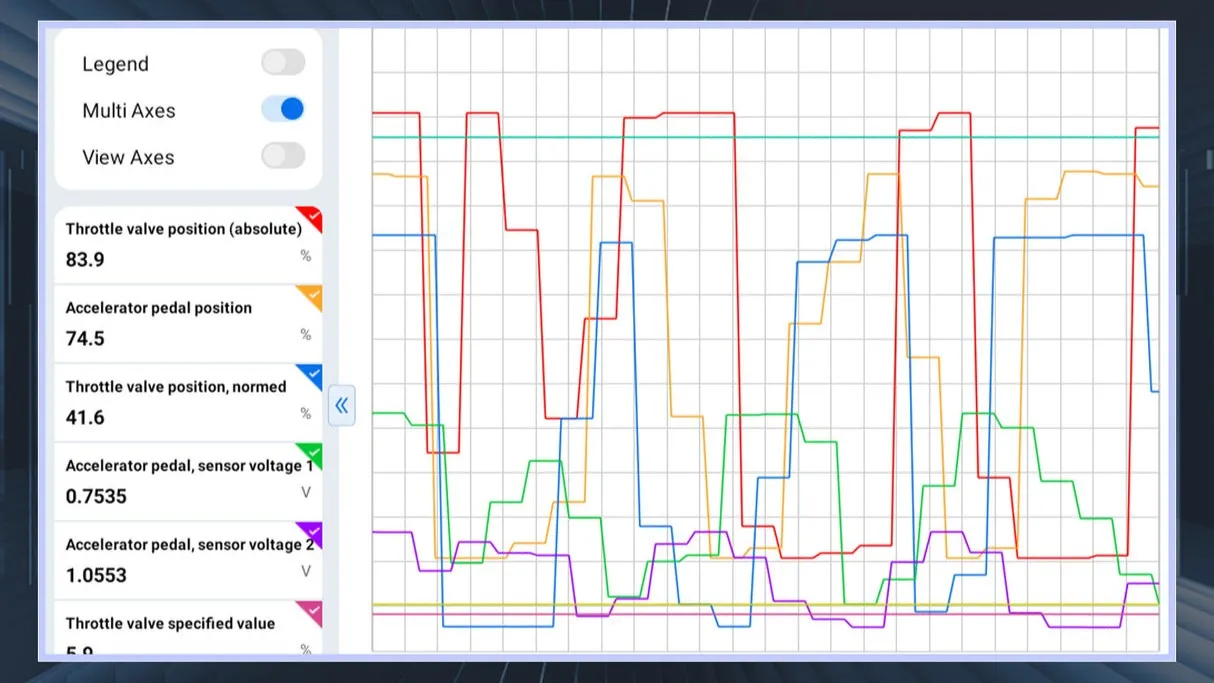

How to Read & Understand Live Data Streams from Your Car’s ECU

Imagine this: your car's engine is the heart of your vehicle, and the ECU (Engine Control Unit) is its brain. This tiny yet powerful computer manages everything from fuel injection to engine timing, ensuring optimal performance.

But did you know that understanding the live data streams from your ECU can transform how you diagnose and maintain your vehicle?

In today's fast-paced world, cars are more than just modes of transportation; they're complex machines that require constant monitoring. Whether you're a beginner, a car enthusiast, or a seasoned mechanic, mastering the art of reading live ECU data can save you time, money, and headaches. So, buckle up as we dive into the fascinating world of live data streams and discover how to harness this information for better diagnostics and performance monitoring!

What is Live ECU Data?

Live ECU data refers to the real-time performance metrics generated by your vehicle's engine and other systems. Think of it as a continuous stream of information that provides insights into how your car is functioning at any given moment.

Modern cars utilize OBD-II (On-Board Diagnostics) systems to transmit this data. OBD-II is a standardized system that allows you to access a wealth of information about your vehicle's health. By plugging in an OBD-II scanner, you can tap into this data stream and monitor various sensors in real-time.

Essential Sensors Generating Live Data

1. Oxygen (O2) Sensor: Monitors the oxygen levels in the exhaust to optimize fuel efficiency and reduce emissions.
2. Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine to adjust fuel injection and ensure optimal combustion.
3. Throttle Position Sensor (TPS): Tracks the position of the throttle to control engine speed and manage airflow into the engine.
4. Coolant Temperature Sensor: Monitors the engine's coolant temperature to prevent overheating and ensure optimal operating conditions.
5. Knock Sensor: Detects engine knocking or detonation to prevent damage by adjusting ignition timing.
6. Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold to determine engine load and adjust fuel delivery and ignition timing.
7. Crankshaft Position Sensor: Monitors the crankshaft's position and speed to manage ignition timing and fuel injection.
8. Camshaft Position Sensor: Tracks the camshaft's position to synchronize fuel injection and ignition timing with valve operation.
9. Air-Fuel Ratio Sensor: Measures the air-fuel ratio in the exhaust to fine-tune fuel injection and reduce emissions.
10. Vehicle Speed Sensor (VSS): Monitors the vehicle's speed to manage transmission shifting and other speed-dependent functions.

These sensors work together to ensure your engine runs smoothly. By understanding their data, you can diagnose issues before they become major problems.

Why is Live Data Important?

Reading live data is crucial for several reasons:

1. Early Diagnosis: Catch engine problems early before they escalate into costly repairs.
2. Fuel Efficiency: Monitor fuel consumption and emissions to optimize performance and reduce environmental impact.
3. Performance Monitoring: Understand how modifications affect your engine's performance and make informed decisions.

Real-time data analysis offers a proactive approach to vehicle maintenance, unlike traditional diagnostics that rely solely on error codes. By staying ahead of potential issues, you can extend the lifespan of your vehicle and enjoy a smoother driving experience.

Tools Needed to Read ECU Live Data

To access live ECU data, you'll need an OBD-II scanner or diagnostic tool. Here are some options:

• Basic Handheld Scanners: Affordable and easy to use, these scanners provide essential live data readings.
• Bluetooth/WiFi OBD-II Adapters: Connect to your smartphone or tablet and use apps like Torque Pro or OBD Fusion for advanced monitoring
• Advanced Scan Tools: Professional-grade tools with extensive features for in-depth diagnostics.

Choosing the Right Tool

Select a tool based on your budget, compatibility with your vehicle, and the features you need. For beginners, a Bluetooth adapter with a reliable app is an excellent starting point.

How to Access & Read Live Data Streams from the ECU

Accessing and reading live data streams from your car's ECU (Engine Control Unit) is a powerful way to monitor your vehicle's performance and diagnose potential issues. Here's a detailed guide to help you navigate the process, from selecting your vehicle model to interpreting the data.

Step-by-Step Guide

Step 1: Connect Your OBD-II Scanner

1. Locate the OBD-II Port: The OBD-II port is typically found under the dashboard, near the steering column. It's a 16-pin connector where you'll plug in your scanner.
2. Plug in the Scanner: Insert your OBD-II scanner or Bluetooth/WiFi adapter into the port. Ensure it's securely connected.
3. Turn on the Ignition: Turn the key to the "on" position (engine off) or start the engine if required by your scanner.

Step 2: Access Live Data Mode

1. Select Vehicle Model and Year: On your scanner or mobile app, select your vehicle's make, model, and year. This ensures the tool communicates correctly with your car's ECU.
2. Initiate ECU Communication: Navigate to the Live Data or Data Stream option in the scanner’s menu.

- Wait for the scanner to establish communication with the ECU. This might take a few seconds.

Step 3: Select & Monitor Specific Sensors

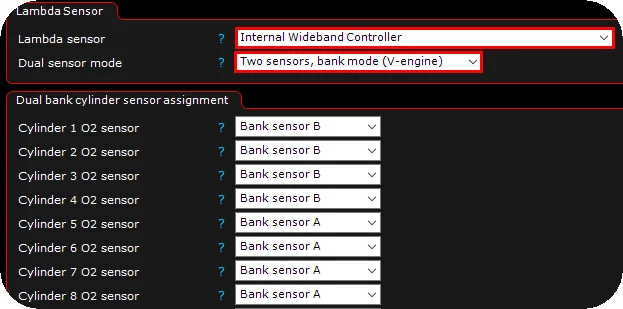

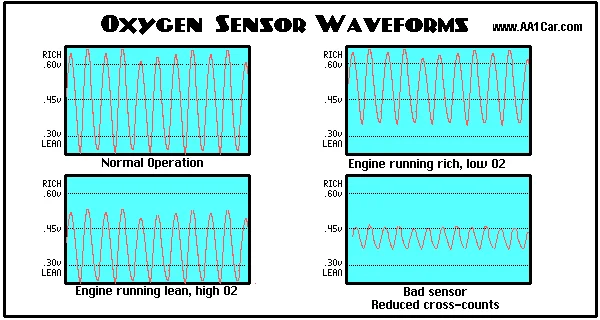

Oxygen (O2) Sensor Data

• O2 Sensor Voltage (O2S B1S1, B1S2, etc.):
• What to Check: Voltage readings should fluctuate between 0.1V and 0.9V under normal operating conditions.
• Interpretation: A steady high (above 0.9V) or low (below 0.1V) voltage may indicate a failing O2 sensor or issues with the fuel mixture.
• Additional Data: Check the Short Term Fuel Trim (STFT) and Long Term Fuel Trim (LTFT) values. These should be close to zero. High positive or negative values suggest the ECU is compensating for a lean or rich fuel mixture.

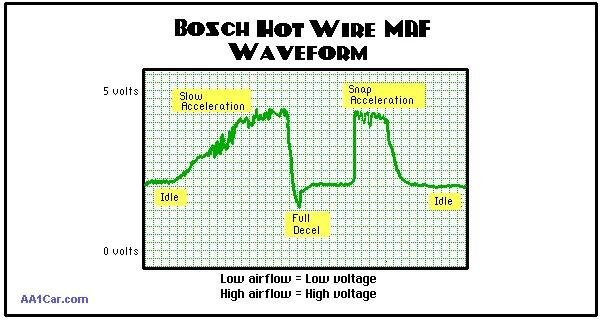

Mass Airflow (MAF) Sensor Data

• What to Check: Readings are typically in grams per second (g/s) or pounds per minute (lb/min).
• Interpretation: Compare the readings to the manufacturer's specifications. Abnormally high or low readings could indicate a dirty MAF sensor, vacuum leaks, or a faulty intake system.
• Additional Data: Monitor the calculated load value. It should align with the MAF sensor readings. Discrepancies may point to sensor issues.

Throttle Position Sensor Data

• What to Check: The sensor should accurately reflect the throttle movement, typically ranging from 0% (closed) to 100% (fully open).
• Interpretation: Ensure the sensor responds smoothly to throttle changes. Erratic readings or a stuck position may indicate a faulty sensor.
• Additional Data: Check the idle air control (IAC) valve position. It should adjust appropriately to maintain idle speed.

Step 4: Interpret Data Trends & Identify Issues

• Normal vs. Abnormal Readings: Familiarize yourself with the typical operating ranges for each sensor. Deviations from these ranges can indicate potential issues.
• Comparing Live Data with Manufacturer Specifications: Refer to your vehicle's repair manual or online resources for specific sensor values. Compare your live data readings to these benchmarks.
• Watching for Irregular Fluctuations: Sensors should provide steady readings under stable conditions. Irregular fluctuations can signal sensor problems or other underlying issues.

Major Default Values

Oxygen Sensor:

• Voltage: 0.1V to 0.9V ( fluctuating)
• STFT/LTFT: Close to 0 (±5%)

Mass Airflow Sensor:

• Readings: Varies by engine size and load, typically 2-10 g/s at idle.
• Calculated Load Value: Should match MAF readings.

Throttle Position Sensor:

• Position: 0% (closed) to 100% (fully open).
• IAC Valve Position: Adjusts to maintain idle speed (varies by vehicle).

Coolant Temperature Sensor:

• What to Check: Temperature readings should stabilize around the thermostat's opening temperature (usually 195°F-225°F or 90°C-107°C).
• Interpretation: Consistently low or high readings may indicate a faulty sensor or thermostat issues.

Knock Sensor:

• What to Check: Detects engine knocking to prevent damage.
• Interpretation: Should trigger retarding of ignition timing when knocking is detected.

By following these detailed steps and understanding the data trends, you can effectively monitor your vehicle's performance and diagnose issues before they become major problems. Happy monitoring!

Common Issues & How to Fix Them

Oxygen Sensor Issues

Symptoms:

• Check Engine Light: Persistently illuminated, indicating a problem with the emissions system.
• Poor Fuel Economy: Noticeable decrease in miles per gallon.
• Rough Idling: Engine runs unevenly when idle.
• Failed Emissions Test: Higher than normal emissions levels detected.
• Reduced Engine Performance: Sluggish acceleration and loss of power.
• Rotten Egg Smell: Sulfur-like odor from the exhaust, indicating a rich fuel mixture.

Solution:

• Cleaning: Sometimes, the sensor can be cleaned to restore functionality.
• Replacement: If cleaning doesn't resolve the issue, replacing the oxygen sensor is necessary.

Mass Airflow (MAF) Sensor Issues

Symptoms:

• Difficulty Starting: Engine struggles to start or turns over multiple times.
• Engine Stalling: Unexpected stalling, especially when idling.
• Hesitation During Acceleration: Delayed response when pressing the accelerator.
• Rich or Lean Fuel Mixture: Engine running too rich (excess fuel) or too lean (insufficient fuel).
• Reduced Fuel Efficiency: Increased fuel consumption without improved performance.
• Erratic Idling: Fluctuating RPMs when the engine is idle.

Solution:

• Cleaning: Use MAF sensor cleaner to remove dirt and contaminants.
• Replacement: If cleaning doesn't help, replace the MAF sensor with a new one.

Throttle Position Sensor (TPS) Issues

Symptoms:

• Unstable Idling: Engine RPMs fluctuate erratically at idle.
• Poor Acceleration: Delayed or weak response when accelerating.
• Unexpected Stalling: Engine stalls unexpectedly, especially at low speeds.
• Check Engine Light: Illuminated due to irregular throttle position readings.
• Reduced Power: Noticeable loss of engine power and responsiveness.
• Intermittent Surges: Sudden, unintended acceleration or surging.

Solution:

• Adjustment: Sometimes, the sensor just needs to be adjusted or recalibrated.
• Replacement: If adjustment doesn't fix the issue, replace the TPS.

Coolant Temperature Sensor Issues

Symptoms:

• Overheating: Engine overheats frequently, even under normal driving conditions.
• Poor Fuel Economy: Increased fuel consumption without explanation.
• Black Exhaust Smoke: Indicates a rich fuel mixture due to incorrect temperature readings.
• Erratic Temperature Gauge: Gauge readings fluctuate or are consistently inaccurate.
• Hard Starting: Difficulty starting the engine, especially when cold.
• Reduced Heater Performance: Insufficient heat from the car's heater.

Solution:

• Testing: Use a multimeter to test the sensor's resistance.
• Replacement: Replace the coolant temperature sensor if it fails the test.

Knock Sensor Issues

Symptoms:

• Pinging or Knocking Noise: Audible engine knocking, especially under load.
• Reduced Performance: Loss of power and acceleration.
• Check Engine Light: Illuminated due to detected engine knocking.
• Engine Damage: Prolonged knocking can lead to serious engine damage.
• Poor Fuel Economy: Increased fuel consumption due to inefficient combustion.
• Rough Idling: Engine runs roughly when idle.

Solution:

• Diagnosis: Use an OBD-II scanner to confirm knock sensor issues.
• Replacement: Replace the knock sensor if it's determined to be faulty.

Tips for Using Live Data for Better Diagnostics

• Cross-Check Data: Compare live data with stored trouble codes (DTCs) for a comprehensive diagnosis.
• Test Drives: Monitor live data during test drives for dynamic readings.

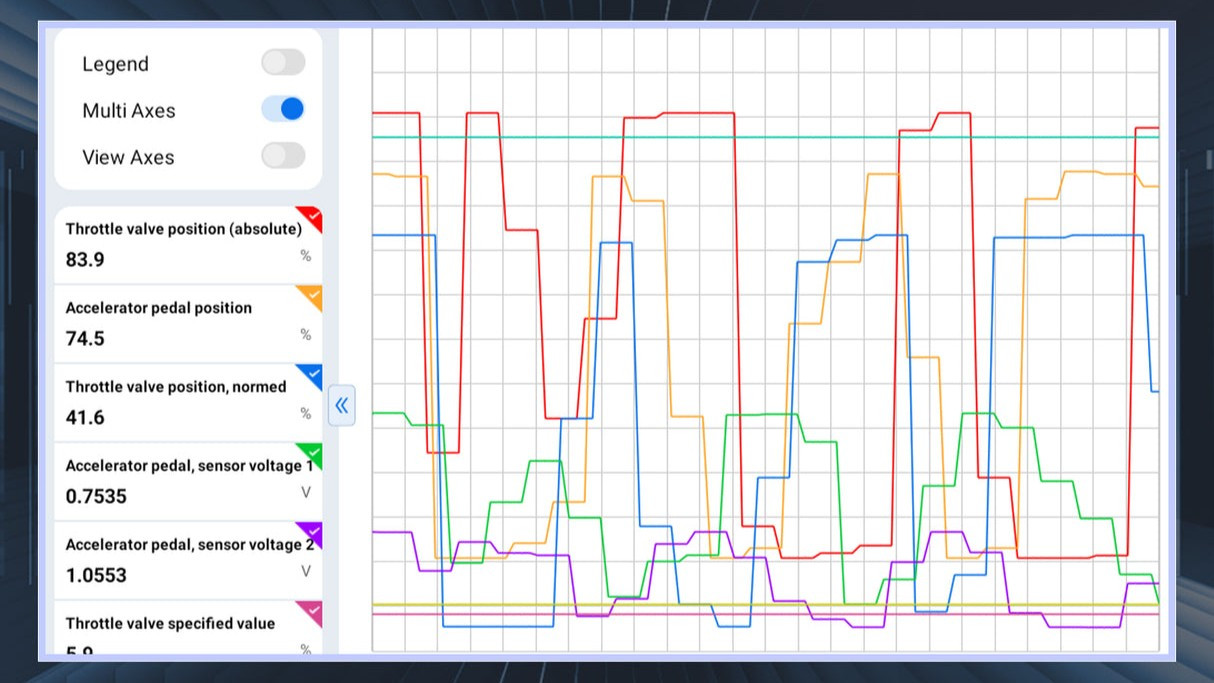

• Graphing Features: Use graphing features in OBD apps to visualize sensor fluctuations.
• Freeze Frame Data: Check conditions when a fault code was triggered.

Conclusion

Understanding live ECU data is a game-changer in car diagnostics. It empowers you to take control of your vehicle's health, making maintenance more proactive and less reactive. So, grab your OBD-II scanner, dive into the data, and become a master of your car's performance!

For beginners, don't be intimidated. Practice and experiment with reading live data. Start with reliable OBD-II scanners and apps, and watch your diagnostic skills soar. Happy monitoring!
