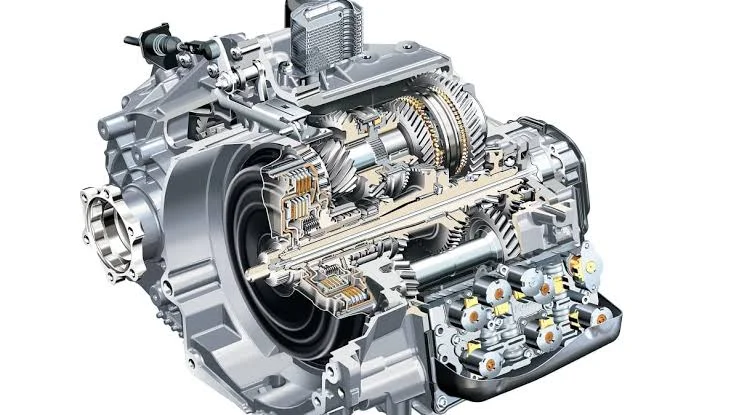

6-Speed DSG Automatic Transmission Common Faults: Causes, Symptoms, and Solutions

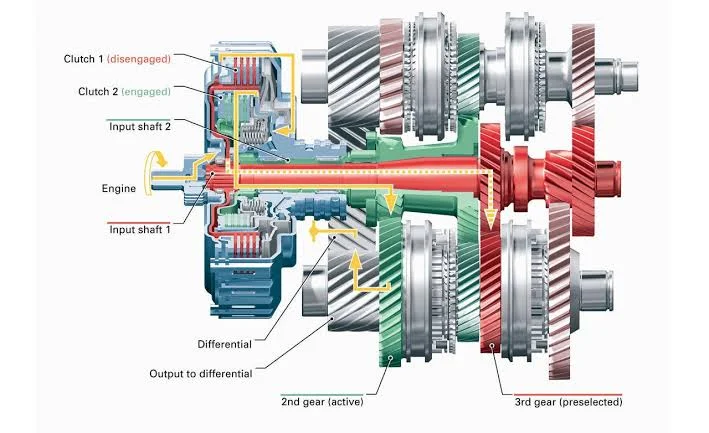

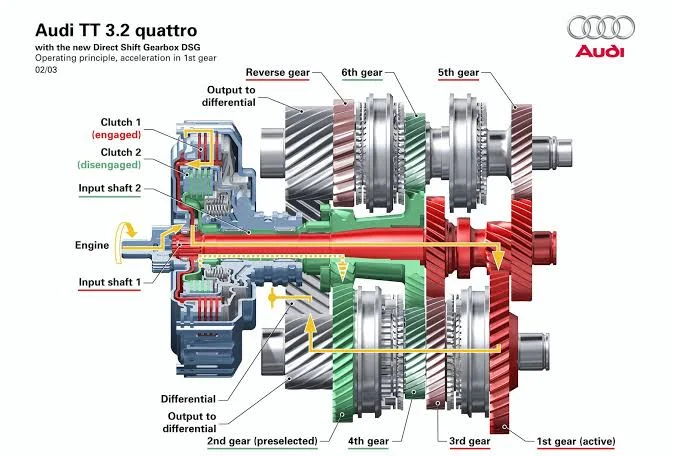

A 6-speed DSG automatic transmission is a type of transmission that uses two clutches to shift gears without interrupting the power flow from the engine. DSG stands for Direct Shift Gearbox, and it is a technology that was developed by Volkswagen Group. A 6-speed DSG automatic transmission can provide faster and smoother shifting, better fuel efficiency, and more driving comfort than a conventional automatic transmission.

However, like any other transmission, a 6-speed DSG automatic transmission can also have some common faults that can affect its performance and reliability. These faults can cause problems such as quivering on engine start, mechatronic failure, noisy bearings, and other related issues. In this article, we will explain the causes, symptoms, and solutions of these common faults in a 6-speed DSG automatic transmission.

Quivering on Engine Start

One of the common faults in a 6-speed DSG automatic transmission is quivering or shuddering on engine start. This is when the vehicle shakes or vibrates when the engine is started and when the vehicle is idling. This can also be accompanied by a loud clattering noise from the transmission.

The main cause of this fault is a problem with the dual-mass flywheel, which is a part that connects the engine and the transmission. The dual-mass flywheel consists of two plates that can move slightly in relation to each other. This provides a cushioning effect when the torque is transferred from the engine to the transmission. However, over time, the dual-mass flywheel can wear out or get damaged, causing the plates to lose their alignment and balance. This can create excessive vibration and noise in the transmission.

The symptoms of this fault are:

1. Quivering or shuddering on engine start and idle
2. Loud clattering noise from the transmission
3. Reduced engine performance and fuel economy
4. Difficulty shifting gears

The solution for this fault is to replace the dual-mass flywheel with a new one or with a single-mass flywheel, which is a simpler and more durable alternative. However, this can be a costly and complicated procedure, as it requires removing the transmission from the vehicle and disassembling it. Therefore, it is advisable to consult a professional mechanic before attempting this repair.

Mechatronic Failure

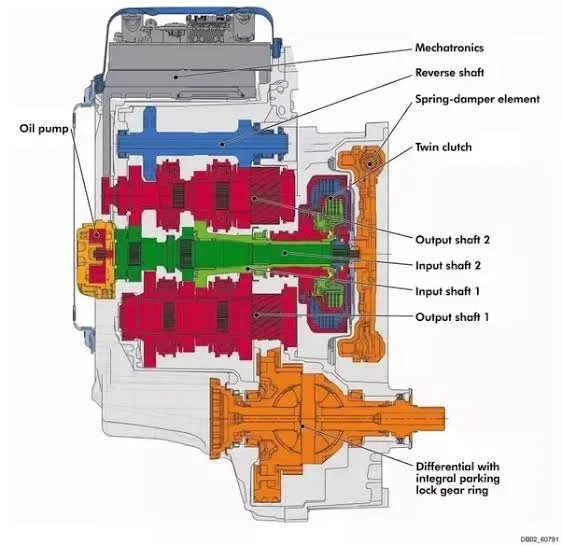

Another common fault in a 6-speed DSG automatic transmission is mechatronic failure. This is when the mechatronic unit, which is the electronic control module of the transmission, fails or malfunctions. The mechatronic unit is responsible for controlling the clutches, the gears, and the valves in the transmission. It uses sensors and actuators to monitor and adjust the transmission parameters, such as the crank angle, the engine speed, the road speed, the accelerator position, and the driving mode. The mechatronic unit also communicates with the engine control unit (ECU) to optimize the engine timing and performance.

The main cause of this fault is a problem with the wiring, the connectors, the software, or the hardware of the mechatronic unit. This can be due to various reasons, such as wear and tear, corrosion, dirt, moisture, heat, vibration, or electrical interference. A faulty mechatronic unit can produce inaccurate or erratic signals, which can confuse the ECU and affect the transmission operation.

The symptoms of this fault are:

1. Check engine light or transmission warning light on the dashboard
2. Error code stored in the ECU memory
3. Poor transmission performance and fuel economy
4. Delayed, harsh, or erratic shifting
5. Loss of power or acceleration
6. Transmission stuck in one gear or in neutral
7. Transmission not engaging or disengaging

The solution for this fault is to diagnose and repair the mechatronic unit or to replace it with a new one. This can be done by using a scan tool or a code reader to read the error code and to identify the source of the problem. Depending on the severity of the problem, the mechatronic unit may need to be reprogrammed, recalibrated, cleaned, or replaced. This can be a relatively simple or a very complex procedure, depending on the type and design of the mechatronic unit. Therefore, it is advisable to consult a professional mechanic before attempting this repair.

Noisy Bearings

A third common fault in a 6-speed DSG automatic transmission is noisy bearings. This is when the bearings, which are the parts that support and reduce the friction between the rotating shafts and gears in the transmission, become noisy or damaged. The bearings can be located in different parts of the transmission, such as the input shaft, the output shaft, the layshaft, or the differential.

The main cause of this fault is a problem with the lubrication, the alignment, or the wear of the bearings. This can be due to various reasons, such as low or contaminated transmission fluid, improper installation or adjustment, excessive load or speed, or lack of maintenance. A faulty bearing can produce a grinding, whining, or humming noise in the transmission.

The symptoms of this fault are:

1. Noisy transmission, especially when accelerating, decelerating, or changing gears
2. Reduced transmission performance and fuel economy
3. Difficulty shifting gears
4. Transmission overheating or leaking

The solution for this fault is to replace the noisy or damaged bearing with a new one. This can be a challenging and time-consuming procedure, as it requires removing the transmission from the vehicle and disassembling it. It also requires using special tools and techniques to remove and install the bearing without damaging the shaft or the gear. Therefore, it is advisable to consult a professional mechanic before attempting this repair.

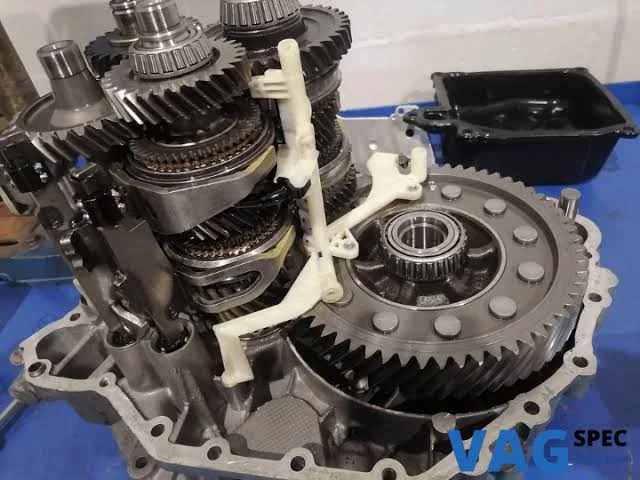

Other Related Problems

Besides the three common faults mentioned above, there are other possible problems that can occur in a 6-speed DSG automatic transmission, such as:

1. Clutch wear or failure: This is when the clutches, which are the parts that engage and disengage the gears in the transmission, wear out or fail. This can cause slipping, shuddering, or jerking in the transmission.
2. Gear wear or failure: This is when the gears, which are the parts that transfer the torque and the speed in the transmission, wear out or fail. This can cause grinding, whining, or humming in the transmission.
3. Valve body wear or failure: This is when the valve body, which is the part that controls the hydraulic pressure and the fluid flow in the transmission, wears out or fails. This can cause delayed, harsh, or erratic shifting in the transmission.
4. Solenoid wear or failure: This is when the solenoids, which are the parts that actuate the valves in the valve body, wear out or fail. This can cause delayed, harsh, or erratic shifting in the transmission.

How to Prevent These Faults from Happening

To prevent these faults from happening in your 6-speed DSG automatic transmission, you should follow these tips:

• Check and change the transmission fluid regularly, according to the manufacturer’s recommendations. The transmission fluid is the lifeblood of the transmission, as it lubricates, cools, and cleans the transmission components. You should use the correct type and amount of transmission fluid for your vehicle and your transmission. You should also check the transmission fluid level and condition regularly, and look for any signs of contamination, leakage, or overheating.
• Perform regular transmission maintenance and service, according to the manufacturer’s recommendations. The transmission maintenance and service can include inspecting, adjusting, cleaning, or replacing the transmission components, such as the clutches, the gears, the bearings, the mechatronic unit, the valve body, the solenoids, and the filters. You should follow the maintenance schedule and the service procedures for your vehicle and your transmission. You should also use the proper tools and techniques to perform the maintenance and service.
• Drive your vehicle carefully and smoothly, avoiding sudden or aggressive acceleration, deceleration, or braking. You should also avoid overloading or towing your vehicle beyond its capacity. You should also avoid driving your vehicle in extreme or harsh conditions, such as high or low temperatures, high altitudes, or rough terrains. These driving habits can reduce the stress and the wear on the transmission components, and extend the life of the transmission.

Conclusion

A 6-speed DSG automatic transmission is atype of transmission that uses two clutches to shift gears without interrupting the power flow from the engine. It can provide faster and smoother shifting, better fuel efficiency, and more driving comfort than a conventional automatic transmission. However, it can also have some common faults that can affect its performance and reliability, such as quivering on engine start, mechatronic failure, noisy bearings, and other related problems. These faults can cause problems such as poor engine performance, reduced power, increased fuel consumption, and increased emission. They can also damage the transmission and the engine, and lead to costly and complicated repairs.

Therefore, it is important to know about these common faults in a 6-speed DSG automatic transmission, and how to prevent, diagnose, and fix them. By following the tips and advice in this article, you can ensure the proper functioning and maintenance of your 6-speed DSG automatic transmission, and extend its life and performance. You can also avoid the frustration and inconvenience of having a faulty transmission, and enjoy the benefits of having a smooth and efficient transmission.
