P0100 - MAF Sensor Circuit Insufficient Activity

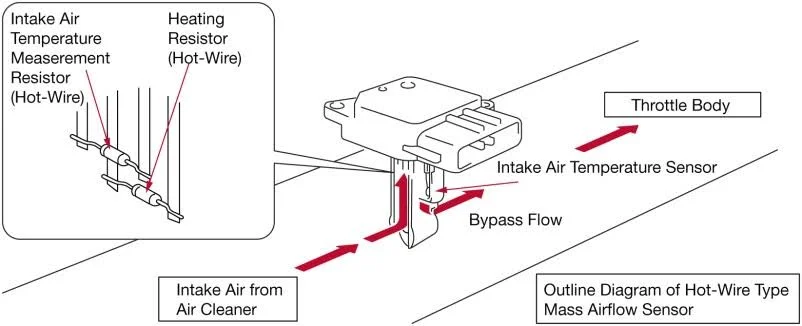

You probably know that an engine has a lot of sensors that monitor its performance and emissions. One of these sensors is the mass air flow (MAF) sensor, which measures the amount of air entering the engine. The MAF sensor helps the engine control unit (ECU) adjust the fuel injection and ignition timing to optimize the engine’s efficiency and power.

But what happens if the MAF sensor malfunctions? How do you know if your car has a problem with the MAF sensor? And how do you fix it? In this article, we will answer these questions and more. We will explain what DTC P0100 is, what causes it, what the symptoms are, how to diagnose it, how to repair it, and how to prevent it from happening again.

What is DTC P0100?

DTC P0100 is a diagnostic trouble code that indicates a problem with the MAF sensor circuit. DTC stands for diagnostic trouble code, which is a code that the ECU generates when it detects a fault in the car’s system. The ECU stores the code in its memory and turns on the check engine light to alert the driver.

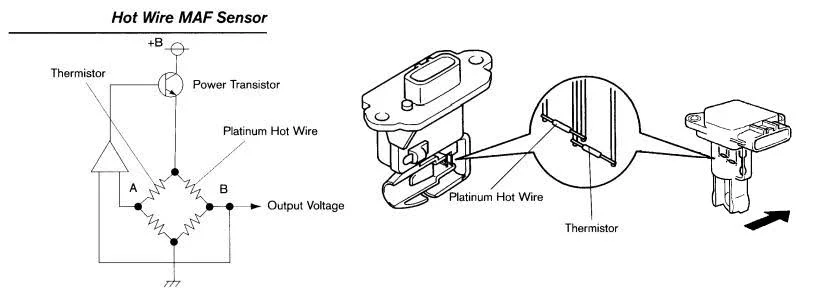

The MAF sensor circuit consists of the MAF sensor itself, the MAF sensor connector, and the MAF sensor wiring. The MAF sensor circuit sends a signal to the ECU that reflects the amount of air flowing into the engine. The ECU uses this signal to calculate the optimal air-fuel ratio for the engine.

DTC P0100 means that the MAF sensor circuit has insufficient activity. This means that the signal from the MAF sensor circuit is too low or too erratic for the ECU to use. This can cause the ECU to use a default or incorrect air-fuel ratio, which can affect the engine’s performance and emissions.

What causes DTC P0100?

There are several possible causes of DTC P0100. Some of the most common ones are:

1. Dirty or damaged MAF sensor: The MAF sensor can get dirty or damaged by dust, dirt, oil, water, or debris. This can interfere with the sensor’s ability to measure the air flow accurately. A dirty or damaged MAF sensor can also cause the sensor to send a weak or inconsistent signal to the ECU.
2. Loose or corroded MAF sensor connector: The MAF sensor connector is the part that connects the MAF sensor to the wiring harness. If the connector is loose or corroded, it can cause a poor or intermittent connection between the sensor and the ECU. This can result in a low or erratic signal from the MAF sensor circuit.
3. Faulty MAF sensor wiring: The MAF sensor wiring is the part that carries the signal from the MAF sensor to the ECU. If the wiring is faulty, it can cause a short circuit, an open circuit, or a high resistance in the MAF sensor circuit. This can affect the quality and strength of the signal from the MAF sensor circuit.
4. Engine vacuum leak: An engine vacuum leak is a condition where air leaks into the engine through a crack or a hole in the intake manifold, the throttle body, the vacuum hoses, or the gaskets. This can cause the engine to suck in more air than the MAF sensor can measure, which can create a discrepancy between the actual and the expected air flow. This can make the ECU think that the MAF sensor circuit is not working properly.
5. Faulty ECU: The ECU is the computer that controls the engine’s functions. If the ECU is faulty, it can cause the ECU to misinterpret the signal from the MAF sensor circuit or to send a wrong signal to the MAF sensor circuit. This can cause the ECU to generate DTC P0100 even if the MAF sensor circuit is working fine.

What are the symptoms of DTC P0100?

DTC P0100 can cause various symptoms that affect the engine’s performance and emissions. Some of the most common symptoms are:

• Rough idle: A rough idle is when the engine runs unevenly or shakes at low speeds. This can happen because the ECU cannot adjust the fuel injection and ignition timing properly due to the faulty MAF sensor circuit. A rough idle can also cause the engine to stall or hesitate when accelerating.
• Hesitation or stalling: Hesitation or stalling is when the engine does not respond smoothly or quickly to the driver’s input. This can happen because the ECU cannot provide the right amount of fuel and air to the engine due to the faulty MAF sensor circuit. Hesitation or stalling can also cause the engine to lose power or to backfire.
• Increased fuel consumption: Increased fuel consumption is when the engine uses more fuel than normal. This can happen because the ECU cannot optimize the air-fuel ratio for the engine due to the faulty MAF sensor circuit. Increased fuel consumption can also cause the engine to emit more pollutants and to damage the catalytic converter.
• Poor fuel economy: Poor fuel economy is when the engine does not get the best mileage out of the fuel. This can happen because the ECU cannot optimize the engine’s efficiency and power due to the faulty MAF sensor circuit. Poor fuel economy can also cause the driver to spend more money on gas and to contribute to environmental problems.
• Check engine light illuminated: The check engine light is a warning light that indicates a problem with the car’s system. The check engine light can illuminate when the ECU detects DTC P0100 and stores it in its memory. The check engine light can also flash or blink when the problem is severe or urgent.

How to diagnose DTC P0100?

To diagnose DTC P0100, you will need a scan tool, a visual inspection, a smoke test, and an ohmmeter. Here are the steps to follow:

1. Scan tool: A scan tool is a device that can read and clear the codes from the ECU’s memory. To use a scan tool, you need to connect it to the car’s diagnostic port, which is usually located under the dashboard. Then, you need to turn on the ignition and follow the instructions on the scan tool’s screen. The scan tool will display the code and its description, such as DTC P0100 - MAF Sensor Circuit Insufficient Activity. You can also use the scan tool to monitor the live data from the MAF sensor circuit, such as the voltage, frequency, and grams per second. This can help you determine if the MAF sensor circuit is working properly or not.

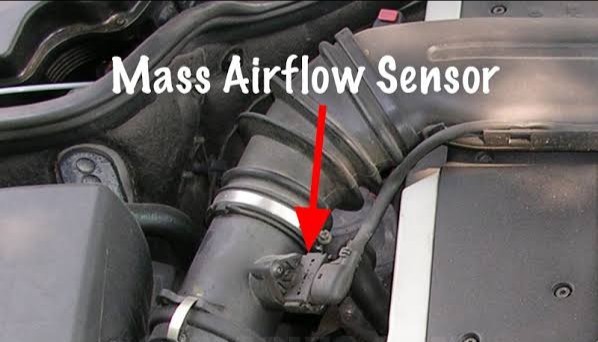

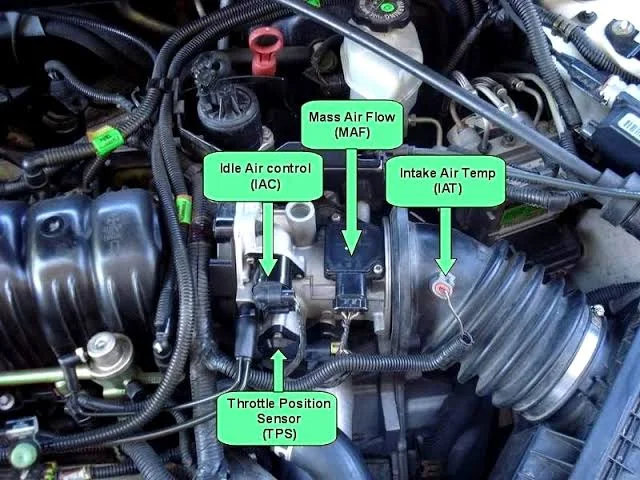

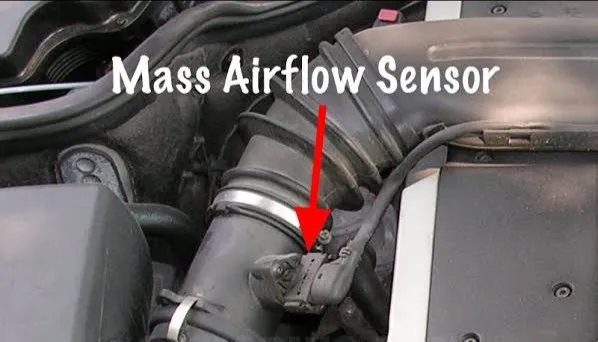

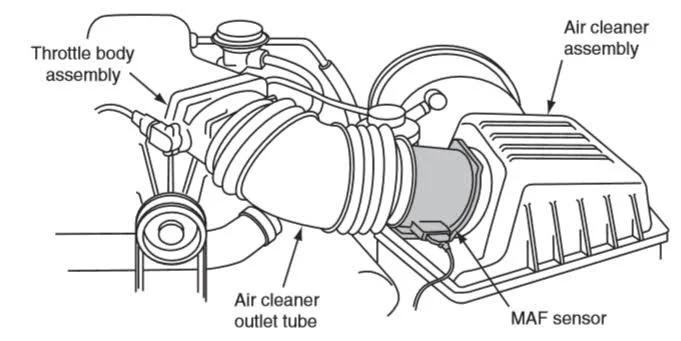

2. Visual inspection: A visual inspection is when you look at the MAF sensor and its components for any signs of damage or wear. To do a visual inspection, you need to locate the MAF sensor, which is usually mounted on the air intake duct between the air filter and the throttle body. Then, you need to disconnect the MAF sensor connector and inspect the MAF sensor and the connector for any dirt, debris, corrosion, or damage. You also need to inspect the MAF sensor wiring for any cuts, cracks, or burns. If you find any problems, you need to clean or replace the affected parts.
3. Smoke test: A smoke test is when you use a smoke machine to check for any vacuum leaks in the engine. To do a smoke test, you need to connect the smoke machine to a vacuum source, such as the brake booster hose. Then, you need to turn on the smoke machine and look for any smoke escaping from the engine. If you see any smoke, you need to locate the source of the leak and repair it.

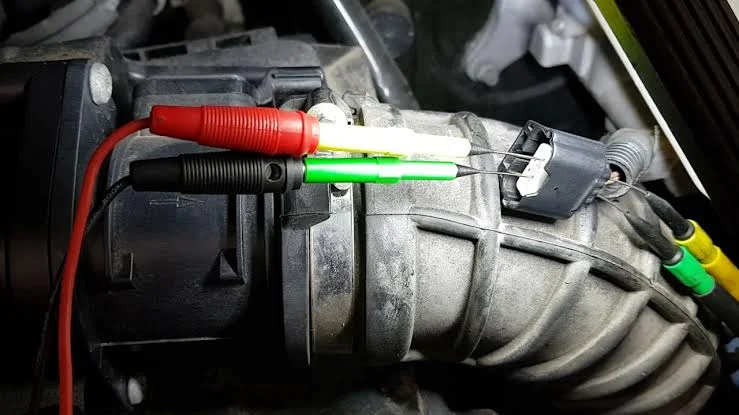

4. Ohmmeter: An ohmmeter is a device that can measure the electrical resistance of a circuit. To use an ohmmeter, you need to disconnect the MAF sensor connector and the ECU connector. Then, you need to set the ohmmeter to the appropriate range and touch the probes to the terminals of the MAF sensor and the wiring. You need to compare the readings with the specifications from the manufacturer. If the readings are out of range, you need to replace the MAF sensor or the wiring.

How to repair DTC P0100?

To repair DTC P0100, you will need to fix the cause of the problem. Depending on the diagnosis, you may need to do one or more of the following:

1. Clean or replace the MAF sensor: To clean the MAF sensor, you need to spray it with a MAF sensor cleaner or a contact cleaner. You need to avoid touching the sensor’s wires or elements, as they are very delicate. You need to let the sensor dry completely before reinstalling it. To replace the MAF sensor, you need to disconnect the MAF sensor connector and remove the screws or clamps that hold the sensor in place. Then, you need to install the new sensor and reconnect the connector. You need to make sure that the sensor is properly aligned and secured.
2. Repair or replace the MAF sensor connector: To repair the MAF sensor connector, you need to clean it with a contact cleaner or a wire brush. You need to make sure that the pins are not bent or broken.  You also need to apply some dielectric grease to the connector to prevent corrosion. To replace the MAF sensor connector, you need to cut off the old connector and splice in a new one. You need to use the correct wire colors and crimp or solder the connections. You also need to wrap the wires with electrical tape or heat shrink tubing to protect them.
3. Repair or replace the MAF sensor wiring: To repair the MAF sensor wiring, you need to locate the damaged section and cut it out. Then, you need to splice in a new section of wire with the same gauge and color. You need to use crimp or solder connectors to join the wires. You also need to wrap the wires with electrical tape or heat shrink tubing to protect them. To replace the MAF sensor wiring, you need to disconnect the MAF sensor connector and the ECU connector. Then, you need to remove the old wiring harness and install the new one. You need to make sure that the wiring is routed correctly and securely.

4. Repair or replace the engine vacuum leak: To repair the engine vacuum leak, you need to seal the crack or hole with a suitable material, such as epoxy, silicone, or gasket maker. You need to follow the instructions on the product’s label and let it cure properly before starting the engine. To replace the engine vacuum leak, you need to disconnect the vacuum hose or component that is leaking and install a new one. You need to make sure that the vacuum hose or component is compatible with your car’s model and year.
5. Repair or replace the ECU: To repair the ECU, you need to take it to a professional mechanic or an authorized dealer. They will use a specialized device to reprogram or reset the ECU. This can fix some of the software glitches or errors that cause the ECU to malfunction. To replace the ECU, you need to disconnect the ECU connector and remove the ECU from its location. Then, you need to install the new ECU and reconnect the connector. You need to make sure that the new ECU is compatible with your car’s model and year.

How to prevent DTC P0100 from happening again?

To prevent DTC P0100 from happening again, you need to maintain your car’s MAF sensor and engine regularly. Here are some tips to follow:

• Regularly clean the MAF sensor: You should clean the MAF sensor at least once a year or every 15,000 miles, whichever comes first.  You can use a MAF sensor cleaner or a contact cleaner to spray the sensor and remove any dirt or debris. You should avoid touching the sensor’s wires or elements, as they are very delicate. You should let the sensor dry completely before reinstalling it.
• Inspect the MAF sensor connector and wiring for damage: You should inspect the MAF sensor connector and wiring for any signs of corrosion, wear, or damage every time you clean the MAF sensor. You should also check the connector and wiring for any loose or poor connections. You should clean or replace the connector and wiring if you find any problems.

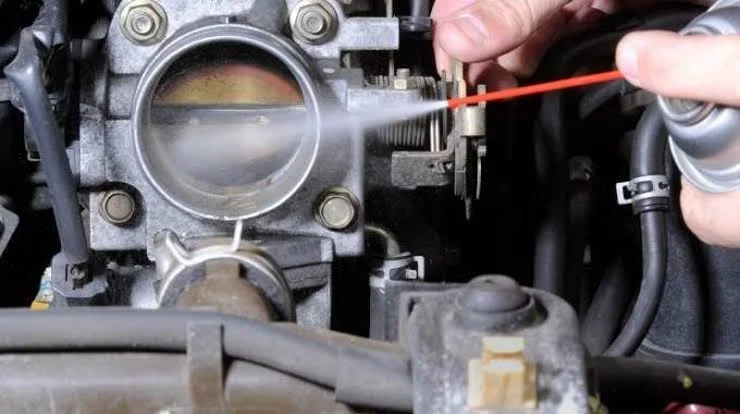

• Check for engine vacuum leaks: You should check for engine vacuum leaks at least once a year or every 15,000 miles, whichever comes first. You can use a smoke machine or a vacuum gauge to test for any leaks in the intake manifold, the throttle body, the vacuum hoses, or the gaskets. You should repair or replace any parts that are leaking.
• Replace the MAF sensor when necessary: You should replace the MAF sensor when it is worn out or damaged beyond repair. You can use a scan tool or an ohmmeter to test the MAF sensor’s functionality and resistance. You should follow the manufacturer’s recommendations on when to replace the MAF sensor.

What to do if you have DTC P0100?

If you have DTC P0100, you should not ignore it or delay fixing it. DTC P0100 can cause serious problems for your engine and your car. It can affect your car’s performance, fuel economy, emissions, and safety. It can also damage other parts of your car, such as the catalytic converter, the oxygen sensor, or the spark plugs.

Therefore, you should take action as soon as possible to diagnose and repair DTC P0100. You can use the steps and tips we have provided in this article to help you with the process. You can also consult a professional mechanic or an authorized dealer if you need more assistance or advice.
