How Your Braking System Works and How to Keep It Safe

When you think of vehicle safety, you might think of seat belts, airbags, or headlights. But there is another important safety feature that often goes unnoticed: the braking system. The braking system is what allows you to slow down or stop your vehicle when you need to. Without a properly functioning braking system, you could be putting yourself and others at risk of accidents.

In this article, we will explain what a braking system is, how it works, and how to maintain it.

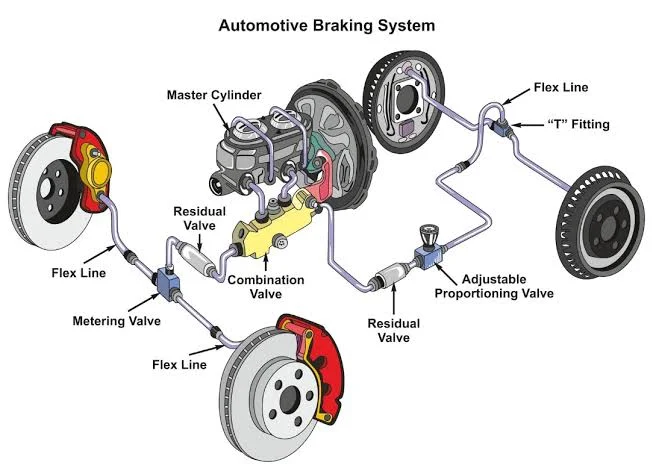

What is a braking system?

A braking system is a set of components that work together to apply friction to the wheels of a vehicle, reducing its speed or bringing it to a halt. The braking system consists of two main parts: the brake pedal and the brake assembly. The brake pedal is what you press with your foot to activate the brakes. The brake assembly is what converts the force of your foot into hydraulic pressure that applies the brakes to the wheels.

How does a braking system work?

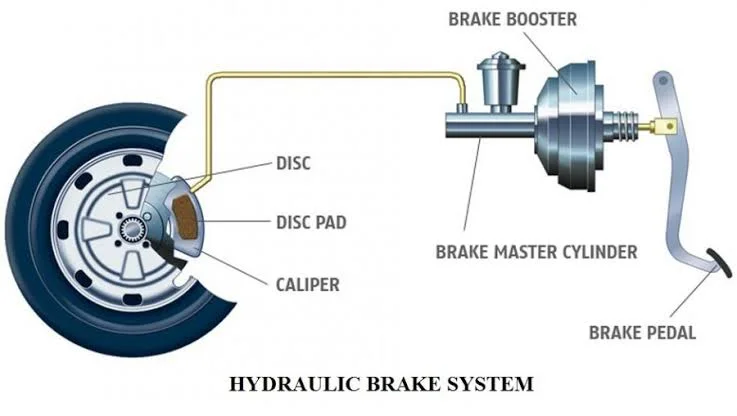

When you press the brake pedal, a piston in the master cylinder pushes brake fluid through the brake lines to the brake calipers. The brake calipers are devices that clamp onto the brake pads, which are attached to the brake rotors or drums. The brake rotors or drums are metal discs or cylinders that rotate with the wheels. The friction between the brake pads and the brake rotors or drums slows down or stops the rotation of the wheels, thus slowing down or stopping the vehicle.

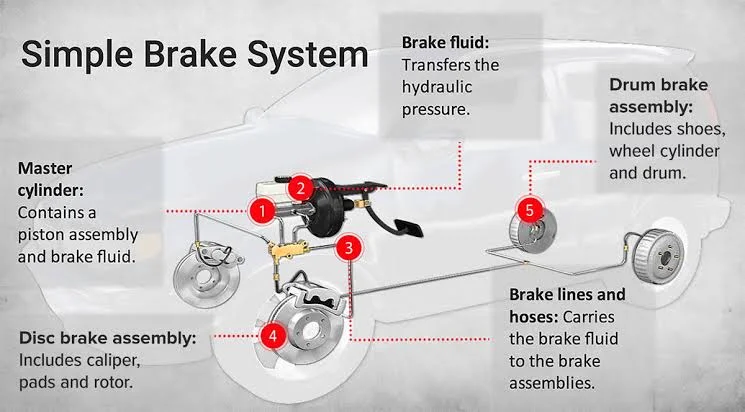

Components of a braking system

The braking system has several components that work together to provide effective braking performance. Here are some of the main components of a braking system:

• Master cylinder: The master cylinder is a device that generates hydraulic pressure when you press the brake pedal. It has a reservoir that holds brake fluid and a piston that pushes the fluid through the brake lines.
• Brake booster: The brake booster is a device that amplifies the force of your foot on the brake pedal. It uses vacuum pressure from the engine or an electric pump to assist the master cylinder.
• Brake lines: The brake lines are tubes that carry brake fluid from the master cylinder to the brake calipers. They are made of metal or rubber and have fittings that connect them to other components.
• Brake calipers: The brake calipers are devices that squeeze the brake pads against the brake rotors or drums. They have pistons that move in response to the hydraulic pressure from the brake lines.
• Brake pads: The brake pads are pieces of material that create friction with the brake rotors or drums. They are made of metal, ceramic, or organic compounds and have a backing plate that attaches them to the brake calipers.
• Brake rotors or drums: The brake rotors or drums are metal discs or cylinders that spin with the wheels. They have a smooth or grooved surface that contacts the brake pads.

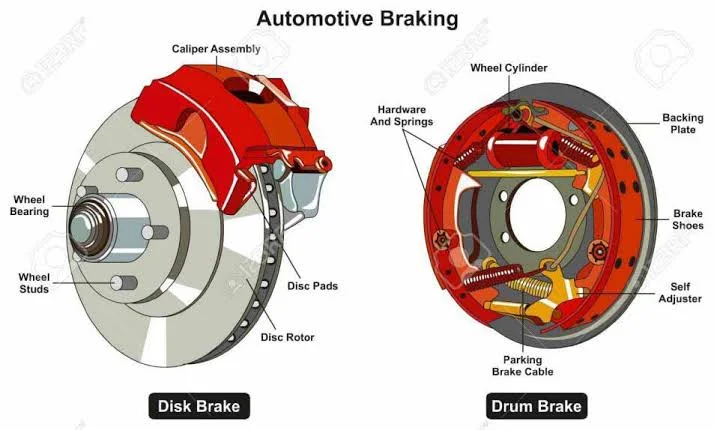

Types of braking systems

There are different types of braking systems that use different mechanisms to apply brakes to the wheels. Here are some of the common types of braking systems:

1. Disc brakes: Disc brakes use brake rotors and calipers to create friction with the wheels. Disc brakes are more effective than drum brakes because they dissipate heat better and have less fade (loss of braking power due to overheating). Disc brakes are usually found on the front wheels of most vehicles and sometimes on all four wheels.
2. Drum brakes: Drum brakes use brake drums and shoes to create friction with the wheels. Drum brakes are cheaper and simpler than disc brakes but have more fade and require more maintenance. Drum brakes are usually found on the rear wheels of older vehicles and some trucks.

How to maintain your braking system

The braking system is one of the most important parts of your vehicle, so it is essential to keep it in good condition. Here are some tips on how to maintain your braking system:

• Regular brake pad inspection and replacement: Brake pads wear out over time due to friction and need to be replaced periodically. You should inspect your brake pads every 10,000 miles or whenever you hear squealing, grinding, or clicking noises when braking. You should replace your brake pads when they are less than 1/4 inch thick or when they show signs of cracking, glazing, or uneven wear.

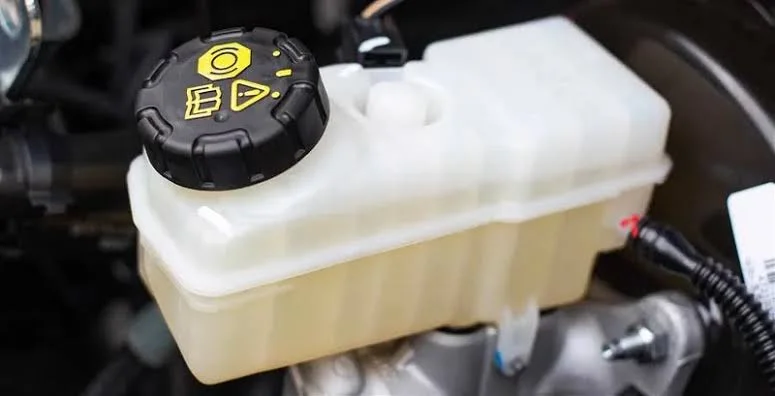

• Brake fluid flush: Brake fluid is a liquid that transfers hydraulic pressure from the master cylinder to the brake calipers. Brake fluid can degrade over time due to moisture, dirt, or heat and lose its effectiveness. You should flush your brake fluid every two years or 30,000 miles or whenever you notice a change in the color, consistency, or level of the fluid.
• Brake rotor or drum resurfacing or replacement: Brake rotors or drums can warp, crack, or wear out due to friction and heat and cause vibration, noise, or reduced braking performance. You should resurface or replace your brake rotors or drums every 50,000 miles or whenever you feel pulsation, wobbling, or shaking when braking.

Signs of a brake problem

The braking system is a complex system that can develop various problems over time. Some of the common signs of a brake problem are:

• Grinding or squealing noises when braking: These noises indicate that your brake pads are worn out and need to be replaced. They can also indicate that your brake rotors or drums are damaged and need to be resurfaced or replaced.
• Vibration when braking: This indicates that your brake rotors or drums are warped and need to be resurfaced or replaced. It can also indicate that your wheels are out of balance or alignment and need to be adjusted.
• Soft or spongy brake pedal: This indicates that there is air in your brake lines and you need to bleed your brakes. It can also indicate that your brake fluid is low or contaminated and you need to flush your brake fluid.
• Pulling to one side when braking: This indicates that your brake pads are unevenly worn or that your brake calipers are sticking and need to be cleaned or replaced. It can also indicate that your tires are unevenly inflated or worn and need to be checked.

Common brake problems

The braking system can encounter various problems that affect its performance and safety. Some of the common brake problems are:

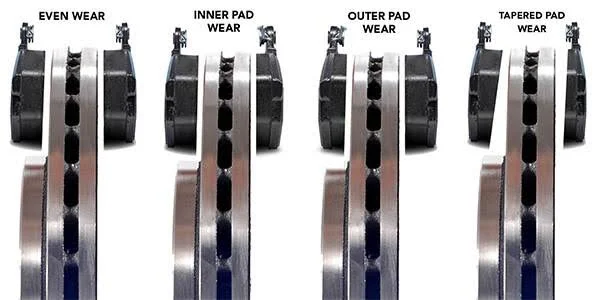

• Brake pad wear: Brake pad wear is the most common brake problem that occurs due to friction and use. Brake pad wear reduces the effectiveness of the brakes and increases the stopping distance. Brake pad wear can also cause damage to the brake rotors or drums if left unchecked.
• Warped rotors or drums: Warped rotors or drums are another common brake problem that occurs due to heat and stress. Warped rotors or drums cause vibration, noise, and uneven braking.  Warped rotors or drums can also damage the brake pads and calipers if left unchecked.
• Leaking brake fluid: Leaking brake fluid is a serious brake problem that occurs due to cracks, corrosion, or loose connections in the brake lines, master cylinder, or calipers. Leaking brake fluid reduces the hydraulic pressure in the braking system and causes a soft or spongy brake pedal. Leaking brake fluid can also cause fire hazards if it comes into contact with hot surfaces.
• Faulty brake calipers: Faulty brake calipers are a rare but dangerous brake problem that occurs due to dirt, rust, or wear in the pistons, seals, or valves of the calipers. Faulty brake calipers cause uneven braking, pulling, or dragging of the wheels. Faulty brake calipers can also cause overheating, smoke, or fire if left unchecked.

The importance of brake safety

Brakes are one of the most important safety features on a vehicle. Properly maintained brakes can help to prevent accidents by allowing you to control your speed and stop your vehicle in time. Brakes can also help you avoid collisions with other vehicles, pedestrians, animals, or objects on the road. Brakes can also help you maneuver your vehicle in emergency situations such as avoiding obstacles, skidding, hydroplaning, or losing traction.

Tips for safe braking

Braking is not just about pressing the pedal; it is also about knowing how and when to use it. Here are some tips for safe braking:

1. Allow plenty of following distance: You should keep a safe distance between you and the vehicle in front of you to give yourself enough time and space to stop if needed. The recommended following distance is at least three seconds in normal conditions and more in bad weather, heavy traffic, or low visibility.
2. Brake smoothly and gradually: You should apply steady and gentle pressure on the brake pedal to slow down or stop your vehicle smoothly and gradually. This will help you avoid jerking, skidding, or locking up your wheels. It will also help you save fuel and reduce wear and tear on your brakes.
3. Avoid slamming on the brakes: You should avoid slamming on the brakes unless it is absolutely necessary to avoid a collision. Slamming on the brakes can cause your wheels to lock up and lose traction, making you lose control of your vehicle. Slamming on the brakes can also damage your brakes and tires.
4. Be aware of your surroundings: You should always be alert and aware of your surroundings when driving and braking. You should pay attention to the road conditions, traffic signals, signs, speed limits, pedestrians, animals, and other vehicles on the road. You should also anticipate potential hazards and adjust your speed and braking accordingly.

Conclusion

The braking system is a vital component of vehicle safety. It allows you to slow down or stop your vehicle when you need to. By understanding how the braking system works and properly maintaining it, you can help to ensure that your vehicle is safe to drive. You can also improve your braking skills by following some simple tips for safe braking. Remember, the braking system is the unsung hero of vehicle safety, so don’t neglect it.
