Air Suspension: Comprehensive Guide to Types, Benefits, and Maintenance

Air suspension is a type of vehicle suspension that uses air instead of metal springs to support the weight of the vehicle and absorb shocks from the road. Air suspension has been around since the early 1900s, but it became more popular in recent years due to its many advantages over conventional suspension systems.

In this article, we will explain what air suspension is, how it works, what are its benefits, and how to maintain it properly. We will also compare air suspension with other types of suspension, such as coil springs and hydraulic suspension. Finally, we will answer some frequently asked questions about air suspension.

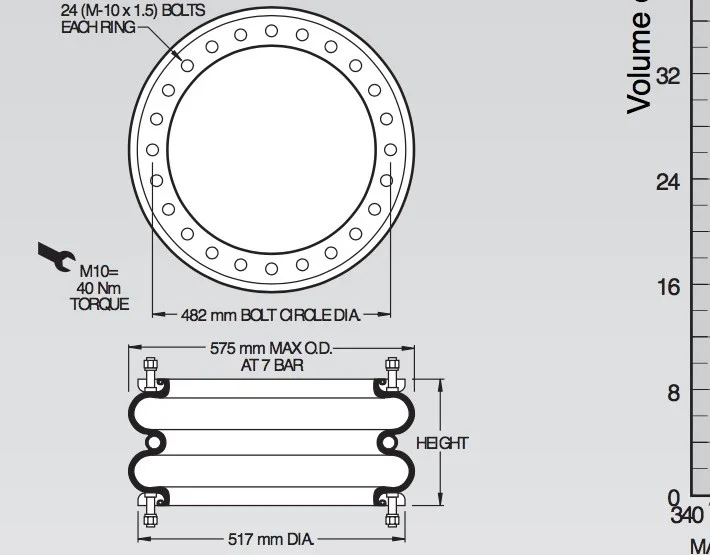

What is air suspension?

Air suspension is a system that uses compressed air to inflate or deflate rubber bags called air springs or air struts. These air springs or struts are attached to the wheels of the vehicle and act as cushions between the vehicle and the road.

The amount of air in the air springs or struts can be adjusted by an electronic control unit (ECU) that receives signals from sensors on the vehicle. The ECU can change the air pressure according to the driving conditions, such as speed, load, terrain, and driver preference.

There are different types of air suspension systems, depending on how many air springs or struts are used and how they are connected. The most common types are:

1. Single convolution: This type uses one air spring or strut per wheel. It is simple and cheap, but it has limited load carrying capacity and ride height adjustment.
2. Double convolution: This type uses two air springs or struts per wheel. It has more load carrying capacity and ride height adjustment than single convolution, but it is more complex and expensive.
3. Triple convolution: This type uses three air springs or struts per wheel. It has the highest load carrying capacity and ride height adjustment, but it is also the most complex and expensive.

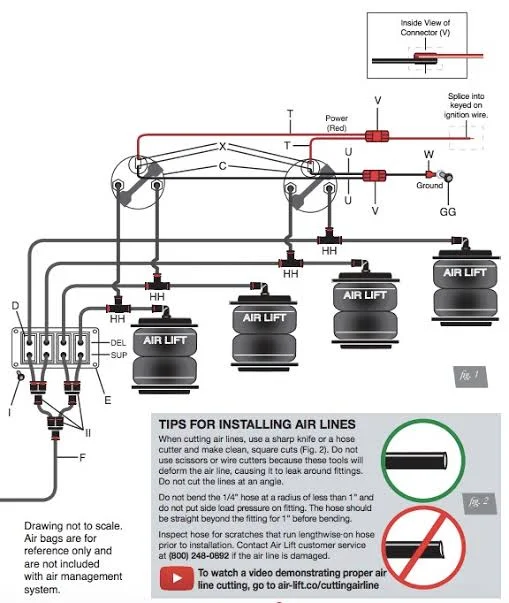

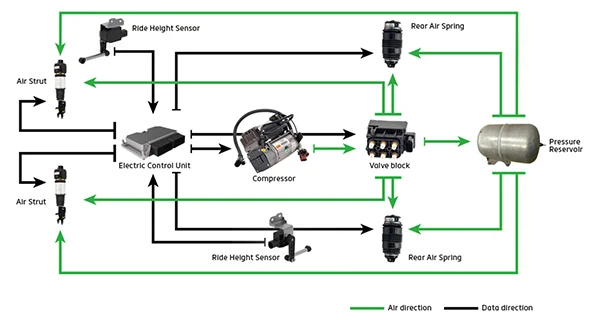

The main components of an air suspension system are:

• Air compressor: This is a device that compresses air and sends it to the air tank.
• Air tank: This is a container that stores compressed air for later use.
• Air springs or struts: These are rubber bags that inflate or deflate with air to support the vehicle and absorb shocks.
• Air lines: These are tubes that connect the air compressor, air tank, and air springs or struts.
• ECU: This is a computer that controls the air pressure in the air springs or struts based on sensor inputs.
• Sensors: These are devices that measure various parameters of the vehicle, such as speed, load, height, and angle.

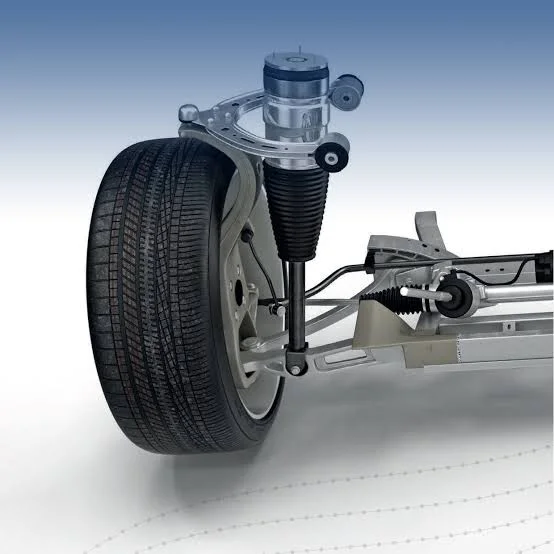

Benefits of air suspension

Air suspension has many benefits over conventional suspension systems, such as:

• Improved ride comfort and handling: Air suspension can adjust the stiffness and damping of the air springs or struts according to the road conditions and driver preference. This can improve the ride comfort by reducing vibrations and noise, and improve the handling by reducing body roll and improving stability.
• Adjustable ride height: Air suspension can raise or lower the vehicle by changing the amount of air in the air springs or struts. This can improve the aerodynamics and fuel efficiency by lowering the vehicle at high speeds, improve the ground clearance and off-road performance by raising the vehicle at low speeds, and improve the accessibility and loading by lowering or raising the vehicle at rest.
• Increased load carrying capacity: Air suspension can increase or decrease the load carrying capacity of the vehicle by changing the amount of air in the air springs or struts. This can prevent sagging or bottoming out when carrying heavy loads, and prevent bouncing or overloading when carrying light loads.
• Reduced body roll: Air suspension can reduce body roll by adjusting the roll stiffness of the front and rear axles independently. This can improve cornering performance and stability.
• Enhanced off-road performance: Air suspension can enhance off-road performance by adjusting the articulation and traction of each wheel independently. This can improve grip and maneuverability on uneven terrain.

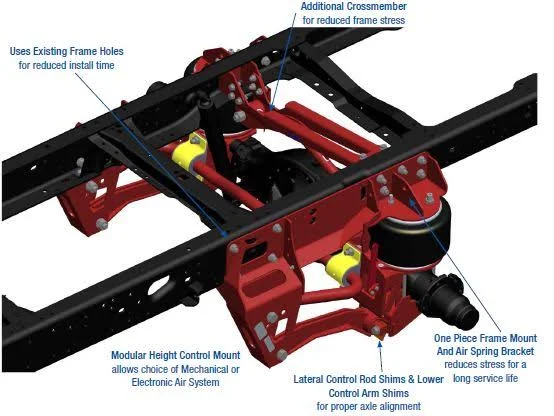

Applications of air suspension

Air suspension can be used in various types of vehicles, such as:

1. Passenger cars: Air suspension can provide a smooth and comfortable ride for passenger cars. It can also improve performance and fuel efficiency by adjusting the ride height according to speed. Some examples of passenger cars with air suspension are Mercedes-Benz S-Class, Audi A8, Tesla Model S, etc.
2. SUVs: Air suspension can provide a versatile and adaptable ride for SUVs. It can improve off-road performance by increasing ground clearance and wheel travel. It can also improve on-road performance by lowering center of gravity and reducing body roll. Some examples of SUVs with air suspension are Range Rover, Jeep Grand Cherokee, Porsche Cayenne, etc.
3. Trucks: Air suspension can provide a durable and reliable ride for trucks. It can increase load carrying capacity and prevent sagging or bottoming out. It can also improve ride comfort and reduce tire wear by absorbing shocks and vibrations. Some examples of trucks with air suspension are Ford F-150, Ram 1500, Toyota Tundra, etc.
4. Trailers: Air suspension can provide a stable and safe ride for trailers. It can prevent sway and fishtailing by adjusting the air pressure in the trailer axles. It can also improve braking and steering by distributing the weight evenly on the trailer tires. Some examples of trailers with air suspension are horse trailers, boat trailers, RV trailers, etc.
5. Buses: Air suspension can provide a comfortable and efficient ride for buses. It can improve passenger comfort by reducing noise and harshness. It can also improve fuel economy by lowering the bus at high speeds. Some examples of buses with air suspension are city buses, coach buses, school buses, etc.
6. Motorcycles: Air suspension can provide a customizable and responsive ride for motorcycles. It can improve handling and performance by adjusting the suspension stiffness and damping according to the rider preference and road conditions. It can also improve comfort and safety by adjusting the seat height and rake angle according to the rider height and posture. Some examples of motorcycles with air suspension are Harley-Davidson Softail, Honda Gold Wing, Kawasaki Vulcan, etc.

Air suspension maintenance

Air suspension requires regular maintenance to ensure its proper functioning and longevity. Some of the maintenance tasks are:

• Checking air pressure levels: The air pressure levels in the air springs or struts should be checked periodically using a gauge or a monitor. The air pressure levels should be within the recommended range specified by the manufacturer. If the air pressure is too low or too high, it can affect the ride quality and performance of the vehicle.
• Inspecting for leaks: The air lines, fittings, valves, and seals should be inspected for any signs of leaks or damage. Leaks can cause the air pressure to drop and the compressor to run excessively. Leaks can also cause moisture to enter the system and corrode the components. Leaks should be repaired as soon as possible to prevent further damage.
• Replacing worn components: The air compressor, air tank, air springs or struts, ECU, sensors, and other components should be replaced when they show signs of wear or failure. Worn or failed components can cause poor performance, malfunction, or breakdown of the system. Components should be replaced with original or compatible parts to ensure compatibility and quality.

Troubleshooting common problems:

Some of the common problems that may occur with air suspension are:

1. The vehicle does not raise or lower: This may be caused by low or high air pressure, faulty ECU or sensors, damaged air lines or valves, or worn or failed air springs or struts. The problem should be diagnosed using a scan tool or a manual test and fixed accordingly.
2. The vehicle rides too hard or too soft: This may be caused by incorrect air pressure settings, faulty ECU or sensors, damaged air lines or valves, or worn or failed air springs or struts. The problem should be diagnosed using a scan tool or a manual test and fixed accordingly.
3. The vehicle leans to one side: This may be caused by uneven air pressure in the air springs or struts, faulty ECU or sensors, damaged air lines or valves, or worn or failed air springs or struts on one side. The problem should be diagnosed using a scan tool or a manual test and fixed accordingly.
4. The compressor runs too often or not at all: This may be caused by leaks in the system, faulty ECU or sensors, damaged air lines or valves, worn or failed compressor or relay. The problem should be diagnosed using a scan tool or a manual test and fixed accordingly.

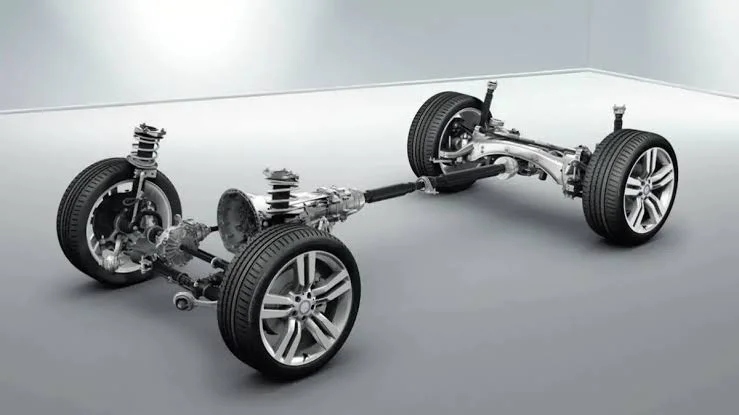

Air suspension vs. coil springs

Coil springs are another type of vehicle suspension that uses metal coils to support the weight of the vehicle and absorb shocks from the road. Coil springs are more common than air suspension in most vehicles.

Some of the differences between air suspension and coil springs are:

• Ride comfort and handling: Air suspension can provide better ride comfort and handling than coil springs by adjusting the stiffness and damping of the suspension according to the road conditions and driver preference. Coil springs have a fixed stiffness and damping that cannot be changed easily.
• Adjustable ride height: Air suspension can provide adjustable ride height that can improve aerodynamics, ground clearance, accessibility, and loading. Coil springs have a fixed ride height that cannot be changed easily.
• Load carrying capacity: Air suspension can provide increased load carrying capacity that can prevent sagging or bottoming out when carrying heavy loads. Coil springs have a limited load carrying capacity that can cause sagging or bottoming out when carrying heavy loads.
• Body roll: Air suspension can reduce body roll by adjusting the roll stiffness of the front and rear axles independently.

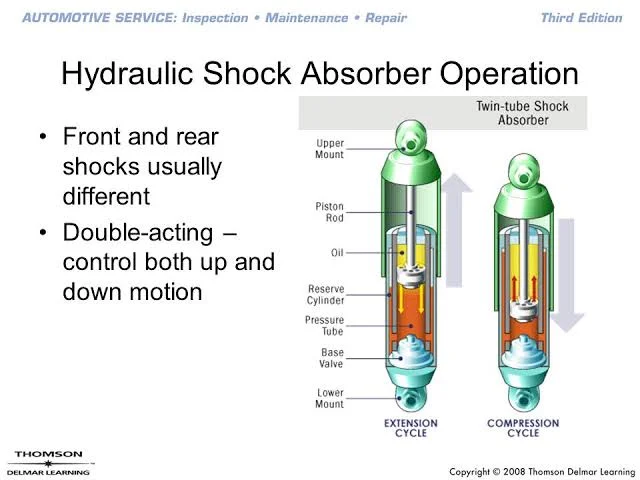

Air suspension vs. hydraulic suspension

Hydraulic suspension is another type of vehicle suspension that uses pressurized fluid to support the weight of the vehicle and absorb shocks from the road. Hydraulic suspension is less common than air suspension and coil springs in most vehicles.

Some of the differences between air suspension and hydraulic suspension are:

• Ride comfort and handling: Hydraulic suspension can provide better ride comfort and handling than air suspension by adjusting the stiffness and damping of the suspension more precisely and quickly according to the road conditions and driver preference. Air suspension can also adjust the stiffness and damping of the suspension, but it is slower and less accurate than hydraulic suspension.
• Adjustable ride height: Hydraulic suspension can provide adjustable ride height that can improve aerodynamics, ground clearance, accessibility, and loading. Air suspension can also provide adjustable ride height, but it is slower and less accurate than hydraulic suspension.
• Load carrying capacity: Hydraulic suspension can provide increased load carrying capacity that can prevent sagging or bottoming out when carrying heavy loads. Air suspension can also provide increased load carrying capacity, but it is less efficient and reliable than hydraulic suspension.
• Complexity: Hydraulic suspension is more complex than air suspension. It requires more components, such as pumps, valves, reservoirs, hoses, cylinders, and pistons. It also requires more maintenance, such as checking fluid levels, replacing filters, bleeding air, and flushing contaminants. Air suspension is simpler than hydraulic suspension. It requires fewer components, such as compressors, tanks, springs or struts, and lines. It also requires less maintenance, such as checking air pressure levels, inspecting for leaks, and replacing worn components.

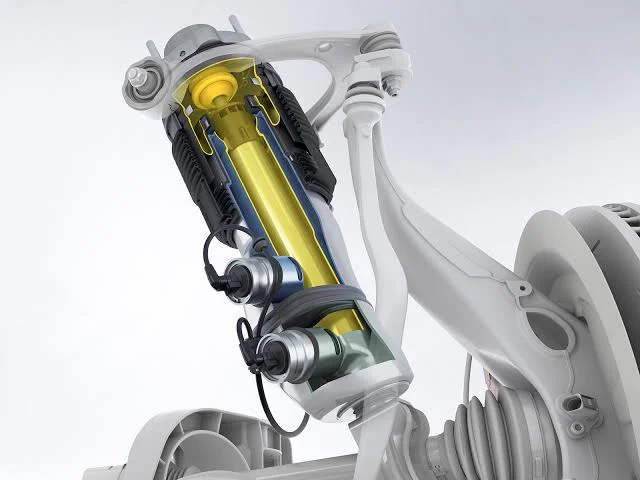

The future of air suspension

Air suspension technology is constantly evolving and improving. Some of the trends in air suspension technology are:

• Active air suspension: Active air suspension is a type of air suspension that can adjust the air pressure in each air spring or strut individually and continuously according to the road conditions and driver preference. Active air suspension can provide better ride comfort, handling, stability, and performance than passive air suspension, which can only adjust the air pressure in each axle or corner separately and periodically.
• Adaptive air suspension: Adaptive air suspension is a type of air suspension that can learn from the driver’s behavior and preferences and automatically adjust the air pressure settings accordingly. Adaptive air suspension can provide a more personalized and optimized ride experience for each driver than manual or preset air pressure settings.
• Smart air suspension: Smart air suspension is a type of air suspension that can communicate with other systems in the vehicle, such as navigation, camera, radar, lidar, etc., and anticipate the road conditions ahead and adjust the air pressure settings accordingly. Smart air suspension can provide a more proactive and predictive ride experience for the driver than reactive or adaptive air pressure settings.

Some of the potential benefits of future air suspension systems are:

1. Enhanced safety: Future air suspension systems can improve safety by reducing braking distance, improving traction and stability, preventing rollover, avoiding obstacles, etc.
2. Increased efficiency: Future air suspension systems can improve efficiency by reducing drag and fuel consumption, improving aerodynamics and tire wear, etc.
3. Improved comfort: Future air suspension systems can improve comfort by reducing noise and harshness, adapting to driver preference and mood, etc.

Common air suspension problems

Air suspension systems are not without problems. Some of the common problems that may occur with air suspension systems are:

• Air leaks: Air leaks are one of the most common problems with air suspension systems. Air leaks can occur due to various reasons, such as punctures, cracks, corrosion, wear and tear, etc. Air leaks can cause the vehicle to lose air pressure and sag or bottom out. Air leaks can also cause the compressor to run excessively and overheat or fail.
• Compressor failure: Compressor failure is another common problem with air suspension systems. Compressor failure can occur due to various reasons, such as overheating, overloading, electrical issues, etc. Compressor failure can cause the vehicle to lose all air pressure and drop to the ground. Compressor failure can also damage other components in the system.
• Strut failure: Strut failure is another common problem with air suspension systems. Strut failure can occur due to various reasons, such as leaks, cracks, corrosion, wear and tear, etc. Strut failure can cause the vehicle to lose support and bounce or sway excessively. Strut failure can also damage other components in the system.
• Sensor failure: Sensor failure is another common problem with air suspension systems. Sensor failure can occur due to various reasons, such as dirt, moisture, corrosion, electrical issues, etc. Sensor failure can cause the vehicle to receive incorrect or no signals from the sensors and malfunction or fail to adjust the air pressure settings accordingly . Sensor failure can also trigger warning lights or codes on the dashboard.

Cost of air suspension

Air suspension systems are generally more expensive than conventional suspension systems , such as coil springs or hydraulic suspension . The cost of air suspension systems can vary depending on the type, quality, and brand of the system , the vehicle model and year, and the installation and maintenance fees.

Some of the factors that affect the cost of air suspension systems are:

• Initial purchase price: The initial purchase price of an air suspension system can range from a few hundred to several thousand dollars, depending on the type, quality, and brand of the system. Generally, the more complex and advanced the system is, the more expensive it is.
• Installation cost: The installation cost of an air suspension system can range from a few hundred to several thousand dollars, depending on the vehicle model and year, the type and complexity of the system, and the labor and equipment fees. Generally, the more modifications and adjustments are required, the more expensive it is.
• Maintenance cost: The maintenance cost of an air suspension system can range from a few hundred to several thousand dollars per year, depending on the usage and condition of the system, the frequency and type of maintenance tasks, and the labor and parts fees. Generally, the more problems and repairs are encountered, the more expensive it is.

Air suspension Frequently Asked Questions

Here are some of the frequently asked questions about air suspension:

How long does air suspension last?

The lifespan of an air suspension system depends on various factors, such as the quality and brand of the system, the vehicle model and year, the driving conditions and habits, and the maintenance frequency and quality. Generally, an air suspension system can last from 5 to 10 years or more if properly maintained and cared for.

How do I know if my air suspension is bad?

Some of the signs that indicate a problem with your air suspension are:

• The vehicle rides too hard or too soft
• The vehicle leans to one side or sags or bottoms out
• The vehicle does not raise or lower
• The compressor runs too often or not at all
• The dashboard displays warning lights or codes

If you notice any of these signs, you should take your vehicle to a professional mechanic for diagnosis and repair as soon as possible.

Can I replace my air suspension with coil springs?

Yes, you can replace your air suspension with coil springs if you prefer a simpler and cheaper suspension system. However, you should be aware of some of the drawbacks of doing so, such as:

• Losing the benefits of air suspension, such as adjustable ride height, improved ride comfort and handling, increased load carrying capacity, etc.
• Changing the original design and specifications of your vehicle, which may affect its performance, safety, warranty, resale value, etc.
• Requiring additional modifications and adjustments to your vehicle, such as installing new shocks, springs, mounts, brackets, etc.

If you decide to replace your air suspension with coil springs, you should consult a professional mechanic for advice and assistance.

Can I install air suspension myself?

Installing air suspension yourself is possible if you have some mechanical skills and experience, as well as the necessary tools and equipment. However, it is not recommended unless you are confident in your abilities and willing to take the risks and responsibilities involved. Installing air suspension yourself can be challenging, time-consuming, and potentially dangerous if not done correctly. It can also void your vehicle’s warranty and affect its performance, safety, and resale value. If you decide to install air suspension yourself, you should follow the instructions and precautions provided by the manufacturer of the system and your vehicle.
