The Science of Flight: How Aircraft Stay in the Air

Flight is one of the most amazing phenomena in nature and one of the greatest achievements of human engineering. From the first powered flight by the Wright brothers in 1903 to the latest innovations in aviation technology, flight has revolutionized the way we travel, explore, and communicate.

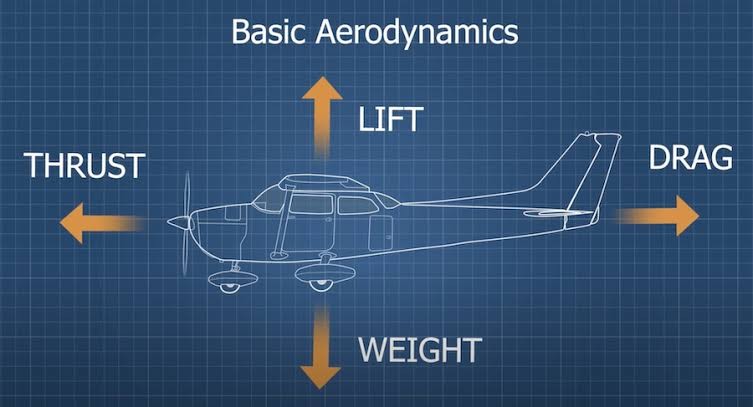

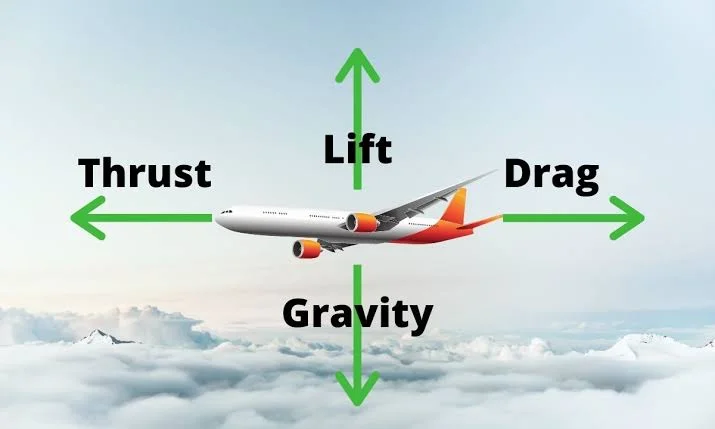

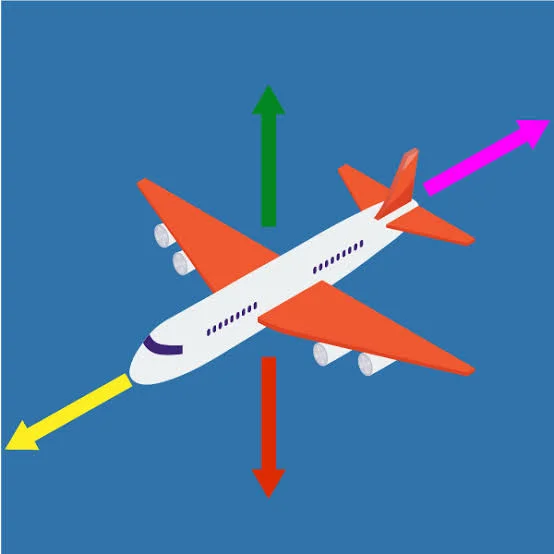

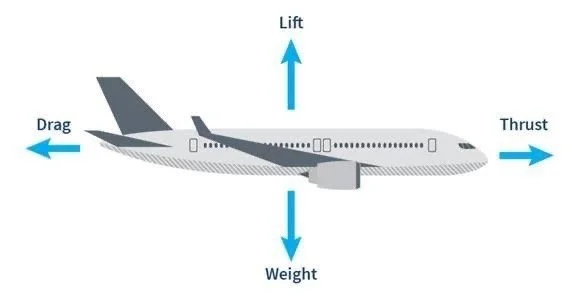

But how does flight work? What are the principles that allow aircraft to stay in the air and travel efficiently through the atmosphere? In this article, we will explore the science of flight and the four forces that govern it: lift, weight, thrust, and drag.

Lift: The Upward Force

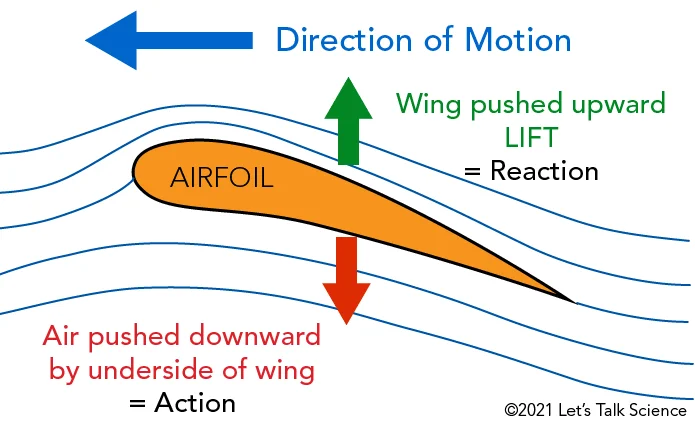

Lift is the force that keeps an aircraft in the air. It is generated by the wings of the aircraft, which are designed to create a difference in air pressure between the upper and lower surfaces of the wing. This difference in pressure causes the wing to lift upward.

The shape of the wing is crucial for creating lift. Wings are usually curved on the top and flat on the bottom. This shape makes the air flow faster over the top of the wing than over the bottom. According to Bernoulli’s principle, faster moving air has lower pressure than slower moving air. Therefore, the pressure on the top of the wing is lower than the pressure on the bottom of the wing. This creates a net upward force on the wing, which is lift.

The angle of attack of the wing also affects lift. The angle of attack is the angle between the chord line of the wing (a straight line from the leading edge to the trailing edge) and the direction of airflow. A higher angle of attack means that more air is deflected downward by the wing, creating more lift. However, there is a limit to how high the angle of attack can be before lift starts to decrease. This limit is called the stall angle, and it occurs when airflow separates from the upper surface of the wing, creating a turbulent wake that reduces lift and increases drag.

The amount of lift generated by a wing can be calculated using this formula:

L = C L 1 2 ρV2S

where L is lift, C L is lift coefficient (a dimensionless number that depends on wing shape and angle of attack), ρ is air density, V is airspeed, and S is wing area.

For example, if a wing has a lift coefficient of 0.8, an air density of 1.2 kg/m3, an airspeed of 100 m/s, and a wing area of 20 m2, then:

L = 0.8 × 0.5 × 1.2 × 1002 × 20 L = 96 kN

This means that this wing can generate a lift force of 96 kilonewtons (about 21,600 pounds).

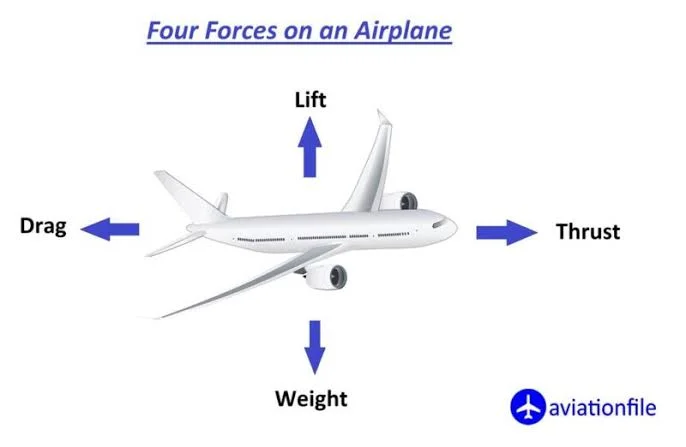

Weight: The Downward Force

Weight is the force of gravity pulling an aircraft down toward Earth. The weight of an aircraft depends on its mass and Earth’s gravitational acceleration (g). The weight can be calculated using this formula:

W = mg

where W is weight, m is mass, and g is gravitational acceleration (9.81 m/s2 at sea level).

For example, if an aircraft has a mass of 10,000 kg, then:

W = 10,000 × 9.81 W = 98.1 kN

This means that this aircraft has a weight force of 98.1 kilonewtons (about 22,050 pounds).

In order for an aircraft to stay in equilibrium (not accelerate up or down), it must balance its weight with its lift. This means that:

L = W

or

C L 1 2 ρV2S = mg

This equation shows that an aircraft can balance its weight by changing its lift coefficient (by changing its wing shape or angle of attack), its air density (by changing its altitude), its airspeed (by changing its thrust), or its wing area (by changing its configuration).

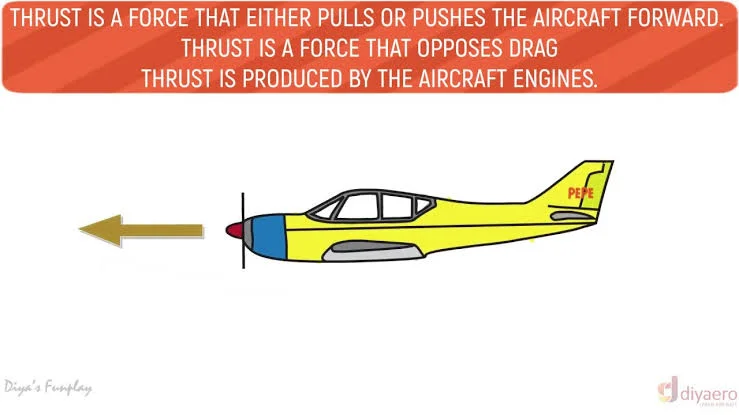

Thrust: The Forward Force

Thrust is the force that propels an aircraft forward through the air. It is generated by the engines of the aircraft, which produce a force that pushes the aircraft forward.

There are different types of engines that can generate thrust, such as piston engines, turboprop engines, turbojet engines, turbofan engines, and rocket engines. Each type of engine has its own advantages and disadvantages in terms of efficiency, power, speed, and noise.

The amount of thrust generated by an engine depends on the mass flow rate of air or fuel through the engine and the velocity difference between the inlet and the outlet of the engine. The thrust can be calculated using this formula:

T = m dot * V e - m dot * V 0

where T is thrust, m dot is mass flow rate, V e is exhaust velocity, and V 0 is freestream velocity.

For example, if an engine has a mass flow rate of 50 kg/s, an exhaust velocity of 500 m/s, and a freestream velocity of 100 m/s, then:

T = 50 × 500 - 50 × 100 T = 20 kN

This means that this engine can generate a thrust force of 20 kilonewtons (about 4,500 pounds).

In order for an aircraft to stay in equilibrium (not accelerate forward or backward), it must balance its thrust with its drag. This means that:

T = D

or

m dot * V e - m dot * V 0 = C D 1 2 ρV2S

This equation shows that an aircraft can balance its drag by changing its mass flow rate (by changing its fuel consumption), its exhaust velocity (by changing its engine power), its freestream velocity (by changing its altitude or airspeed), or its drag coefficient (by changing its shape or configuration).

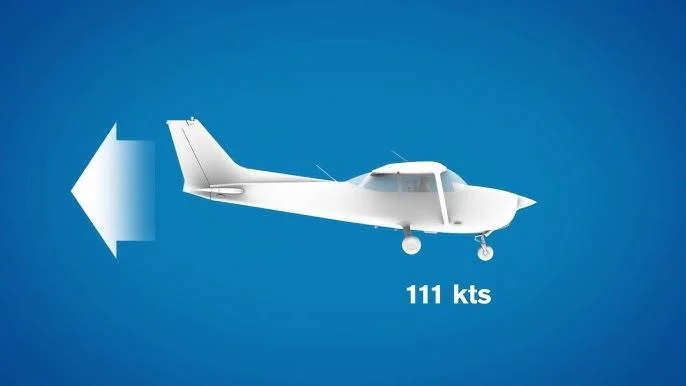

Drag: The Backward Force

Drag is the force that opposes the motion of an aircraft through the air. It is caused by the resistance of the air against the aircraft’s surfaces, including the wings, fuselage, and other components.

There are two main types of drag: parasite drag and induced drag. Parasite drag is the drag caused by the friction and pressure of the air on the aircraft’s surfaces. It depends on the shape, size, and roughness of the aircraft’s surfaces. Induced drag is the drag caused by the generation of lift by the wings. It depends on the amount and distribution of lift on the wings.

The total drag of an aircraft can be calculated using this formula:

D = C D 1 2 ρV2S

where D is drag, C D is drag coefficient (a dimensionless number that depends on parasite drag and induced drag), ρ is air density, V is airspeed, and S is wing area.

For example, if an aircraft has a drag coefficient of 0.04, an air density of 1.2 kg/m3, an airspeed of 100 m/s, and a wing area of 20 m2, then:

D = 0.04 × 0.5 × 1.2 × 1002 × 20 D = 4.8 kN

This means that this aircraft has a drag force of 4.8 kilonewtons (about 1,080 pounds).

Conclusion

The science of flight is a fascinating and complex field that has revolutionized the way we travel and explore the world. By understanding the four forces of flight: lift, weight, thrust, and drag, as well as the principles of aerodynamics, we can design and operate aircraft that can stay in the air and travel efficiently through the atmosphere. From hot air balloons to supersonic jets, flight continues to evolve and push the boundaries of what is possible.
