CAN Bus in Cars: Everything You Need to Know

CAN bus stands for Controller Area Network, a serial communication protocol that was originally developed by Bosch in the 1980s for automotive applications. It is a message-based protocol that allows multiple ECUs to share data and commands without the need for a central computer or a complex wiring system. It is designed to be robust, reliable, and efficient in harsh environments.

If you own a modern car, chances are it has a complex network of electronic devices that communicate with each other to control various functions of the vehicle. These devices, known as electronic control units (ECUs), can range from engine management, transmission, brakes, airbags, infotainment, and more. How do these ECUs exchange information and coordinate their actions? The answer is CAN bus.

In this article, we will explore the history, benefits, features, and challenges of CAN bus in cars. We will also look at some examples of how CAN bus is used in different vehicle systems and how it can be diagnosed and repaired.

History of CAN Bus

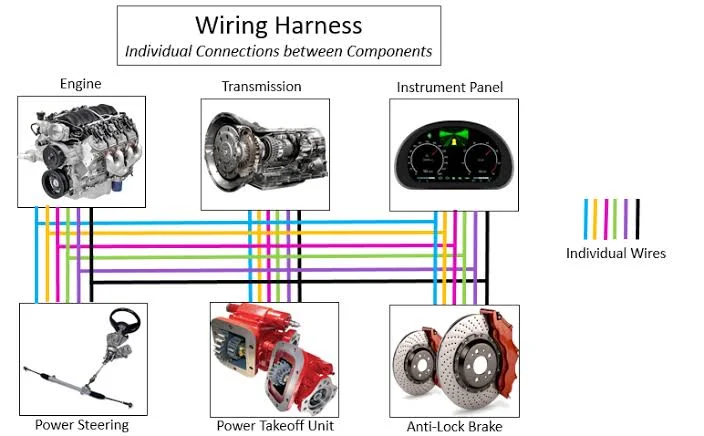

Before CAN bus was invented, car manufacturers used point-to-point wiring systems to connect different ECUs.

This means that each ECU had its own dedicated wires and connectors to communicate with other ECUs. This approach had several drawbacks, such as:

1. Increased complexity and cost of wiring harnesses
2. Increased weight and space consumption of wires
3. Increased risk of electrical interference and failures
4. Limited scalability and flexibility of adding new features and devices

To overcome these problems, Bosch developed the CAN bus protocol as a solution for multiplexing electrical signals within automobiles. Multiplexing means that multiple signals can share the same physical medium (such as wires) by using different codes or frequencies to distinguish them.

Bosch released the first version of the CAN specification in 1986 at the Society of Automotive Engineers (SAE) conference in Detroit, Michigan. The first CAN controller chips were produced by Intel and Philips in 1987. The first production vehicle to feature a CAN-based multiplex wiring system was the Mercedes-Benz W140 in 1991.

Since then, CAN bus has become the standard for in-vehicle networks. It has been adopted by various international standards organizations, such as ISO, SAE, and IEC. It has also been extended and improved by various versions and variants, such as CAN 2.0, CAN FD (Flexible Data Rate), and CAN XL (Extended Length).

Benefits of CAN Bus

CAN bus offers several advantages over conventional point-to-point wiring systems, such as:

• Reduced complexity and cost of wiring harnesses
• Reduced weight and space consumption of wires
• Improved reliability and performance of communication
• Enhanced safety and security features
• Increased scalability and flexibility of adding new features and devices

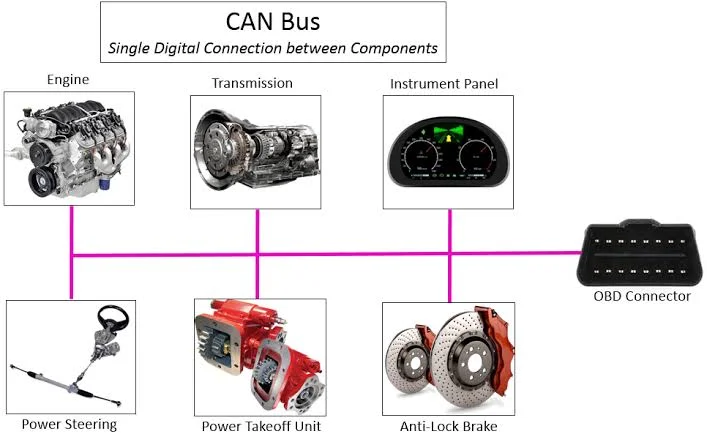

Some examples of how CAN bus benefits different vehicle systems are:

1. Engine management: CAN bus allows the engine control unit (ECU) to monitor and adjust various parameters of the engine, such as fuel injection, ignition timing, air-fuel ratio, etc. It also allows the ECU to communicate with other ECUs, such as transmission, brakes, emissions, etc., to optimize the overall performance and efficiency of the vehicle.
2. Transmission: CAN bus allows the transmission control unit (TCU) to control the shifting of gears based on various factors, such as speed, load, throttle position, etc. It also allows the TCU to communicate with other ECUs, such as engine, brakes, cruise control, etc., to coordinate the operation of the transmission with other vehicle systems.
3. Brakes: CAN bus allows the brake control unit (BCU) to implement various safety features, such as anti-lock braking system (ABS), electronic brake force distribution (EBD), traction control system (TCS), etc. It also allows the BCU to communicate with other ECUs, such as engine, transmission, steering, etc., to enhance the stability and handling of the vehicle.
4. Airbags: CAN bus allows the airbag control unit (ACU) to deploy the airbags in case of a collision based on various sensors, such as accelerometers, pressure sensors, seat belt sensors, etc. It also allows the ACU to communicate with other ECUs, such as engine, brakes, transmission, etc., to shut down or reduce the power of certain systems to prevent further damage or injury.
5. Infotainment: CAN bus allows the infotainment system to provide various entertainment and navigation features, such as radio, CD, DVD, MP3, Bluetooth, GPS, etc. It also allows the infotainment system to communicate with other ECUs, such as instrument cluster, steering wheel controls, climate control, etc., to display or control certain information or functions on the screen or speakers.

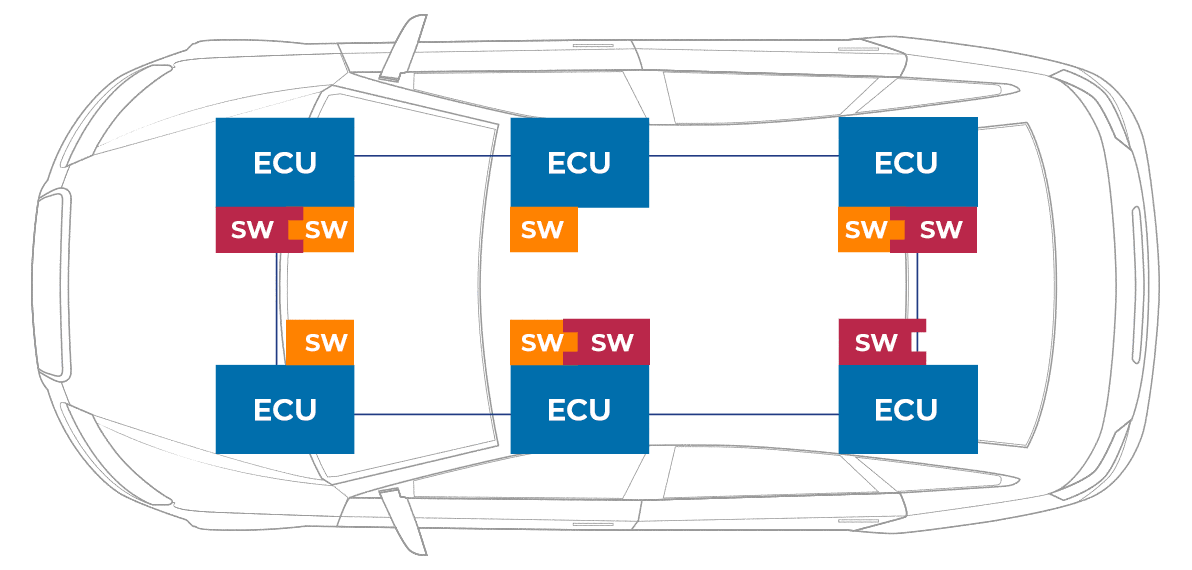

Features of CAN Bus

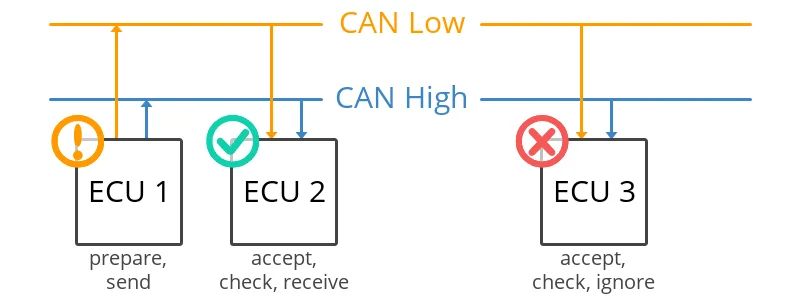

CAN bus is a message-based protocol that uses two wires: CAN high and CAN low. The two wires carry differential signals that represent logical bits: 0 or 1. When the CAN bus is idle, both wires have the same voltage level of 2.5 volts. When a bit is transmitted, the CAN high wire goes to 3.75 volts and the CAN low wire goes to 1.25 volts, creating a 2.5-volt difference between the wires. This differential signaling makes CAN bus more immune to electrical noise and interference than single-ended signaling.

A CAN message consists of a frame that contains various fields, such as:

1. Start of frame (SOF): A single dominant bit (0) that marks the beginning of a frame.
2. Identifier (ID): A field that specifies the priority and the content of the message. There are two formats of ID: standard (11 bits) and extended (29 bits). The lower the numerical value of the ID, the higher the priority of the message.
3. Remote transmission request (RTR): A single bit that indicates whether the message is a data frame or a remote frame. A data frame contains data in the data field, while a remote frame requests data from another node.
4. Identifier extension (IDE): A single bit that indicates whether the ID is standard or extended.
5. Reserved (r0 and r1): Two bits that are reserved for future use.
6. Data length code (DLC): A field that specifies the number of bytes in the data field. The DLC can range from 0 to 8 for CAN 2.0 and from 0 to 64 for CAN FD and CAN XL.
7. Data: A field that contains the actual data bytes of the message. The data can be any type of information, such as commands, parameters, status, etc.
8. Cyclic redundancy check (CRC): A field that contains a checksum that is used to detect errors in the frame.
9. CRC delimiter: A single recessive bit (1) that separates the CRC field from the ACK field.
10. Acknowledge (ACK): A field that contains two bits: ACK slot and ACK delimiter. The ACK slot is used by any node that receives the frame without errors to send an acknowledgment by transmitting a dominant bit (0). The ACK delimiter is a single recessive bit (1) that separates the ACK field from the end of frame.
11. End of frame (EOF): A field that consists of seven recessive bits (1) that marks the end of a frame.
12. Interframe space (IFS): A period of time between two consecutive frames that allows other nodes to start transmitting.

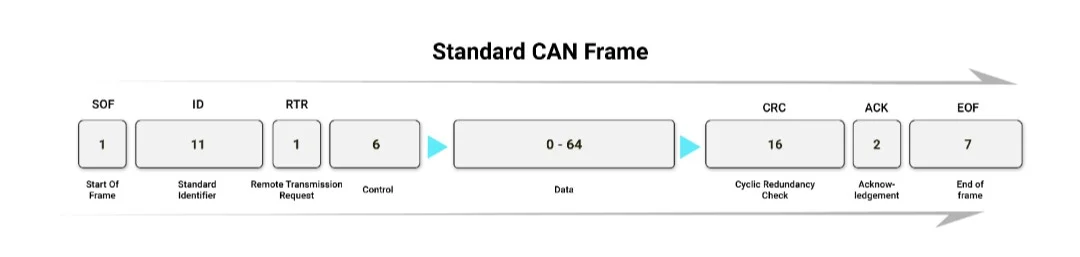

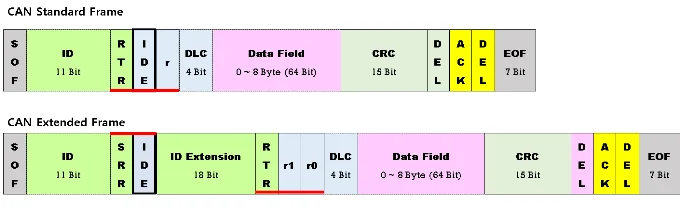

The following diagram shows an example of a CAN data frame with standard ID:

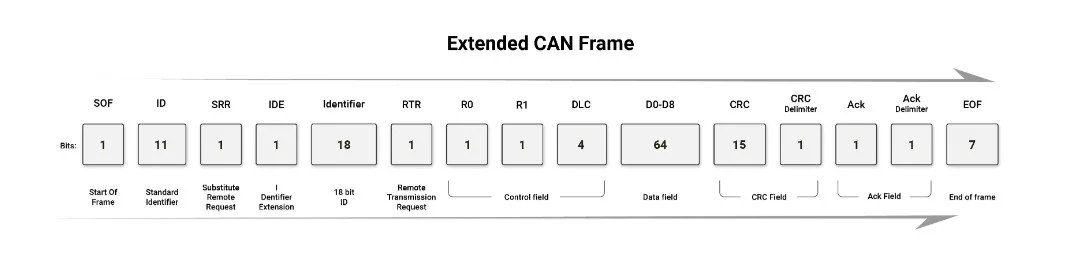

The following diagram shows an example of a CAN data frame with extended ID:

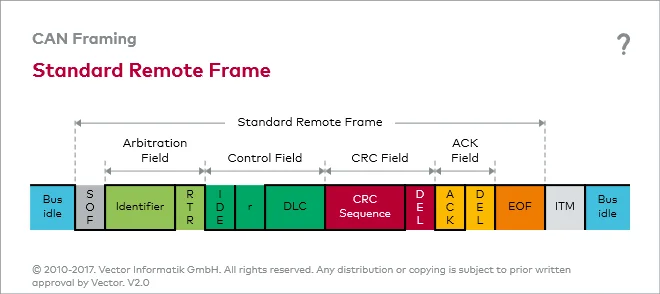

The following diagram shows an example of a CAN remote frame with standard ID:

The following diagram shows an example of a CAN remote frame with extended ID:

CAN bus uses a carrier sense multiple access with collision detection (CSMA/CD) method to arbitrate the access to the bus. This means that any node can start transmitting when the bus is idle, but if two or more nodes start transmitting at the same time, they will detect a collision and back off according to their priority. The node with the highest priority (lowest ID) will continue transmitting while the others will wait until the bus is idle again.

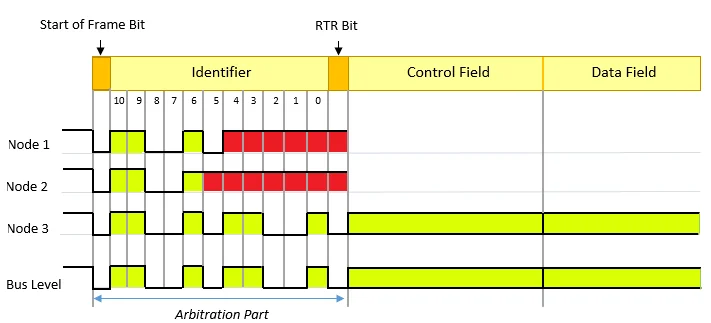

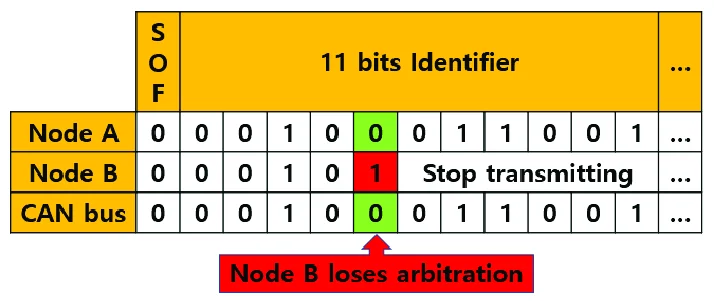

The following diagram shows an example of arbitration on CAN bus:

In this example, node A, node B, and node C start transmitting at the same time. They transmit their IDs bit by bit, starting from the most significant bit. At each bit time, they compare their transmitted bit with the received bit on the bus. If they match, they continue transmitting. If they differ, they stop transmitting and listen to the bus.

• At bit time 1, all nodes transmit a dominant bit (0), so they all continue.
• At bit time 2, node A transmits a recessive bit (1), while node B and node C transmit a dominant bit (0). Node A detects a collision and stops transmitting. Node B and node C continue.
• At bit time 3, node B transmits a recessive bit (1), while node C transmits a dominant bit (0). Node B detects a collision and stops transmitting. Node C continues.
• At bit time 4, node C transmits a recessive bit (1) and completes its ID transmission. Node C wins the arbitration and continues transmitting its message.

Challenges of CAN Bus

CAN bus is widely used in automotive applications due to its advantages, but it also faces some challenges and limitations, such as:

• Bandwidth: The maximum speed of a CAN bus, according to the standard, is 1 Mbit/s. Some CAN controllers can handle higher speeds than 1 Mbit/s and may be considered for special applications. However, the speed of a CAN bus depends on various factors, such as the length of the bus, the number of nodes, the quality of the wires and connectors, the interference from other sources, etc. Therefore, the actual bandwidth of a CAN bus may be lower than the theoretical limit. This may pose a challenge for applications that require high data rates or real-time communication.

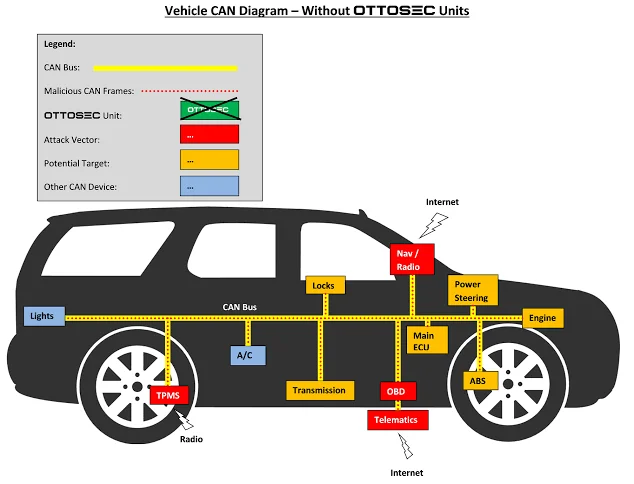

• Security: The CAN bus protocol does not have any built-in security features, such as encryption, authentication, or authorization. This means that any node on the bus can send or receive any message without any verification or validation. This makes the CAN bus vulnerable to various attacks, such as spoofing, replaying, injecting, or modifying messages. These attacks can compromise the functionality and safety of the vehicle systems. Therefore, additional security measures are needed to protect the CAN bus from unauthorized access or manipulation.
• Complexity: The CAN bus protocol is relatively simple and efficient, but it also requires a lot of coordination and synchronization among the nodes. Each node needs to have a CAN controller that implements the protocol rules and handles the communication with other nodes. Each node also needs to have a CAN transceiver that converts the digital signals from the controller to the differential signals on the bus and vice versa. Moreover, each node needs to have a software application that defines the message format, content, and timing for each system function. These components add to the complexity and cost of developing and maintaining a CAN-based system.

Conclusion

CAN bus is a powerful and versatile communication protocol that enables multiple ECUs to exchange data and commands in a vehicle. It offers many benefits over conventional point-to-point wiring systems, such as reduced wiring complexity and cost, improved reliability and performance, enhanced safety and security features, and increased scalability and flexibility. However, it also faces some challenges and limitations, such as bandwidth constraints, security risks, and complexity issues.

To overcome these challenges and limitations, various solutions have been proposed and implemented by car manufacturers and researchers. Some examples are:

1. Using higher-speed variants of CAN bus, such as CAN FD or CAN XL, that can support data rates up to 10 Mbit/s or more.
2. Using encryption techniques to protect the confidentiality and integrity of the CAN messages.
3. Using authentication techniques to verify the identity and legitimacy of the CAN nodes.
4. Using authorization techniques to control the access rights and privileges of the CAN nodes.
5. Using diagnostic tools to monitor and analyze the CAN bus traffic and detect any errors or anomalies.
6. Using simulation tools to test and verify the functionality and performance of the CAN-based systems.

CAN bus is constantly evolving and improving to meet the increasing demands and expectations of automotive applications. It is expected that CAN bus will continue to be one of the most widely used communication protocols in vehicles for years to come.
