Manual Transmission Stalling: Solved!

If you have ever driven a manual transmission car, you may have experienced the unpleasant situation of stalling the engine when you come to a complete stop while in gear. This can be embarrassing, frustrating, and even dangerous in some situations.

But why does this happen? What is the difference between a manual and an automatic transmission that causes this phenomenon? And how can you prevent it from happening?

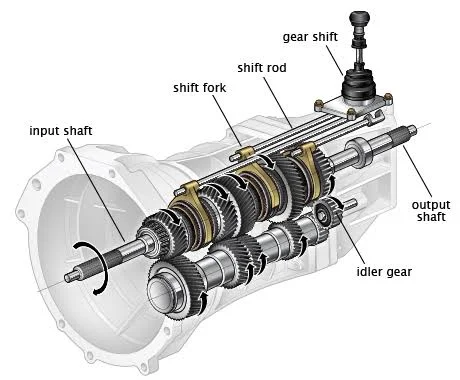

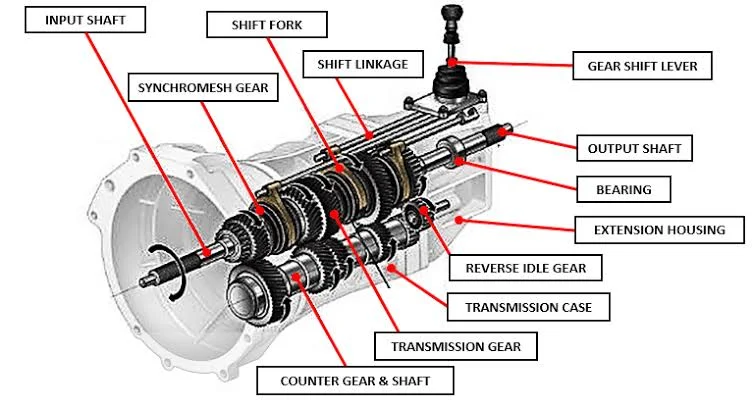

How Does a Manual Transmission Work?

A manual transmission, also known as a stick shift, is a type of transmission that allows the driver to manually change the gears of the vehicle using a clutch pedal and a gear lever. The clutch pedal is used to disengage the engine from the transmission, allowing the driver to shift gears without damaging the components. The gear lever is used to select the appropriate gear ratio for the speed and torque of the vehicle.

A manual transmission consists of several components, such as the flywheel, the clutch, the gearbox, and the driveshaft. The flywheel is attached to the engine and rotates with it. The clutch is a device that connects and disconnects the flywheel and the gearbox. The gearbox is a set of gears that change the speed and torque of the engine output. The driveshaft is a shaft that transfers the power from the gearbox to the wheels.

The clutch has two main parts: the clutch disc and the pressure plate. The clutch disc is a metal disc with friction material on both sides that sits between the flywheel and the pressure plate. The pressure plate is a spring-loaded device that presses against the clutch disc and locks it to the flywheel when the clutch pedal is released. When the clutch pedal is pressed, the pressure plate releases the clutch disc and allows it to spin freely.

The gearbox has several gears of different sizes that mesh with each other. Each gear has a different number of teeth, which determines its gear ratio. The gear ratio is the ratio of the rotational speed of the input shaft (connected to the engine) to the output shaft (connected to the driveshaft). A lower gear ratio means more torque but less speed, while a higher gear ratio means less torque but more speed.

The driveshaft is connected to the differential, which splits the power from the gearbox to the two wheels. The differential also allows the wheels to rotate at different speeds when turning corners.

Why Do Manual Transmission Cars Stall?

A manual transmission car stalls when you come to a complete stop while in gear because you are not disconnecting the engine from the transmission. This means that you are forcing the engine to rotate at a very low speed that is below its minimum operating speed. This causes the engine to lose power and stop running.

An internal combustion engine, such as a gasoline or diesel engine, works by burning fuel in cylinders to create explosions that push pistons up and down. These pistons are connected to a crankshaft that converts their linear motion into rotational motion. The crankshaft then transfers this power to the flywheel, which smooths out its fluctuations and connects it to the transmission.

An internal combustion engine cannot operate below a certain speed, called idle speed, because it needs enough momentum to keep compressing and igniting fuel in its cylinders. If the engine slows down below idle speed, it will not be able to sustain its combustion cycle and will stall.

An automatic transmission car does not stall when you come to a complete stop because it has a device called a torque converter that acts as a fluid coupling between the engine and the transmission. A torque converter consists of two fans (called impeller and turbine) that are filled with fluid and face each other. The impeller is connected to the engine and spins with it, while the turbine is connected to the transmission and spins with it.

When the engine is running, it spins the impeller, which pushes fluid against the turbine, causing it to spin as well. This transfers power from the engine to the transmission without any direct mechanical connection. However, the fluid also allows some slippage between the impeller and the turbine, which means that the turbine can spin slower than the impeller without stalling the engine. This slippage increases when the car slows down or stops, allowing the engine to keep running at idle speed while the transmission is at rest.

How Can You Prevent Stalling?

To prevent stalling your manual transmission car when you come to a complete stop while in gear, you need to use your clutch pedal properly. You need to press your clutch pedal before your car stops moving completely, which will disengage your engine from your transmission and allow it to keep running at idle speed. You also need to shift your gear lever into neutral or first gear, depending on whether you want to start moving again or stay stationary.

If you forget to press your clutch pedal or do it too late, your car will jerk violently and stall. This can damage your clutch, your gearbox, and your engine, as well as cause accidents or injuries. Therefore, it is important to practice using your clutch pedal smoothly and timely, especially if you are a beginner or an occasional driver of a manual transmission car.

Some tips to help you avoid stalling are:

1. Pay attention to your engine speed and sound. If you hear your engine struggling or making unusual noises, it means that it is too slow for the gear you are in and you need to press your clutch pedal or shift to a lower gear.
2. Pay attention to your road speed and traffic conditions. If you see that you are approaching a stop sign, a red light, or a traffic jam, you need to slow down gradually and press your clutch pedal before you stop completely.
3. Do not release your clutch pedal abruptly or too early. This will cause your car to lurch forward or backward and stall. You need to release your clutch pedal gently and gradually, while giving some gas to your engine to match its speed with the transmission.
4. Do not ride your clutch pedal. This means that you do not keep your clutch pedal partially pressed while driving, as this will cause unnecessary wear and tear on your clutch and reduce its lifespan. You need to fully release your clutch pedal after shifting gears or stopping, unless you need to change gears or stop again soon.

Conclusion

Manual transmission cars turn off if you come to a complete stop while in gear because they have a direct mechanical connection between the engine and the transmission that does not allow the engine to run below its minimum speed. To prevent this from happening, you need to use your clutch pedal correctly and disengage the engine from the transmission before you stop completely. This will allow the engine to keep running at idle speed and avoid stalling.
