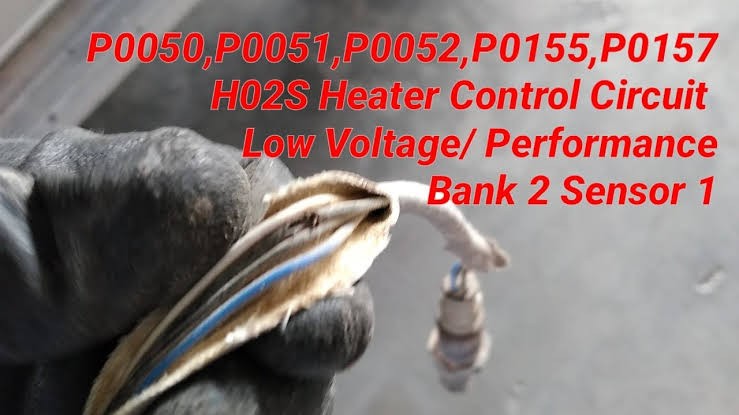

P0050, P0051, and P0052: H02S heater control circuit (Bank 2 sensor 1)

These codes are related to the heated oxygen sensor (HO2S) heater control circuit on bank 2 sensor 1. The HO2S is a device that measures the oxygen content in the exhaust gas and sends a voltage signal to the engine control module (ECM).

The ECM uses this signal to adjust the air-fuel ratio and optimize the engine performance and emissions.

The HO2S has a heater element inside it that helps it reach the operating temperature faster and provide accurate readings. The heater element is controlled by the ECM based on the engine coolant temperature and engine load. The ECM monitors the voltage or current of the heater element circuit and compares it with the factory specifications. If the ECM detects an abnormal condition in the heater element circuit, it will set one of these codes and turn on the check engine light.

The codes have different meanings depending on the condition of the heater element circuit:

• P0050 means that the ECM detects a problem with the heater element circuit of the HO2S on bank 2 sensor 1. This code is usually caused by a faulty HO2S or a problem with the wiring or connectors1.
• P0051 means that the ECM detects a low voltage or current condition in the heater element circuit of the HO2S on bank 2 sensor 1. This code is usually caused by an open or short to ground in the heater element circuit or a blown fuse2.
• P0052 means that the ECM detects a high voltage or current condition in the heater element circuit of the HO2S on bank 2 sensor 1. This code is usually caused by a short to power in the heater element circuit or a faulty ECM3.

What Causes P0050, P0051, and P0052 Codes?

There are several possible causes for these codes, such as:

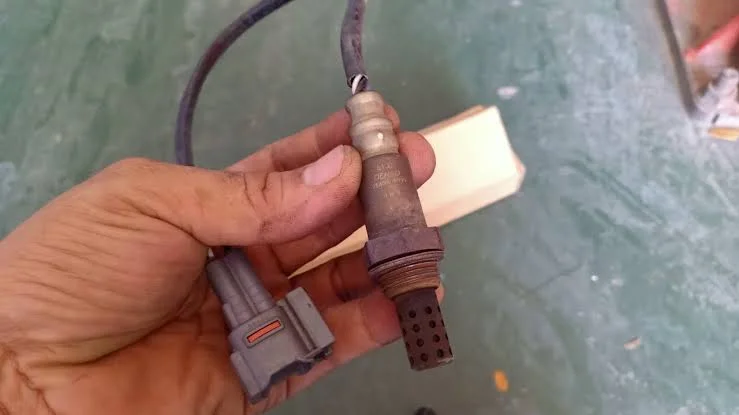

• Faulty O2 sensor: The most common cause is a faulty O2 sensor. Over time, O2 sensors can become contaminated with exhaust deposits or fail due to wear and tear.
• Open or short circuit in the O2 heater circuit: The O2 heater circuit can also fail due to an open or short circuit. This can be caused by damaged wiring or connectors.
• Faulty O2 sensor heater relay: The O2 sensor heater relay is responsible for turning on and off the power to the O2 heater circuit. If the relay is faulty, it can cause the O2 heater circuit to not work properly.
• Faulty engine control module (ECM): The ECM is responsible for controlling the O2 heater circuit. If the ECM is faulty, it can cause the O2 heater circuit to not work properly.
• Engine exhaust leaks: Exhaust leaks can cause the O2 sensor to become contaminated with exhaust deposits, which can lead to failure.
• Faulty catalytic converter: A faulty catalytic converter can cause the O2 sensor to read incorrectly, which can lead to these codes.
• Fuel problems: Fuel problems, such as poor fuel quality or incorrect fuel pressure, can also cause these codes.

The most obvious symptom of these codes is the illumination of the check engine light. However, there may be other symptoms depending on the severity of the problem, such as:

1. Check engine light: The check engine light will illuminate on the dashboard if the ECM detects a problem with the O2 heater circuit.
2. Reduced fuel economy: The O2 heater circuit plays an important role in the engine's combustion process. If the O2 heater circuit is not working properly, it can cause the engine to run less efficiently, which can lead to reduced fuel economy.
3. Poor engine performance: The O2 heater circuit also plays an important role in the engine's emissions control system. If the O2 heater circuit is not working properly, it can cause the engine to run poorly and emit excessive pollutants.
4. Rough idle: In some cases, the P0050, P0051, and P0052 codes can cause the engine to run rough at idle.
5. Hesitation or stalling: In severe cases, the P0050, P0051, and P0052 codes can cause the engine to hesitate or stall.

How to Diagnose and Repair P0050, P0051, and P0052 Codes?

To diagnose and repair these codes, you will need a scan tool, a multimeter, and a repair manual for your specific vehicle make and model. Here are some general steps you can follow:

• Verify the code with a scan tool. Check if there are any other codes related to the HO2S or its circuits. Clear the codes and test-drive the vehicle to see if they return.
• Inspect the HO2S and its wiring harness for any physical damage or signs of corrosion. Check if the wiring is routed properly and away from heat or moving parts. Repair or replace any damaged components as needed.
• Locate the fuse for the HO2S heater circuit and check if it is blown. Replace it if necessary and see if the code returns.
• Disconnect the HO2S connector and check for battery voltage at the heater power supply wire with the ignition on. If there is no voltage, check for continuity and resistance in the wiring between the fuse and the HO2S connector. Repair any open or shorted wires as needed.
• Check for ground at the heater control wire with the ignition on. If there is no ground, check for continuity and resistance in the wiring between the ECM and the HO2S connector. Repair any open or shorted wires as needed.

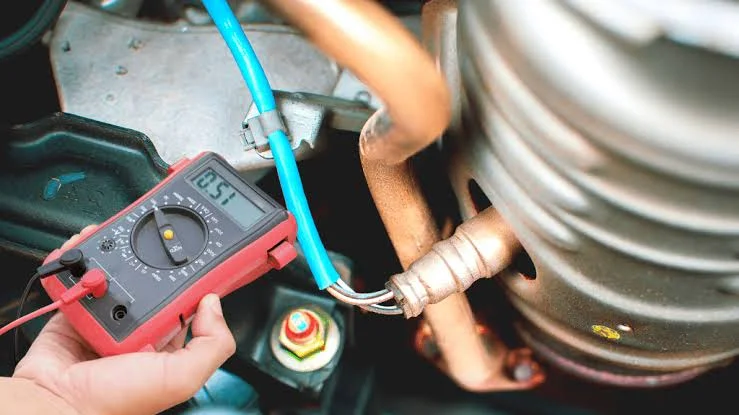

• Check for resistance in the heater element of the HO2S with a multimeter. Compare your reading with the specifications in your repair manual. If there is no resistance or infinite resistance, replace the HO2S.

If all tests are normal, suspect a faulty ECM. However, before replacing it, make sure to perform any other tests recommended by your repair manual and consult a professional if necessary.

Conclusion

P0050, P0051, and P0052 are codes that indicate a problem with the heater element circuit of the HO2S on bank 2 sensor 1. These codes can cause poor engine performance, reduced fuel economy, increased emissions, and failed emission test. To fix these codes, you need to diagnose and repair the faulty component in the heater element circuit, which can be the HO2S, the wiring, the fuse, or the ECM. You also need to clear the codes and reset the ECM after the repair. By following these steps, you can resolve these codes and restore your vehicle’s optimal performance.
