P0023 B camshaft position - actuator circuit (Bank 2)

This DTC code indicates that your camshaft position actuator for bank 2 is not working properly, and this can affect your engine's timing.

If you have a P0023 code on your OBD-II scanner, it means that your car's engine has a problem with its timing. The camshaft position actuator for bank 2 is not working properly, and this can affect your car's performance, fuel efficiency, and emissions.

In this article, we will explain what the P0023 code means, what causes it, what symptoms it may produce, and how to diagnose and fix it.

What Is the P0023 Code?

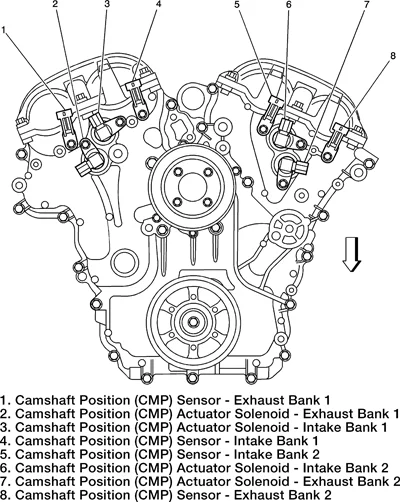

The P0023 code is a generic powertrain code that indicates a fault in the camshaft position actuator circuit for bank 2. The camshaft position actuator is a device that controls the timing of the exhaust valves by adjusting the position of the camshaft. It uses oil pressure to rotate the camshaft relative to the crankshaft, and it is controlled by the engine control module (ECM) through a solenoid valve.

Bank 2 refers to the side of the engine that does not contain cylinder 1. Depending on your car model, it may be the left or right side of the engine when viewed from the front.

The ECM monitors the signals from the camshaft position sensor and the crankshaft position sensor to determine the position and speed of the camshaft and crankshaft. It also compares the signals from these sensors to ensure that they are in sync with each other. If the ECM detects an open or short circuit in the camshaft position actuator circuit for bank 2, it will set the P0023 code and turn on the check engine light.

What Causes the P0023 Code?

There are several possible causes for the P0023 code, such as:

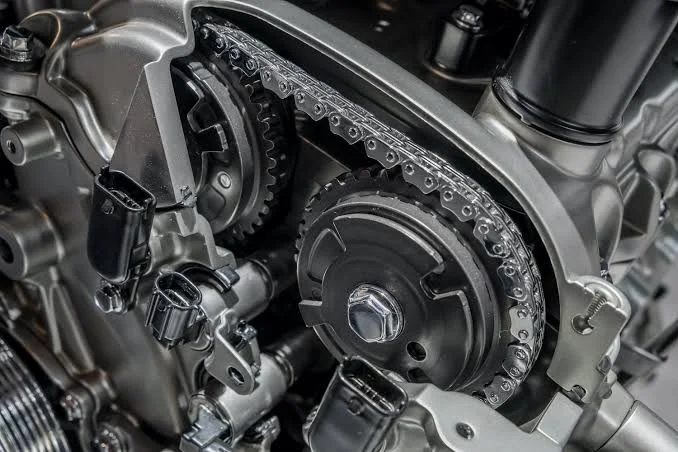

• - A worn or stretched timing belt or chain
• - A faulty or misaligned timing belt or chain tensioner
• - A damaged or misaligned camshaft or crankshaft tone ring
• - A faulty or dirty camshaft position actuator
• - A faulty or dirty camshaft position sensor
• - A faulty or dirty crankshaft position sensor
• - A faulty or dirty solenoid valve
• - A damaged or corroded wiring harness or connector for the sensors or actuator
• - A software glitch or update issue in the ECM

What Symptoms Does the P0023 Code Produce?

Depending on the severity of the problem, the P0023 code may produce some of these symptoms:

• - The check engine light turns on
• - The engine cranks but does not start
• - The engine runs rough or stalls
• - The engine rattles near the harmonic balancer
• - The engine has reduced power or acceleration
• - The engine has poor fuel economy or increased emissions

How to Diagnose and Fix the P0023 Code?

To diagnose and fix the P0023 code, you will need some tools and equipment, such as an OBD-II scanner, a multimeter, a repair manual, and some basic tools. You will also need some knowledge and skills in automotive repair and troubleshooting.

Here are some general steps that you can follow to diagnose and fix the P0023 code:

1. Scan your car with an OBD-II scanner and confirm that you have the P0023 code. You may also have other related codes, such as P0016, P0017, P0018, or P0019. Note down all the codes and clear them from your scanner.
2. Check your timing belt or chain for any signs of wear, damage, or misalignment. You may need to remove some covers or components to access it. Refer to your repair manual for specific instructions. If you find any problems with your timing belt or chain, replace it as necessary.
3. Check your timing belt or chain tensioner for any signs of wear, damage, or misalignment. Make sure that it is properly adjusted and secured. If you find any problems with your tensioner, replace it as necessary.
4. Check your camshaft and crankshaft tone rings for any signs of wear, damage, or misalignment. These are metal rings with teeth that are attached to the shafts and interact with the sensors. Make sure that they are clean and free from any debris or corrosion. If you find any problems with your tone rings, replace them as necessary.
5. Check your camshaft position actuator for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications¹. If you find any problems with your actuator, replace it as necessary.
6. Check your camshaft position sensor for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications¹. If you find any problems with your sensor, replace it as necessary.
7. Check your crankshaft position sensor for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications¹. If you find any problems with your sensor, replace it as necessary.
8. Check your solenoid valve for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications¹. If you find any problems with your valve, replace it as necessary.
9. Check your wiring harnesses and connectors for any signs of damage or corrosion. Make sure that they are properly routed and secured. Use a multimeter to test their continuity and resistance according to your repair manual specifications¹. If you find any problems with your wiring harnesses or connectors, repair or replace them as necessary.
10. Update or reflash your ECM software if needed. Sometimes, a software glitch or update issue can cause false codes or performance issues in your car. You may need a professional scan tool or a dealer service to do this step².
11. Scan your car again with an OBD-II scanner and check if the problem is resolved. If not, you may need to perform further diagnosis or seek professional help.

Conclusion

The P0023 code is a common problem that can affect your car's engine performance, fuel efficiency, and emissions. The possible causes include a worn or misaligned timing belt or chain, a faulty or dirty sensor, actuator, or valve, a damaged or corroded wiring harness, or a software glitch in the ECM.

To diagnose and fix the P0023 code, you need to scan your car with an OBD-II scanner, check your timing belt or chain, sensors, actuator, valve, wiring harnesses, and ECM software, and replace some components or update your ECM software if needed.
