Exploring the Inner Workings of Engine Pistons: A Complete Overview

Pistons are crucial components in internal combustion engines, responsible for converting fuel energy into mechanical power.

In this comprehensive guide, we will take a deep dive into the world of pistons, understanding their purpose, anatomy, types, common issues, maintenance, and frequently asked questions.

Understanding the Purpose and Function of Pistons:

Pistons are cylindrical components that move within the engine's cylinders, facilitating the intake, compression, combustion, and exhaust processes. They play a vital role in converting the force from expanding gases into rotational motion, generating power for the engine.

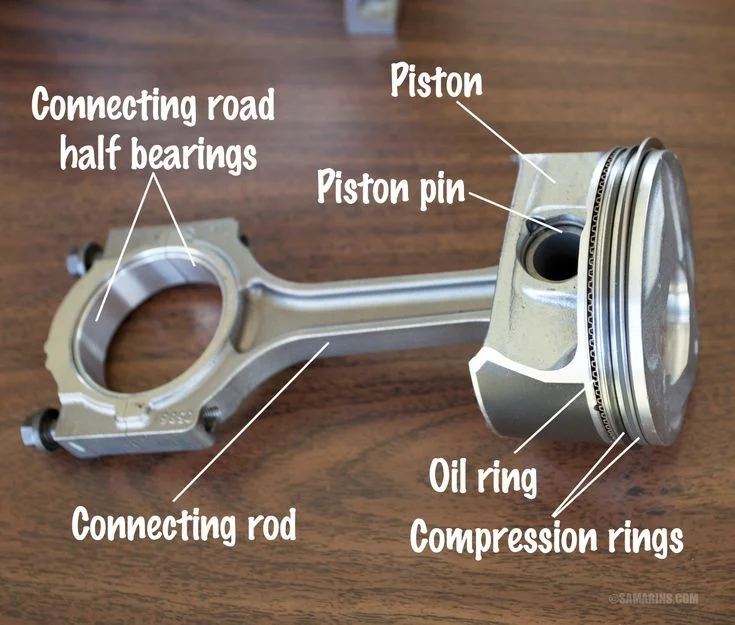

Anatomy of a Piston:

Pistons are typically constructed using lightweight and durable materials such as aluminum or forged steel. They consist of several components, including the crown (top), skirt (side), wrist pin (connecting the piston to the connecting rod), and piston rings (providing sealing and oil control).

Parts of a Piston and Their Functions

• Crown: The crown, also known as the head or top, is the top surface of the piston. It is designed to withstand extreme temperatures and pressures created during combustion.

• Skirt: The skirt is the portion of the piston that extends downward and contacts the cylinder walls. It provides stability and helps maintain proper alignment within the cylinder.

• Ring Grooves: Piston ring grooves are cut into the outer surface of the piston. They hold the piston rings in place, which are essential for sealing the combustion chamber and controlling oil consumption.

• Piston Rings: Piston rings are installed in the ring grooves and serve multiple functions. The compression rings seal the combustion chamber, preventing gas leakage during combustion. The oil control rings scrape excess oil from the cylinder walls, ensuring proper lubrication without excessive oil consumption.

• Wrist Pin: The wrist pin, also known as the piston pin or gudgeon pin, connects the piston to the connecting rod. It allows the piston to pivot and transfer the reciprocating motion to the connecting rod.

• Connecting Rod: The connecting rod connects the piston to the crankshaft. It converts the reciprocating motion of the piston into rotational motion, which drives the engine's crankshaft.

• Pin Bosses: Pin bosses are the areas on the piston where the wrist pin is mounted. They provide support and strength to withstand the forces generated during engine operation.

• Oil Cooling Gallery: Some pistons feature an oil cooling gallery, which allows oil to flow through the piston for enhanced cooling. This helps regulate the temperature and prevent overheating of the piston.


Each part of the piston plays a crucial role in the engine's operation, ensuring proper combustion, sealing, and transfer of power. Understanding the functions and maintaining these components is vital for optimizing engine performance and longevity.

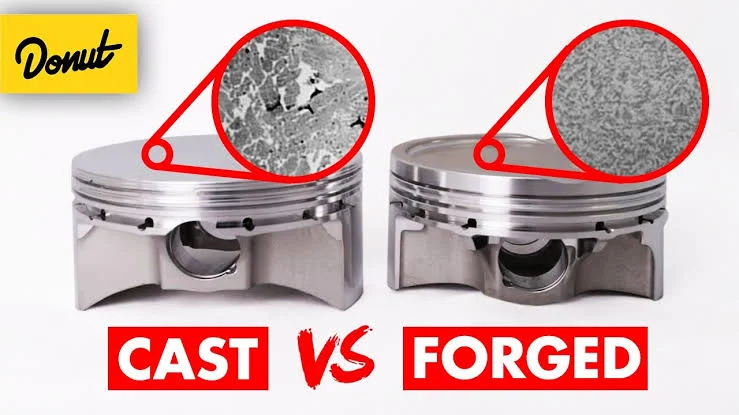

Types of Pistons:

• Cast Pistons: These pistons are manufactured using a casting process and are commonly found in everyday vehicles. They offer good performance and reliability for regular driving conditions.
• Forged Pistons: Forged pistons are created by shaping molten metal under high pressure, resulting in a stronger and more durable structure. They are often used in high-performance engines, offering improved performance and the ability to handle increased power and stress.

Common Piston Issues and Troubleshooting:

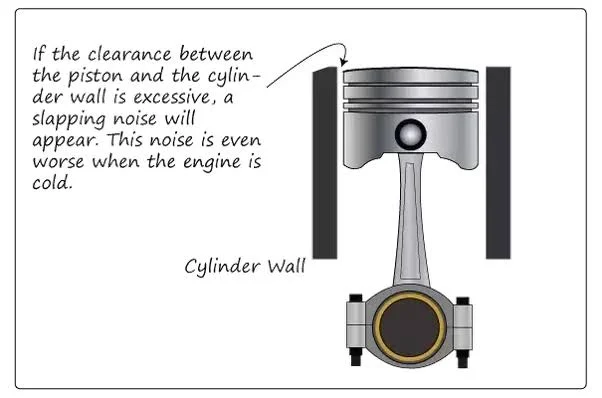

• Piston Slap: This condition occurs when the piston rocks side to side within the cylinder. It can be caused by worn components or inadequate piston-to-wall clearance. Solutions may involve replacing worn parts or addressing improper clearances.

• Piston Ring Wear: Worn piston rings can lead to increased oil consumption, loss of compression, and reduced engine performance. Regular inspections and timely replacement of worn rings are crucial to maintain optimal engine health.

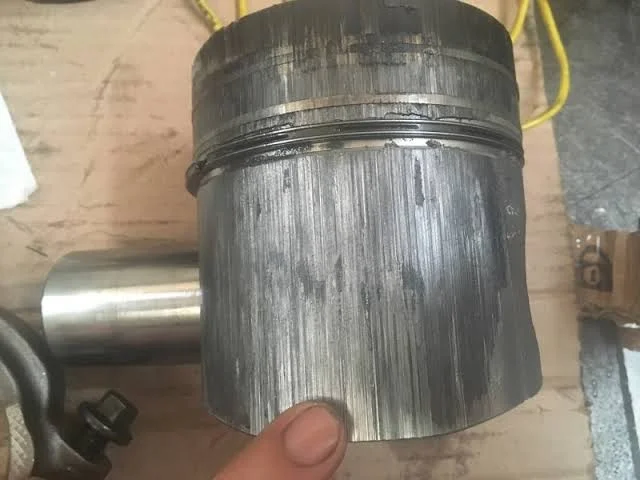

• Piston Scuffing and Seizure: Piston scuffing and seizure occur when the piston and cylinder walls experience excessive friction. This can be caused by insufficient lubrication, overheating, or poor engine maintenance. Preventive measures include using high-quality lubricants and ensuring proper cooling systems.

Piston Maintenance and Care:

• Proper Lubrication: Using high-quality engine oil and adhering to recommended oil change intervals is essential for ensuring proper lubrication of pistons and minimizing wear.
• Cooling and Heat Dissipation: Maintaining an efficient engine cooling system helps prevent overheating, which can cause damage to pistons and other engine components.
• Regular Inspections: Periodic inspections of pistons allow early detection of wear, damage, or other issues. This helps in addressing problems before they lead to severe engine damage.

Frequently Asked Questions:

• Q1. Can I increase my engine's performance by upgrading to forged pistons?

   A1. Upgrading to forged pistons can offer performance benefits in high-stress applications. They are stronger and more resistant to heat and expansion, allowing for higher compression ratios and increased power potential.

• Q2. How often should I inspect and replace piston rings?

   A2. Piston rings should be inspected regularly, especially during engine rebuilds or when experiencing issues such as oil consumption or loss of compression. Replacement intervals vary depending on factors like engine condition and usage but can range from 60,000 to 100,000 miles.

• Q3. Are pistons interchangeable between different engine models?

   A3. Piston interchangeability depends on various factors, including engine design, dimensions, and specifications. While some pistons may be compatible across different engine models, it is essential to consult manufacturer guidelines or seek expert advice to ensure proper fitment.

• Q4. What are the signs of a cracked or damaged piston?

   A4. Signs of a cracked or damaged piston may include excessive oil consumption, loss of power or compression, engine misfires, abnormal engine noise, or visible damage upon inspection. If you suspect a damaged piston, it is best to consult a professional for a thorough evaluation.

• Q5. How can I prevent piston scuffing in high-performance engines?

   A5. Preventing piston scuffing involves maintaining proper lubrication, ensuring adequate cooling, and avoiding excessive heat buildup. Using high-quality lubricants, proper break-in procedures, and avoiding prolonged periods of high RPM or extreme engine load can help prevent scuffing in high-performance engines.

Conclusion:

Pistons are the powerhouse of internal combustion engines, responsible for converting fuel energy into mechanical power. Understanding their purpose, anatomy, types, common issues, and maintenance practices is crucial for maintaining optimal engine performance and reliability. By following recommended maintenance procedures and addressing issues promptly, automotive enthusiasts can ensure their engines perform at their best and stand the test of time.
