A Complete Guide To Diesel Particulate Filter (DPF)

A diesel particulate filter (DPF) is a critical component in modern diesel engines. It plays a vital role in reducing harmful particulate matter (PM) emissions and ensuring compliance with environmental regulations.

In this article, we will explore what a DPF is, how it functions, why it is important, and its applications in various vehicles.

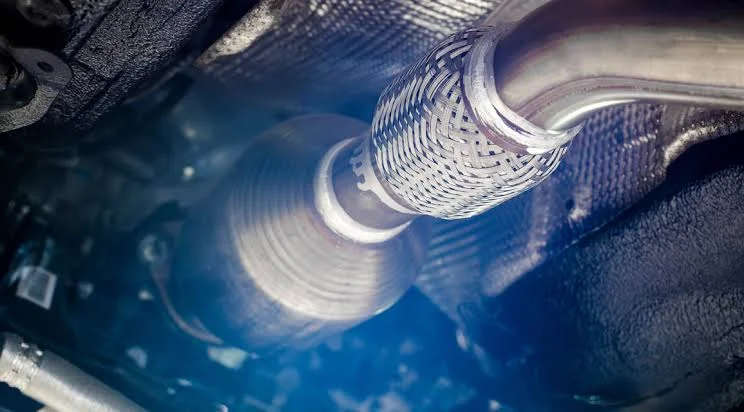

What is a DPF?

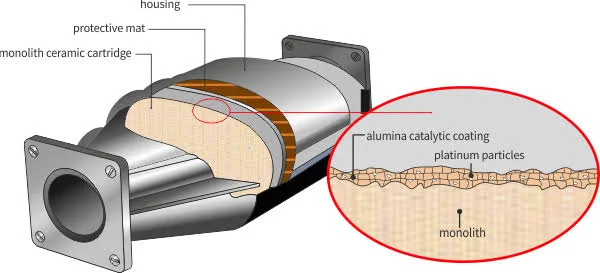

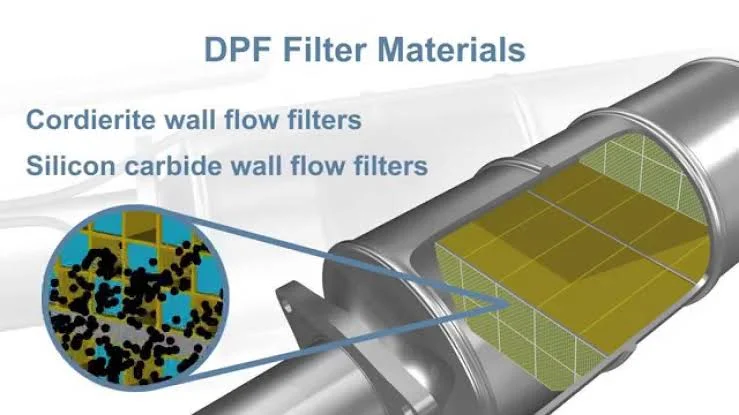

A DPF is an emissions control device designed to capture and remove particulate matter, such as soot and other solid particles, from the exhaust gases of diesel engines. It is typically made of a ceramic or metallic substrate with a honeycomb-like structure that provides a large surface area for trapping the particulate matter.

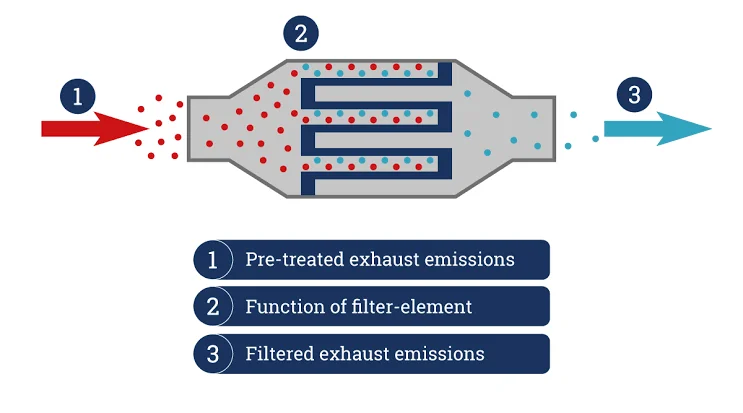

How does a DPF function?

1. Filtration: As exhaust gases flow through the DPF, the porous walls of the filter trap the particulate matter while allowing the gas to pass through. The trapped particles accumulate on the filter walls.

2. Regeneration: Over time, the trapped particulate matter builds up and can restrict the flow of exhaust gases. To prevent clogging and maintain optimal performance, the DPF needs periodic regeneration. This process involves raising the temperature of the exhaust gases, either through passive or active regeneration.

1.  Passive regeneration: During normal driving conditions, the exhaust gases' high temperature is sufficient to oxidize and burn off the accumulated soot, keeping the DPF clean.
2. Active regeneration: If the soot accumulation is too high for passive regeneration to occur, the engine management system initiates active regeneration. It increases the exhaust gas temperature by adjusting engine parameters, such as fuel injection timing or dosing fuel directly into the exhaust system. The increased temperature allows the trapped soot to burn off, regenerating the DPF.

Why is a DPF important?

1. Emissions reduction: The primary purpose of a DPF is to reduce particulate matter emissions, which are harmful to human health and the environment. By capturing and removing soot particles, DPFs contribute to cleaner air quality and reduce the risk of respiratory problems.

2. Environmental regulations: DPFs are essential for compliance with strict emissions standards implemented by regulatory bodies worldwide. Many countries have mandated the use of DPFs in diesel vehicles to minimize particulate matter emissions and protect public health.

Applications of DPFs:

DPFs are commonly used in various diesel-powered vehicles, including:

1. Passenger cars: Modern diesel cars are equipped with DPFs to comply with emissions regulations and improve air quality.
2. Commercial vehicles: Trucks, buses, and other heavy-duty vehicles employ DPFs to reduce particulate emissions, ensuring they meet environmental standards.
3. Off-road equipment: Construction machinery, agricultural vehicles, and industrial equipment equipped with diesel engines also utilize DPFs to control emissions.

DPF Maintenance:

Proper maintenance is crucial to ensure the effective operation and longevity of a DPF. Here are a few key maintenance considerations:

1. Regular inspections: Check the DPF for physical damage, such as cracks or leaks, and ensure proper installation.

2. Follow manufacturer recommendations: Adhere to the manufacturer's guidelines regarding maintenance intervals and procedures for DPF inspection, cleaning, or replacement.

3. Use the right fuel and additives: Quality diesel fuel with low sulfur content is recommended, as high sulfur levels can damage the DPF. Additionally, using approved fuel additives can help prevent soot buildup.

4. Avoid short trips: Frequent short trips without allowing the engine to reach optimal operating temperature can impede passive regeneration. Extended highway driving periodically helps maintain DPF cleanlines.

5. Address warning signs promptly: Pay attention to warning signs of a malfunctioning DPF, such as the DPF warning light illuminating on the dashboard or experiencing reduced engine performance. If these signs appear, it is crucial to address the issue promptly to prevent further damage to the DPF and engine components.

6. Professional cleaning or replacement: If the DPF becomes heavily clogged or damaged, it may require professional cleaning or replacement. Professional cleaning services can use specialized equipment and techniques to remove accumulated soot and restore the DPF's performance. In severe cases, a complete DPF replacement may be necessary.

7. Consult a qualified technician: DPF maintenance and repair can be complex. It is recommended to consult a qualified automotive technician or a service center with expertise in diesel engines and DPF systems. They have the knowledge and specialized equipment to diagnose, clean, and repair DPF-related issues effectively.

Signs of a malfunctioning DPF:

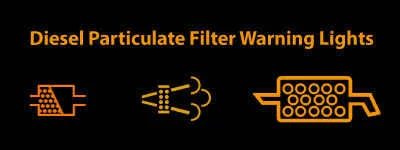

1. DPF warning light: The most common indicator of a malfunctioning DPF is the illumination of the DPF warning light on the dashboard. This light usually indicates that the DPF is becoming clogged and requires attention.
2. Loss of engine power: A clogged or malfunctioning DPF can restrict the flow of exhaust gases, leading to a loss of engine power and reduced performance.
3. Increased fuel consumption: When the DPF is not functioning correctly, it can result in poor combustion and increased fuel consumption.
4. Frequent regeneration cycles: If the DPF requires regeneration more frequently than usual, it may indicate that the filter is not effectively trapping and burning off the particulate matter.
5. Excessive smoke: A malfunctioning DPF can cause the emission of excessive smoke from the exhaust, often appearing as thick, black smoke.

Repair and DTC codes associated with DPF issues:

When dealing with DPF problems, it is crucial to diagnose and repair the underlying cause. Some common repair methods include:

1. Forced regeneration: If the DPF is only partially clogged, performing a forced regeneration can help burn off the accumulated soot and clean the filter. This process is usually carried out using specialized diagnostic tools.

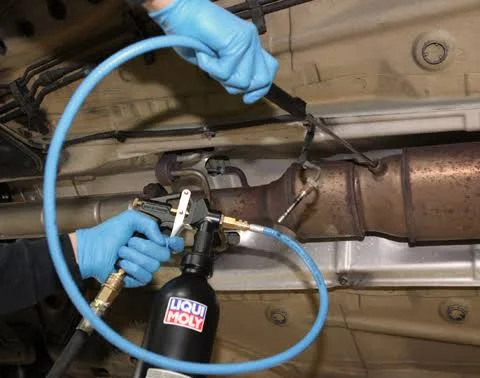

2. Cleaning or replacement: If the DPF is heavily clogged or damaged, it may require cleaning or replacement. Cleaning can be done through various methods, such as using specialized cleaning solutions or sending the filter to a professional cleaning service. In severe cases, a complete replacement of the DPF may be necessary.

3. Addressing engine issues: Often, DPF problems are related to underlying engine issues, such as faulty sensors, malfunctioning injectors, or EGR (exhaust gas recirculation) system problems. Repairing these engine-related problems is essential to prevent further DPF malfunctions.

Common DTC codes associated with DPF issues include:

1.  P2002: Diesel Particulate Filter Efficiency Below Threshold
2. P2463: Diesel Particulate Filter Soot Accumulation
3. P244A: Diesel Particulate Filter Differential Pressure Too Low
4. P2452: Particulate Filter Pressure Sensor Circuit

FAQs (Frequently Asked Questions):

How often should a DPF be cleaned or replaced?

The cleaning or replacement interval for a DPF depends on various factors, such as driving conditions, vehicle usage, and maintenance practices. Typically, DPF cleaning is recommended every 80,000 to 150,000 miles (or 120,000 to 240,000 kilometers). However, it is important to follow the manufacturer's guidelines and consult a professional technician for specific recommendations based on your vehicle.

Can I remove or bypass the DPF?

Removing or bypassing the DPF is illegal in many countries due to environmental regulations. It can lead to increased emissions and may result in penalties or fines. Additionally, tampering with the emissions control system can void your vehicle's warranty. It is essential to maintain the DPF and address any issues promptly to ensure compliance with environmental regulations.

Can I perform DPF maintenance myself?

While basic maintenance, such as checking the DPF for physical damage or excessive soot buildup, can be done by the vehicle owner, more complex tasks like forced regeneration or DPF cleaning should be performed by trained professionals. They have the necessary equipment and expertise to handle DPF maintenance properly and ensure its.
