Battery Troubleshooting: When to Replace or Recharge

No cranking, no start, just silence. Your car battery, the silent hero of your vehicle, has let you down. But could you have avoided this? Yes. Understanding your car’s battery is like having a sixth sense for your vehicle’s well-being.

“Nearly 40% of roadside assistance calls are due to battery-related issues.” Surprising, isn’t it? Picture this: you're rushing to an important meeting, turn the ignition key, and—nothing.

This guide will take you through everything you need to know about troubleshooting car batteries. Whether it’s a quick recharge or a full replacement, you’ll leave here equipped with the knowledge to avoid being stranded and to make the best decisions for your car.

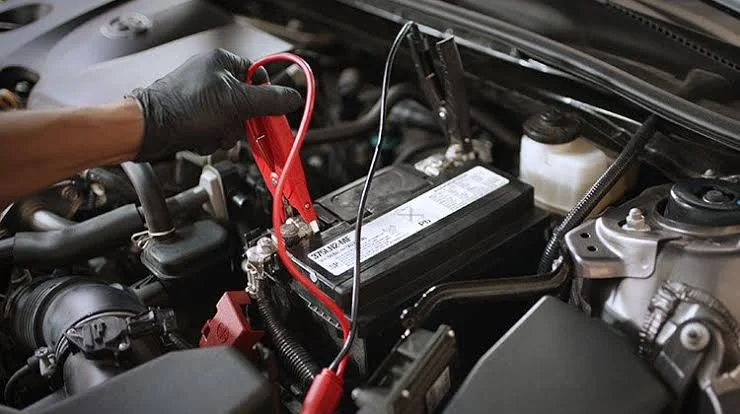

Battery Basics

Your car battery doesn’t just start your engine; it powers lights, electronics, and even backup systems. Most vehicles today use lead-acid batteries, typically rated at 12 volts. However, a healthy battery doesn’t sit exactly at 12V—it should read between 12.4 and 12.7 volts when fully charged. Dropping below 12 volts? That’s a red flag.

Battery health is also tied to specific gravity, a measure of the electrolyte’s density. A fully charged battery should show a specific gravity of 1.265 to 1.299 at 80°F. Deviations indicate trouble brewing.

Signs Your Battery Needs Attention

1. Slow Cranking: If your engine struggles to start, the battery may be weak or nearly drained.
2. Dashboard Warning Lights: Modern vehicles have warning systems, often showing a battery icon. Never ignore it.
3. Dim Headlights or Electronics Malfunctions: Batteries power your car’s electrical systems. Weak performance here is a telltale sign.
4. Swollen Battery Case: Heat and overcharging can cause the casing to bulge—an immediate replacement is necessary.
5. Age of the Battery: Most car batteries last 3-5 years. After three years, test it regularly.

Recharge or Replace?

When to Recharge:

• Voltage Between 12.0 and 12.4 Volts: A battery in this range is discharged but likely salvageable. Use a smart charger to bring it back to full capacity.
• No Visible Damage or Leakage: If the battery case is intact and no acid is leaking, a recharge is a viable option.
• Recent Usage: Left the lights on overnight? A recharge can often restore a drained but otherwise healthy battery.

When to Replace:

• Voltage Below 12.0 Volts After a Full Charge: If the voltage doesn’t improve even after charging, the battery is likely sulfated and beyond saving.
• Irregular Specific Gravity: Uneven readings across cells (difference greater than 0.03) indicate internal damage.
• Persistent Starting Issues: If the car still struggles to start despite charging, replacement is the safer bet.
• Physical Damage or Corrosion: Cracks, leaks, or heavy corrosion around terminals mean it’s time to replace.

How to Test Your Battery

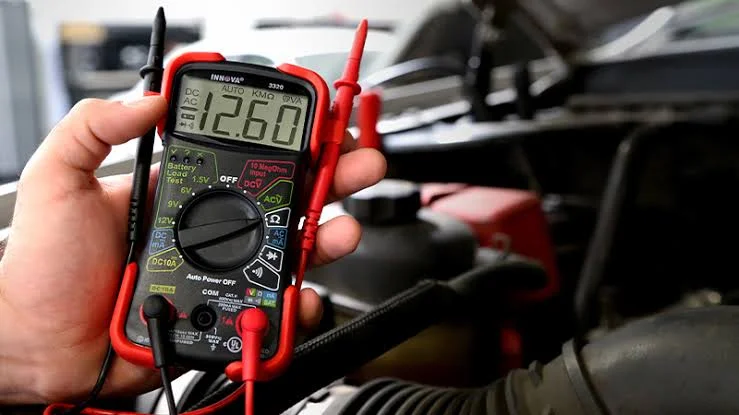

Multimeter Check:

1. Set to DC voltage, place the red probe on the positive terminal and black on the negative.
2. A reading of 12.6V or higher is good; 12.0V to 12.5V means recharge; under 12.0V means likely replacement.

Load Test:

• Using a load tester, apply a load equivalent to half the battery’s CCA (Cold Cranking Amps).
• The voltage should remain above 9.6 volts during the test. Anything lower signals a weak battery.

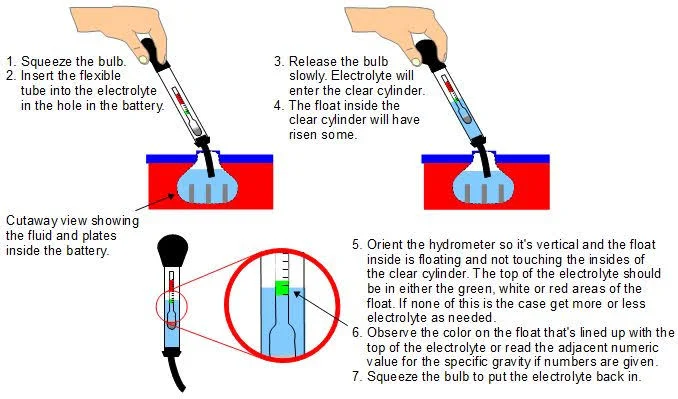

Hydrometer Test:

• For lead-acid batteries, a hydrometer measures electrolyte density. Specific gravity readings below 1.225 indicate partial discharge or a failing battery.

Maintenance Tips to Extend Battery Life

1. Clean Terminals Regularly: Corrosion reduces connectivity. Use a mixture of baking soda and water to clean terminals.
2. Secure the Battery: Vibrations can damage internal components. Ensure the battery is tightly mounted.
3. Avoid Short Trips: Driving less than 15 minutes frequently doesn’t allow the alternator to recharge the battery fully.
4. Check for Parasitic Drains: Accessories left on or faulty systems can drain your battery overnight.

When It’s Time to Call a Professional

If troubleshooting doesn’t yield clear answers, consult a professional. Many auto shops offer free battery testing. Ignoring battery issues can strain your alternator or leave you stranded in the worst situations.

A reliable car battery ensures peace of mind. Whether it’s recharging a drained battery or recognizing when it’s time to replace, staying proactive saves time, money, and frustration. Remember: a well-maintained battery isn’t just a convenience—it’s a necessity. With the right tools and knowledge, you can handle most battery troubles like a pro.

Stay powered and safe on the road!
