Maintaining and Troubleshooting Diesel Particulate Filters (DPFs): Your Complete Guide

DPFs are commonly used in diesel vehicles, including cars, trucks, and commercial vehicles. They are particularly prevalent in regions with strict emissions regulations, as they help to reduce particulate matter emissions and meet the required emission standards.

A diesel particulate filter (DPF) is a device used in diesel engines to reduce the emissions of particulate matter (PM) from the exhaust gases. It is an integral component of the vehicle's exhaust system. The primary function of a DPF is to trap and remove microscopic particles, such as soot and ash, that are produced during the combustion process in a diesel engine.

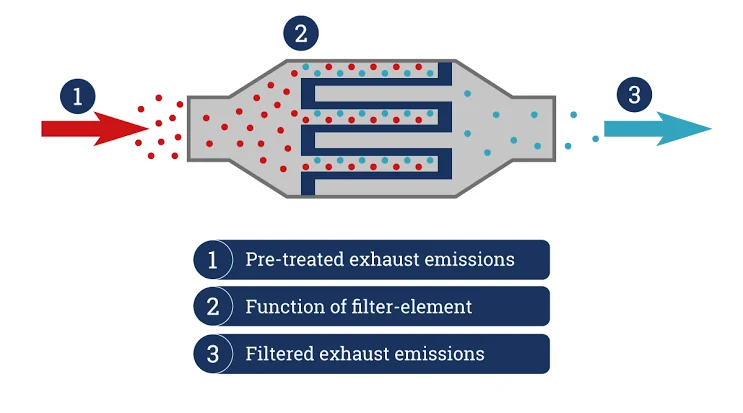

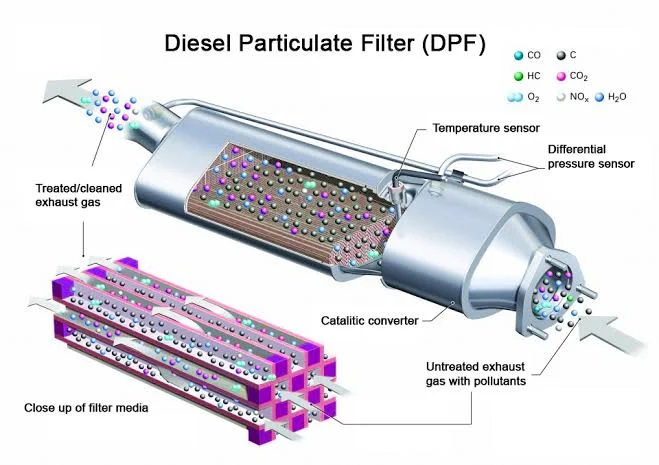

The DPF consists of a porous filter made of ceramic or metal fibers. As the exhaust gases flow through the filter, the particulate matter is captured and trapped in the tiny pores and channels of the filter. This allows the filtered exhaust gases to pass through while retaining the harmful particulate matter.

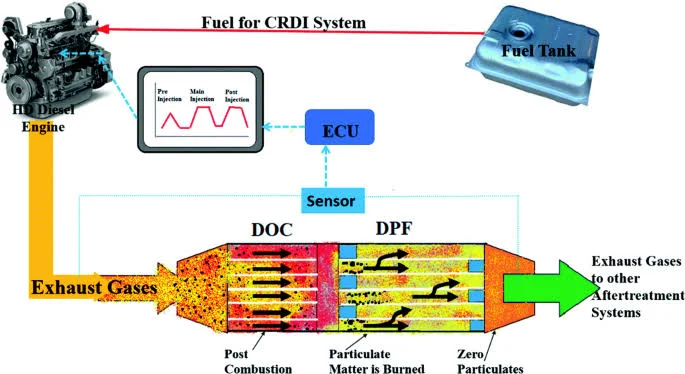

To prevent the filter from becoming excessively clogged and affecting engine performance, the DPF goes through a process called regeneration. During regeneration, the accumulated soot and particulate matter are burned off at high temperatures, leaving behind only ash. This regeneration process can occur passively, through normal driving conditions that create high exhaust temperatures, or actively, where the engine control unit initiates regeneration by increasing exhaust temperatures through various means, such as adjusting fuel injection timing or introducing additional fuel into the exhaust stream.

By capturing and reducing particulate matter emissions, DPFs help to improve air quality and reduce the environmental impact of diesel vehicles. They are especially important in meeting stringent emissions regulations in many countries. However, it's essential to maintain and properly care for the DPF to ensure its effective operation and prevent potential issues such as blockage or malfunction.

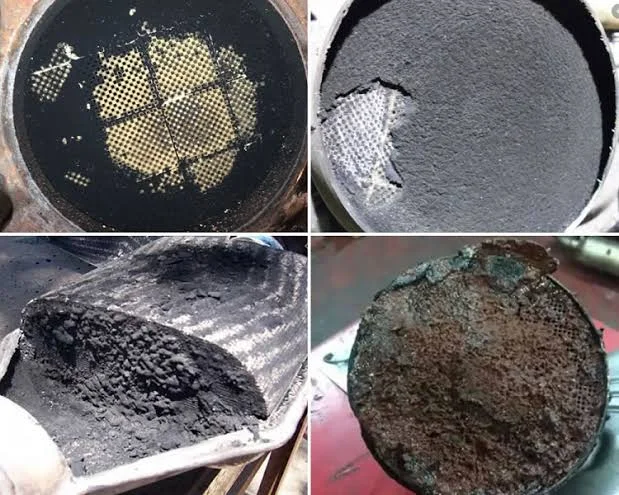

Signs of a failing DPF:

1. Warning lights: A failing DPF may trigger warning lights on the vehicle's dashboard, such as the Check Engine Light or DPF warning light.

2. Reduced engine performance: A clogged or failing DPF can cause a decrease in engine power and performance.

3. Increased fuel consumption: A malfunctioning DPF may lead to increased fuel consumption due to restricted exhaust flow.

4. Frequent regeneration cycles: If the DPF requires regeneration more frequently than usual, it could indicate a problem with the filter or other components.

5. Exhaust smoke and odor: A failing DPF can result in excessive smoke emissions from the exhaust, along with a noticeable diesel odor.

Troubleshooting and repairing A Diesel Particulate Filter

1. DPF regeneration: If your vehicle has an active regeneration system, it's important to ensure that the vehicle is driven under conditions that allow the DPF to regenerate. This typically involves driving at highway speeds for an extended period.

2. Cleaning: In some cases, a professional DPF cleaning service can help remove accumulated soot and ash from the filter, restoring its functionality.

3. Replacement: If the DPF is severely damaged or cannot be effectively cleaned, it may need to be replaced with a new or refurbished unit.

4. Professional diagnosis: If you're experiencing persistent issues with the DPF, it's recommended to seek professional diagnosis from a qualified technician or service center.

DTC codes associated with DPF issues:

1. P2002: Indicates that the particulate filter efficiency is below the threshold. It may suggest a clogged or malfunctioning DPF.

2. P244A: This code is specific to vehicles with a secondary air injection system. It indicates that the DPF differential pressure is too high, indicating potential blockage or other issues.

3. P2463: This suggests that the DPF is excessively clogged, potentially requiring cleaning or replacement.

4. P2452: This one indicates that the diesel particulate filter pressure sensor circuit has a malfunction, which may require inspection and repair.

5. P246C: This code is related to the DPF soot accumulation, indicating that the soot level is too high and requires attention.
