Engine Misfire: What It Is, Why It Happens, and How to Fix It

An engine misfire isn't just a small issue—it’s a loud warning. Studies show that misfires are one of the leading causes of engine failure and increased emissions.

When your car starts sputtering at a red light or jerks as you accelerate, it’s not just an annoyance but a clear sign that something is wrong with your car's engine. Understanding why your car is misfiring and knowing how to fix a misfire can save you thousands in repairs and countless headaches. So what is an engine missfire? Its an issue with your engine that takes place when one or more cylinders in the engine do not fully ignite causing the air-fuel mixture to not burn correctly resulting to lack of power and other noticeable symptoms like rough idling, jerking acceleration, or unusual noises from the engine; typically caused by faulty spark plugs, ignition coils, or fuel injectors

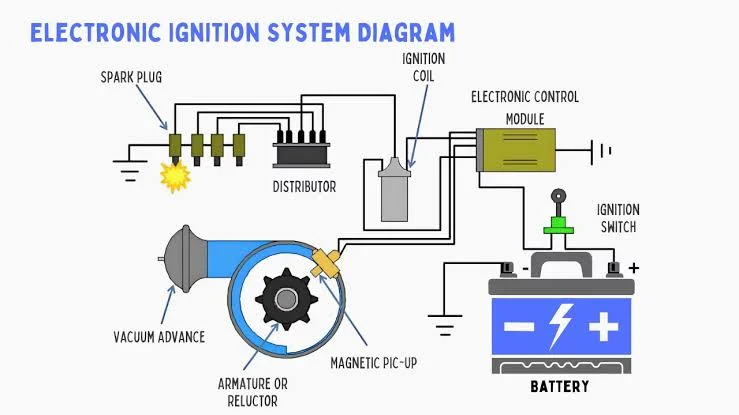

How Does the ECU Detect Engine Misfires?

Today, modern vehicles fully on their Engine Control Unit (ECU) to monitor engine performance. An Engine Control Unit (ECU) is a computer in a water proof box that receives signals from multiple sensors and sends commands base upon its operating system and programming to the: fuel injection, ignition timing, idle speed, variable valve timing, air/fuel mixture, throttle body position, coolant temperature, oxygen sensor readings, exhaust gas recirculation (EGR), and the activation of cooling fans.

To detect a misfire, the ECU usually analyses data from different sensors like:

1. Crankshaft Position Sensor (CPS): Monitors engine RPM and the ECU will detect qbrupt changes in RPM, often caused by misfires, trigger alerts.
2.  Oxygen Sensors (O2): Measure oxygen levels in exhaust gases. Unburned fuel from misfires results in abnormal O2 readings.
3.  Cam Position Sensor (CPS): Tracks camshaft rotation, helping the ECU identify inconsistencies between cam and crank positions, a symptom of misfires.
4.  Ignition Coil and Injector Sensors: Monitor the timing and duration of ignition and fuel injection pulses. Faulty components or mistimed events can lead to misfires.
5.  Knock Sensors: Detect engine knock, a type of uncontrolled combustion that can accompany misfires.

If a misfire is detected, the ECU logs a Diagnostic Trouble Code (DTC) and triggers the check engine light.

Misfire Symptoms: How to Recognize the Signs

A misfiring engine can produce a number of signs, including:

1. Check engine light: The check engine light on your dashboard may illuminate to indicate a problem with your engine.
2. Engine sounds: You may hear popping or squeezing sounds, or the engine may backfire.
3. Engine performance: The engine may lose power, jerk, vibrate, stall, or have a rough idle. It may also be difficult to start.
4. Fuel consumption: Fuel consumption may increase.
5. Emissions: Emissions may increase.
6. Smell: You may smell gas, engine oil, steam, or coolant.
7. Feel: From the driver's seat, it may feel like the engine is coughing or stumbling.

Some common causes of engine misfires include: Worn or fouled spark plugs, Bad or malfunctioning ignition coils, Fuel injectors, Vacuum leaks, and Mass airflow sensor.

Misfire Causes and Their Effects

Engine misfires occur when one or more cylinders in an engine fail to produce power. This can be caused by a number of factors, including:

• Faulty spark plugs: Worn or fouled spark plugs are a common cause of engine misfires. They deliver the spark that ignites the fuel in the engine, and if they're not working properly, the engine won't fire on all cylinders.
• Faulty fuel injector: A dirty or malfunctioning fuel injector can supply too little or too much fuel to the engine. This can decrease engine performance and fuel economy.
• Ignition coil: A faulty ignition coil can prevent spark plugs from getting enough power. To compensate, the system will inject more fuel, which can lead to poor fuel economy.
• Vacuum leaks: Unwanted air entering the engine through vacuum leaks can upset the air-fuel mixture, resulting in misfires.

Some effects of an engine misfire include: Reduced fuel economy, Safety risks on the road, Engine damage, Rough engine operation, and Strong or light jerking coming from the engine.

Ignoring these causes can result in long-term damage:

1. Catalytic converter damage:: Unburned fuel from a misfire can overheat the catalytic converter, leading to its deterioration and potential need for replacement.
2. Reduced fuel economy: A misfiring engine burns fuel inefficiently, resulting in lower gas mileage.
3. Engine damage: If left unaddressed, a misfire can cause further damage to engine components due to uneven combustion and stress on the system.
4. Rough acceleration: Misfires often manifest as a rough or sluggish acceleration, impacting driving experience.
5. Increased emissions: Unburned fuel from a misfire can contribute to higher emissions levels.

Misfire Diagnosis: Step-by-Step Guide

Engine Misfires Diagnosis

An engine misfire’s causes must systematically be traced. That is exactly what this step-by-step guide does:

Step 1: Scan for Problems

Should there be any hiccup during operation, onboard diagnostics unit will always store an error code (OBD-II). Using an OBD-II scanner will help you to retrieve this codes remarked Gelinas & Gauvin (2007). For instance, the P0300 which is very common refers to random/multiple cylinder misfire while P0301-P0308 (specific cylinder misfire).

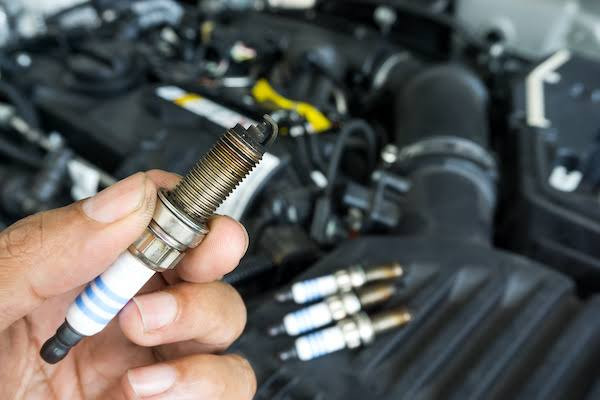

Step 2: Inspect Spark Plugs

Whenever an engine misses, the spark plug is frequently the culpri. Before throwing ambiently to scrutinize each of the spark plug whether it shows signs of wear, fouling or damage as claimed by Spencer (2006). Replace non-functional ones ensuring they have correct gaps.

Step 3: Examine Ignition Coils

Ignition coils are responsible for changing the battery’s voltage into a high-voltage spark for igniting the air-fuel mixture. Using a multimeter test them or interchange between cylinders then if one is having misfire issue, it will follow that even after swapping them with other good ones. Replace any malfunctioning ones.

Step 4: Check Fuel Injectors

Fuel injectors transport fuel into the cylinders of an engine. Therefore, any dirt in a single injector without allowing a similar quantity in all the rest may cause one only to misfire by Dorman (1996). You should listen for some clicking noise emanating from each injector by use of mechanics stethoscope’ when we listen to these devices during their availability (Hankins, 2003). If one is silent or inconsistent you may think about cleaning or replacing this AR.

Step 5: Inspect Vacuum Leaks

The engine may misfire due to vacuum leaks, thereby disturbing the air-fuel mixture. According to Villasenor (201), the use of carburetor cleaner or smoke machine can be employed in checking leakage points on hoses, gaskets and intake manifold. Therefore, any found leak should be repaired properly only after discovering it.

Step 6: Test Compression

Misfires are caused by poor compression in one or more cylinders. Perform a compression test using a compression gauge. Manufacturer’s specifications should be compared to the readings that are obtained during this test. Possible reasons for low compression can be further explored if it is not found such as worn piston rings or a blown head gasket.

Step 7: Check the EGR Valve

In order to reduce emissions, the Exhaust Gas Recirculation valve returns some exhaust gases back to combustion chamber. When the EGR valve becomes defective, rough idling results along with engine misfires (Kalika, 2012). Hence test the valve and replace if necessary.

Manual Procedure in Testing Spark Plugs

Physically Inspect the Spark Plugs

Take out the Spark Plug: Use a spark plug socket and ratchet to carefully unscrew and pull out the plug.

1. Check for Damage: Look for cracks in the ceramic insulator, worn electrodes, or excessive carbon buildup.
2. Check the Gap: Use a spark plug gap gauge to ensure that the gap conforms to the vehicle manufacturer’s specifications. An incorrect gap can lead to weak sparks.

Spark Test

• Connect the Plug with the Wire: Using insulated pliers hold the spark plug against the engine block.
• Start the Engine: You are supposed to see a strong blue spark jumping over the electrode. Weak or no spark indicates the need for new plugs.

If Need Be Replace:

If signs of wear, damage, or they are out of service life, install new plugs always replacing with right one for your engine model.

How to Test Ignition Coils

Resistance Test

Disconnect the Coil: Unplug the coil connector to isolate it electrically.

1. Get a Multimeter Gauge: Set the multimeter to ohms for resistance measurement. Check for primary and secondary windings. Appropriate values are specified by your manufacturer in the service manual.
2. Check for Values that are Out of Range: This can be indicated by either high resistance or none at all in such situation just obtain another one you ready to go.

Exchange Coils On Cylinders

More so at this stage you need to locate them:

• Transfer the suspected coil from one cylinder to another one then restart your car
• This way, any coil following that will be detected as the problem one.

How to Diagnose using Engine Vibration Changes

This method involves observing the behavior of misfiring engine to locate the offending cylinder:

Disconnect Power From Ignition Coil

• Unplug one ignition coil at a time while the engine is running. The spark will be cut off from that cylinder.
• Be careful not to come into contact with live electricity.

Listen For Engine Vibration Changes

• When operating normally, removing a working ignition coil will cause an increase in engine vibration.
• In an impaired one, unplugging its ignition coil will not lead to any changes in engine vibrations.

Reattach The Connector

• Reconnect the ignition coil power before moving to the next one to avoid confusion.

How to Fix Misfire Issues

Important steps during misfire diagnosis and correction are:

1. Check trouble codes: Using an OBD-II scanner check for any diagnostic trouble codes (DTCs) since these would indicate specific cylinders which have misfired.
2. Check Spark Plugs: Check spark plugs for wear, fouling or damage and replace them if necessary.
3. Inspect Ignition Coils: Visually inspect ignition coils for damage and use an ohmmeter to verify proper resistance.
4. Fuel Injectors Assessment: Clean the fuel injectors if they seem dirty or replace them in case of a fault.
5. Fuel Filter Check: In case it is clogged then such should be replaced.
6. Air Intake System Inspection: To make sure that there are no cracks, look at the air intake hoses and check if the filter has not been clogged.
7. Engine Timing Confirmation: Make certain that the timing belt/chain is correctly aligned and is not worn out.
8. Vacuum Leakages Inspection: Look through all vacuum hoses for possible openings that might lead to instability in air-fuel mix.

Misfires are prevented by regular maintenance and immediate remedial action upon any identified failure.

In conclusion an engine misfire is more than just a minor inconvenience, it's actually an indication that your car needs attention; identifying it at early stages will save time plus money avoiding stress while doing so through structured diagnosis can assist you achieve these goals without much hassle but waiting till it becomes major repair makes everything difficult.I recommend proactivity towards checking on anything wrong with your vehicle especially when things seem OK because engines can work without producing strange sounds but they still have issues like those related to misfires or excess fuel consumption so be watchful.
