Signs Your Radiator is Clogged and How to Fix It Yourself

The functioning of your car’s cooling system is highly dependent on the radiator to regulate the engine temperature and keep your vehicle moving smoothly. In case it is blocked and not cleared fast enough, it will create bigger problems in your car’s engine.

This guide provides a detailed view of all matters concerning clogged radiators; symptoms, causes, solutions as well as cost comparisons among other issues aimed at ensuring that your vehicle is ever in good condition.

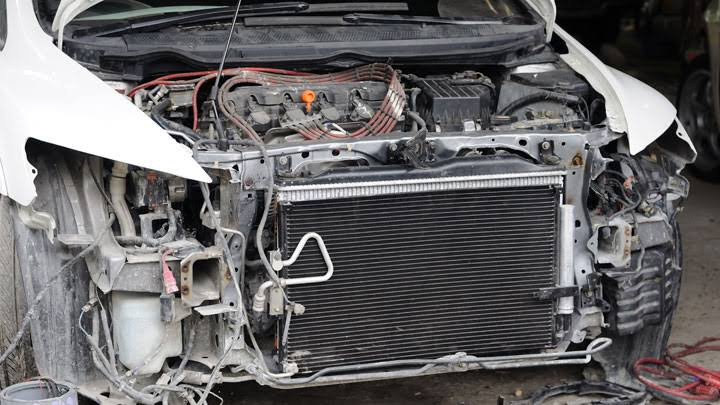

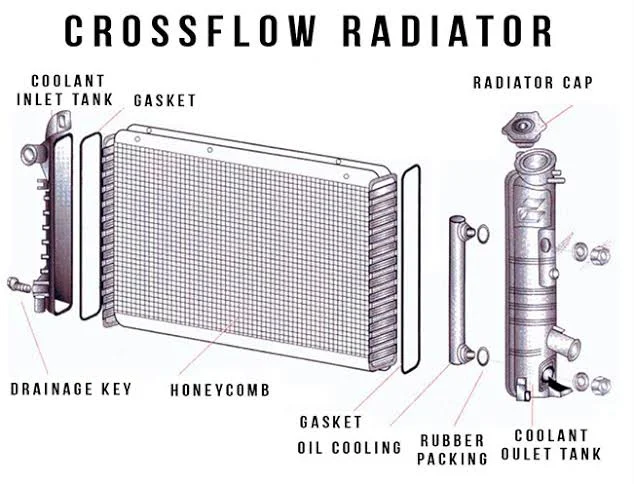

What is Radiator?

A radiator forms part of the cooling system for your car. It assists to get rid of the heat from the antifreeze that is using through your engine in its way out. Being circulated by air flowing past it, from the engine’s warm parts, the fluid picks up heat and flows into this unit where it gets cooled off by these fins passing cooled gushes through them during continuous cycles of operations. This situation may lead to engine overheating, if airflow over the radiator flow is obstructed by anything such as litter or dents in its fins.

Functions of Radiator Include:

1. Keeps the coolant cold by letting warm or hot coolant out of the engine and letting the cold one in, and the process is repeated over time.
2. It plays an important role of ensuring that an engine is not affected by overheating which might result into destructions of parts within it.

If your car has no good radiators, then it will keep on heating hence leaving a possibility of breakdowns and expensive repair costs.

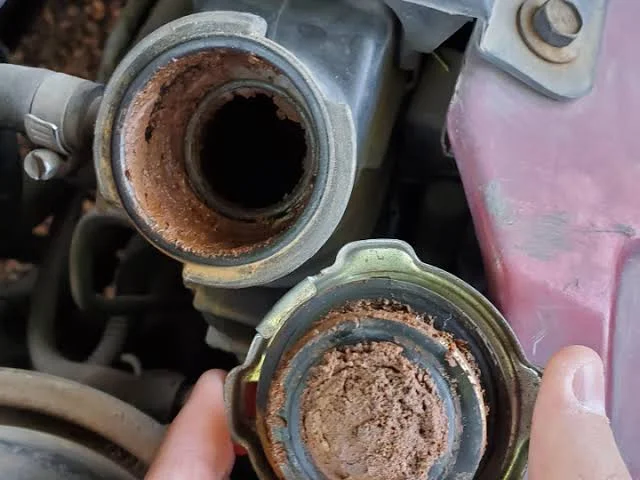

Symptoms of a Clogged or Bad Radiator

Engine Overheating

Clogged radiators usually cause frequent engine overheating. When there is a blockage, coolant flow reduces and so your car might not receive enough cooling. Usually you will notice that as you drive, your temperature gauge moves very fast upwards while sometimes one could see steam coming from under their car`s bonnet.

Coolant Leaks

Increased coolant pressure inside a blocked radiator can force it out through holes on its surface or even split some pipes that carry antifreeze. If you find liquid puddles (green or orange in colour) below the vehicle when you park then this means either water pump has malfunctioned or radiator hoses have bursted due to high pressure build up during overheating conditions.

Discolored Coolant

Rusty or sludgy coolants are a tell-tale sign that something is wrong. If this is what has become of your antifreeze then it must be contaminated in one way or another hence making it possible for the radiator to block up since there will no longer be free movement through its channels.

Low Coolant Levels

Despite lack of any visible leaks, a clogged radiator makes the fluid level to go down. This happens when there are air pockets or obstructions which do not allow adequate movement of the coolant while others may cause an overflow without showing themselves too much.

Temperature Gauge Fluctuating

Inconsistent cooling is what you get if there is a jam in your vehicle`s radiator; dashboard gauge displays abnormal temperatures at times. It can swing abruptly from being normal to hot.

Steaming From The Engine

Steam originating from the front bumper areas indicates that coolant is blocked at some points hence poor engine cooling.

Heater Malfunction

Warm air is blown into the vehicle cabin by heating up coolant in the heater. A non-functional or cold blowing heater might need checking for signs of blocked radiators.

Reasons Behind Radiator Clogging

This clogging may be as a result of various things ranging from neglecting maintenance practices to natural occurrences like rust and corrosion processes within the car parts. Knowing these sources will prevent such happenings again.

1. Rust & corrosion: Most radiators are metal based and thus they can rust over time if their coolant is not regularly changed or when the incorrect type is added into it leading at times to clogging up because of fragments that fall off.
2. Debris: Dirt, leaves, insects etc., which are commonly found along roadsides could also find their way into your vehicle’s fins thus causing them to become blocked as a result of reduced air flowing through leading variance in terms of engine temperature regulation.
3. Contaminated Coolant: Poor quality antifreeze tends to get blended with inferior products or other substances that are incompatible raising contamination fears when unwanted deposits start forming eventually blocking tiny pipes situated within the radiator.
4. Neglecting frequent Maintenance: If routine coolant flushing schedules are skipped then dirt particles together with scale plus rust would accumulate thus reducing its operating efficiency through time ultimately resulting into clogging up the device.
5. Internal Leaks: By leaking head gaskets and/or hoses air escapes into the cooling system whose presence usually prevents circulation of coolants resulting into localized overheating processes within radiators due to presence of hot spots.

How to Tell If Your Radiator Is Blocked

If you think that your radiator is blocked, below are some measures you can take to help you diagnose the issue:

• Hose temperature test: With the engine running and warmed up, touch both upper and lower hoses of the radiator to determine their temperatures. One hose being considerably hotter than the other may mean there is a block somewhere preventing proper flow of coolant through the radiator.
• Temperature Fluctuations: If there are fast and irregular changes between high and low engine temperatures, this may suggest inconsistent circulation coolant which can be a sign that the radiator has been blocked.
• Steam or Coolant Smell: Steam under the hood or a sweet smelling burn indicates a blocked radiator. Thus the coolant fails to perform its task of keeping the engine cool hence resulting into overheating

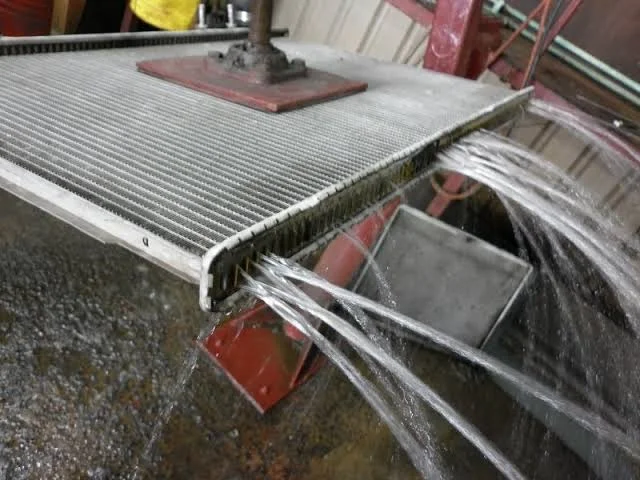

Steps for Cleaning A Clogged Radiator

Once you discover that your radiator is clogged, the next precaution will be washing it. Here are some of the most effective ways one can go about it.

Cleaning a Clogged Radiator

This is an easy process of clearing away any dirt from inside a blocked radiator. Below is what you should do:

1. Place your car at a flat place then switch off the engine completely until it cools down.
2. Have a bucket underneath radiator drain valve then let all fluid drain out from it.
3. Unscrew plastic cover on top side of the cooling system tank within which there’s heavy duty radiator flush.
4. Add water into other upper parts using fresh water.
5. Put back the original cap on its rightful place and start driving again before starting engine with an intention of allowing it run for about fifteen minutes such that it cycles over whole cooling network.
6. Let your car cool down by switching off power after stopping movement though ensuring that there’re no further changes in temperature as compared with ambient conditions thereby preventing any impact from shock heating
7. Do away with such a cap; permit coolant to drain out using drain valve into a bucke
8. Insert water hose into radiator opening and flush it through with water until clear water comes out from drain valve
9. Let the entire radiator water drain completely
10. After that refill the system with a coolant-water mixture
11. Top off the radiator until it is full and have the overflow tank being half full
12. Make sure the cap is tight then crank up engine again to confirm no leakage
13. Allow the engine to cool, remove the radiator cap and add coolant to its fullest.
14. Make sure you seal it properly and then replace the cap.

Costs of fixing a radiator

The cost of repairs will depend on varied factors including type of car or extent of damage. Here’s an idea:

• How much are the minor repairs: these include basic flushes, little leaks and sometimes hose replacements which start at $150 going up to about $300.
• Major Repairs or Radiator Replacement: Depending on your car’s make and model, the cost of a whole new one begins from $500 to as high as $120

So, the radiator problems should be addressed quickly to avoid more expensive repairs in the long run, such as head gasket or engine damage.

FAQ’s Concerning Blocked Radiators

How long can I drive with a clogged radiator?

Avoid driving with a blocked radiator. Just small distances with a blocked radiator can cause significant overheating in the engine.

Can a clogged radiator cause engine failure?

Yes, if you let it stay too long, you may have severe overheating problems which could lead to things like head gasket failure, cracked engine blocks or other catastrophic engine problems.

Can I clean a clogged radiator myself?

Everyday people can do basic radiator flushes at home. However, a qualified mechanic should address serious blockages or other cooling system issues.

How frequently should I perform a radiator flush?

Most manufacturers recommend flushing of the radiator every 30,000 miles or every two to three years. But always follow your car’s manual.

What happens when you don't flush your radiator?

If you miss radiator flushes, the system becomes contaminated thus leading to congestions, lower cooling efficiency, and potential motor damages.

Can a clogged radiator cause a check engine light to turn on?

Yes, if the car’s engine overheats for instance because of a blocked radiator then the check engine light may be illuminated as a caution according to the onboard diagnostics of that vehicle.

How do I stop my radiator from getting clogged?

Regularly changing the coolant, using an appropriate one as well as clearing all stuff away from cooling system will help in preventing blockage by any material around there including coolant salts that are dissolving into normal flow parts. Also remember not to miss checking if there are any damages at all or leaks on your radiator during scheduled checks.
