Understanding the BMW Valvetronic System: How it Enhances Engine Efficiency

Since more than a hundred years ago, the Otto-cycle 4-stroke internal combustion engine has been used in automotive designs. Improving efficiency, performance and emissions are very essential things to do since this is a primary source of propulsion in cars as well as light trucks. To tackle this problem, BMW has come up with Valvetronic which refines the intake system for gasoline internal combustion engines (ICE), providing innovative solutions for these challenges.

This article examines the components of Valvetronic, how it works and its evolution that spanned over three generations.

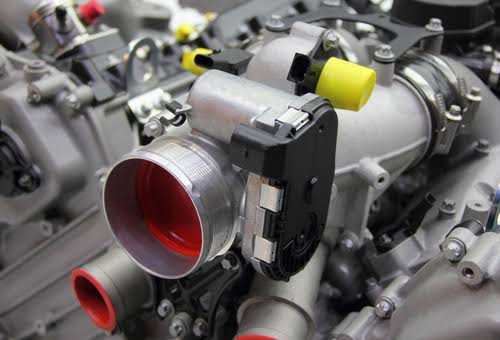

Need for Better Engine Control

Intake and exhaust valves in traditional engine designs are regulated by a camshaft while at the same time; an engine load and an airflow are controlled by a throttle. This approach leads to inefficiencies particularly when it comes to partial load conditions since there is usually a 3/8 inch (9-10 mm) opening of the intake valve by an intake camshaft lobe which is too much under many driving scenarios.

What Exactly Is Valvetronic?

Lift and duration of the intake valves are regulated by Valvetronic which is a proprietary system created by BMW to increase engine efficiency. Consequently, better airflow management is allowed into the engine hence reduced pumping losses and lower fuel consumption.

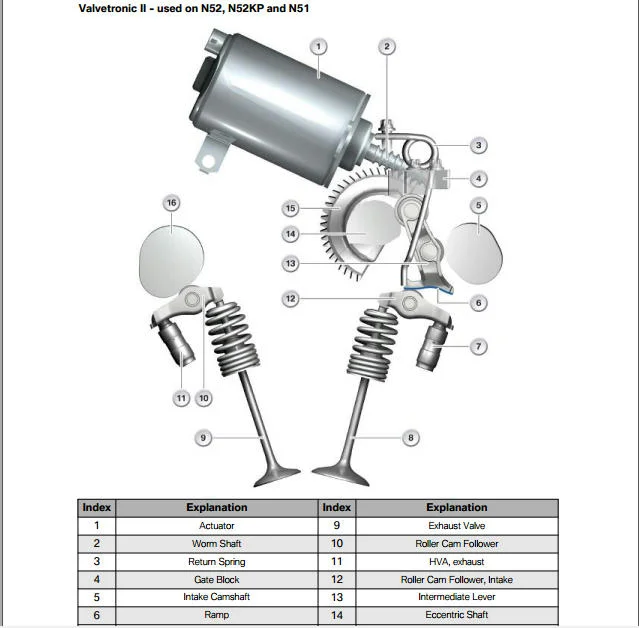

Principal Parts Of The BMW Valvetronic System

1. The Eccentric Shaft is the core component because it controls the intermediate lever movement that directs how high or low the valve opens. The shaft has an eccentric design that permits for variable valve behaviors.
2. A lever acts as an intermediate between the eccentric shaft and the valve. It changes the rotational motion of the eccentric shaft into linear movement of opening and shutting the valve in turn. This is the role of the entire system.
3. Intermediate lever connects the roller follower to roller valves and allows for any sliding with least possible friction during movement unlike any other component in the entire mechanism while also ensuring its smooth operation.
4. This is a high-speed DC or AC brushless motor that drives the Eccentric Shaft. This servo-motor enables it to adjust the valve lift rapidly and accurately allowing for real-time modulation of airflow.
5. Eccentric Shaft Position Sensor-this sensor keeps track on where eccentric shaft is situated aimed at relaying data back to engine control unit (ECU) so that the valve can operate precisely.

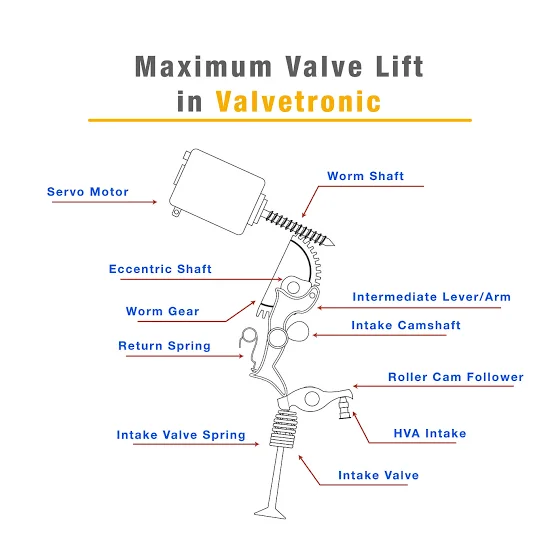

Principle of Operation

The Valvetronic system is based on the “lost motion” principle. The following explains how it works:

1. Variable Valve Lift: Valvetronic does not just rely on the throttle position to regulate airflow; it also varies the valve lift anywhere between .3 mm and 9.85 mm. This enables accurate control of the air-fuel mixture thus leading to effective and efficient combustion.
2. Throttle-Free Load Control: Valvetronic uses valve lift to control airflow at intake port instead of throttle opening thus reducing pumping losses. This makes it more efficient especially when operating under low load conditions.
3. Movement of the Eccentric Shaft: As the eccentric shaft rotates, it moves the intermediate lever closer to the camshaft which changes the pivot point for opening and closing the intake valve. Hence valve lift fluctuates allowing optimum engine performance in various situations.
4. High-Speed Adjustment: In just 300 milliseconds at a frequency of 16 kHz, servo-motor calibrates valve lift thus boosting fast response to shifting engine conditions.

Improvements Over Generations

First Generation (2002)

• Introduction: The concept of variable valve lift was introduced in this first generation Valvetronic system, which was launched with N62 V8 and N73 V12 engines.
• Challenges: Intermediary lever and eccentric shaft contact point in this generation experienced wearing related problems. There were wear issues affecting the slide contact pad leading to inconsistent valve lift and rough idling.

Second Generation (2006)

Renovation: N52 inline-six engine redesign incorporated the second-generation Valvetronic system. It had the following features:

1. Intermediate Lever with Roller: To curb wear; BMW changed its design so that now it has a roller at the point where it touches another part, resulting in much less tear on parts used over time compared with prior designs.
2. Lower Minimum Lift Setting: By lowering the minimum lift setting to .18 mm, there was now smoother engine operation at idle. This adjustment improved idle quality while also reducing emissions from such vehicles.
3. Phasing Capability: Charge motion within a cylinder could be improved by introducing such valve opening event phasing thus enhancing air-fuel mixing. Performance can be optimized by having one valve open at a time when another valve is closed during minimal life situations.

Third Generation (201)

Compact Design: The N20 four-cylinder engines marked the advent of the third-generation Valvetronic system. These are some major changes that took place during that period:

• AC Brushless Motor: Smaller, more efficient and responsive than the large DC servo-motor previously used in the system, the new motor enhances selective adjustment of valve lift by the system resulting in smoother engine operation as well as better idle quality.
• Integrated Position Sensor: This generation eliminated the external eccentric shaft position sensor and instead used an integrated one located within the brushless motor, thereby cutting down complexity while enhancing accuracy.
• Quick Response: In comparison to DC engine, the quick response of a brushless engine allows real-time change of the lift height, which in turn raises the efficiency and overall performance of the engine.

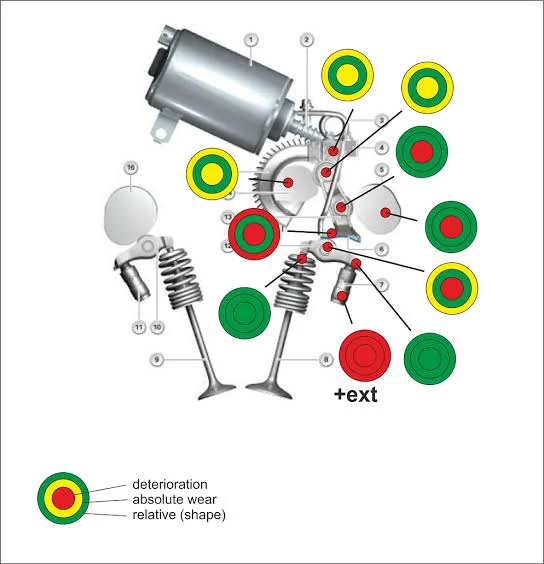

Things Servicers Should Keep in Mind About

The following can not be ignored when dealing with Valvetronic-equipped engines:

1. Put the Eccentric Shaft: In order to avoid any harm,put in the minimum lift stage before the servo motor is eliminated. It's an important step that should be taken to prevent any issues during repairs.
2. Check Sensors: One must make sure that the eccentric shaft position sensor is working well because it plays a big role in maintaining the best performance in an engine. When the sensor is not functioning properly, fuel economy goes down among other problems in engine operation.
3. Compression Tests: A user should adhere to BMW’s compression test guidelines and regulate the eccentric shaft for appropriate compression reading accuracy. To set the eccentric shaft at 176° before testing, the factory ISTA scan tool should be used during the process.

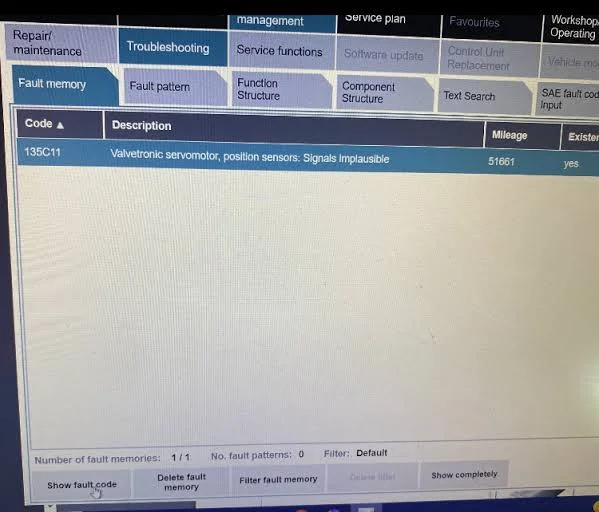

DTC CODES Commonly Associated With Valvetronic System

In the list below are some of my significant BMW particular Valvetronic fault codes together with diagnostic tips from my own archive files:

1. P1014 - Valvetronic Eccentric Shaft Sensor ReferenceI: f you come across this code, there is high likelihood that it has to do with the (ECC) eccentric shaft sensor malfunctioning. It records a position value that doesn't match what the DME expects.
2. P1017 - Valvetronic Eccentric Shaft Sensor Plausibility: This code indicates an abnormal position of eccentric shaft that is outside normal limits as was in P1014. It could be due to a bad wiring in the Valvetronic system. Check out for damaged, burnt or shorted wires and connectors. The other possible case is bad electrical connections or mechanical destruction at the shafts.
3. P1023 - Valvetronic Adjustment Range: The issue with this code is that it indicates the adjustment scope for eccentrics is rendered ineffective because of mechanical damage.
4. P103 - Valvetronic Monitoring Sluggish Movement: This code suggests the eccentric shaft moves very slow during the adjustments of lift opening (during valve lift). Possible reasons include poor wiring connections, faulty actuator motor system, low system volts; Or a binding shaft.
5. P10DF - Valvetronic Overload Protection Output Stage System Shutdown: It means if this code appears sometimes it may shut down the Valvetronic system triggering limp mode. It usually results from an eccentric shaft that’s sticking causing electrical overload Keep in mind that the DME normally disables it before any fuses get blown.
6. P10E - Valvetronic Overload Protection Control Motor System Shutdown: A Valvetronic actuator motor malfunctions F or Q to 5A is shamed by this code
7. P10E1 - Valvetronic System No Travel Detected: When this code appears most of the times the movement not reported by the eccentric shaft position sensor but rather than eccentric shaft at all unlikely case though.
8. P10E7 - Valvetronic Overload Protection Output Stage Overload: This code means that they cannot determine electrical overdoses in the Valvetronic system Repairs should not be attempted before you have a wiring diagram that is detailed as well as technical information listing exact resistor values pertaining different circuits. Guessing might lead to destruction in the control modules such as DME
9. P10E8 - Valvetronic Control Motor Overload: This code is similar to P10E but usually sets before the DME shuts down the system for safety. Typical causes include a slightly sticking eccentricshaft or abnormal electrical resistances that are still below a critical maximum threshold. In case it gets worse, the DME would deactivate the Valvetronic system.

Conclusion

The invention of BMW Valvetronic has revolutionized conventional internal combustion engines through exact control over intake valve lift. This results in increased operability and decreased fuel consumption on one hand while on the other it enhances overall engine performance. As such, any technician or car fan has to know about the components of Valvetronic, how they function mechanically – including their development over time. The future development of automotive engineering will require that those dealing with BMW engines know this invention because it has already become part of them.
