How to Adjust and Align Your Car Headlights for Perfect Aim

Having properly adjusted headlights on your car when driving at night, helps you see the road more clearly. Having improperly adjusted headlights, for instance one facing up to the sky and the other one facing off in the bushes, you can’t get a good overall visual of the road of you.

Luckily, with a few tools and knowledge, car manufacturers make it fairly easy for you to adjust your own headlights.

Why is it important?

Having misaligned headlights leads to reduced visibility which increases the risk of accidents, and potential legal issues. Also, you may have difficulty seeing the road signs, pedestrians, or other obstacles along the road which significantly increases the risk of a collision.

Resolving the Mystery of Dim Car Headlights

Signs of misalignment

1. If you notice oncoming drivers are frequently flashing their high beams at you, thats a common sign that your headlights are shining too high and blinding them.
2. If you find it hard to see the road ahead, road signs or objects ahead, even when your headlights are on, it could indicate that they are aimed too low.

Common causes:

Several factors can cause headlights to become misaligned, including

• Accidents
• Driving over potholes or rough roads
• Natural wear and tear of the vehicle's components.

Tools and Materials Needed

Before you begin the adjustment process, gather the following tools and materials:

1. Owner's manual: This provides specific instructions and guidance for your particular vehicle model as it's prepared by the manufacturer.
2. Screwdriver: Needed to access and adjust the headlight alignment screws.
3. Measuring tape: It is very essential for measuring the distances accurately and ensuring proper alignment.
4. Masking tape: Used to mark reference points on a wall or garage door.
5. Dark fabric or cardboard: This will be used to block light from one headlight while adjusting the other.
6. Level surface: Find a flat, level area with ample space to park your car. A garage door or a large, flat wall is ideal.

Step-by-Step Guide

1. Consult Your Owner's Manual: Some vehicles don’t allow for headlight adjustments. You’ll need to consult the owner’s manual to see if your particular make and model allows for adjustment.  You’ll also want to check the manual to show you the location of the adjusting screws. Some vehicles have leveling bubbles to help with headlight adjustment, similar to a carpenter’s level. Your owner’s manual will show you the type and location of the adjustment screws.
2. Prepare Your Vehicle: Park your car on a level surface ensuring that the gas tank is at least half full and that your tires are properly inflated so the vehicle weighs about the same as it would when driving. This will help to ensure that your vehicle is sitting level and that the headlights are not affected by uneven weight distribution.
3. Create a Reference Point: This next step is best done at dusk or dawn. Park the car about six feet away from the wall. Turn your headlights on low beam. Use the masking tape to mark the horizontal and vertical lines of the beam’s center axis as it shines on the wall.  The position of the tape should create a cross. Using a tape measure, measure the lines to see if both headlights have the same measurement. If the measurements don’t match, note the difference and lower the highest centerline to the same height as the lowest centerline mark. Some vehicles have integrated crosshairs within the headlight that help you find the center axis of the beam easily. Your owner’s manual will have this information.

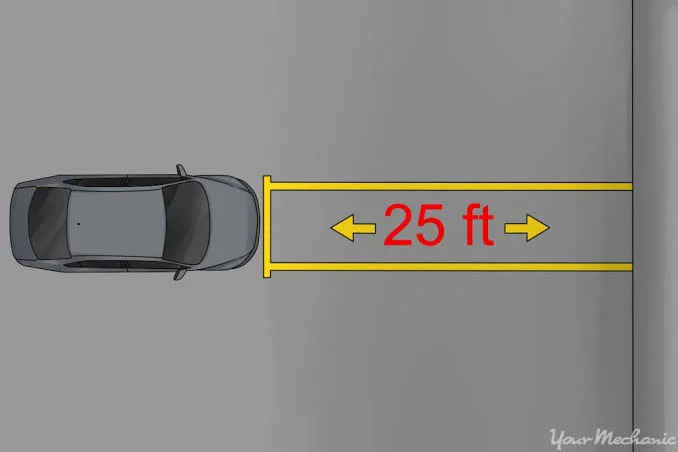

4. Measure the Distance: Back up your car a recommended distance from the wall or garage door.  This distance is typically specified in your owner's manual but it's roughly 25 feet. It's important to follow the recommended distance to ensure accurate alignment.

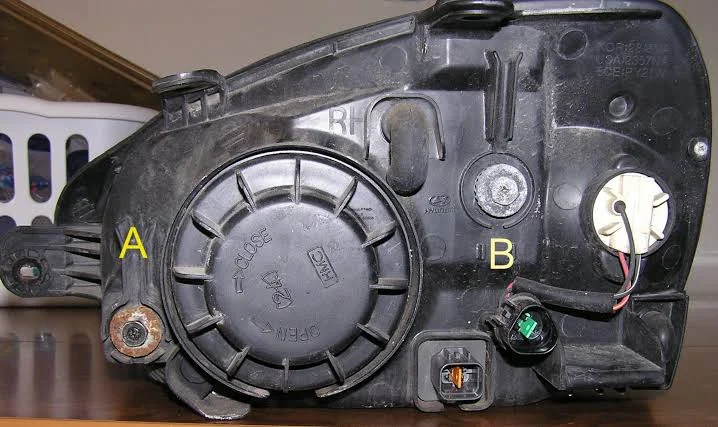

5. Adjust the headlights: Pop your hood to find your vehicle’s headlight adjustment bolts or gears. They should be behind the headlights. Check your owner’s manual if you have trouble finding them. Most vehicles have only one adjustment bolt, screw or gear per headlight assembly, which adjusts the vertical position of low-beam and high-beam bulbs together. Some feature a separate bolt or gear nearby for horizontal adjustment.  Turn on your vehicle and flip on your low beams. Note where the beams land on the wall or plywood. Use a socket wrench or screwdriver to slowly adjust the vertical direction of your driver’s side headlight. Before you move ahead, get to know the difference between LED and halogen headlights. Aim the driver’s side headlight so the top edge of the beam is level with the short piece of tape, four inches below the top edge of your long piece of tape. Adjust the passenger side headlight in the same way, aligning the top of the beam with the other short piece of tape two inches below your long piece. For most vehicles, adjusting your low beams will automatically adjust high beams as well.
6. Fine-Tune and Test: Keep tweaking the vertical and horizontal adjustment until the headlight beam’s center axis lines up with the tape marks on the wall.  Once you’re satisfied with the adjustments, take the car for a road test, and if one of the headlights isn’t quite up to par, repeat the above instructions.

Additional Tips

1.  Safety First: Always refer to your owner's manual for specific instructions and safety precautions.
2. Inspect your headlights for damage or misalignment from time to time and during routine maintenance.
3. If you're unsure or unable to adjust your headlights yourself, consult a professional mechanic.
4. Explore different options like LED or HID headlights for improved visibility and energy efficiency.

By following these steps and paying attention to headlight alignment, you can enhance your nighttime driving experience and ensure your safety on the road.
