ECU Tuning Explained: Understanding Stages, Benefits, and Potential Risks

Here you'll learn about the stages of tuning, from basic modifications to extreme performance upgrades and discover how ECU tuning can boost horsepower, improve fuel efficiency, and enhance your driving experience.

The need for improved fuel efficiency and low emissions contributed largely to the development of engine control modules (ECUs). Older days ECUs only focused on optimizing the air-fuel mixture and monitored oxygen levels entering and exiting the engine. The resulting signal was used to control a solenoid to optimize the air-fuel ratio in the carburetor. To modify this mixture of fuel-air ratio, reprogramming the ECU was necessary.

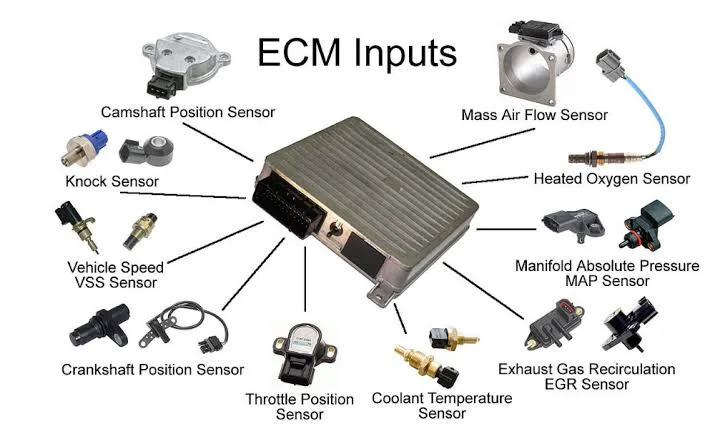

Over time, ECUs have evolved into complicated mini-computers that collect data from various sensors throughout the vehicle which also increased their capabilities from only controlling a solenoid in the carburetor to knowing when to change gears among many others. These sensors include wheel speed sensors, throttle position sensor, mass air flow sensor, O2 sensors, temperature sensors, coolant temperature sensor and knock sensors. The ECU processes this data from the sensors to regulate critical functions such as throttle position, ignition timing, fuel injection, variable valve timing, and maximum vehicle speed, maximizing performance and following the emission regulations.

Additionally, modern ECUs serve as diagnostic tools since they accumulate extensive data, they can identify issues from irregularities of the programmed information and illuminate a warning light to alert the driver of a potential issue. To facilitate diagnosis, manufacturers introduced On-Board Diagnostics (OBD) which are standardized diagnostic ports providing a universal platform for technicians to access and interpret the ECU data to pin point the problem. Before that, carmakers could use whatever type of port they wanted. You might’ve had to connect pins to the port or turn a screw in the ECU. The warning light would blink out a code, which you’d have to look up to figure out the issue. The need for a standardized diagnostic port and trouble codes was apparent.

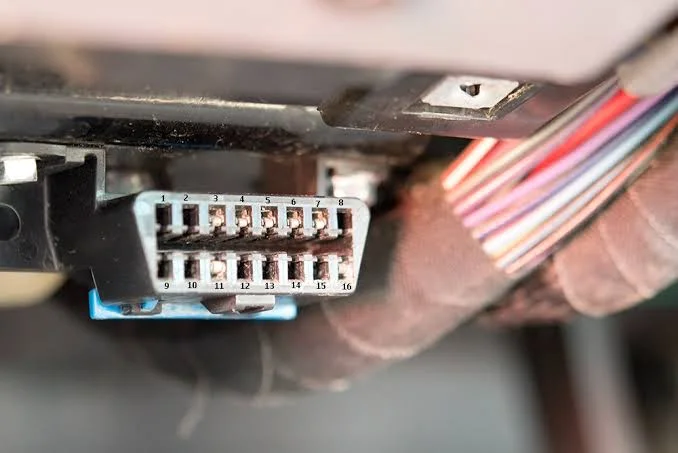

Since 1996, every single car is legally required to be equipped with an OBD II which features a 16-pin port, most frequently located under the driver's side dash. It allows a mechanic or anyone who has the right interface to read the error code using a special scan tool. This variation introduced significant costs for mechanics who were required to buy different tools for each manufacturer’s design before standardisation.

What is ECU Tuning

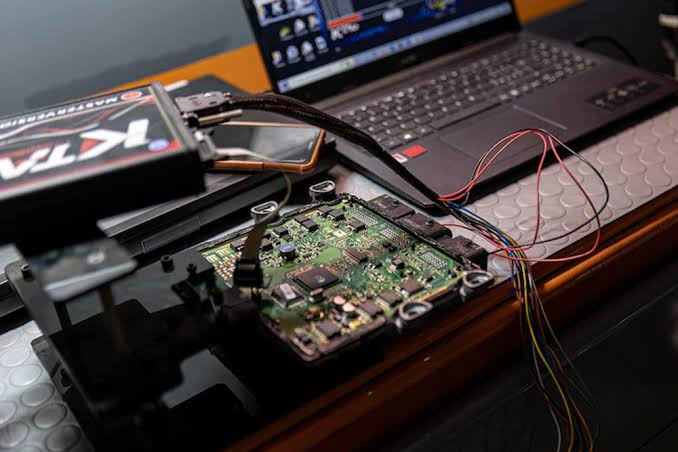

ECU tuning, also known as chip tuning is optimizing or modifying the software parameters "ECU data maps" within your vehicle’s ECU. It is a process which allows one to fine-tune various engine functions optimizing the by making it run more efficiently or powerfully.

Benefits of ECU tuning:

1. Fuel maps and ignition timing adjustment: ECU tuning is used to adjust the closed-loop fuel maps and ignition timing, which optimizes the air-fuel mixture for better combustion which leads to increased power output and smoother performance.
2. Turbo response and boost pressure control: ECU tuning allows precise control over the turbocharger response. The ECU can be tailored to boost the pressure and match the drivers preferences, whether you want a gradual buildup or aggressive acceleration.
3. Error code clearance: When you install aftermarket parts (such as intakes or exhausts), the ECU may trigger error codes. Tuning can clear these codes, ensuring proper functionality and at times get rid of those systems in the ECU. In countries where Catalytic Converter theft is at the highest, motorists opt for deleting the O2 "Oxygen Sensor" maps from the ECU to prevent the illumination of the Check Engine Light from P0420: Catalyst System Efficiency Below Threshold. DPF delete is also common and is the process of removing the Diesel Particulate Filter (DPF) from a vehicle's exhaust system and reprogramming the Engine Control Unit (ECU) to work without the diesel particulate filter.
4. Throttle response enhancement: Eliminate delayed or sluggish throttle behavior by adjusting throttle maps. A gradual and predictable throttle response enhances drivability.
5. Rev limiter adjustment: ECU tuning can increase the factory rev limiter to draw more power from your engine which is useful for track enthusiasts or spirited driving.
6. Launch control activation: An adjustable standing launch limiter (launch control) lets you achieve consistent and controlled launches during drag races or track starts. It enable the driver to achieve the quickest possible start from a standstill, with minimal wheel spin and maximum traction
7. Rev hang reduction: Soften or eliminate the annoying “rev hang” phenomenon often experienced during gear changes. Smoother transitions enhance overall driving pleasure.
8. On-the-fly boost map switching: Tuning gives the driver the ability to switch between different boost maps on the fly. For example, you can have a conservative map for daily driving and a performance-oriented map for spirited moments.
9. Valet mode implementation: Tuning the ECU can add a valet mode which limits horsepower when someone else drives your car. It’s a useful security feature.

Different Stages in ECU Tuning

Stage 1 Tuning

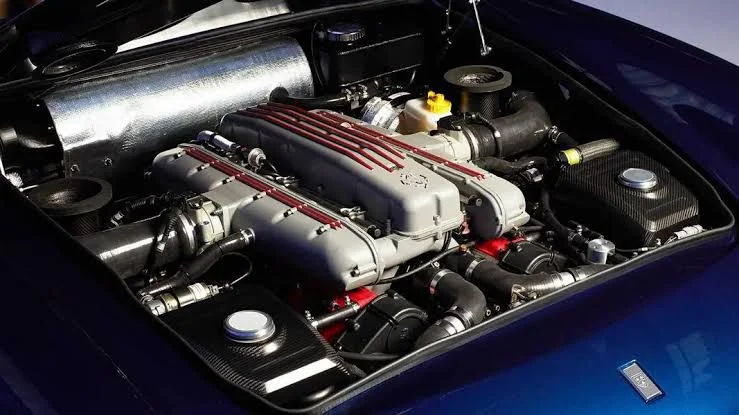

This represents the foundational level of ECU modification and involves fine-tuning the engine control unit (ECU) using various methods, including chiptuning, tuning boxes, or plug-and-play device. Stage 1 tuning is typically applied to "brand new" vehicles which are equipped with stock components, it involves recalibrating the ECU's software to optimize performance within the parameters of the factory hardware, the developed software is usually tailored specifically to the original vehicle configuration.

Although this stage often produces noticeable power gains, it is important to understand that the potential for significant increases is limited by the stock components' capabilities. The tuning process itself is iterative, with adjustments made in incremental steps to balance performance with reliability.

Stage 2 Tuning

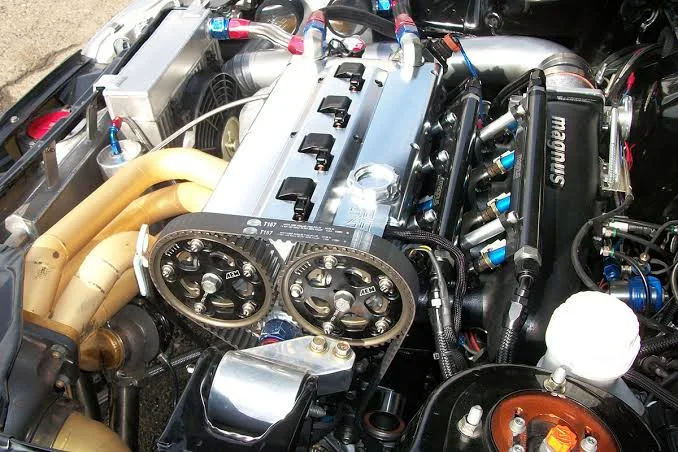

This represents a significant step beyond the initial modifications of Stage 1 as the focus here is upgrading vehicle’s hardware components. Common upgrades include larger intercoolers, improved downpipes, and modifications to the intake and exhaust systems. Where applicable, the intercooler may be updated or replaced altogether.

The stage is fully dependent on the type of the vehicle as the modifications are tailored to suit the car’s characteristics and hence ensuring optimal performance. Just like in Stage 1, software adjustments play a crucial role. After the hardware upgrades, the engine control unit (ECU) is fine tuned to maximize power and efficiency. Fuel mapping are equally important to complement the hardware changes.

While Stage 2 pushes boundaries, upgrading the factory turbochargers or superchargers to enhance forced induction modifications are typically reserved for later stages.

This stage aims at extracting the most from the existing setup without major overhauls. It’s where enthusiasts seek substantial gains while maintaining reliability.

Variability exists in Stage 2 tuning. Some engines may qualify as Stage 2 with a chip-tune, upgraded intake, and headers. Others might go beyond, incorporating upgraded fuel pumps, injectors, cams, and intake manifolds.

Stage 3 Tuning

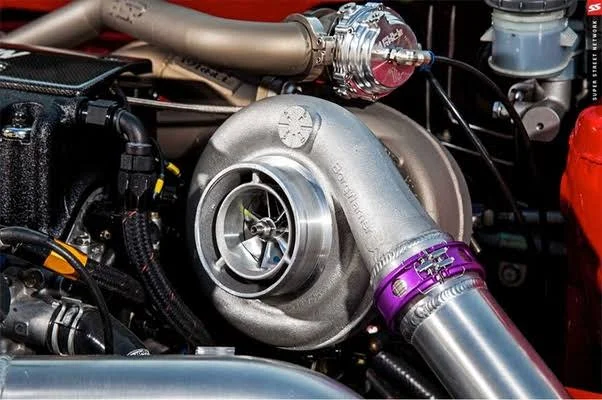

The focus in this stage intensifies to enhancing maximum performance to its fullest potential without compromising on reliability. This stage pushes the car's abilities to the limit. It involves extensive hardware modifications by using forged pistons, stronger connecting rods, a bespoke crankshaft, upgraded turbochargers, high-flow fuel pumps and injectors, and ptimized cooling systems. Strengthening the drivetrain becomes crucial to handle the increased power output.

Comprehensive upgrades extend beyond the engine. A purpose-built sports exhaust system is a hallmark of Stage 3 modifications. Unlike minor changes, this system spans from the front to the rear, optimizing flow and sound characteristics. Sporty catalytic converters often reduce backpressure, while a racing clutch ensures efficient and maximum power transfer to the drivetrain.

Turbochargers play a pivotal role in this stage as bigger turbos deliver more boost, although precise tuning is essential to maintain reliability. Upgraded intercoolers keep intake temperatures in check, allowing consistent performance. Fuel pumps, injectors, and valves accommodate higher demands, ensuring optimal fuel delivery.

Sensors become critical. Manifold absolute pressure sensors (MAP) and mass airflow sensors (MAF) contribute to precise fuel management. Tuning at this level requires precision, often involving a rolling road setup to optimize fuel delivery, timing, and exhaust emissions.

Stage 3 is where enthusiasts push boundaries, seeking maximum power and performance. It’s an investment for serious track enthusiasts who demand precision and exhilaration.
