Air Bubbles in Radiator: Top Reasons for Coolant System Issues and Solutions

In this article, we will thoroughly look into the causes of air bubbles in coolant systems, exploring their causes and the potential repercussions they can have on your vehicle’s performance. More importantly, we will provide comprehensive solutions to eliminate these pesky bubbles, ensuring your coolant system operates smoothly and effectively. Whether you're a seasoned mechanic or a car enthusiast, understanding air bubbles is crucial for maintaining your vehicle's health and preventing costly repairs down the road. Let’s take a closer look at this often-neglected aspect of automotive care.

The effective functioning of your vehicle's coolant system is critical in maintaining optimal engine temperature and performance. However, one often overlooked issue can wreak havoc on this essential system: air bubbles. These seemingly benign pockets of air can disrupt the fluid dynamics within the coolant system, leading to a cascade of problems that may compromise your engine's efficiency and longevity.

Air bubbles can form for various reasons, ranging from a simple coolant leak to improper filling techniques during maintenance. When air infiltrates the coolant, it can obstruct the flow of the liquid, resulting in uneven cooling and potentially overheating the engine. It’s a classic case of “out of sight, out of mind,” where the presence of air bubbles isn’t always immediately apparent, yet their consequences can be severe.

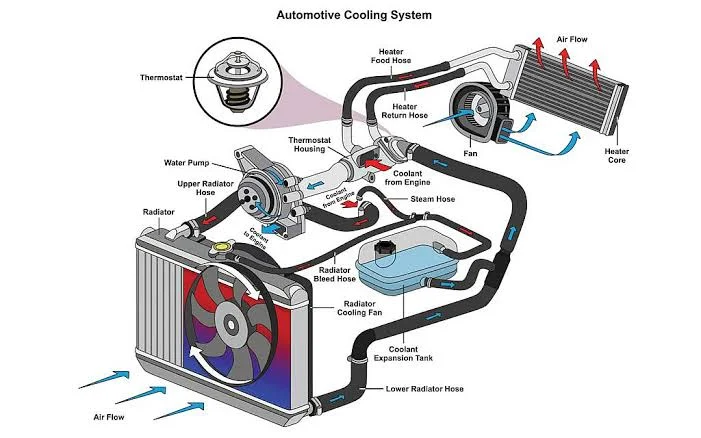

How Coolant Systems Work

To fully grasp the significance of air bubbles in your coolant system, it's essential to understand how these systems function. At its core, a coolant system is designed to regulate the temperature of your engine, ensuring it operates within optimal conditions. This is typically achieved through a closed-loop system that circulates coolant—a mixture of water and antifreeze—through various components of the engine and radiator.

The process starts when the engine generates heat during operation. The coolant absorbs this heat, flowing through the engine block and radiator. As it circulates, the coolant expands due to the increased temperature, and the radiator dissipates the heat into the surrounding air, cooling the fluid before it re-enters the engine. This continuous cycle maintains a balanced temperature, preventing overheating and potential engine damage.

However, for this system to function effectively, it must be filled with a complete, uninterrupted stream of coolant. Air bubbles, which can enter the system for various reasons—such as improper filling, leaks, or even a malfunctioning water pump—disrupt this flow. When air pockets form, they create a barrier that prevents the coolant from adequately circulating, leading to hot spots within the engine. This can result in inefficient cooling, increased engine temperature, and potential overheating, which can cause significant damage if left unaddressed.

Common Causes of Air Bubbles in Coolant Systems

Understanding the common causes of air bubbles in your coolant system is essential for maintaining optimal engine performance and preventing potential damage. Air bubbles can disrupt the smooth flow of coolant, leading to overheating and inefficient temperature regulation. Here are some of the primary culprits behind this issue:

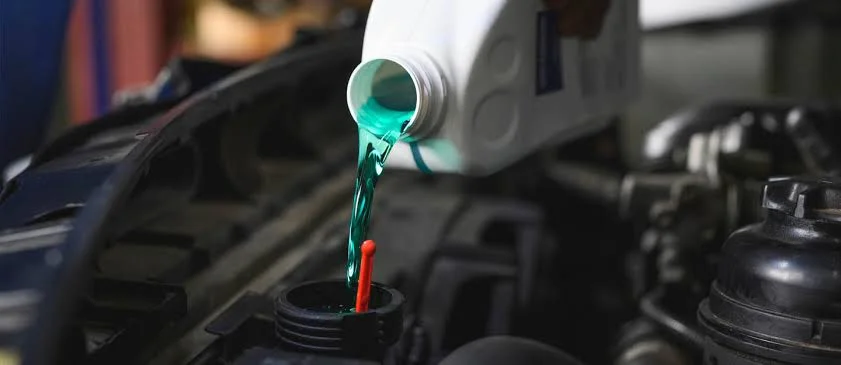

1. Improper Coolant Filling: One of the most frequent reasons for air bubbles is an incorrect filling procedure. When coolant is added to the system without properly bleeding out existing air, it can create pockets of trapped air. It’s crucial to follow the manufacturer's guidelines for filling and bleeding the system to ensure no air is left behind.
2. Leaks in the Cooling System: Any leaks present in the cooling system can introduce air into the coolant. Common leak points include hoses, radiator seams, water pump gaskets and leaking or worn head gasket. These leaks not only allow air to infiltrate but can also lead to a loss of coolant, exacerbating the problem. Regular inspection of hoses and connections can help catch these issues early.
3. Faulty Radiator Caps: The radiator cap plays a vital role in maintaining pressure within the cooling system. A worn or damaged cap can fail to seal properly, permitting air to enter the system. Replacing a faulty radiator cap is a simple yet effective fix that can prevent air bubbles from forming.
4. Overheating Engine: An overheating engine can cause coolant to boil, creating steam and air pockets within the system. This is often a symptom of a larger issue, such as a malfunctioning thermostat or a clogged radiator. Addressing the root cause of the overheating is essential to prevent further complications.
5. Cooling System Maintenance Neglect: Neglecting regular maintenance can result in a buildup of debris and corrosion within the cooling system, leading to blockages that can trap air. Routine flushing of the coolant system and replacing old coolant can help maintain its efficiency and prevent air from becoming trapped.

By understanding these common causes, you can take proactive steps to address them, ensuring that your coolant system operates smoothly and efficiently. Regular checks and maintenance not only extend the life of your engine but also contribute to a safer and more reliable driving experience.

Symptoms of Air Bubbles in Your Coolant System

Recognizing the symptoms of air bubbles in your coolant system is crucial for maintaining the health and efficiency of your vehicle. When air becomes trapped within the coolant, it can lead to a host of issues, ranging from minor inconveniences to serious engine damage. Here are some key indicators that air bubbles may be present in your system.

• Overheating Engine: One of the most significant symptoms of air bubbles is an overheating engine. Air pockets can disrupt the flow of coolant, preventing it from adequately circulating through the engine. This lack of cooling can cause the engine temperature to rise rapidly, leading to potential overheating and severe damage if not addressed promptly.
• Fluctuating Temperature Gauge: If you notice that your temperature gauge fluctuates erratically while driving, it could be a sign of air trapped in the coolant. As the engine heats up, the coolant may not circulate properly, causing the gauge to rise and fall unexpectedly. This inconsistency can be alarming and should prompt a check of your coolant system.
• Coolant Leaks: Air bubbles can contribute to coolant leaks, as they can create pressure imbalances within the system. If you discover coolant pooling under your vehicle or notice a drop in the coolant level, it’s essential to investigate further. Leaks can lead to air entering the system, compounding the problem by increasing air pressure inside the coolant hoses.
• Bubbling or Gurgling Noises: Unusual sounds coming from your coolant system can also indicate the presence of air bubbles. If you hear bubbling or gurgling noises when the engine is running, it may be a sign that air is trapped within the coolant lines. These sounds suggest that the coolant is not flowing smoothly, which can lead to overheating.
• Poor Heater Performance: If your vehicle’s heater is blowing cold air, it could be affected by air bubbles in the coolant system. Air pockets can prevent the coolant from reaching the heater core, leading to insufficient heating inside the cabin. This symptom is particularly noticeable during cold weather and can signal a need for immediate attention.

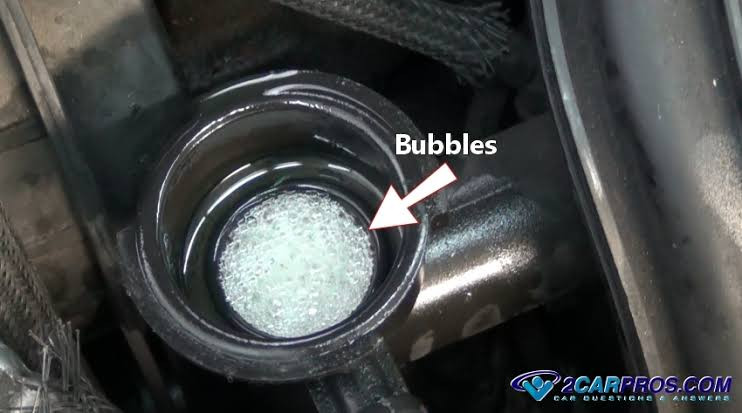

• Visible Air Bubbles in the Reservoir: If you look into your coolant reservoir and see visible air bubbles or foam, it’s a clear indication that air is present in your coolant system. This is a straightforward sign that should not be ignored, as it can lead to the previously mentioned issues if left unaddressed.

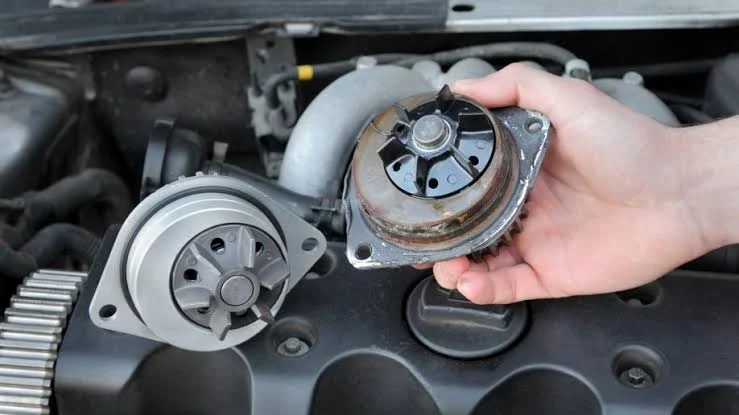

The Consequences of Ignoring Air Bubbles

Ignoring air bubbles in your coolant system may seem like a minor issue, but the consequences can be far from trivial. As these air pockets accumulate, they disrupt the flow of coolant, leading to inconsistent temperature regulation within the engine. This can cause overheating, which is one of the most common and damaging outcomes. When the engine overheats, it can lead to warped cylinder heads, blown gaskets, and ultimately, catastrophic engine failure.

Moreover, the presence of air bubbles can compromise the effectiveness of your vehicle's heating system. A coolant system riddled with air pockets struggles to maintain optimal temperatures, not only affecting engine performance but also leaving you cold during the winter months. Fluctuations in temperature can also cause unnecessary stress on engine components, leading to premature wear and tear.

Another pressing concern is the potential for corrosion. Air bubbles can introduce moisture into the coolant, which can lead to rust and degradation of vital components like the radiator and water pump. Over time, this corrosion can result in leaks and significant repair costs.

Beyond mechanical failures, ignoring air bubbles can lead to a decrease in fuel efficiency. An engine that operates at higher-than-normal temperatures will often consume more fuel as it works harder to maintain power.

Diagnosing Air Bubbles: Tools and Techniques

Diagnosing air bubbles in your coolant system requires a methodical approach and the right set of tools to ensure a thorough inspection. While it may seem daunting at first, identifying the presence of air bubbles can save your engine from significant damage and costly repairs.

1. Visual Inspection: Start with a visual assessment of the coolant reservoir and radiator. Look for signs of bubbling or frothy coolant, which can indicate air trapped in the system. Check hoses and connections for any signs of leaks, as these can be entry points for air.
2. Pressure Tester: One of the most effective tools for diagnosing air bubbles is a pressure tester. This device allows you to pressurize the cooling system, helping to reveal any leaks and whether air is present. By observing the pressure gauge while the system is pressurized, you can determine if the system holds pressure or if there are air pockets that could be causing issues.
3. Infrared Thermometer: An infrared thermometer can help you identify temperature inconsistencies within the coolant system. If certain areas of the engine are cooler than others, it may indicate that coolant flow is obstructed by air bubbles. By taking temperature readings across various points, you can pinpoint potential trouble spots.
4. Coolant Flow Meter: For a more advanced diagnosis, consider using a coolant flow meter. This tool measures the flow of coolant throughout the system, helping you identify areas where the flow may be restricted due to trapped air.
5. Bleeding Techniques: Familiarize yourself with bleeding techniques specific to your vehicle. Many modern engines come equipped with bleed valves to help release air from the system. Alternatively, running the engine with the cap off the coolant reservoir can allow trapped air to escape as the engine warms up, but be cautious of hot coolant splashing.

By employing these tools and techniques, you can effectively diagnose air bubbles in your coolant system. Remember, addressing air bubbles promptly not only enhances your vehicle's performance but also prolongs the life of your engine. With the right approach, you will be well on your way to ensuring a smooth-running cooling system, free of unwanted air pockets.

Step-by-Step Guide to Removing Air Bubbles

Removing air bubbles from your coolant system is essential to maintaining optimal engine performance and preventing overheating. If you suspect that air has infiltrated your system, follow these simple yet effective steps to ensure a thorough purge of any unwanted air pockets.

Step 1: Gather Your Tools and Supplies

Before you start, gather the necessary tools: a coolant funnel, jack stands (if needed), a container for catching spilled coolant, and, of course, your vehicle's service manual for any model-specific instructions. Make sure you have the right coolant on hand to top off the system once you've completed the process.

Step 2: Allow the Engine to Cool

Safety first! Always allow your engine to cool down before attempting to work on the coolant system. This reduces the risk of burns and ensures that the coolant is not under pressure, making it safer to handle.

Step 3: Locate the Coolant Reservoir and Radiator Cap

Identify the coolant reservoir and radiator cap. These are typically found on the engine bay, but their exact locations can vary by vehicle model. If your vehicle is equipped with a pressurized system, ensure the cap is removed carefully to avoid any sudden release of pressure.

Step 4: Elevate the Front of the Vehicle

To facilitate the removal of air bubbles, elevate the front of the vehicle using jack stands. This angle helps the air rise to the highest point of the coolant system, making it easier to bleed out.

Step 5: Open the Bleed Valve (if applicable)

Many vehicles feature a bleed valve, often located on or near the thermostat housing. Open this valve to allow trapped air to escape. If your vehicle doesn't have a bleed valve, don't worry—it's still possible to purge air using the funnel method.

Step 6: Use a Coolant Funnel

Attach a coolant funnel to the radiator filler neck. This specialized funnel allows for a more controlled fill, helping to minimize the introduction of more air. Fill the funnel with coolant until it reaches the maximum level. As the engine runs, coolant will circulate, displacing trapped air.

Step 7: Start the Engine

Start your engine and let it idle. As it warms up, the coolant will circulate through the system, causing any air bubbles to rise. Keep an eye on the coolant level in the funnel; you may need to add more as the system bleeds itself.

Step 8: Monitor Temperature and Pressure

As the engine runs, check the temperature gauge and ensure it remains within the normal operating range. If you notice any fluctuations or an increase in pressure, turn off the engine and let it cool before checking for additional air bubbles.

Step 9: Close the Bleed Valve and Replace the Cap

Once you’re confident that all air has been removed and the coolant level is stable, close the bleed valve (if applicable) and secure the radiator cap firmly in place.

Step 10: Test Drive

Finally, take your vehicle for a short test drive, monitoring the temperature gauge closely. After the drive, check the coolant level again and top off if necessary. This ensures that any remaining air has been expelled and that your coolant system is functioning optimally.

By following these steps, you can effectively remove air bubbles from your coolant system, promoting a healthy engine environment. Remember, regular maintenance and checks can prevent air from entering your system

Preventative Measures to Avoid Air Bubbles

Preventative measures are essential in maintaining a healthy coolant system and avoiding the headaches that come with air bubbles. Taking a proactive approach not only saves you time and money but also enhances the overall performance and longevity of your vehicle’s engine.

1. Regular Maintenance Checks: Regularly checking the coolant level and quality is a key first step. Make it a habit to inspect your coolant reservoir and ensure that the fluid is at the recommended level. If you notice any discoloration or contamination, it’s time for a coolant flush.
2. Use the Right Coolant: Always use the manufacturer-recommended coolant for your vehicle. Different engines require specific types of coolant to ensure optimal performance and avoid chemical reactions that can lead to air bubbles.
3. Properly Bleed the System: When refilling or replacing coolant, it’s crucial to properly bleed the system to remove any trapped air. Many vehicles have specific bleeding procedures that should be followed closely. This might involve running the engine to operating temperature and opening bleed valves to let air escape.
4. Inspect Hoses and Connections: Regularly inspect hoses, clamps, and connections for wear and tear. Cracks or loose fittings can lead to leaks, which not only reduce coolant levels but can also introduce air into the system. Replace any damaged components promptly to maintain a sealed system.
5. Monitor for Signs of Overheating: Pay attention to your engine’s temperature gauge. If it begins to rise above normal levels, it could indicate a coolant issue, potentially leading to air pockets forming in the system. Address overheating issues immediately to prevent damage.
6. Avoid Mixing Coolants: Mixing different types or brands of coolant can lead to chemical reactions that can produce gas, creating air bubbles. Stick to one type of coolant for your engine to avoid complications.

By implementing these preventative measures, you’ll not only enhance the efficiency of your coolant system but also significantly reduce the risk of encountering air bubbles. This results in a smoother, more reliable driving experience, ensuring that your vehicle remains in peak condition for years to come.

Coolant Types and Their Impact on Air Bubbles

When it comes to maintaining a healthy coolant system, understanding the types of coolant you use can make all the difference in preventing air bubbles from forming. Coolants are not just simple mixtures of water and antifreeze; they come in various formulations, each with its own characteristics and compatibility with different vehicle systems. The type of coolant you choose can significantly influence how air bubbles manifest and behave within your engine's cooling system.

There are generally two categories of coolant: traditional ethylene glycol-based coolants and newer organic acid technology (OAT) coolants. Ethylene glycol coolants are often cheaper and more widely used, but they can lead to corrosion if not properly maintained. On the other hand, OAT coolants are designed to provide better protection against corrosion and often have a longer lifespan, which can help reduce the need for frequent changes. However, mixing these two types can lead to chemical reactions that create sludge, potentially trapping air and forming bubbles.

The presence of air bubbles can impede the efficient flow of coolant and reduce the system's ability to regulate engine temperature. If air pockets develop in critical areas, they can lead to hot spots that increase the risk of overheating and engine damage. Furthermore, when coolant isn’t circulating properly, it can cause parts like the water pump to work harder, leading to premature failure.

To mitigate these risks, it's essential to choose the right coolant for your vehicle and ensure it’s compatible with the materials used in your cooling system. Additionally, consider conducting regular coolant flushes to remove any contaminants and air pockets that may have formed. By being proactive about your coolant type and maintenance, you can help keep your cooling system free of air bubbles, ensuring optimal performance and longevity for your engine.

Myths and Misconceptions About Coolant Systems

When it comes to coolant systems, misinformation can lead to costly mistakes and misunderstandings.

1. One of the most common myths is that air bubbles in the coolant system are harmless and will simply dissipate on their own. In reality, even a small amount of trapped air can create significant issues, such as overheating and reduced efficiency. This misconception often leads drivers to overlook the signs of air bubbles, thinking they will correct themselves without intervention.
2. Another prevalent myth is that topping off your coolant with water is sufficient maintenance. While it may seem like a quick fix, using plain water instead of a proper coolant mix can lead to corrosion, freezing in colder climates, and reduced boiling points, which can be detrimental to your engine's health. It's essential to use the manufacturer-recommended coolant to ensure optimal performance.
3. Some also believe that coolant systems are maintenance-free once they are installed. This is far from the truth. Regular checks and maintenance are vital to keep the system functioning properly. Neglecting routine inspections may lead to overlooking air bubbles, leaks, or coolant degradation, ultimately resulting in expensive repairs.
4. Lastly, there's a misconception that a coolant flush is only necessary if the system is experiencing problems. In reality, regular flushing is a proactive measure that helps to prevent buildup and contamination, ensuring that your coolant system operates smoothly over the long term.

By debunking these myths and understanding the realities of coolant systems, you can better maintain your vehicle, avoid unnecessary repairs, and ensure your engine runs efficiently for years to come. A well-informed driver is a better driver, and in this case, knowledge truly goes a long way in preserving your vehicle’s health.

Real-Life Case Studies: Air Bubbles and Engine Damage

To truly grasp the impact of air bubbles on your coolant system, let's delve into some real-life case studies that highlight the consequences of neglecting this crucial aspect of engine maintenance. These examples underscore the urgent need for awareness and proactive measures to prevent catastrophic engine failure.

Case Study 1

Meet Sarah, a dedicated commuter who relied on her trusty sedan for daily travel. Unbeknownst to her, a few months prior, she had inadvertently introduced air bubbles into her coolant system while performing a DIY coolant flush. At first, everything seemed fine; however, as the weather warmed, her engine started to run hotter than usual. One fateful day, during rush hour, her temperature gauge spiked, and she was forced to pull over. By the time she reached a mechanic, the damage was done—her engine had overheated, leading to warped cylinder heads and a costly repair bill. Sarah's story serves as a cautionary tale about the hidden dangers of air bubbles and the importance of proper coolant system maintenance.

Case Study 2

Then there’s Mark, an avid car enthusiast who spent countless hours modifying his high-performance vehicle. Eager to push his engine to its limits, he upgraded components and changed the coolant without taking the necessary precautions to bleed the system properly. Initially, his car performed exceptionally well at the track, but during a critical race, he experienced a drop in performance and a sudden loss of power. Post-race inspections revealed that air bubbles had caused cavitation in the water pump, leading to a failure that not only damaged the pump but also created hotspots in the engine block. Mark's experience underscores the importance of understanding the dynamics of coolant flow and the devastating effects that seemingly small issues can create.

Case Study 3

In a different scenario, a fleet manager overseeing a large number of delivery trucks faced an alarming trend: frequent engine failures and overheating complaints from drivers. Upon investigation, it was discovered that improper coolant maintenance practices led to air entrainment in their cooling systems. The result? A string of costly downtime and repairs that threatened their bottom line. By implementing a rigorous coolant monitoring system and educating drivers on the importance of reporting warning signs early, the company turned its fortunes around, drastically reducing engine-related issues and ensuring that their fleet remained operational.

These case studies illustrate that air bubbles in a coolant system are not merely an inconvenience; they can lead to severe engine damage if not addressed promptly. Whether you’re a daily commuter, a performance enthusiast, or managing a fleet, understanding the risks associated with air bubbles—and taking action to mitigate them—can save you from significant headaches and financial losses down the road. Regular maintenance, proper coolant handling, and timely inspections are key to keeping your engine in optimal condition and free from the dangers of air bubbles.
