ECU Tuning: Benefits, Risks, and the Tuning Process

ECU tuning, or engine control unit remapping, is a process that involves modifying the software within a vehicle's ECU to optimize engine performance. While once a complex and specialized task, advancements in technology have made ECU tuning more accessible to car enthusiasts and performance-oriented drivers.

The ECU, often referred to as the "brain" of the car, is a sophisticated electronic control module responsible for managing various engine systems and functions. Modern ECUs are equipped with an array of sensors that gather data about engine conditions such as air-fuel ratio, engine temperature, and throttle position. Based on this information, the ECU makes adjustments to parameters like ignition timing, fuel injection, and boost pressure to optimize engine performance.

The Evolution of ECU Tuning

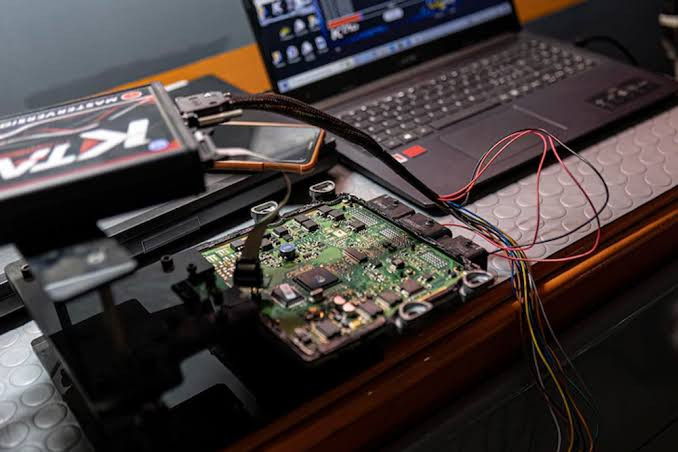

Historically, engine tuning involved manual adjustments to carburetors or ignition timing curves. However, the widespread adoption of electronic fuel injection and ECUs necessitated a shift towards software-based modifications. Early tuning methods involved physically replacing the ECU's chip with a modified one.

The introduction of OBD-II diagnostic ports revolutionized the tuning process. This standardized interface allowed for easier access to ECU data and provided a platform for aftermarket tuning devices. Today, ECU tuning is primarily performed by connecting a tuning device to the OBD-II port and uploading custom software to the ECU.

Core Tuning Parameters

ECU tuning involves the meticulous adjustment of various parameters within the engine control unit (ECU) to optimize engine performance. This process requires a deep understanding of engine dynamics, sensor data, and the intricate relationship between different variables.

Core Tuning Parameters

Air-Fuel Ratio (AFR):

• This parameter determines the optimal mixture of air and fuel for combustion.
• A stoichiometric mixture (14.7:1) is ideal for complete combustion and minimal emissions under ideal conditions.
• However, tuning for performance often involves running a slightly rich mixture (more fuel) to increase power output.
• Sensors like the mass air flow (MAF) sensor and oxygen sensors (O2 sensors) provide crucial data for AFR adjustments.

Ignition Timing:

• Ignition timing refers to the precise moment the spark plug ignites the air-fuel mixture.
• Advancing the timing (sparking earlier) can increase power but can lead to detonation (engine knock) if not managed carefully.
• Retarding the timing (sparking later) can help with combustion stability but can reduce power.
• Optimal ignition timing varies based on engine load, RPM, and other factors.

Boost Pressure (Turbo/Supercharged Vehicles):

• For forced induction engines, boost pressure management is critical.
• Increasing boost can significantly enhance power output but demands adjustments to other parameters like AFR and ignition timing.
• Overboosting can lead to engine damage and reduced component life.

Injector Pulse Width:

• This parameter controls the duration that the fuel injector remains open, determining the amount of fuel injected.
• Injector pulse width is closely related to the air-fuel ratio and engine load.
• Accurate injector calibration is essential for optimal performance and emissions.

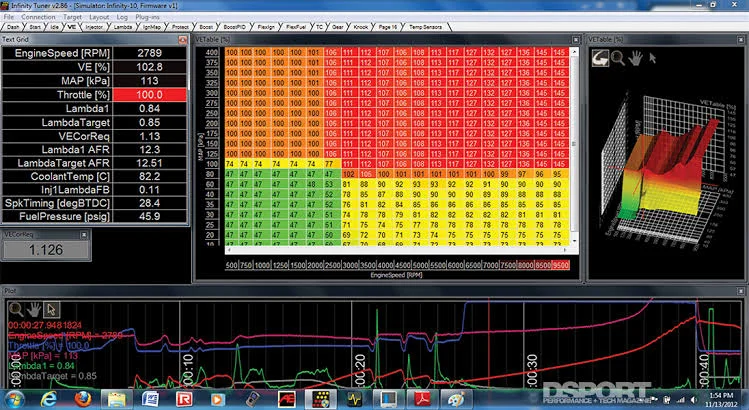

Fuel Maps:

• Fuel maps are three-dimensional representations of how the ECU controls fuel delivery across different engine operating conditions (load, RPM, temperature).
• Tuners modify these maps to optimize fuel economy, power, or emissions.

Spark Maps:

• Similar to fuel maps, spark maps define ignition timing across various engine operating conditions.
• Tuning these maps can significantly impact engine performance and drivability.

The Tuning Process

ECU tuning is an iterative process that involves:

1. Baseline Measurement: Establishing a baseline of the vehicle's performance through dyno testing or road testing.
2. Data Logging: Collecting detailed engine data under various driving conditions to identify areas for improvement.
3. Parameter Adjustment: Making changes to the ECU's parameters based on the collected data and tuning goals.
4. Dyno Testing: Evaluating the effects of the changes on engine power, torque, and emissions.
5. Refinement: Making further adjustments and retesting until desired results are achieved.

Advanced Tuning Techniques:

1. Knock Control: Implementing strategies to detect and prevent engine knock.
2. Lambda Control: Precisely controlling the air-fuel ratio for optimal combustion.
3. Boost Control: Managing turbocharger or supercharger boost for consistent performance.
4. Drivability Tuning: Ensuring smooth throttle response and gear shifts.

ECU tuning is a complex process that requires a deep understanding of engine dynamics, sensor data, and the limitations of engine components. Experienced tuners use specialized software and hardware to make precise adjustments and optimize vehicle performance.

Benefits and Risks of ECU Tuning

ECU tuning can offer several benefits, including increased horsepower and torque, improved fuel economy, enhanced throttle response, and smoother power delivery. However, it's essential to be aware of potential risks such as increased emissions, reduced engine life, and drivability issues if the tune is not optimized correctly.

It's crucial to work with a reputable tuner who has experience with your specific vehicle model and understands the complexities of ECU tuning.
