Why Your Car Shakes at Idle but Smooths Out While Driving

When you start your car, you expect a smooth and quiet ride. However, sometimes you may notice that your car shakes when idling but seems to smooth out once you’re on the move. This can be disconcerting and may leave you wondering about the health and safety of your vehicle.

In this comprehensive article, we’ll look into the reasons behind this phenomenon, drawing on professional automotive expertise to provide you with a thorough understanding and practical solutions.

The Mechanics of Idling

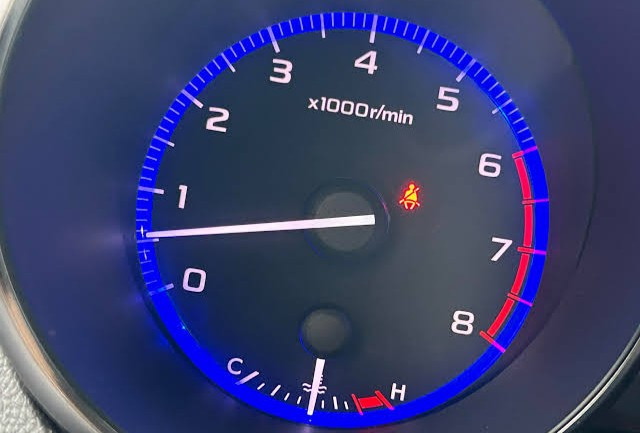

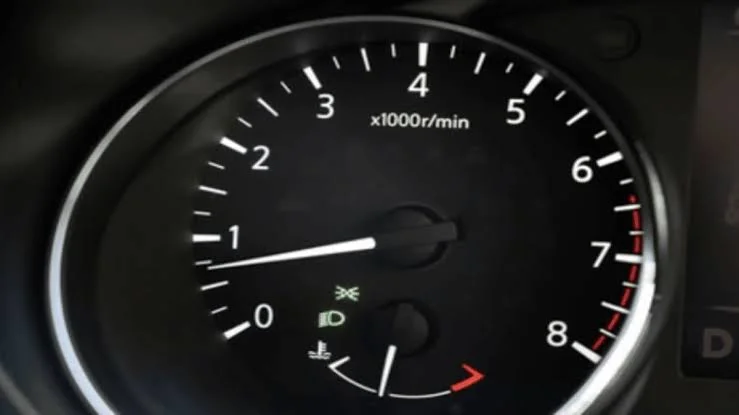

At idle, your car’s engine runs at a low speed, typically around 600–700 revolutions per minute (RPM). This is the engine’s resting state when it is not being asked to move the vehicle. However, even in this state, the engine is a complex system of moving parts, each of which must work in harmony to maintain a smooth operation.

Uneven Compression and Firing

One of the primary reasons for a car shaking at idle is uneven compression or firing within the engine cylinders. This can happen due to a variety of reasons:

• Worn Piston Rings or Accumulated Deposits: Over time, piston rings can wear out or deposits can build up on the pistons, leading to uneven compression.
• Asymmetrical Pressure: Buildup of crud or contaminants in the fuel can exert asymmetrical pressure on the cylinders.
• Harmonic Balancer Limits: The harmonic balancer is designed to counteract the engine’s vibrations, but it has its limits, especially when the engine is not running optimally.

Engine Power and Vibrations

The engine’s power output at idle is minimal. It’s enough to keep the engine running but not always sufficient to maintain a completely smooth operation. This minimal power can result in noticeable vibrations, particularly if there are minor imbalances in the engine or ancillary components.

Misfires and Their Impact

Misfires occur when the air-fuel mixture in the cylinders fails to ignite properly. This can cause the engine to run unevenly, leading to noticeable shaking. Common causes of misfires include:

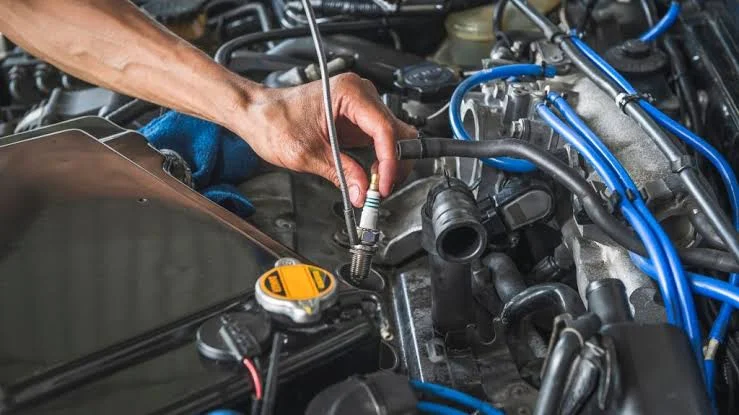

• Faulty Spark Plugs: They are crucial for the ignition process in an engine. They provide the necessary spark to ignite the air-fuel mixture within the cylinders. When spark plugs are worn or damaged, they may fail to produce a strong enough spark, leading to incomplete combustion and misfires. This can cause the engine to shake, especially at idle when the engine is running at lower RPMs.
• Ignition System Issues: This system comprises of spark plugs, plug wires, and coil packs. Problems with any of these components can lead to misfires in specific cylinders. For example, a damaged coil pack may not deliver the required voltage to the spark plug, resulting in a misfire and causing the engine to run unevenly and shake.
• Fuel System Problems: Fuel injectors deliver fuel to the engine. If they become clogged or faulty, they may not spray the correct amount of fuel, disrupting the combustion process. This can lead to a rough idle and engine shaking due to the uneven power output from the cylinders.
• Vacuum Leaks: The engine uses vacuum pressure to operate various systems. A leak in the vacuum system allows extra air to enter the engine, which can disrupt the air-fuel ratio. This can cause the engine to run lean (too much air in the mixture), leading to rough idling and vibrations.
• The Idle Air Control Valve (IACV): This valve regulates the engine’s idle speed by controlling the amount of air bypassing the throttle plate. If the IACV is faulty, it can cause the idle speed to fluctuate or become irregular, leading to engine shaking.

Other factors can contribute to your car shaking at idle:

• Air Intake Issues: A dirty or clogged air filter restricts the flow of air into the engine, which is necessary for the combustion process. If the engine doesn’t receive enough air, it can run poorly and shake at idle.
• Exhaust System Issues: The exhaust system expels gases from the engine. If there are issues like broken hangers or leaks, it can cause vibrations. For instance, a leak in the exhaust system can lead to a loss of backpressure, which can affect engine performance and cause shaking.
• Engine Oil Level: Engine oil lubricates the moving parts within the engine. If the oil level is low, it can lead to increased friction between components, causing the engine to run roughly and potentially shake at idle.
• Fuel Quality: Poor-quality or contaminated fuel can adversely affect engine performance. Contaminants in the fuel can clog injectors and disrupt the combustion process, leading to engine shaking at idle.

The Dynamics of Driving

Once the vehicle is in motion, the dynamics change significantly:

1. Increased Engine Power: As you accelerate, the engine’s RPM increases, providing more power and smoothing out initial vibrations.
2. Balancing Effect: Higher speeds can help balance out minor imbalances in the wheels or suspension, contributing to a smoother ride.

Case Study: A Personal Experience

To illustrate, let’s consider a real-life scenario with a 2.0L 2000 Ford Focus. The owner noticed rough idling, which was temporarily alleviated by changing the spark plugs. However, the root cause was a small crack in the coil pack, which, once addressed, resolved the issue.

The Role of Engine Mounts

Engine mounts play a crucial role in stabilizing the engine and reducing vibrations:

• Old or Worn Mounts: In older vehicles, loose or worn engine mounts can exacerbate shaking as they fail to hold the engine firmly in place.
• Transfer Path of Vibrations: Proper design and maintenance of engine mounts and other components are essential to isolate engine vibrations and provide a smooth driving experience.

Natural Frequencies and Vehicle Design

Every vehicle has a natural frequency, much like a bell. At idle, the engine’s pulsing frequency can resonate with the car body’s natural frequency, particularly in a 4-cylinder engine where this frequency is around 20 Hz. This resonance can cause the most noticeable vibrations. When driving, the engine’s RPM increases, and the excitation frequency moves out of sync with the car body’s natural frequencies, reducing the resonance effect.

Conclusion and Solutions

If you’re experiencing shaking at idle, consider the following steps:

• Regular Maintenance: Keep up with engine maintenance, including spark plugs, fuel supply, and checking for vacuum leaks.
• Engine Diagnostics: Have a professional diagnose potential issues with compression, firing, and engine balance.
• Mount Inspection: Check the condition of engine and subframe mounts, exhaust hangers, and other related components.

By understanding the underlying causes and addressing them proactively, you can ensure a smoother and more comfortable driving experience. Remember, regular maintenance and professional inspections are key to the longevity and performance of your vehicle.
