The Evolution of Exhaust Gas Recirculation (EGR): Reducing Emissions, Enhancing Efficiency

In the ongoing pursuit of cleaner and more efficient engines, Exhaust Gas Recirculation (EGR) has emerged as a critical technology. Designed to reduce harmful emissions and improve fuel economy, EGR has come a long way since its inception.

In this article, we delve into the history, functioning, and ongoing development of EGR, exploring how it has evolved to address the ever-increasing demands for sustainable transportation.

Origins of EGR:

The concept of EGR (Exhaust Gas Recirculation) dates back to the 1970s when stringent emission regulations were introduced to combat pollution from internal combustion engines. Initially developed for diesel engines, EGR aimed to reduce the formation of nitrogen oxides (NOx) by recirculating a portion of the exhaust gas back into the engine's combustion chamber.

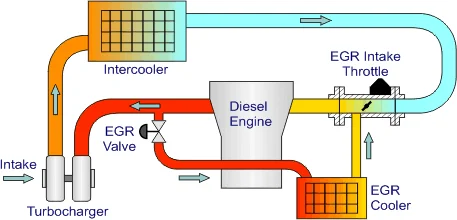

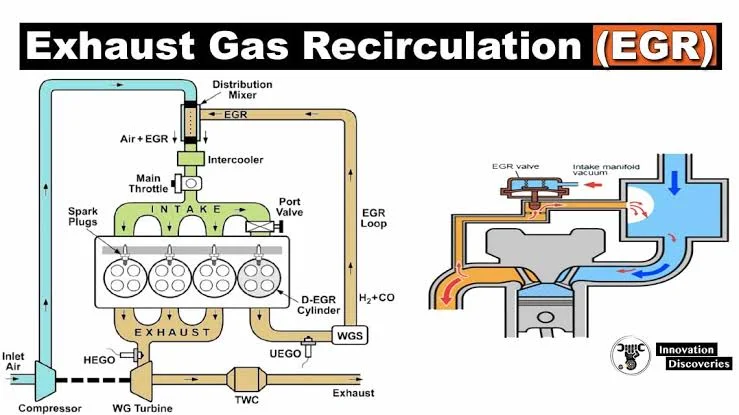

How EGR Works:

EGR systems typically consist of the following components:

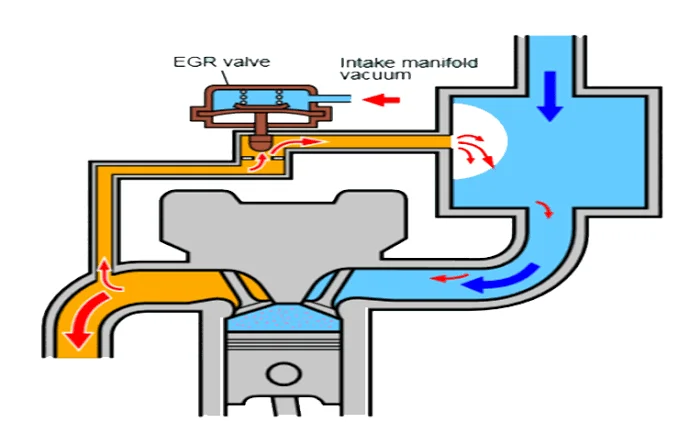

a. EGR Valve: The EGR valve controls the flow of exhaust gas into the intake manifold. It opens and closes based on engine operating conditions, allowing precise control of the recirculation rate.

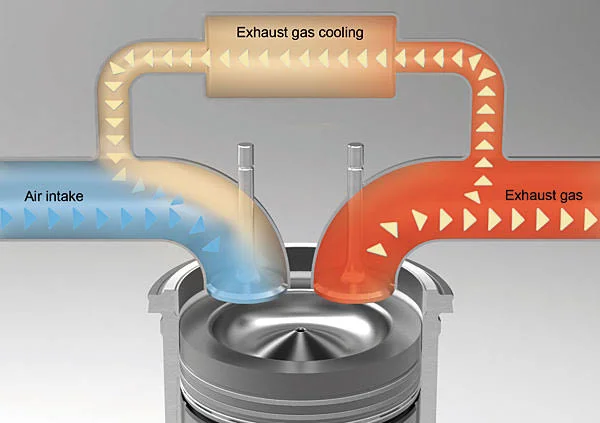

b. EGR Cooler: In modern applications, an EGR cooler is employed to reduce the temperature of the recirculated exhaust gas before it enters the combustion chamber.

This ensures optimal engine performance and prevents excessive thermal stress.

The Top 10 Engine Sensors Every Car Owner Should Know

c. EGR Control System: The EGR system is managed by the engine control unit (ECU), which receives inputs from various sensors to determine the appropriate EGR flow rate. The ECU adjusts the EGR valve position accordingly, optimizing engine performance and emissions.

Benefits of EGR:

a. Emission Reduction: EGR significantly reduces the formation of nitrogen oxides (NOx), a major contributor to air pollution and smog. By recirculating inert exhaust gases, EGR lowers the combustion temperature and limits the production of NOx.

b. Fuel Economy Enhancement: EGR's exhaust gas, devoid of oxygen, reduces the oxygen concentration in the combustion chamber. This lowers the peak combustion temperature, mitigating the tendency for knocking and improving engine efficiency. Consequently, fuel consumption is reduced.

Maximizing Engine Lifespan: Expert Maintenance Tips for Longevity

Development and Improvements:

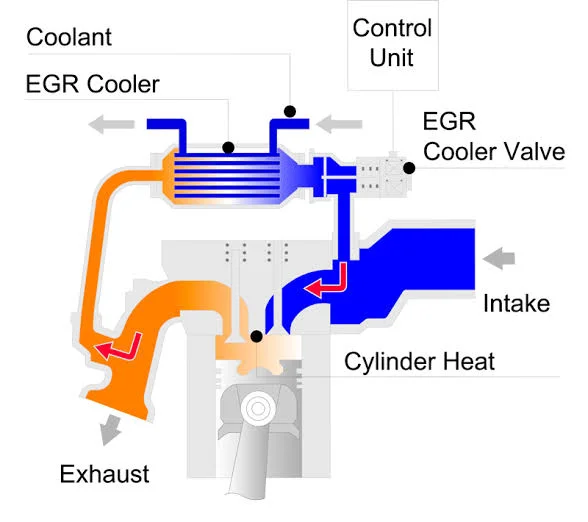

a. Advancements in EGR Cooling: Early EGR systems often faced challenges with excessive soot accumulation and fouling in the intake manifold and EGR cooler. To address this, improved EGR coolers with better cooling efficiency and reduced fouling have been developed. Advanced materials and coatings prevent the buildup of carbon deposits, ensuring reliable EGR system performance.

b. EGR Integration with Other Technologies: EGR has been integrated with additional emission control technologies such as diesel particulate filters (DPF) and selective catalytic reduction (SCR) systems. This synergistic approach enables comprehensive emissions reduction, complying with even more stringent regulations.

c. EGR Optimization and Controls: Ongoing advancements in engine management systems have led to more precise control and optimization of EGR rates. Advanced algorithms, combined with sensor feedback and predictive models, allow for real-time adjustments, maximizing the benefits of EGR while minimizing any negative impact on engine performance.

The Advantages of Variable Valve Timing with Intelligence (VVT-i) in Automotive Engines

DTC Codes Associated with EGR:

Diagnostic Trouble Codes (DTC) are used to indicate specific faults or malfunctions within the EGR system. Some common DTC codes associated with EGR include:

1.  P0400 - Exhaust Gas Recirculation Flow Malfunction.
2. P0401 - Exhaust Gas Recirculation Flow Insufficient Detected
3. P0402 - Exhaust Gas Recirculation Flow Excessive Detected
4. P0403 - Exhaust Gas Recirculation Control Circuit Malfunction
5. P0404 - Exhaust Gas Recirculation Control Circuit Range/Performance

Conclusion:

Exhaust Gas Recirculation (EGR) has evolved from a simple concept to a sophisticated technology that plays a vital role in reducing emissions and improving fuel efficiency. With continuous development and improvements, EGR has become an integral part of modern engines, facilitating compliance with stringent emission regulations. As the pursuit of sustainable transportation continues, further refinements in EGR systems, integration with other emission control technologies, and advanced control strategies will contribute to cleaner and more efficient engines, ensuring a greener future for the automotive industry.
