Warning Signs of Failing Brake Boosters and Master Cylinders (DIY Diagnosis!)

When it comes to vehicle safety, the braking system holds paramount importance. Among its critical components, the brake master cylinder acts as the heart, pumping life into your car’s stopping power. But what happens when this vital part starts failing? Understanding the signs of a bad brake master cylinder is crucial for any automotive technician or enthusiast.

This article takes you through the symptoms of master cylinder and brake booster malfunction, ensuring you’re equipped to diagnose and address issues with confidence.

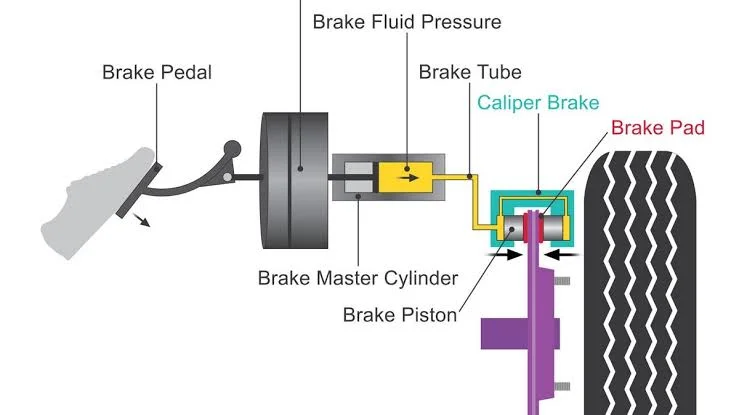

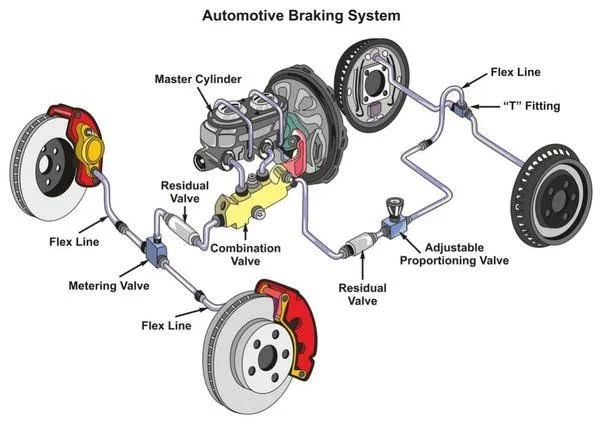

Understanding the Hydraulic Brake System

Before diving into specific components, let's recap how your car's braking system works. Modern vehicles utilize a hydraulic system, which translates your foot pressure on the brake pedal into force applied to the brakes at each wheel. This system relies on a few key players:

1. Brake Pedal: This is the lever you press with your foot to initiate braking.
2. Brake Master Cylinder: This cylinder converts your pedal pressure into hydraulic pressure.
3. Brake Booster: (On many vehicles) This component amplifies the force from the master cylinder using engine vacuum.
4. Brake Fluid: This incompressible fluid transmits the hydraulic pressure throughout the system.
5. Brake Lines and Hoses: These flexible lines carry the brake fluid from the master cylinder to each wheel.
6. Brake Calipers: These calipers clamp the brake pads against the rotors at each wheel, slowing down the vehicle.

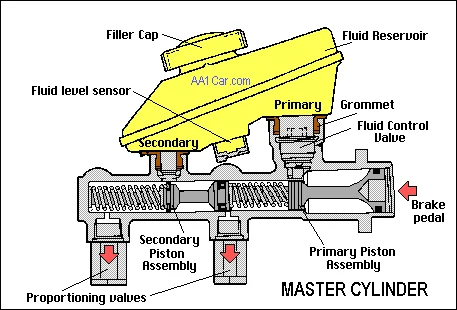

Brake Master Cylinder

The brake master cylinder is a key component of your vehicle’s braking system. It converts the force from your foot on the brake pedal into hydraulic pressure that actuates the brake calipers or drums to slow down or stop your car. A well-functioning master cylinder is essential for responsive and reliable braking.

Signs of a Failing Brake Master Cylinder

• Spongy or Soft Brake Pedal: A brake pedal that feels spongy or soft underfoot is often the first sign of trouble. This can indicate air in the hydraulic system, often due to a failing master cylinder that’s allowing fluid to bypass its internal seals.
• Pedal Slowly Sinks to the Floor: If you notice the brake pedal gradually sinking to the floor while you apply steady pressure, especially at a stop light, it’s a red flag. This symptom suggests an internal leak within the master cylinder, compromising its ability to maintain pressure.
• Inconsistent Brake Pedal Response: When the brake pedal response varies between firm and soft without any apparent reason, it’s indicative of an inconsistent flow of brake fluid, possibly due to a compromised master cylinder.
• Fluid Leaks: Visible leaks around the master cylinder or brake booster area can signal a breach in the system’s integrity. Keep an eye out for any wet or darkened areas near these components.
• Abnormal Brake Pedal Behavior: An unusual behavior where the brake pedal is hard to press or doesn’t return to its original position promptly can also point to master cylinder issues.

Causes: Internal wear and tear within the master cylinder can lead to leakage of brake fluid past the pistons or seals. This reduces the system's hydraulic pressure, resulting in a spongy pedal feel.

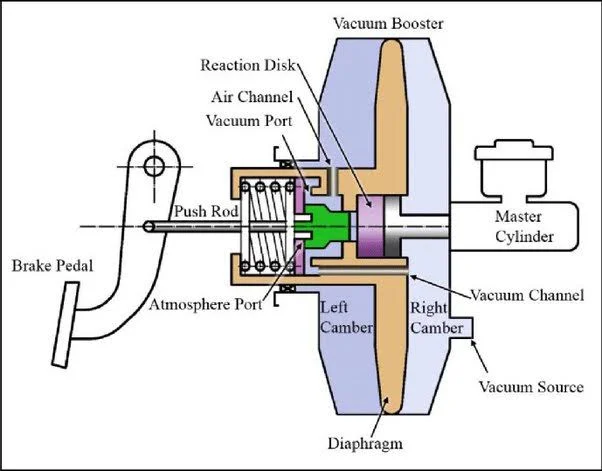

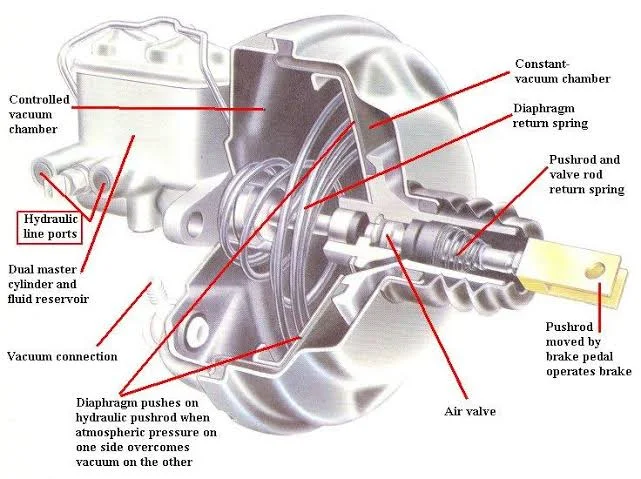

Brake Booster:

The brake booster is a hydraulic component that works alongside the master cylinder to amplify the driver's applied brake pedal pressure. Imagine it as a teammate assisting your leg during a braking maneuver. Here's a breakdown of its operation:

• Vacuum Assist: Most modern cars utilize a vacuum brake booster. The engine creates vacuum pressure, which is harnessed by the booster to multiply the force exerted on the brake pedal. This translates to less effort needed from the driver to achieve strong braking.
• Hydraulic Connection: The brake booster is connected to the master cylinder via a pushrod. When you press the brake pedal, the booster transmits this force through the pushrod, pushing the piston within the master cylinder.

Symptoms of a Failing Brake Booster:

• A failing brake booster won't leave you with completely inoperable brakes, but it will significantly alter the braking feel. Here are some telltale signs:

• Increased Pedal Effort: Without the booster's assistance, you'll need to press the brake pedal much harder to achieve the desired stopping power. This can be particularly tiring during long drives or stop-and-go traffic.
• Spongy or Mushy Pedal Feel: A failing booster might not provide the usual firm resistance you feel when pressing the brake pedal. Instead, the pedal might feel soft or sink towards the floor with excessive travel.
• Uneven Braking: In some cases, a faulty booster can lead to uneven braking performance between the front and rear wheels, creating a dangerous situation.

Cause: A malfunctioning brake booster can't provide the usual level of assist. This could be due to a leak in the vacuum line, a faulty check valve, or a damaged internal diaphragm.

Diagnosing Master Cylinder Problems

• Brake Pedal Test: Start your vehicle and firmly press down on the brake pedal. If the pedal feels rock hard and doesn’t sink, the master cylinder is likely functioning correctly. However, if the pedal sinks progressively, it’s time to consider a replacement.
• Visual Inspection: Examine the master cylinder for any signs of fluid leakage. A healthy master cylinder should not lose fluid unless there’s a leak in the system.

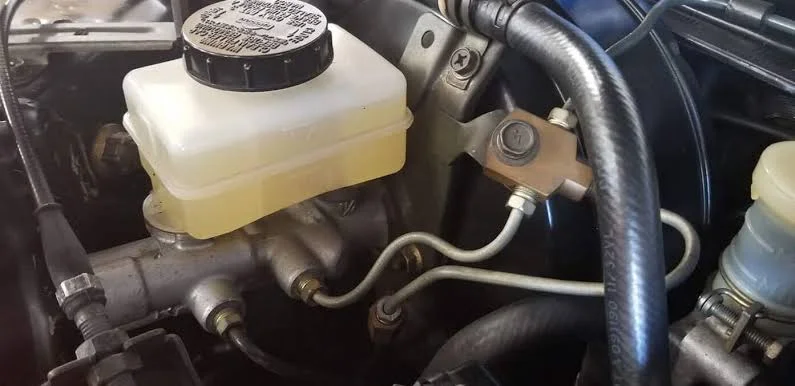

• Brake Fluid Level Check: Monitor the brake fluid level in the reservoir. A dropping level can indicate a leak in the master cylinder or elsewhere in the braking system.

Additional Tips for Diagnosing Brake Problems

1. Visual Inspection: Check for any visible leaks around the brake booster or master cylinder. Leaking fluid is a clear sign of a faulty component.
2. Warning Lights: A malfunctioning braking system might trigger warning lights on your dashboard, such as the ABS (Anti-lock Braking System) light.
3. Professional Diagnosis: If you're unsure about the source of the problem, consult a qualified mechanic for a professional diagnosis and repair.

Maintaining a Healthy Brake System

Regular brake system maintenance is vital for optimal performance and safety. Here are some key practices:

• Regular Brake Fluid Flush: Brake fluid absorbs moisture over time, which can lead to corrosion and reduced braking effectiveness. Schedule regular brake fluid flushes according to your vehicle's manufacturer recommendations.
• Brake Pad and Rotor Replacement: Worn brake pads and rotors can also contribute to a spongy pedal feel. Replace these components when they reach their wear limits.
• Professional Brake Inspection: During routine maintenance, have a mechanic inspect your entire braking system, including the booster and master cylinder, for any signs of wear or damage.

Conclusion

Recognizing the signs of a failing brake master cylinder is key to maintaining a safe and responsive braking system. By staying vigilant and conducting regular checks, you can ensure your vehicle remains a reliable mode of transport. Remember, when in doubt, consult a professional to avoid compromising your safety on the road.
