Master Your Automatic: A Guide to Using D, D1, D2, D3 Gear Positions Effectively

Automatic transmissions have become the norm in modern vehicles, offering a convenient and seamless driving experience. While the lack of a clutch pedal simplifies operation, understanding the meaning behind the gear selector markings is crucial for optimal performance and longevity of your transmission.

This comprehensive guide takes you through the world of automatic transmission gear positions, explaining what D, D1, D2, D3, and other markings signify, and when to use each effectively.

The Magic of Automatic Gear Shifting

Unlike manual transmissions that rely on driver input to engage specific gear ratios, automatic transmissions operate through a complex interplay of hydraulics, electronics, and mechanical components.

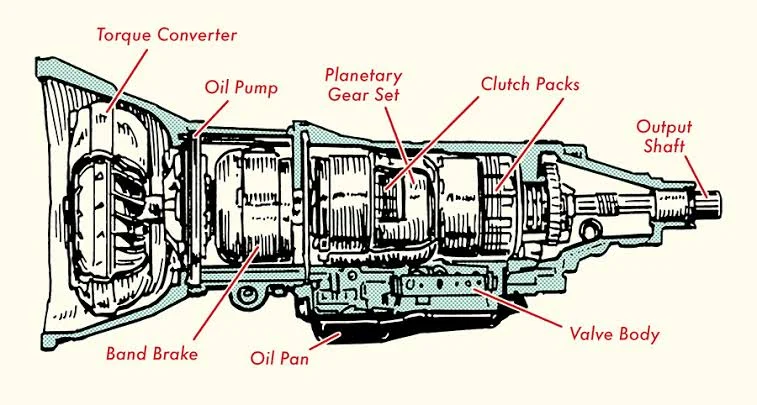

Here are the key players involved in automatic gear changes:

• Torque Converter: This fluid coupling transfers engine power to the transmission, acting as a buffer between the engine and the transmission components.

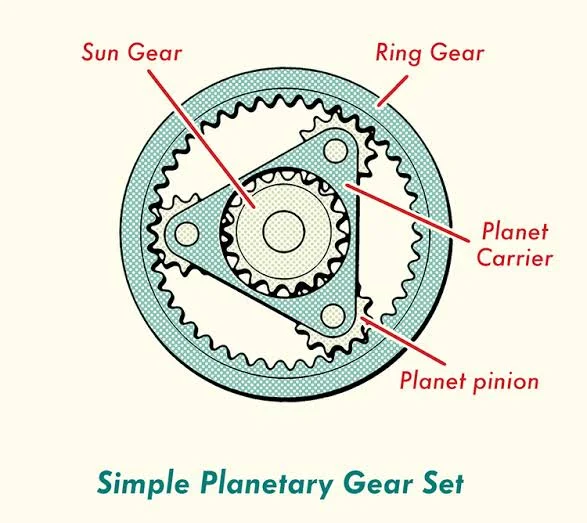

• Planetary Gear Sets: These sets of gears provide the various gear ratios needed for different driving conditions.
• Transmission Control Unit (TCU): The TCU, essentially the brain of the automatic transmission, receives inputs from various sensors (throttle position, vehicle speed, etc.) and electronically controls the hydraulic system to engage the appropriate gear combinations.
• Hydraulic System: This network of valves and fluid channels directs hydraulic pressure to engage and disengage specific clutches and bands within the planetary gear sets, ultimately determining the gear ratio.

D: Drive

The "D" position, also known as "Drive," is the most commonly used gear selection in automatic transmissions. When you select D, the transmission automatically shifts through all available gears based on driving conditions. In most cases, D is the default mode for everyday driving. When engaged, the TCU seamlessly selects the optimal gear ratios based on driving conditions, engine speed, and throttle input.

Here's why D is your go-to choice:

• Automatic Gear Selection: The TCU takes care of gear changes, allowing you to focus on steering and maintaining speed.
• Fuel Efficiency: Modern transmissions prioritize fuel economy in Drive mode, selecting gear ratios that optimize engine efficiency.
• Smooth Operation: The TCU ensures smooth transitions between gears, providing a comfortable driving experience.

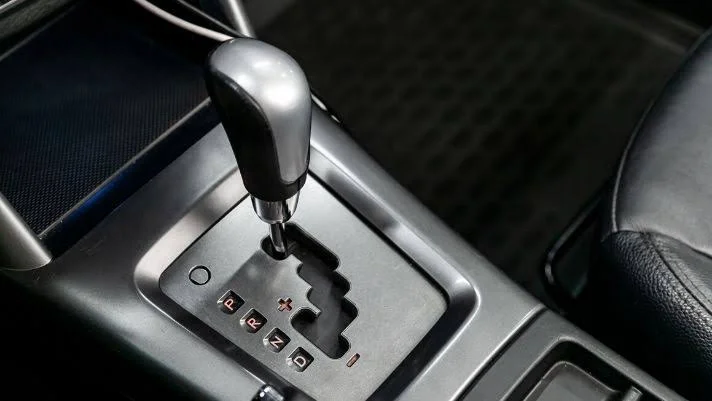

D3:

D3, sometimes referred to as "Third Gear," offers more control over engine braking and provides a sportier feel compared to D. In this mode, the transmission limits gear selection to the first three gear ratios, holding onto gears longer for better engine braking and potentially improved downhill control. It limits the transmission to the third gear. It prevents the transmission from shifting into higher gears.

Here are the situations where D3 might be beneficial:

1. Hill Descent: D3 provides enhanced engine braking on descents, reducing reliance on the brakes and potentially preventing overheating.
2. Towing: When towing a trailer, D3 can help maintain lower speeds and provide better control, especially on inclines.
3. Engine Braking: In situations requiring additional engine braking, such as sharp corners or slippery roads, D3 can be helpful.

D2

Similar to D3, D2 (or "Second Gear")bit restricts the transmission to second gear only.

It’s useful for situations where you need more power, such as climbing steep hills or driving in heavy traffic.This mode provides even stronger engine braking and can be useful in specific scenarios:

• Steep Hill Descents: D2 offers significant engine braking power, ideal for navigating particularly steep downhill sections.
• Off-Road Maneuvering: In low-traction conditions, D2 can provide more control over vehicle speed and engine power.

D1: Low Gear Engagement

D1, also known as "First Gear," limits the transmission to the lowest gear ratio. It locks the transmission in first gear.

It provides maximum torque multiplication for heavy loads or extreme conditions. This selection offers maximum engine braking and is typically used in specific situations:

• Extremely Steep Descents: When navigating very steep downhill sections, D1 provides the most significant engine braking effect.
• Off-Road Crawling: In challenging off-road situations requiring precise control at low speeds, D1 can be beneficial.

Frequently Asked Questions:

Can I stay in D3 or D2 while driving at highway speeds?

While technically possible, it's not recommended for extended periods. Operating at high engine RPMs in lower gears can lead to increased fuel consumption and potential wear on the transmission.

When should I avoid using D3, D2, or D1?

These lower gear selections are generally not recommended for everyday driving on flat roads at highway speeds. Prolonged use can strain the engine and transmission, leading to premature wear and tear.

What about other automatic transmission markings like "L" or "S"?

Additional markings like "L" (Low) or "S" (Sport) may be present depending on the specific vehicle model. "L" typically functions similarly to D1, while "S" often prioritizes sportier gear changes and holds gears longer for a more performance-oriented driving experience.

By understanding the functions of D, D1, D2, D3, and other automatic transmission gear positions, you can optimize your driving experience, enhance safety in specific situations, and ensure the longevity of your vehicle's complex transmission system. Remember, consulting your vehicle's owner's manual for specific functionalities and recommendations is always advisable.
