Brakes: The Complete Guide to Troubleshooting Sticking Brake Caliper

When it comes to car maintenance, the braking system is paramount. A sticking brake caliper can cause more than just a nuisance; it can lead to uneven brake wear, reduced braking efficiency, and even a potential safety hazard.

This comprehensive guide is designed to help automotive technicians and students alike diagnose and resolve issues with sticking brake calipers, ensuring that every vehicle is safe and reliable on the road.

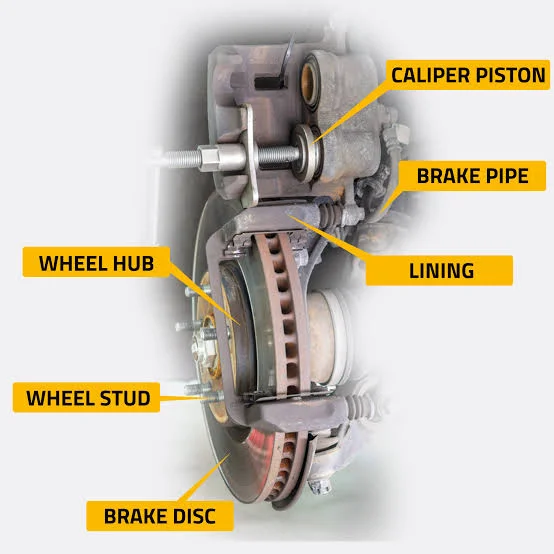

Brake calipers play a crucial role in your vehicle’s ability to stop. They house the brake pads and pistons; their primary function is to exert pressure on the brake pads, clamping them against the rotors to slow or stop the vehicle. A sticking caliper can hinder this process, leading to various problems.

Spotting the Signs of a Sticking Caliper

The first step in troubleshooting is to recognize the symptoms of a sticking caliper. These can include:

• The vehicle pulling to one side when braking.
• A burning smell coming from the wheels after driving.
• Unusual noises during braking, such as squealing or grinding.
• The brake pad wearing down unevenly or excessively.

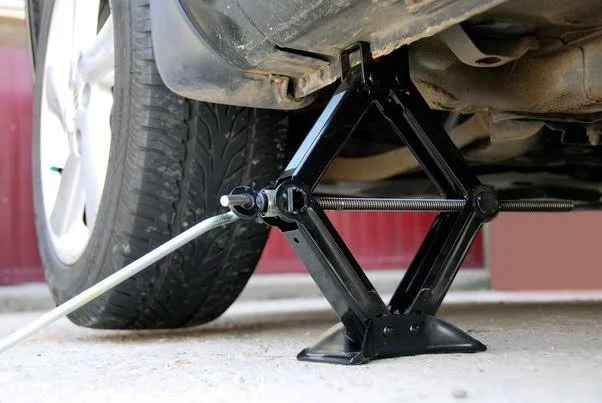

The Wheel Jack Test

A simple yet effective initial test is to jack up the vehicle and manually spin the wheel. If the wheel does not turn freely or there is significant resistance, this could indicate a sticking caliper. Remember to always secure the vehicle properly and follow safety protocols when lifting it.

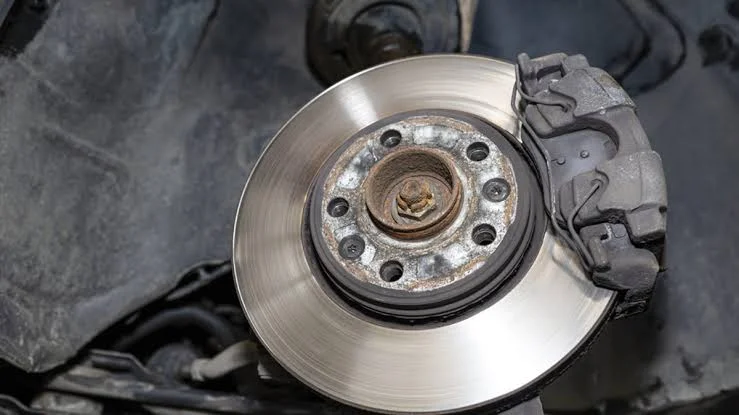

Inspecting Brake Lines and Master Cylinder

If the wheel is difficult to turn, the next step is to inspect the brake lines and master cylinder. Issues with these components can mimic the symptoms of a sticking caliper. By loosening the brake line or the bleeder valve on the caliper, you can determine if the problem lies with the caliper itself or elsewhere in the braking system.

• The Road Test Method: Another diagnostic method is to perform a road test. Drive the vehicle to warm up the brakes, then lift the car and rotate the wheels by hand. If there’s resistance, it’s time to inspect the caliper more closely.

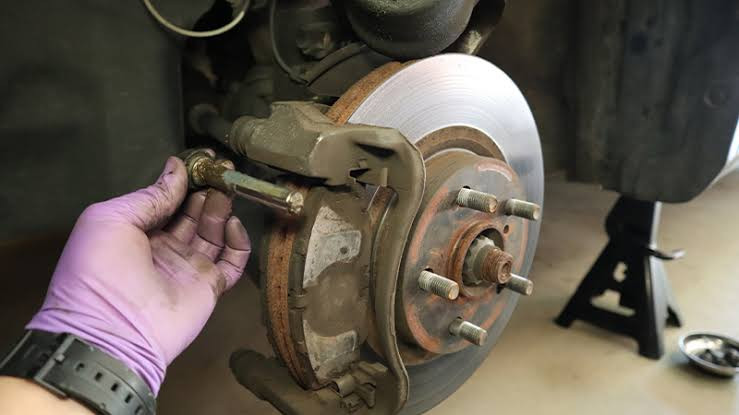

• Removing and Examining the Caliper: Carefully remove the brake caliper and pads, checking for any signs of damage or wear. The caliper piston should retract smoothly when pressure is applied; if not, the caliper may need to be replaced or rebuilt. Also, ensure that the caliper slides are clean and lubricated.

Maintenance Tips to Prevent Caliper Sticking

Regular maintenance is key to preventing brake caliper issues. This includes:

1. Cleaning any rust from the caliper and surrounding areas.
2. Lubricating the caliper slides and ensuring the brake pads move freely in their holders.
3. Flushing and replacing the brake fluid every two years to prevent contamination that could lead to sticking components.

By following this guide, you’ll be able to diagnose and fix sticking brake calipers, ensuring your vehicle’s braking system operates smoothly and safely. Regular maintenance and attention to early warning signs can prevent many caliper issues from arising, keeping you and your vehicle on the road without interruption.
