Understanding Overheating Issues in the Mazda CX-5

The Mazda CX-5 is a popular compact SUV known for its sleek design, spirited performance, and reliable nature. However, some earlier models, particularly the 2012 CX-5, have been reported to experience overheating issues.

This article looks at all the potential culprits behind overheating in the CX-5, preventative measures, and equips you with the knowledge to keep your car running cool.

The Mazda CX-5 Through the Years

Introduced in 2012, the Mazda CX-5 quickly captured the hearts of drivers seeking a blend of style and practicality. Over the years, Mazda has released various CX-5 trims with different engine options, including gasoline and turbocharged variants. While later models haven't faced widespread overheating concerns, understanding the potential issues with earlier models can be helpful for owners.

Common CX-5 Issues

While overheating is a concern for some CX-5 models, other potential problems to be aware of include:

• Transmission Issues: Some automatic CX-5 models, particularly early ones, might experience hesitation or jerking during gear changes.
• Infotainment System Glitches: Malfunctioning touchscreens or occasional system freezes have been reported in some cases.
• Minor Electrical Problems: Electrical gremlins like faulty window switches or malfunctioning turn signals can occur.
• Suspension Noise: Some owners report a knocking or clunking sound from the suspension, especially on rough roads.

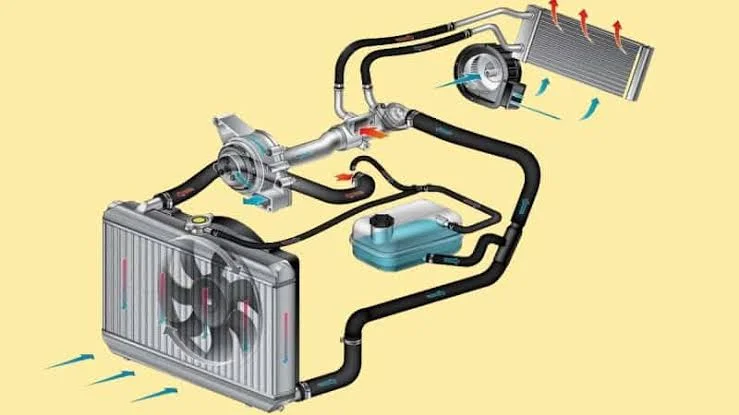

Understanding Engine Overheating

Engine overheating occurs when the engine's temperature exceeds its optimal operating range. This can lead to serious damage if left unchecked. Here are some common causes of overheating:

• Coolant System Issues: A leak in the cooling system, a malfunctioning thermostat, or a clogged radiator can all hinder the engine's ability to shed heat.
• Low Coolant Level: Insufficient coolant can compromise the system's effectiveness.
• Faulty Water Pump: The water pump circulates coolant throughout the engine. A failing pump can restrict coolant flow and lead to overheating.
• Oil System Problems: Engine oil plays a role in heat management. Low oil levels or excessively dirty oil can contribute to overheating.

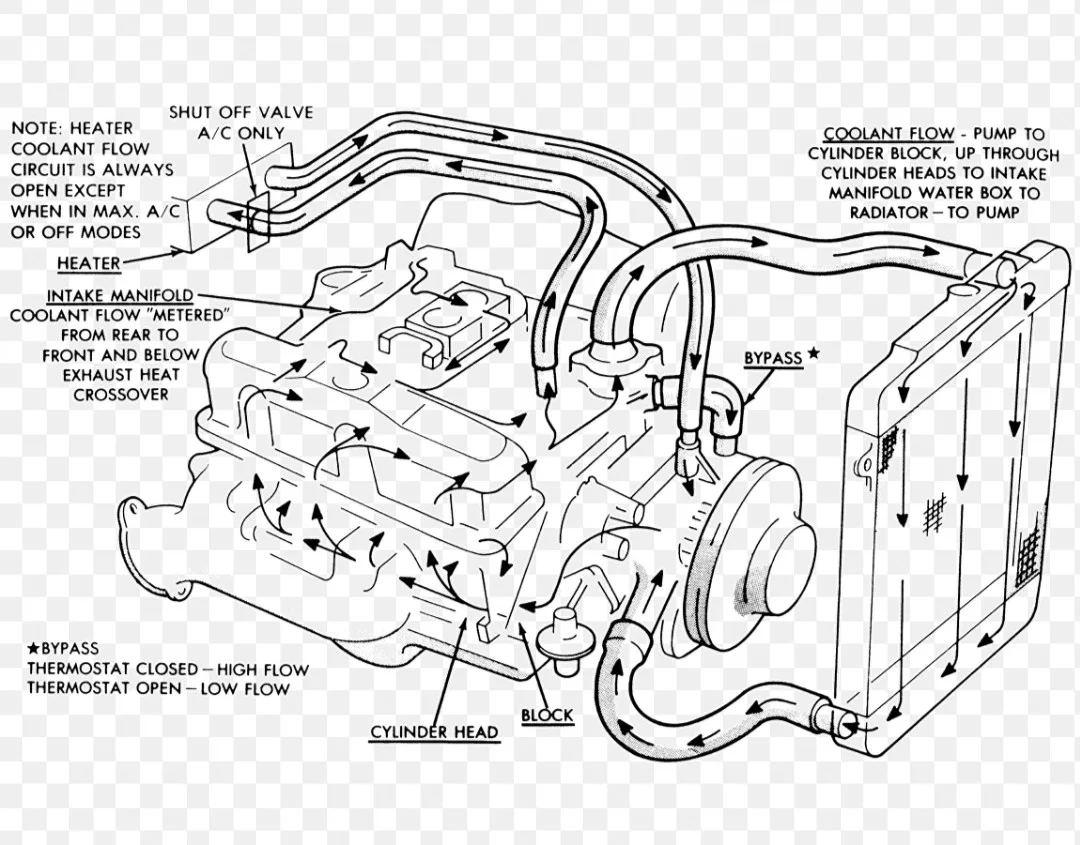

The Most Common Cause of Overheating in Mazda CX-5: Coolant Bypass Pipe Woes

One of the most common causes of overheating in specific Mazda CX-5 models, particularly the 2012 diesel variant, is a failing coolant bypass pipe.

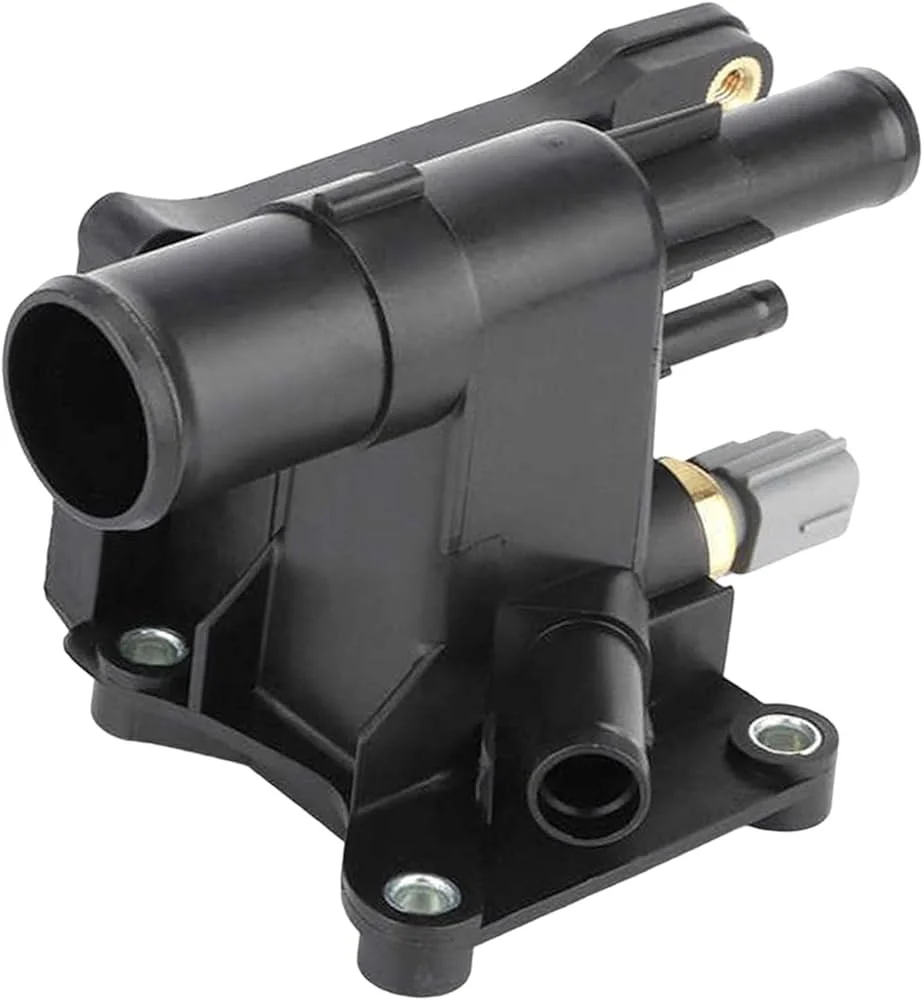

This plastic pipe, located near the thermostat housing, can deteriorate due to age, heat cycles, and exposure to coolant. A faulty bypass pipe can lead to:

• Coolant Leak: A cracked or damaged bypass pipe can leak coolant, reducing the coolant system's ability to absorb heat.
• Restricted Coolant Flow: Debris from a failing bypass pipe can clog the system, hindering proper coolant circulation.

While the faulty coolant bypass pipe is a frequent culprit, other potential causes of overheating in the CX-5 include:

• Low Coolant Level: This can be due to a leak, a faulty radiator cap, or simply neglecting to top off the coolant.
• Clogged Radiator: A clogged radiator restricts airflow, hindering the radiator's ability to cool the coolant.
• Faulty Thermostat: The thermostat regulates coolant flow to the engine. A stuck-closed thermostat can prevent coolant from circulating properly, leading to overheating.
• Water Pump Failure: The water pump circulates coolant throughout the engine. A failing water pump can reduce coolant flow and contribute to overheating.
• Head Gasket Issues (Less Common): A damaged head gasket can also cause overheating, but this is typically less common than the coolant bypass pipe issue in the CX-5.

Preventative Measures

Here's what you can do to prevent your Mazda CX-5 from overheating:

• Regular Maintenance: Schedule regular maintenance according to your Mazda's owner's manual. This includes routine coolant flushes and checks for leaks.
• Coolant Check: Regularly check the coolant level and condition. Look for any discoloration or debris in the coolant reservoir.
• Coolant System Inspection: Have a qualified mechanic inspect the coolant system periodically, focusing on the coolant bypass pipe for signs of wear or damage (especially in 2012-2017 models).
• Quality Coolant: Use the proper coolant type recommended by Mazda.

Driving Tips to Avoid Overheating

• Avoid Strenuous Driving in Hot Weather: Limit hard accelerations and maintain a moderate speed, especially during hot weather or stop-and-go traffic.
• Use the Air Conditioning Wisely: While the air conditioning can put additional strain on the engine, don't be afraid to use it when needed. Turning off the A/C in extreme heat can be counterproductive, as a hotter cabin can lead to discomfort and potentially distracted driving.

Frequently Asked Questions (FAQs)

Is my Mazda CX-5 Prone to Overheating?

Overheating can occur in any car, but the 2012-2017 Mazda CX-5, particularly those with the 2.0L engine, seems more susceptible due to a common issue with the plastic coolant bypass pipe. This pipe can deteriorate and leak, leading to overheating. Later model CX-5s are generally less prone to this specific problem.

What are the Signs of a Failing Coolant Bypass Pipe?

Engine Overheating: This is the most obvious sign. The temperature gauge will climb higher than usual, and the warning light might illuminate.

• Coolant Leak: You might notice coolant puddles under the car or a low coolant level in the reservoir.
• Smoking Alternator: In some cases, leaking coolant can come into contact with the alternator, causing it to smoke or malfunction.

Can Overheating Cause Permanent Engine Damage?

Yes, unfortunately. If overheating is left unchecked, it can lead to serious engine damage. This includes warped or seized engine components, a blown head gasket, and even complete engine failure. Early detection and addressing the overheating issue is crucial to prevent these costly repairs.

How Much Does It Cost to Repair Mazda CX-5 Overheating Issues?

The cost of repairs depends on the cause of the overheating. Replacing a faulty coolant bypass pipe is a relatively inexpensive fix compared to a blown head gasket or warped engine components. Here's a rough estimate:

• Coolant Bypass Pipe Replacement: $100-$300 (including parts and labor)
• Head Gasket Replacement: $300-$1,500 (including parts and labor)

Preventive maintenance is key! Regularly checking your coolant level and condition, scheduling recommended maintenance, and addressing any leaks promptly can help prevent overheating and save you money on repairs in the long run.
