P0107 and P0108: Manifold Absolute Pressure (MAP) Sensor Circuit High or Low Voltage

Understanding DTC Error Codes P0107 and P0108: MAP Sensor Voltage Issues. When it comes to vehicle diagnostics, understanding the manifold absolute pressure (MAP) sensor and its associated error codes, P0107 and P0108, is crucial for automotive technicians and students alike. These Diagnostic Trouble Codes (DTCs) are critical in pinpointing issues related to the MAP sensor circuit’s voltage.

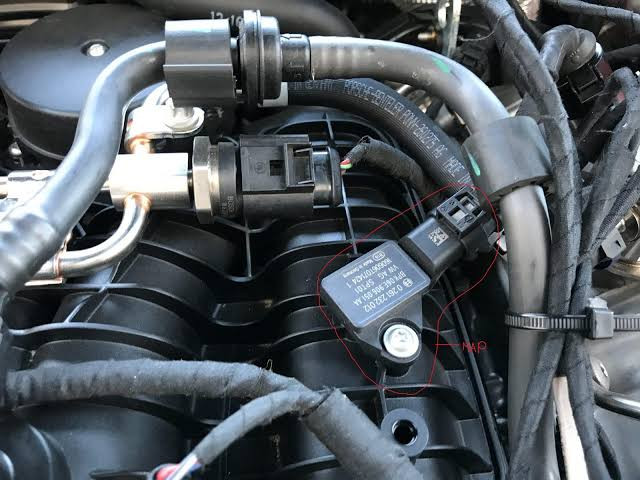

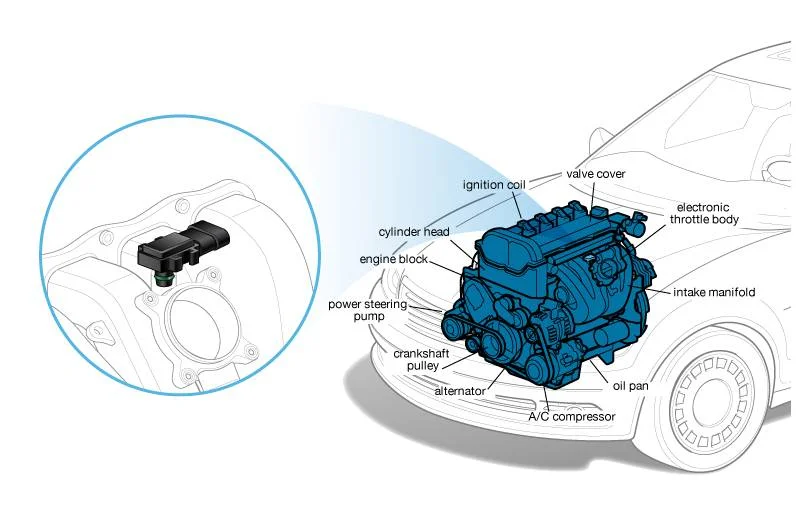

What is a MAP Sensor?

The MAP sensor is a key component in an engine’s electronic control system. It measures the pressure within the intake manifold and relays this information to the Engine Control Unit (ECU). The ECU then uses this data to calculate air density and determine the engine’s air mass flow rate, which in turn influences the fuel injection system.

DTC P0107: MAP Sensor Circuit Low Voltage

Error code P0107 is triggered when the MAP sensor’s voltage input falls below the expected range. This low voltage condition can lead to various engine performance issues.

Causes of P0107:

1. Faulty MAP sensor: A damaged or malfunctioning MAP sensor is often the primary cause.
2. Circuit issues: Problems such as an open or short in the signal circuit or voltage reference circuit can lead to this error.
3. Electromagnetic interference: High-voltage components like the alternator can disrupt the MAP sensor’s signal.
4. Fuel pressure discrepancies: Inadequate fuel pressure can also trigger this DTC.
5. Engine component damage: Issues with engine valves or other components may result in a P0107 code.

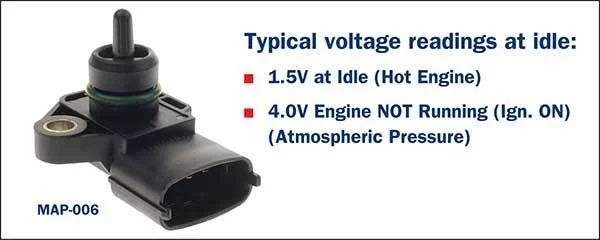

Symptoms of P0107:

1. Check engine light: The most obvious sign is the illumination of the check engine light.
2. Rough idling: The engine may idle unevenly or stall.
3. Poor acceleration: The vehicle might struggle to accelerate or respond sluggishly.
4. Starting issues: Difficulty in starting the engine, especially in cold conditions.
5. Increased fuel consumption: The engine may consume more fuel than usual.
6. Black exhaust smoke: A rich fuel mixture can cause black smoke from the exhaust.

DTC P0108: MAP Sensor Circuit High Voltage

Error code P0108 arises when the MAP sensor’s voltage input is higher than the normal operating range, indicating a high voltage condition that can adversely affect engine performance.

Causes of P0108:

1. Vacuum leaks: Leaks in the vacuum supply line to the MAP sensor or in the engine can lead to high voltage readings.
2. Wiring issues: A short on the signal wire to the PCM or on the reference voltage wire can cause this DTC.
3. Faulty MAP sensor: As with P0107, a defective MAP sensor can also result in a P0108 code.
4. PCM problems: Rarely, the issue may lie within the Powertrain Control Module itself.

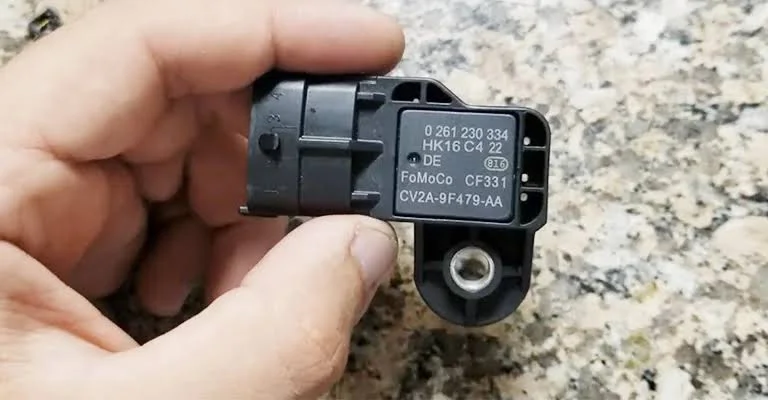

Symptoms of P0108:

1. Malfunction indicator lamp (MIL): The check engine light will likely be on.
2. Engine performance issues: The engine may run poorly or not run at all.
3. Decreased fuel mileage: Fuel efficiency may drop noticeably.
4. Presence of black smoke: Similar to P0107, black smoke may be emitted from the exhaust.

Diagnosing and Fixing MAP Sensor Voltage Issues

To diagnose these issues, a technician will typically:

• Connect an OBD2 scanner to read the error codes and assess the MAP sensor’s voltage while the engine is running.
• Inspect the MAP sensor and associated wiring for visible signs of damage or corrosion.
• Test the volt reference circuit with a digital multimeter to ensure proper voltage is present.
• Check for vacuum leaks in the intake system, which can be done visually or with specialized equipment like a smoke machine.

Conclusion

DTCs P0107 and P0108 are vital indicators of voltage discrepancies in the MAP sensor circuit. Understanding the causes and symptoms associated with these codes is essential for accurate diagnosis and repair. Regular maintenance and prompt attention to engine warning lights can prevent long-term damage and ensure optimal engine performance.
