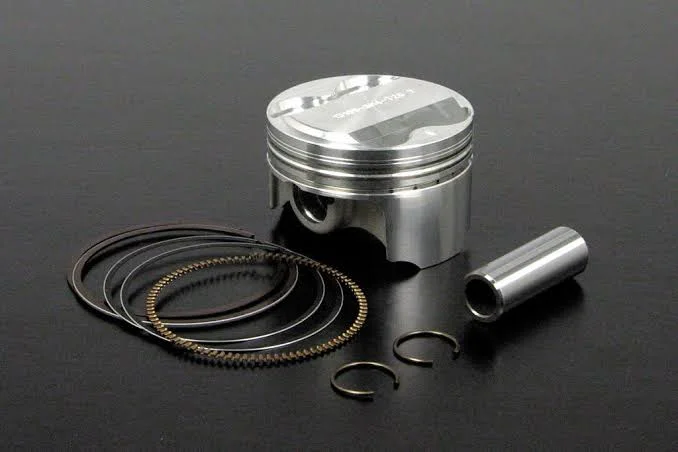

How to Clean Piston Ring Grooves: A Complete Guide

If you own a car, you probably know that the engine is the most important part of it. The engine is made up of many parts that work together to make your car run smoothly and efficiently. One of these parts is the piston, which is a cylindrical metal piece that moves up and down inside the cylinder. The piston has rings around it that seal the gap between the piston and the cylinder wall. These rings prevent the gas and oil from leaking out of the cylinder and also help to compress the air-fuel mixture that ignites the engine.

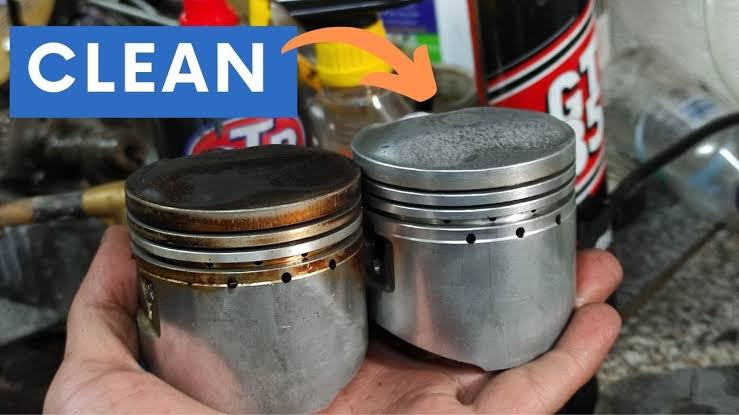

However, over time, the piston ring grooves can get dirty and clogged with carbon, rust, and other debris. This can cause the piston rings to stick and lose their sealing ability. This can lead to problems such as loss of power, poor fuel economy, increased emissions, and engine damage. Therefore, it is important to clean the piston ring grooves regularly to keep your engine in good shape.

But how do you clean the piston ring grooves? There are different methods that you can use, depending on the tools and materials you have. In this article, we will explain some of the most common and effective ways to clean the piston ring grooves. We will also give you some tips and precautions to follow when doing this task. Let’s get started!

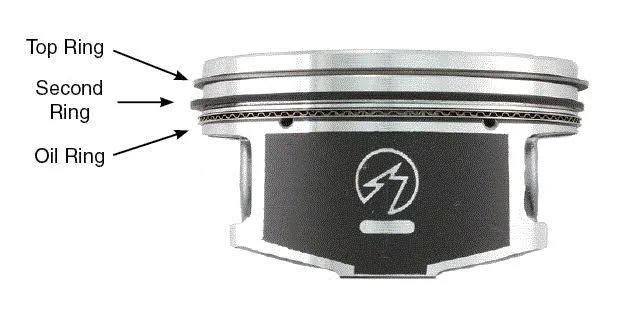

Method 1: Using a Groove Cleaning Tool and Solvent

This method is one of the most professional and thorough ways to clean the piston ring grooves. You will need a special tool called a groove cleaning tool, which is a small, hooked blade that can fit into the grooves and scrape out the debris. You will also need a solvent, such as kerosene or brake cleaner, to dissolve the carbon and loosen the dirt. Here are the steps to follow:

1. Remove the piston from the engine. To do this, you will need to remove the engine’s cylinder head and oil pan first. Then, you can pull out the piston from the cylinder. Be careful not to damage the piston or the cylinder wall when doing this.
2. Remove the piston rings. To do this, you will need to slide them off the top of the piston. You can use a small screwdriver or a ring expander tool to help you. Be careful not to break or scratch the piston rings when doing this.
3. Soak the piston in solvent. To do this, you will need to fill a container with enough solvent to cover the piston. Then, you can place the piston in the container and let it soak for at least an hour. This will help to dissolve the carbon and loosen the debris in the grooves.
4. Clean the grooves. To do this, you will need to use the groove cleaning tool to scrape out the debris from the grooves. You can insert the tool into the groove and move it back and forth to remove the dirt. Be careful not to scratch or damage the piston or the grooves when doing this.
5. Rinse and dry the piston. To do this, you will need to rinse the piston with clean solvent to remove any remaining debris. Then, you can dry the piston thoroughly with compressed air or a lint-free cloth. Make sure the piston is completely dry before reinstalling it.
6. Reinstall the piston. To do this, you will need to reinstall the piston rings in their correct order and orientation. Then, you can reinstall the piston in the cylinder. Make sure the piston is aligned properly and fits snugly in the cylinder. Then, you can reinstall the oil pan and the cylinder head.

By following these steps, you can effectively clean the piston ring grooves using a groove cleaning tool and solvent. This method is recommended for professional and thorough cleaning, as it can remove all the debris and restore the piston ring performance.

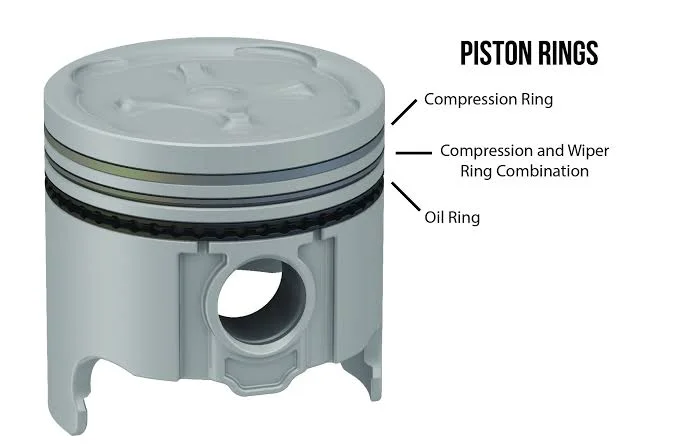

Method 2: Using a Seafoam Spray and a Piston Ring Groove Cleaner

This method is another effective way to clean the piston ring grooves. You will need a seafoam spray, which is a product that can clean and lubricate the engine parts. You will also need a piston ring groove cleaner, which is a device that can spin and cut the debris from the grooves. Here are the steps to follow:

• Remove the piston from the engine. To do this, you will need to follow the same steps as in method 1.
• Remove the piston rings. To do this, you will need to follow the same steps as in method 1.
• Spray the piston with seafoam. To do this, you will need to spray the seafoam product on the piston, especially on the grooves. This will help to dissolve the carbon and lubricate the grooves.
• Set the piston ring groove cleaner. To do this, you will need to attach the piston ring groove cleaner to a drill or a similar device. Then, you can set the cleaner to the right size and shape for the groove. You can use the instructions that come with the cleaner to help you.
• Spin the piston ring groove cleaner. To do this, you will need to slide the cleaner up the piston with the cutting edge facing the groove. Then, you can spin the cleaner to cut the debris from the groove. You can move the cleaner up and down to clean the entire groove. Be careful not to cut too deep or damage the piston or the grooves when doing this.
• Stop when you see shining metal. To do this, you will need to check the groove regularly and stop when you see the metal surface of the piston. This means that you have removed all the debris and cleaned the groove. Do not continue to spin the cleaner or you will damage the piston.
• Rinse and dry the piston. To do this, you will need to follow the same steps as in method 1.
• Reinstall the piston. To do this, you will need to follow the same steps as in method 1.

By following these steps, you can effectively clean the piston ring grooves using a seafoam spray and a piston ring groove cleaner. This method is recommended for quick and easy cleaning, as it can remove most of the debris and improve the piston ring performance.

Method 3: Using an Old Piston Ring as a Scraper

This method is the simplest and cheapest way to clean the piston ring grooves. You will only need an old piston ring that you can break and use as a scraper. Here are the steps to follow:

• Remove the piston from the engine. To do this, you will need to follow the same steps as in method 1.
• Remove the piston rings. To do this, you will need to follow the same steps as in method 1.
• Break an old piston ring. To do this, you will need to snap one of the old piston rings that you removed from the piston. You can use a pair of pliers or a hammer to help you. Be careful not to hurt yourself when doing this.
• Use the broken ring as a scraper. To do this, you will need to use one end of the broken ring as a scraper in the grooves. You can insert the end into the groove and move it back and forth to scrape out the debris. Be careful not to scratch or damage the piston or the grooves when doing this.
• Rinse and dry the piston. To do this, you will need to follow the same steps as in method 1.
• Reinstall the piston. To do this, you will need to follow the same steps as in method 1.

By following these steps, you can effectively clean the piston ring grooves using an old piston ring as a scraper. This method is recommended for simple and cheap cleaning, as it can remove some of the debris and enhance the piston ring performance.

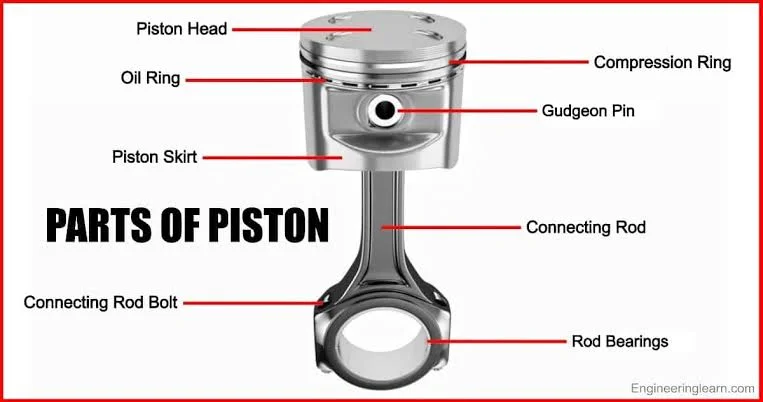

Tips and Precautions

• Before cleaning the piston ring grooves, make sure you have the right tools and materials for the method you choose. You can buy them online or at a local auto parts store.
• Before removing the piston from the engine, make sure you mark the position and orientation of the piston and the piston rings. This will help you to reinstall them correctly and avoid any confusion.
• Before reinstalling the piston in the engine, make sure you lubricate the piston and the cylinder wall with engine oil. This will help to prevent any friction and damage during the installation.
• After reinstalling the piston in the engine, make sure you check the compression and the engine performance. This will help you to verify that the cleaning was successful and that the piston ring grooves are working properly.
• Cleaning the piston ring grooves is a task that requires some skill and experience. If you are not confident or comfortable doing it yourself, you can always hire a professional mechanic to do it for you.

Conclusion

Cleaning the piston ring grooves is an important part of engine maintenance that can improve the engine performance and prevent problems. There are different methods that you can use to clean the piston ring grooves, depending on the tools and materials you have. In this article, we explained some of the most common and effective ways to clean the piston ring grooves. We also gave you some tips and precautions to follow when doing this task. We hope this article was helpful and informative for you. Thank you for reading!
