P0105 - MAP Sensor Circuit Insufficient Activity

P0105 - MAP Sensor Circuit Insufficient Activity Is your car running poorly and showing a check engine light? Do you want to know what it means and how to fix it? If you answered yes, then this article is for you.

In this article, you will learn about the P0105 code, which is a common error code for the manifold absolute pressure sensor. You will also learn what causes it, how to diagnose and repair it, and how to prevent it from happening again.

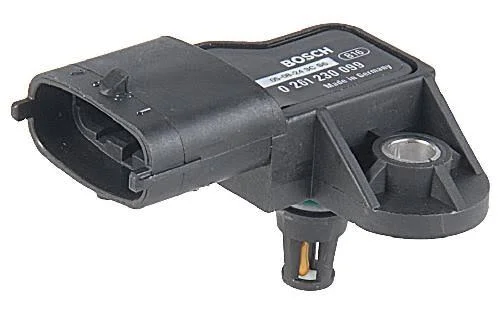

What is P0105 code?

P0105 code is an error code that tells you that there is a problem with the manifold absolute pressure sensor or circuit. The manifold absolute pressure sensor is a device that measures the air pressure inside the intake manifold, which is the part that connects the air intake to the engine. The engine control unit (ECU) uses this information to adjust the amount of fuel and air that goes into the cylinders. This helps the engine run smoothly and efficiently.

The P0105 code means that the manifold absolute pressure sensor is reading too little pressure. This can cause the engine to run lean, which means that there is too little fuel and too much air. This can lead to poor performance, higher fuel consumption, and lower emissions.

Possible Causes of P0105:

• Faulty MAP Sensor: Similar to the MAF sensor, a malfunctioning MAP sensor can send inaccurate pressure readings to the engine computer.
• Loose/damaged Vacuum Hoses: Leaks in the vacuum lines connecting the MAP sensor to the intake manifold can lead to incorrect pressure readings.
• Clogged PCV Valve: A blocked Positive Crankcase Ventilation valve can cause pressure buildup in the intake manifold, confusing the MAP sensor.
• Intake Manifold Leaks: Similar to air intake leaks, leaks in the intake manifold can throw off the pressure readings for the MAP sensor.
• Electrical issues: Faulty wiring or connection problems between the MAP sensor and the engine computer can disrupt signal transmission.

How to diagnose and repair P0105 code?

To diagnose and repair the P0105 code, you will need some tools and skills, such as:

1. A code reader or scanner that can read and clear the codes
2. A multimeter that can measure voltage and resistance
3. A service manual that has the specifications and procedures for your vehicle
4. Basic knowledge of how the engine and the intake system work

Here are the steps to follow:

• Connect the code reader or scanner to the diagnostic port under the dashboard and turn on the ignition. Read the code and write it down. Clear the code and see if it comes back. If it doesn’t, it may have been a temporary glitch. If it does, proceed to the next step.
• Inspect the manifold absolute pressure sensor and its wiring and connector. Look for any signs of damage, corrosion, or looseness. Make sure the sensor is securely mounted and plugged in. If you find any problems, fix them or replace the parts as needed.
• Check the voltage and resistance of the manifold absolute pressure sensor and its circuit. Use the multimeter and the service manual to find the correct values and test points. Compare the readings to the specifications and see if they are within range. If they are not, there may be a problem with the sensor, the wiring, or the ECU. Replace the faulty part or consult a professional mechanic.
• Check for vacuum leaks in the intake system. A vacuum leak is a hole or crack that lets air escape from the system. This can cause the manifold absolute pressure sensor to read incorrectly and affect the engine performance. To check for vacuum leaks, you can use a spray bottle with water or a smoke machine. Spray or inject the water or smoke around the intake manifold, the hoses, the gaskets, and the seals. Listen for any hissing sounds or look for any smoke escaping. If you find any leaks, seal them or replace the parts as needed.

How to prevent P0105 code from happening again?

To prevent the P0105 code from happening again, you should:

1. Keep the manifold absolute pressure sensor clean and free of dirt and debris. You can use a special cleaner or a soft brush to gently clean the sensor. Do not touch the sensor wires or elements with your fingers or any metal tools.
2. Replace the manifold absolute pressure sensor every few years or according to the manufacturer’s recommendation. Over time, the sensor can wear out and lose accuracy. Replacing it with a new one can improve the engine performance and fuel economy.
3. Maintain the intake system regularly. Check the hoses, gaskets, and seals for any cracks or leaks. Replace them if they are damaged or worn out. Also, check the air filter and replace it if is dirty or clogged.

Conclusion

P0105 code is a common error code that indicates a problem with the manifold absolute pressure sensor or circuit. This can cause the engine to run poorly and waste gas. If you have this code, you should diagnose and repair it as soon as possible. You should also prevent it from happening again by keeping the sensor and the intake system clean and in good condition. By doing so, you can enjoy a better driving experience and save money on gas and repairs.
