How a Bad Ground Wire Can Ruin Your Car

A ground wire is a very important part of your car’s electrical system. It connects the negative terminal of the battery to the metal parts of the car, such as the engine, the body, and the chassis. This creates a complete circuit for the electricity to flow and power the devices in your car, such as the lights, the radio, the engine, and the transmission.

But what happens if the ground wire is bad? What can a bad ground wire do to a car? The answer is: a lot of trouble!

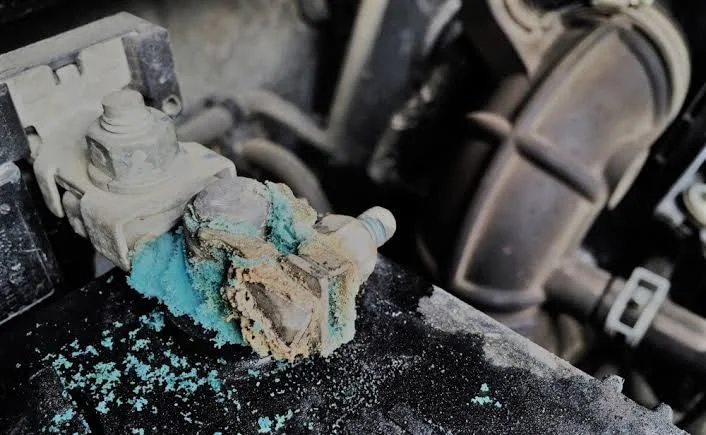

What Causes a Bad Ground Wire?

A bad ground wire can be caused by several factors, such as:

• Corrosion: The ground wire can get rusty or corroded over time, especially if it is exposed to moisture, salt, or dirt. This can reduce the conductivity of the wire and create resistance in the circuit. Corrosion can affect both the positive and the negative wires, but it is more common in the ground wire because it is closer to the ground.
• Damage: The ground wire can get damaged by physical forces, such as heat, vibration, or impact. This can cause the wire to break, fray, or loosen. A damaged wire can also create sparks or short circuits, which can damage other components in the car.
• Wear and tear: The ground wire can wear out over time due to normal use. The wire can become thin, brittle, or weak, and lose its ability to carry the current. This can also affect the connections and terminals of the wire, which can become loose or dirty.

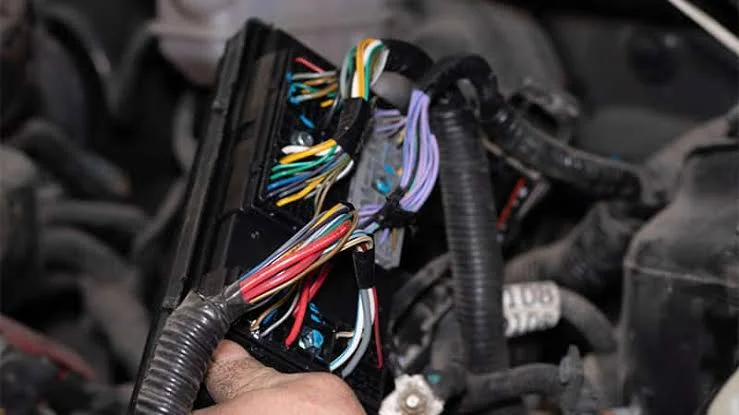

What are the Symptoms of a Bad Ground Wire?

A bad ground wire can cause many problems in your car, such as:

1. Intermittent faults: A bad ground wire can make the electrical devices in your car work erratically or not at all. For example, you may experience lights not working, lights working when they’re not supposed to, random check engine lights, random ECU faults, 4WD not working, transmission not shifting, transmission lock not disengaging, car not starting, car not charging, and so on. These faults can be hard to diagnose and fix, because they may come and go without warning.
2. Dim lights: A bad ground wire can reduce the voltage and current in the circuit, which can make the lights in your car dim or flicker. This can affect the headlights, the tail lights, the brake lights, the turn signals, the dashboard lights, and the interior lights. Dim lights can make it hard to see and be seen on the road, which can be dangerous.
3. Crackling radio: A bad ground wire can interfere with the radio signal and cause static, noise, or distortion in the sound. This can make it hard to listen to music, news, or navigation. A crackling radio can also indicate a poor antenna connection, which can also be affected by a bad ground wire.

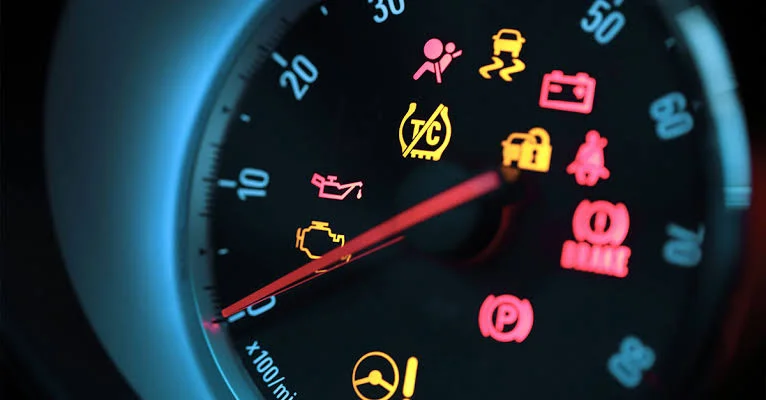

4. Possessed dashboard instruments: A bad ground wire can affect the communication between the computer and the sensors in your car, which can make the dashboard instruments behave strangely. For example, you may see the speedometer, the tachometer, the fuel gauge, the temperature gauge, or the oil pressure gauge fluctuate, jump, or drop to zero. This can make it hard to monitor the performance and condition of your car, and may also trigger false warning lights or codes.
5. Shifting problems: A bad ground wire can affect the operation of the automatic transmission, which relies on electrical signals to shift gears. For example, you may experience delayed, harsh, or erratic shifting, or the transmission may get stuck in a certain gear or not shift at all. This can affect the drivability and fuel efficiency of your car, and may also damage the transmission.
6. Fires: A bad ground wire can create heat, sparks, or short circuits, which can ignite the insulation, the plastic, or the fuel in your car. This can cause a fire, which can destroy your car and endanger your life.

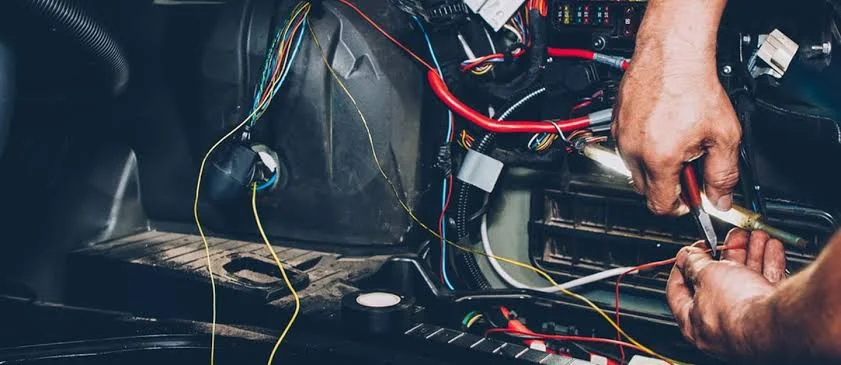

How to Fix a Bad Ground Wire?

A bad ground wire can be fixed by following these steps:

• Inspect the ground wire: The first step is to locate and inspect the ground wire and its connections. You can use a multimeter to check the continuity and the voltage of the wire. You can also use your eyes to look for signs of corrosion, damage, or wear and tear. You should also check the other wires and components in the circuit for any problems.
• Clean the ground wire: The next step is to clean the ground wire and its connections. You can use a wire brush, a sandpaper, or a solvent to remove any rust, dirt, or grease from the wire and the terminals. You should also apply some anti-corrosion spray, such as WD40, to protect the wire from moisture and oxidation.
• Replace the ground wire: The final step is to replace the ground wire if it is beyond repair. You can buy a new ground wire from an auto parts store or online, or you can make your own using a thick copper wire and some connectors. You should follow the manufacturer’s wiring diagram and instructions to install the new ground wire correctly and securely.

Conclusion

A ground wire is a vital part of your car’s electrical system, but it can also be a source of many problems if it is bad. A bad ground wire can cause intermittent faults, dim lights, crackling radio, possessed dashboard instruments, shifting problems, and fires in your car. To fix a bad ground wire, you need to inspect, clean, or replace the wire and its connections. By doing so, you can improve the performance, safety, and reliability of your car.
