How the MAF Sensor and Other Sensors Work Together to Optimize Your Car’s Performance

Have you ever wondered how your car knows how much air and fuel it needs to run efficiently? Or how it adjusts to different driving conditions and speeds? Well, it’s all thanks to a group of sensors that work together like a symphony orchestra, each playing their part to create a harmonious performance.

One of the most important sensors in your car is the MAF sensor, which stands for Mass Air Flow. This sensor measures how much air is entering your engine and sends this information to the computer that controls your car, called the ECU (Engine Control Unit). The ECU then uses this data to calculate how much fuel to inject into the engine, as well as how to time the spark plugs that ignite the fuel-air mixture.

The MAF sensor is like the lead singer of the orchestra, setting the tone and pace for the rest of the instruments. But it doesn’t work alone. It needs the help of other sensors to fine-tune its performance and make sure everything is in sync. Let’s take a look at how the MAF sensor works with other sensors to make your car run smoothly and efficiently.

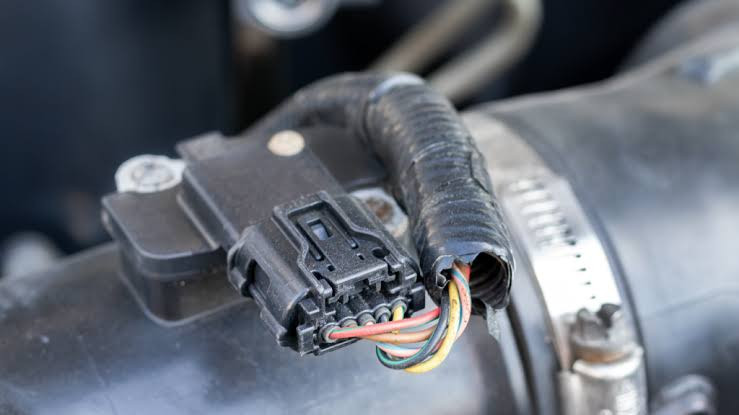

The Mass Airflow Sensor in Action

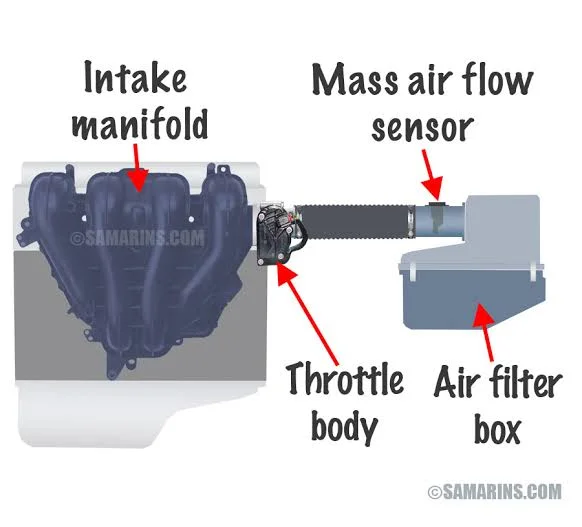

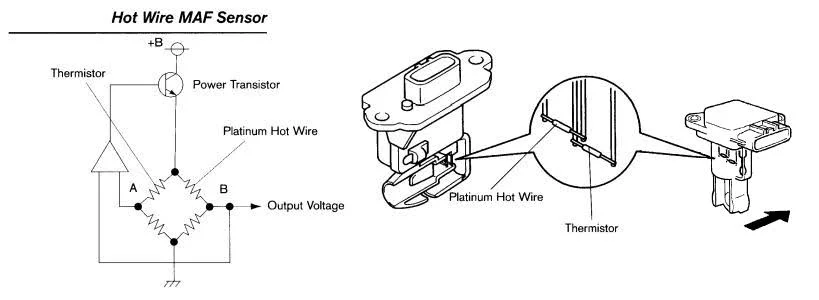

The MAF sensor is located in the air intake duct, which is the pipe that connects the air filter to the engine. The MAF sensor has a thin wire or film that is heated by an electric current. As the air flows past the wire or film, it cools it down. The MAF sensor measures how much the wire or film is cooled by the air, which tells it how much air is entering the engine.

Solo Act

The MAF sensor can measure the air intake on its own, using the hot wire or hot film method. This method is simple and accurate, but it has some limitations. For example, it can be affected by dirt, moisture, or oil that can stick to the wire or film and change its temperature. It can also be affected by changes in air density or pressure, which can vary depending on the altitude, temperature, or weather.

Duet with TPS

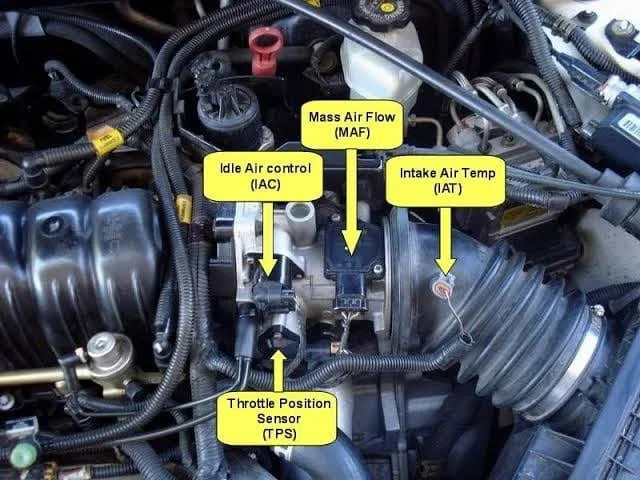

To overcome these limitations, the MAF sensor works with another sensor called the TPS, which stands for Throttle Position Sensor. This sensor is attached to the throttle body, which is the part that controls how much air enters the engine by opening and closing a valve. The TPS sensor measures how much the throttle valve is open or closed, which tells the ECU how much air the driver is requesting.

The MAF sensor and the TPS sensor work together like a duet, complementing each other and providing more accurate data. The MAF sensor tells the ECU how much air is actually entering the engine, while the TPS sensor tells the ECU how much air the driver wants. The ECU then uses both sensors to calculate the optimal amount of fuel to inject into the engine.

Trio with MAP

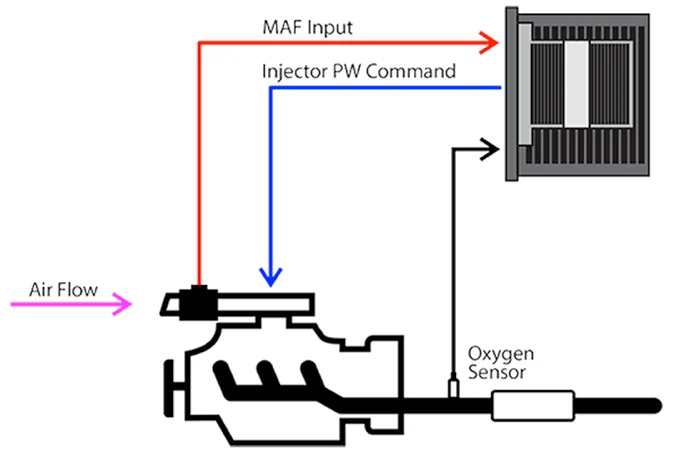

Another sensor that works with the MAF sensor is the MAP sensor, which stands for Manifold Absolute Pressure. This sensor is located in the intake manifold, which is the part that distributes the air-fuel mixture to the cylinders. The MAP sensor measures the air pressure inside the intake manifold, which tells the ECU how much air is available for combustion.

The MAF sensor, the TPS sensor, and the MAP sensor work together like a trio, adding more depth and detail to the data. The MAF sensor tells the ECU how much air is entering the engine, the TPS sensor tells the ECU how much air the driver is requesting, and the MAP sensor tells the ECU how much air is actually reaching the cylinders. The ECU then uses all three sensors to fine-tune the fuel injection and ensure a balanced air-fuel ratio.

Quartet with Others

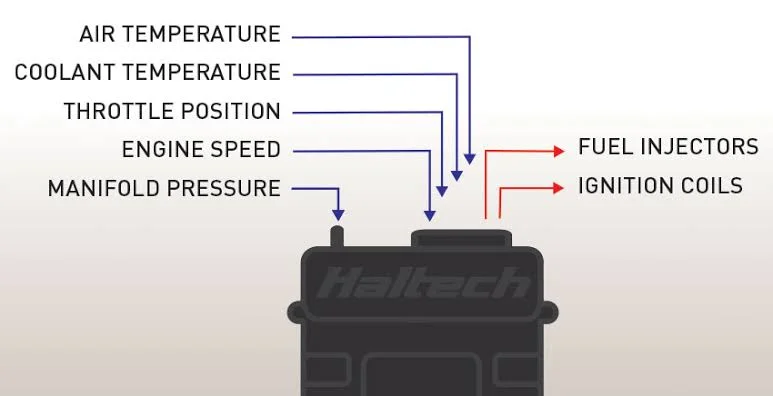

There are also other sensors that work with the MAF sensor, such as the IAT sensor and the CTS sensor. The IAT sensor stands for Intake Air Temperature, and it measures the temperature of the air entering the engine. The CTS sensor stands for Coolant Temperature Sensor, and it measures the temperature of the engine coolant. Both sensors tell the ECU how hot or cold the engine is, which affects the density and viscosity of the air and fuel.

The MAF sensor, the TPS sensor, the MAP sensor, the IAT sensor, and the CTS sensor work together like a quartet, creating a rich and complex data set. The MAF sensor tells the ECU how much air is entering the engine, the TPS sensor tells the ECU how much air the driver is requesting, the MAP sensor tells the ECU how much air is reaching the cylinders, the IAT sensor tells the ECU how hot or cold the air is, and the CTS sensor tells the ECU how hot or cold the engine is. The ECU then uses all these sensors to adjust the fuel injection and ignition timing to suit the engine’s needs.

The Symphony of Performance

The ECU is like the conductor of the orchestra, using the data from the MAF sensor and other sensors to orchestrate the engine’s performance. The ECU has two main tasks: fuel injection and ignition timing.

Fuel Injection Maestro

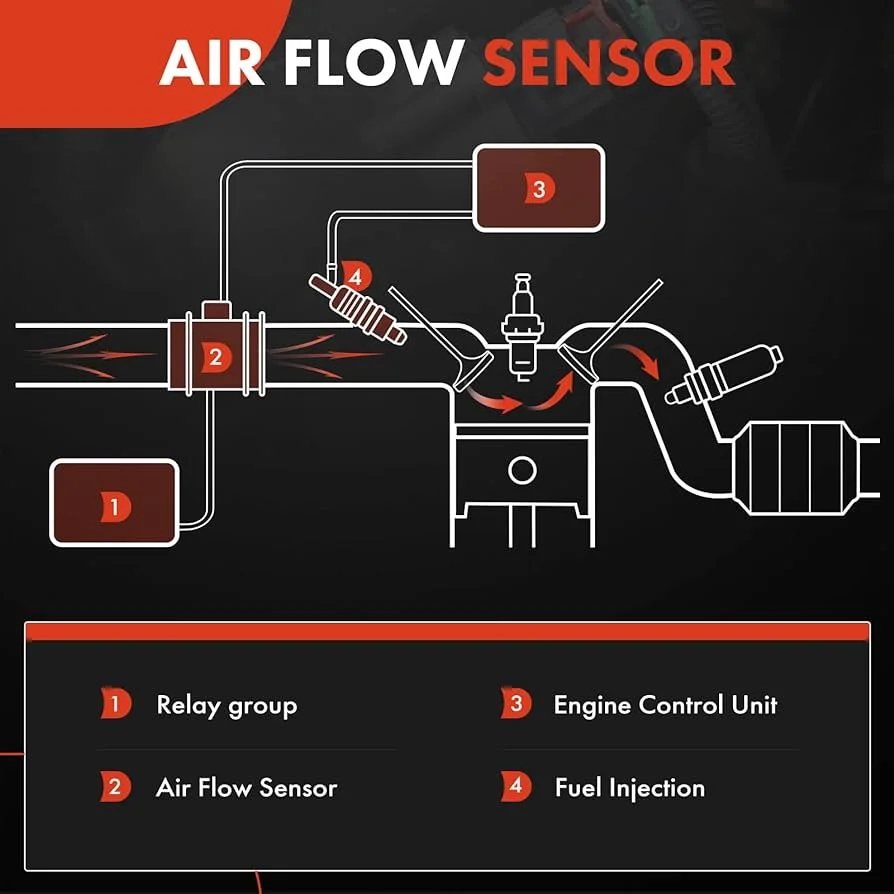

Fuel injection is the process of spraying fuel into the engine’s cylinders, where it mixes with air and burns to create power. The ECU uses the data from the MAF sensor and other sensors to determine how much fuel to inject into each cylinder, depending on the engine’s speed, load, and condition. The ECU aims to achieve a perfect air-fuel ratio, which is the ideal proportion of air and fuel for optimal combustion. A perfect air-fuel ratio is about 14.7 parts of air to 1 part of fuel, or 14.7:1.

The ECU can adjust the fuel injection by changing the duration and frequency of the fuel injectors, which are the devices that spray fuel into the cylinders. The longer and more often the fuel injectors are open, the more fuel is injected. The shorter and less often the fuel injectors are open, the less fuel is injected.

The ECU can also adjust the fuel injection by changing the fuel pressure, which is the force that pushes the fuel through the injectors. The higher the fuel pressure, the more fuel is injected. The lower the fuel pressure, the less fuel is injected.

The ECU is like the maestro of the fuel injection, using the data from the MAF sensor and other sensors to fine-tune the amount of fuel injected into each cylinder, creating a perfect air-fuel ratio for optimal combustion.

Ignition Timing Conductor

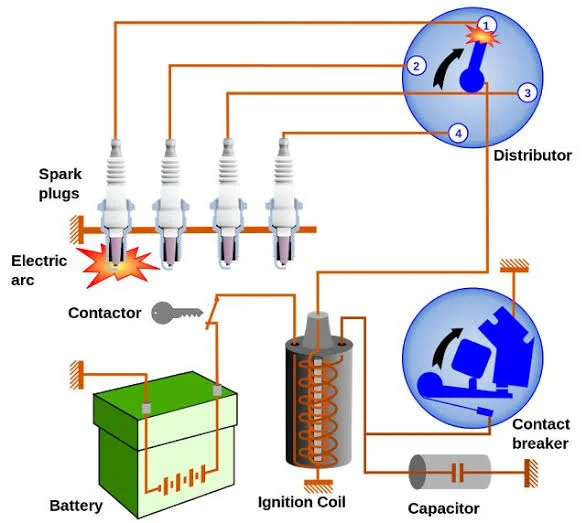

Ignition timing is the process of sparking the fuel-air mixture in the engine’s cylinders, causing it to explode and push the pistons. The ECU uses the data from the MAF sensor and other sensors to determine when to spark the fuel-air mixture in each cylinder, depending on the engine’s speed, load, and condition. The ECU aims to achieve the best ignition timing, which is the ideal moment to spark the fuel-air mixture for optimal combustion. The best ignition timing is slightly before the piston reaches the top of its stroke, or the highest point in the cylinder.

The ECU can adjust the ignition timing by changing the angle and duration of the spark plugs, which are the devices that create the spark in the cylinders. The more advanced the spark plug angle, the earlier the spark occurs. The more retarded the spark plug angle, the later the spark occurs. The longer the spark plug duration, the longer the spark lasts. The shorter the spark plug duration, the shorter the spark lasts.

The ECU is like the conductor of the ignition timing, using the data from the MAF sensor and other sensors to fine-tune the moment and duration of the spark in each cylinder, creating the best ignition timing for optimal combustion.

Consequences of a Failed Sensor

The MAF sensor and other sensors work together like a symphony orchestra, creating a smooth and efficient engine performance. But what happens if one of the sensors is faulty or out of tune? Well, the engine’s performance can suffer, and the ECU can get confused and make wrong decisions.

Some of the consequences of a faulty MAF sensor or other sensors are:

1. Poor engine performance: The engine can lose power, hesitate, stall, or misfire, making it hard to accelerate or maintain speed.
2. Increased emissions: The engine can produce more harmful gases, such as carbon monoxide, hydrocarbons, and nitrogen oxides, polluting the air and harming the environment.
3. Reduced fuel economy: The engine can consume more fuel than necessary, wasting money and resources.
4. Engine damage: The engine can overheat, knock, or detonate, causing serious and costly damage to the pistons, valves, or cylinders.
5. To avoid these consequences, it is important to keep the MAF sensor and other sensors in good condition and tune them regularly.

Care and Maintenance

The MAF sensor and other sensors are essential for your car’s engine performance, but they also need your care and attention. Here are some tips on how to maintain and diagnose the MAF sensor and other sensors.

Maintenance and Diagnostics

• Clean the MAF sensor: The MAF sensor can get dirty over time, affecting its accuracy and performance. You can clean the MAF sensor by removing it from the air intake duct and spraying it with a special cleaner designed for MAF sensors. Do not touch the wire or film with your fingers, as this can damage the sensor. Follow the instructions on the cleaner’s label and let the sensor dry before reinstalling it.
• Replace the MAF sensor: The MAF sensor can wear out over time, causing inaccurate readings and performance issues. You can replace the MAF sensor by removing it from the air intake duct and installing a new one. Make sure the new sensor is compatible with your car’s make and model, and follow the manufacturer’s instructions for installation.
• Check the wiring and connectors: The MAF sensor and other sensors are connected to the ECU by wires and connectors, which can get loose, corroded, or damaged. You can check the wiring and connectors by inspecting them for any signs of wear, tear, or corrosion. If you find any problems, you can clean, repair, or replace the wiring and connectors as needed.
• Scan the codes: The ECU can detect problems with the MAF sensor and other sensors and store them as codes in its memory. You can scan the codes by using a device called an OBD-II scanner, which plugs into a port under your dashboard. The scanner can read the codes and display them on a screen, along with a brief description of the problem. You can use the codes to identify and troubleshoot the problem, or take your car to a mechanic for further diagnosis and repair.

Future of the Mass Airflow Sensor

The MAF sensor and other sensors are constantly evolving and improving, as technology advances and new innovations emerge.

Some of the potential future developments of air intake measurement technologies are:

1. Optical MAF sensors: These sensors use light instead of heat to measure the air intake. They are more accurate, reliable, and durable than the hot wire or hot film sensors, as they are not affected by dirt, moisture, or temperature. They are also more compact and lightweight, reducing the size and weight of the air intake system.
2. Virtual MAF sensors: These sensors use software instead of hardware to measure the air intake. They use mathematical models and algorithms to calculate the air intake based on the data from other sensors, such as the TPS, MAP, IAT, and CTS. They are more cost-effective, flexible, and adaptable than the physical sensors, as they can be updated and calibrated remotely and easily.
3. No MAF sensors: Some cars do not use MAF sensors at all, relying on other sensors and methods to measure the air intake. For example, some cars use a method called speed-density, which uses the MAP sensor and the engine speed to estimate the air intake. Some cars use a method called alpha-N, which uses the TPS sensor and the engine speed to estimate the air intake. These methods are simpler and cheaper than using MAF sensors, but they are less accurate and precise, especially in extreme conditions.

Conclusion

The MAF sensor is a vital component of your car’s engine, as it measures how much air is entering the engine and helps the ECU adjust the fuel injection and ignition timing accordingly. The MAF sensor works with other sensors, such as the TPS, MAP, IAT, and CTS, to create a symphony of performance, ensuring a smooth and efficient engine operation. However, the MAF sensor and other sensors can also malfunction or fail, causing poor engine performance, increased emissions, reduced fuel economy, and engine damage. Therefore, it is important to maintain and diagnose the MAF sensor and other sensors regularly, and replace them if necessary. The MAF sensor and other sensors are also evolving and improving, as new technologies and innovations emerge, promising a better and smarter air intake measurement for your car.
