System Too Rich: Decoding the Symptoms and Solutions for a Fuel-Guzzling Engine

If you own a car, you probably know that it needs fuel and air to run. But do you know how much fuel and air your engine needs? And what happens if the ratio is not correct? In this article, we will explain what a rich air-fuel mixture is, how it affects your engine, and how to fix it.

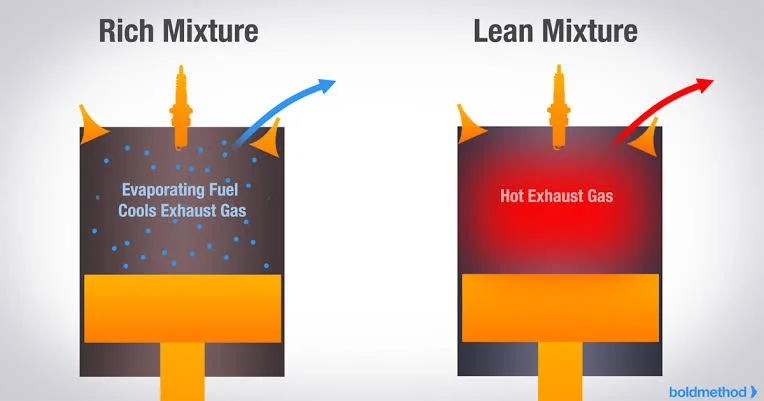

What is a Rich Air-Fuel Mixture?

A rich air-fuel mixture is when there is more fuel than air in the combustion chamber of your engine. The ideal ratio of fuel to air is called the stoichiometric ratio, which is about 14.7 parts of air to one part of fuel for gasoline engines. This ratio ensures that all the fuel is burned completely and efficiently, producing the maximum amount of power and the minimum amount of emissions.

However, sometimes the ratio can be disturbed by various factors, such as faulty sensors, leaking injectors, or engine modifications. When this happens, the engine may receive more fuel than it needs, resulting in a rich condition.

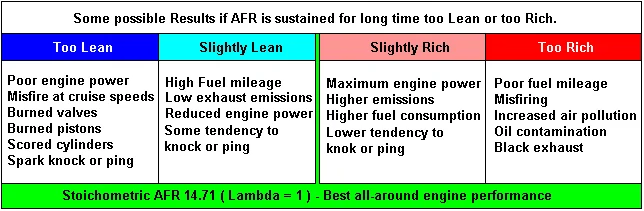

Why is the Correct Air-Fuel Ratio Important?

The correct air-fuel ratio is important for several reasons. First, it affects the combustion process, which is the core of engine performance. When the fuel and air are mixed in the right proportion, they create a controlled explosion that pushes the piston and turns the crankshaft. This generates the power that drives your car.

However, when the mixture is too rich, the combustion is incomplete and inefficient. This means that some of the fuel is wasted and does not contribute to the power output. Instead, it creates excess heat and pressure, which can damage the engine components over time. It also produces more harmful emissions, such as carbon monoxide, hydrocarbons, and nitrogen oxides, which pollute the environment and can cause health problems.

How to Tell if Your Car has a Rich Air-Fuel Mixture?

There are some signs that can indicate if your car has a rich air-fuel mixture. Some of the common symptoms are:

1. Reduced fuel economy: If your car is burning more fuel than it needs, you will notice that your gas mileage will decrease. You may also have to refill your tank more often than usual.
2. Poor engine performance: A rich mixture can cause your engine to run rough, hesitate, misfire, or stall. You may also experience a loss of power, acceleration, and responsiveness.
3. Black smoke from the exhaust: A rich mixture can produce black smoke from the tailpipe, which is a sign of unburned fuel. You may also smell a strong odor of gasoline from the exhaust.

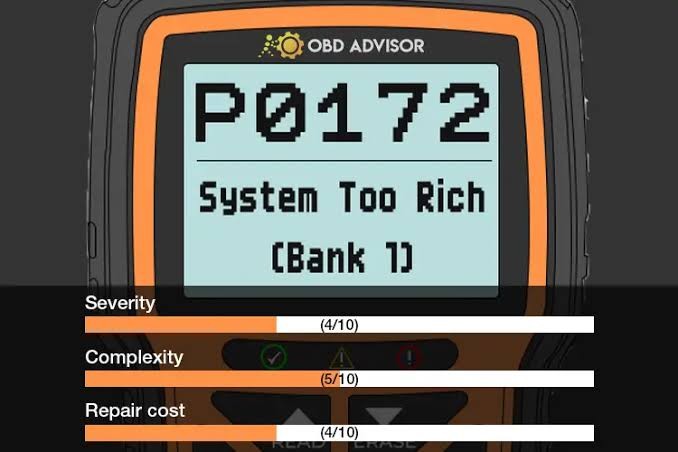

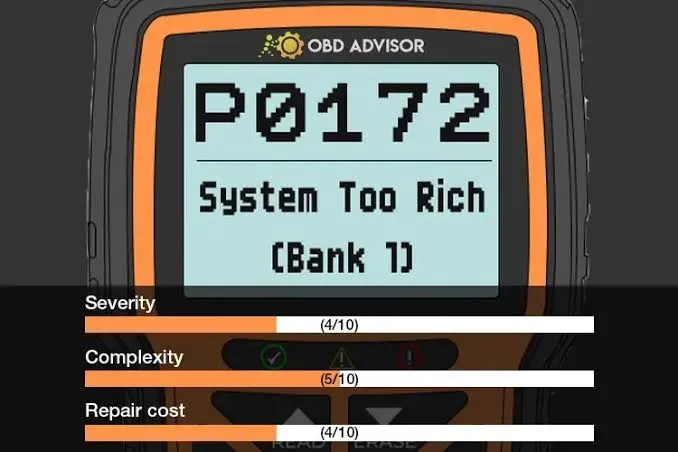

4. Check engine light: A rich mixture can trigger the check engine light on your dashboard, which is a warning that something is wrong with your engine. The light may also flash or blink, indicating a severe problem that requires immediate attention.

How to Diagnose a Rich Air-Fuel Mixture?

If you suspect that your car has a rich air-fuel mixture, you should diagnose the problem as soon as possible. There are some tools and techniques that can help you identify the cause and the severity of the issue. Some of the common diagnostic methods are:

1. Using an OBD-II scanner: An OBD-II scanner is a device that can read the data from your car’s onboard computer. It can display the diagnostic trouble codes (DTCs) that indicate the source of the problem. For example, a code like P0172 means that the system is too rich in bank 1, which is the side of the engine that contains cylinder 1. You can use an OBD-II scanner to check the codes and clear them after fixing the problem.

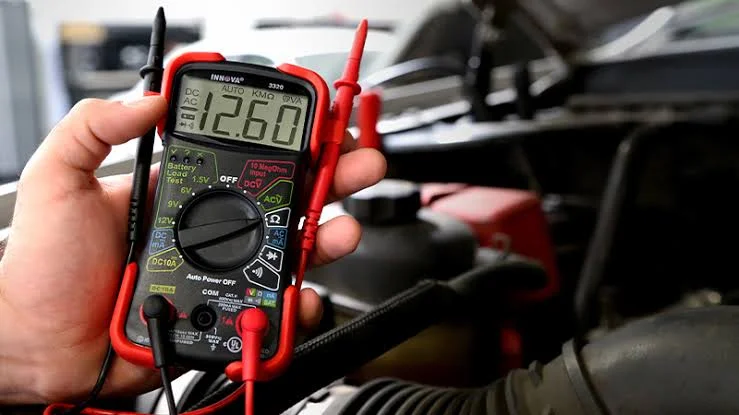

2. Using a multimeter: A multimeter is a device that can measure the voltage, resistance, and current of electrical circuits. You can use a multimeter to test the components of your fuel system, such as the fuel injectors, the fuel pressure regulator, and the oxygen sensors.  These components are responsible for delivering the right amount of fuel and air to the engine. If they are faulty, they can cause a rich condition.

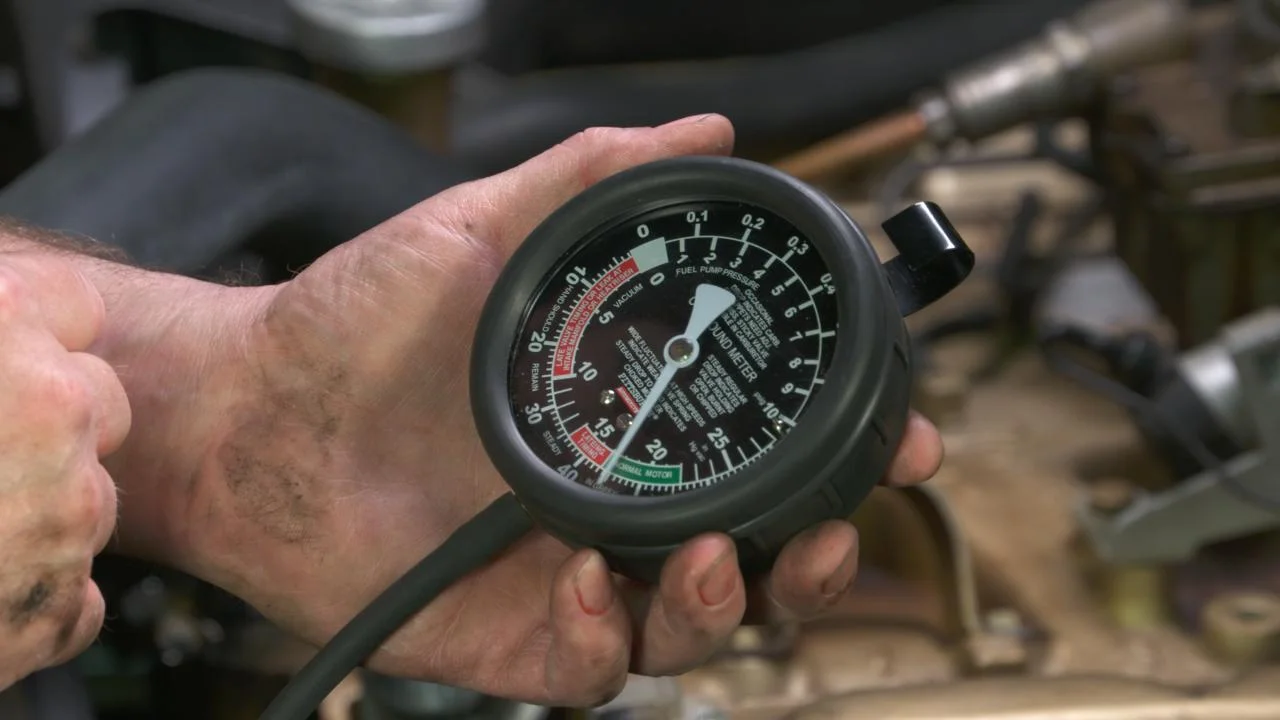

3. Using a vacuum gauge: A vacuum gauge is a device that can measure the pressure difference between the intake manifold and the atmosphere. You can use a vacuum gauge to check the engine’s vacuum, which is a sign of its health and efficiency. A low or erratic vacuum can indicate a rich condition, as well as other problems like leaks, valve issues, or timing problems.

While these tools and techniques can help you diagnose a rich air-fuel mixture, they may not be enough to pinpoint the exact cause and solution. Therefore, it is advisable to consult a professional mechanic who can perform a thorough inspection and repair of your engine.

Common Problems Associated with a Rich Air-Fuel Mixture?

A rich air-fuel mixture can cause several problems for your engine and your car. Some of the common problems are:

Carbon buildup:

Carbon buildup is the accumulation of carbon deposits on the engine parts, such as the pistons, the valves, and the spark plugs. Carbon buildup can reduce the engine’s compression, efficiency, and performance. It can also cause hard starting, rough idling, and knocking noises.

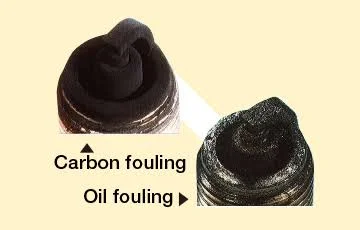

Spark plug fouling:

Spark plug fouling is the contamination of the spark plugs by fuel, oil, or carbon. Spark plug fouling can prevent the spark plugs from igniting the fuel-air mixture, resulting in misfires, poor combustion, and loss of power. It can also damage the catalytic converter, which is a device that reduces the emissions from the exhaust.

Increased engine wear:

A rich air-fuel mixture can increase the engine’s wear and tear, as it creates more heat and pressure than normal. This can cause the engine parts to expand, contract, and rub against each other, resulting in friction, corrosion, and erosion. This can shorten the engine’s lifespan and increase the maintenance costs.

How does a Rich Air-Fuel Mixture Affect the Emissions and the Environment?

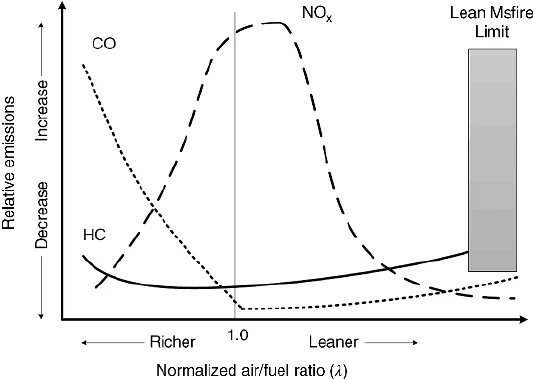

A rich air-fuel mixture can also affect the emissions and the environment, as it produces more pollutants than a normal mixture. Some of the harmful emissions are:

• Carbon monoxide: Carbon monoxide is a colorless, odorless, and poisonous gas that can cause headaches, dizziness, nausea, and even death. Carbon monoxide is produced when the fuel is not burned completely, which is more likely in a rich condition.
• Hydrocarbons: Hydrocarbons are organic compounds that consist of hydrogen and carbon. Hydrocarbons are the main components of gasoline, and they are also produced when the fuel is not burned completely. Hydrocarbons can cause smog, which is a brownish haze that reduces visibility and irritates the eyes and lungs. Hydrocarbons can also contribute to global warming, as they are greenhouse gases that trap heat in the atmosphere.
• Nitrogen oxides: Nitrogen oxides are compounds that consist of nitrogen and oxygen. Nitrogen oxides are formed when the nitrogen and oxygen in the air react under high temperatures and pressures, which are more common in a rich condition. Nitrogen oxides can cause acid rain, which is a precipitation that contains acidic substances that can damage plants, animals, and buildings. Nitrogen oxides can also cause respiratory problems, such as asthma, bronchitis, and emphysema.

To reduce the emissions and the environmental impact of a rich air-fuel mixture, there are some regulatory standards and legal implications for vehicle owners. For example, in the United States, the Environmental Protection Agency (EPA) sets the emission standards for cars and trucks, and requires them to pass an emission test every year. If your car fails the test, you may have to pay a fine or fix the problem before you can drive it legally.

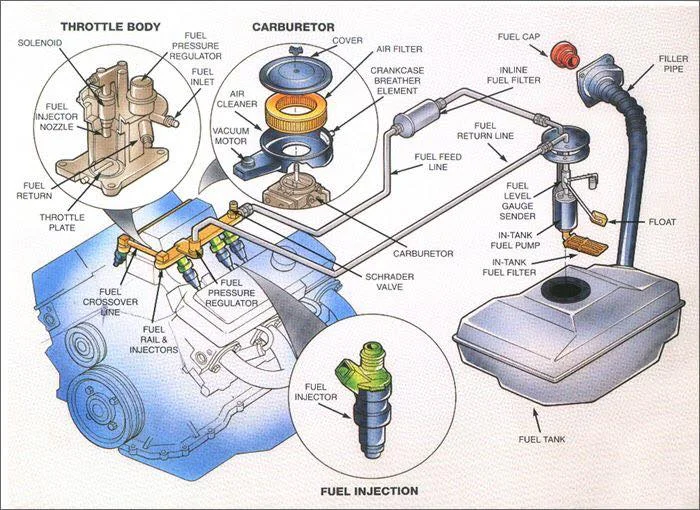

Fuel System Components and How to Maintain Them?

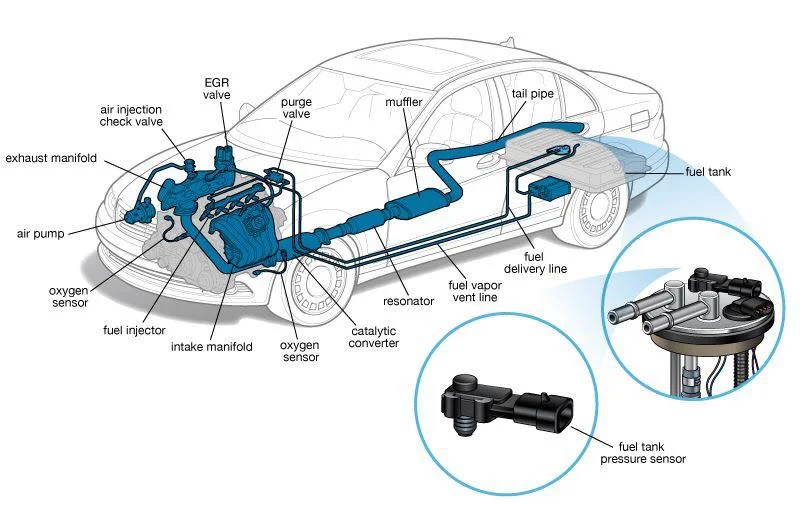

The fuel system is the system that delivers the fuel and air to the engine. The fuel system consists of several components, such as:

1. Fuel tank: The fuel tank is the container that stores the fuel for the engine. It is usually located under the rear seat or the trunk of the car. The fuel tank has a cap that prevents the fuel from evaporating or spilling, and a pump that sends the fuel to the engine.
2. Fuel filter: The fuel filter is a device that filters the fuel before it reaches the engine. It removes any dirt, debris, or water that may contaminate the fuel and cause a rich condition. The fuel filter is usually located along the fuel line, between the fuel tank and the engine.
3. Fuel injectors: The fuel injectors are devices that spray the fuel into the intake manifold or the cylinders of the engine. They are controlled by the engine’s computer, which determines the amount and timing of the fuel injection. The fuel injectors are usually located on the intake manifold or the cylinder head of the engine.
4. Fuel pressure regulator: The fuel pressure regulator is a device that maintains the pressure of the fuel in the fuel system. It ensures that the fuel injectors receive the right amount of fuel at the right pressure. The fuel pressure regulator is usually located on the fuel rail, which is a pipe that connects the fuel injectors.
5. Oxygen sensors: The oxygen sensors are devices that measure the amount of oxygen in the exhaust. They send signals to the engine’s computer, which adjusts the fuel injection accordingly. The oxygen sensors are usually located on the exhaust manifold or the catalytic converter.

To prevent a rich air-fuel mixture, it is important to maintain the fuel system components regularly. Some of the maintenance tips are:

• Check the fuel tank for leaks, cracks, or rust. Replace the fuel cap if it is loose or damaged.
• Replace the fuel filter every 15,000 to 30,000 miles, or as recommended by the manufacturer. A clogged or dirty fuel filter can reduce the fuel flow and cause a rich condition.
• Clean the fuel injectors every 25,000 to 30,000 miles, or as recommended by the manufacturer. Dirty or leaking fuel injectors can spray too much fuel or drip fuel into the engine, causing a rich condition.
• Check the fuel pressure regulator for leaks or damage. A faulty fuel pressure regulator can increase the fuel pressure and cause a rich condition.
• Replace the oxygen sensors every 60,000 to 90,000 miles, or as recommended by the manufacturer. Worn or damaged oxygen sensors can send inaccurate signals to the engine’s computer, causing a rich condition.

How to Tune and Modify Your Engine for Better Performance?

Some car enthusiasts may want to tune and modify their engines for better performance. However, tuning and modifying your engine can also affect your air-fuel ratio, and sometimes cause a rich condition. Therefore, you should be careful and knowledgeable when you make any changes to your engine. Some of the common tuning and modification methods are:

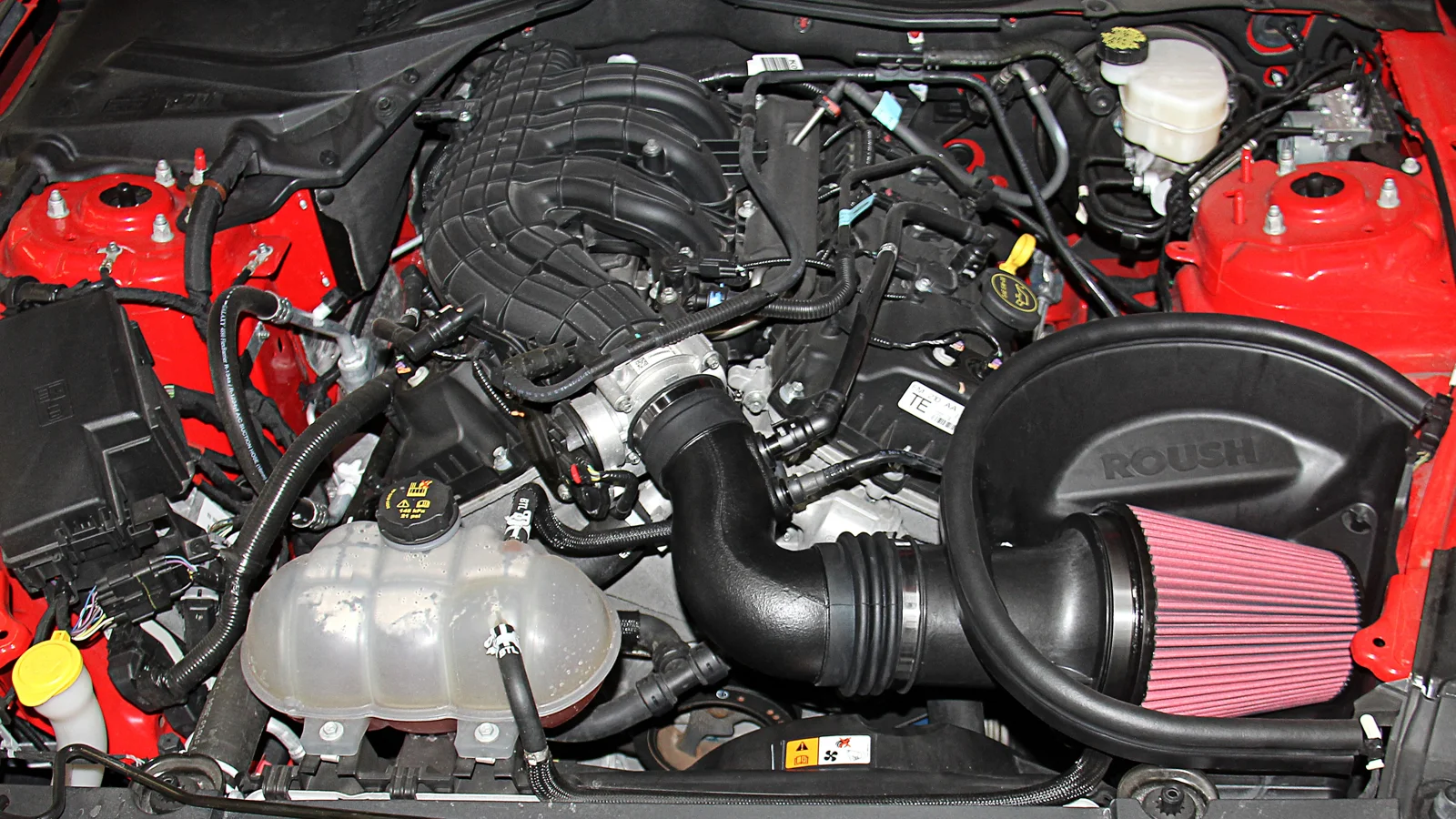

Installing a cold air intake:

A cold air intake is a device that draws cooler and denser air into the engine. This can increase the engine’s power and efficiency, as more air means more oxygen for combustion. However, a cold air intake can also affect the air-fuel ratio, as the engine’s computer may not be able to adjust the fuel injection accordingly. Therefore, you may need to recalibrate the engine’s computer or install a performance chip to compensate for the increased air flow.

Installing a performance exhaust:

A performance exhaust is a device that reduces the back pressure and improves the flow of the exhaust gases. This can increase the engine’s power and efficiency, as less back pressure means less resistance for the engine. However, a performance exhaust can also affect the air-fuel ratio, as the oxygen sensors may read the lower back pressure as a lean condition and increase the fuel injection. Therefore, you may need to recalibrate the engine’s computer or install a performance chip to compensate for the reduced back pressure.

Installing a turbocharger or a supercharger:

A turbocharger or a supercharger is a device that forces more air into the engine. This can increase the engine’s power and efficiency, as more air means more oxygen for combustion. However, a turbocharger or a supercharger can also affect the air-fuel ratio, as the engine’s computer may not be able to adjust the fuel injection accordingly. Therefore, you may need to install a larger fuel pump, larger fuel injectors, and a higher fuel pressure regulator to provide enough fuel for the increased air flow.

When you tune or modify your engine, you should always balance the performance upgrades with maintaining a proper air-fuel ratio. You should also consult a professional tuner or mechanic who can help you achieve the best results for your engine.

How to Correct a Rich Air-Fuel Mixture?

If your car has a rich air-fuel mixture, you should correct it as soon as possible. There are some steps that you can take to rectify a rich condition, from simple adjustments to component replacements. Some of the common solutions are:

• Checking and replacing the air filter: The air filter is a device that filters the air before it enters the engine. It prevents any dust, dirt, or debris from entering the engine and affecting the combustion. However, over time, the air filter can get clogged or dirty, reducing the air flow and causing a rich condition. Therefore, you should check and replace the air filter every 12,000 to 15,000 miles, or as recommended by the manufacturer. A clean and fresh air filter can improve the air-fuel ratio and the engine performance.

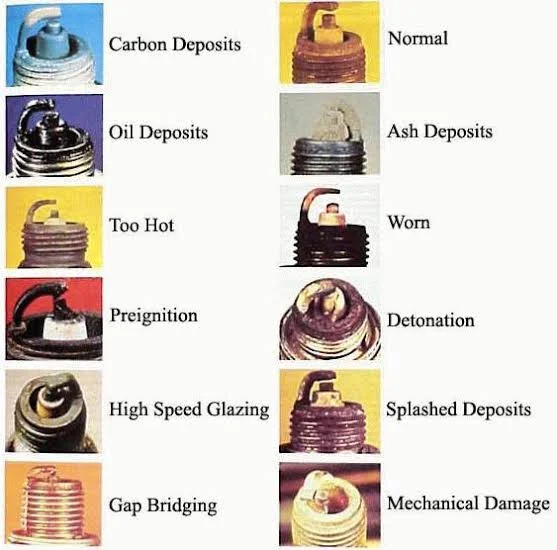

• Checking and replacing the spark plugs: The spark plugs are devices that ignite the fuel-air mixture in the cylinders. They create a spark that starts the combustion process. However, over time, the spark plugs can get fouled or worn, reducing the spark quality and causing a rich condition.  Therefore, you should check and replace the spark plugs every 30,000 to 60,000 miles, or as recommended by the manufacturer. New and clean spark plugs can improve the combustion and the engine performance.

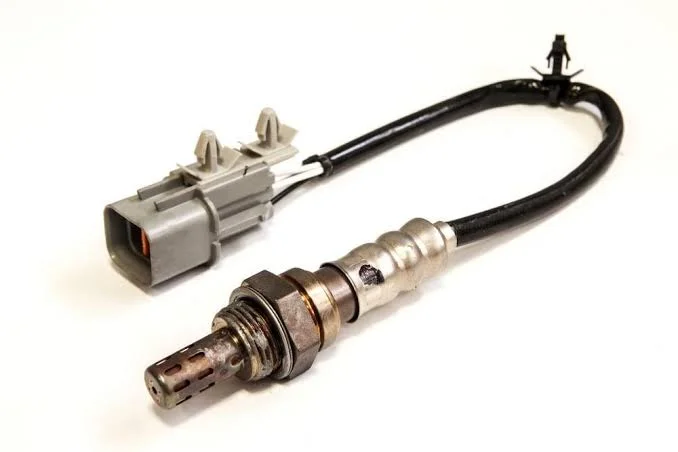

• Checking and replacing the oxygen sensors: The oxygen sensors are devices that measure the amount of oxygen in the exhaust. They send signals to the engine’s computer, which adjusts the fuel injection accordingly. However, over time, the oxygen sensors can get contaminated or damaged, sending inaccurate signals and causing a rich condition.  Therefore, you should check and replace the oxygen sensors every 60,000 to 90,000 miles, or as recommended by the manufacturer. New and functional oxygen sensors can improve the air-fuel ratio and the engine performance.

While these solutions can help you correct a rich air-fuel mixture, they may not be enough to solve the problem completely. Therefore, you should also seek professional help from a mechanic who can diagnose and repair your engine properly.

Future Trends and Innovations in Fuel Management Systems?

The fuel management systems are the systems that control the fuel and air delivery to the engine. They are constantly evolving and improving to optimize the air-fuel ratio for better efficiency, performance, and emissions. Some of the future trends and innovations in fuel management systems are:

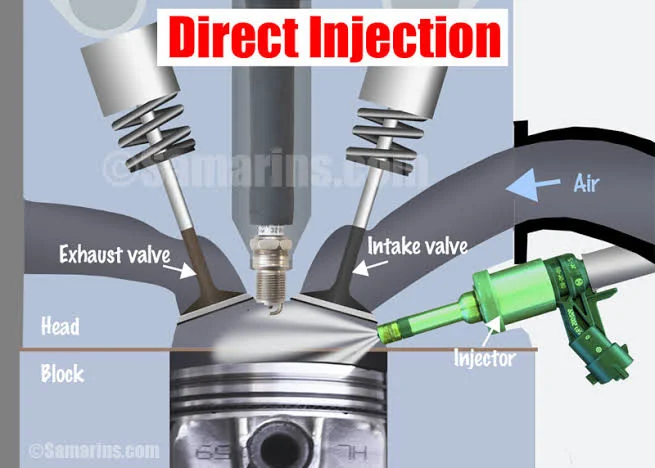

1. Direct injection: Direct injection is a technology that injects the fuel directly into the cylinders, instead of the intake manifold. This allows for more precise and accurate fuel delivery, as well as higher compression ratios and lower emissions. Direct injection is already used in some modern engines, and it is expected to become more widespread and advanced in the future.
2. Variable valve timing: Variable valve timing is a technology that adjusts the timing and duration of the opening and closing of the valves, which control the intake and exhaust of the air and fuel. This allows for more flexibility and adaptability of the engine, as well as better performance and efficiency. Variable valve timing is already used in some modern engines, and it is expected to become more sophisticated and refined in the future.
3. Hybrid and electric vehicles: Hybrid and electric vehicles are vehicles that use alternative sources of energy, such as batteries, electric motors, or hydrogen fuel cells, to power the engine or supplement the fuel. This allows for more fuel efficiency and lower emissions, as well as better performance and reliability. Hybrid and electric vehicles are already popular and available in the market, and they are expected to become more dominant and diverse in the future.

These are some of the future trends and innovations in fuel management systems that aim to optimize the air-fuel ratio for better efficiency, performance, and emissions. They also represent the future landscape of engine performance and emissions control, which is constantly changing and improving.

Conclusion

A rich air-fuel mixture is when there is more fuel than air in the combustion chamber of your engine. It can affect your engine’s performance, efficiency, and emissions, as well as cause various problems and damage. Therefore, you should understand what causes a rich condition, how to identify it, how to diagnose it, and how to fix it. You should also maintain your fuel system components regularly, and consult a professional mechanic if you need any help. By doing so, you can ensure that your engine runs smoothly and efficiently, and that your car is safe and eco-friendly.
