System Too Lean: Causes, Symptoms, and Troubleshooting of a Lean Fuel Mixture

If you own a car, you probably know how important it is to maintain a balanced air-fuel mixture for optimal engine performance and efficiency. The air-fuel mixture is the ratio of air and fuel that enters the combustion chamber of your engine. Ideally, this ratio should be around 14.7 parts of air to one part of fuel, which is known as the stoichiometric ratio. However, sometimes this ratio can deviate from the ideal value, resulting in either a rich or a lean fuel mixture.

A rich fuel mixture means that there is more fuel than air in the mixture, which can cause incomplete combustion, increased emissions, and reduced fuel economy. A lean fuel mixture means that there is less fuel than air in the mixture, which can cause poor engine performance, damage, and even failure. In this article, we will focus on the concept of a lean fuel mixture, its causes, symptoms, diagnosis, resolution, and prevention.

A lean fuel mixture is a common problem in modern vehicles, especially those that have to comply with stricter emissions standards. A lean fuel mixture can reduce the amount of harmful gases that are released into the atmosphere, such as carbon monoxide, hydrocarbons, and nitrogen oxides. However, a lean fuel mixture can also have negative consequences for your engine, such as increased wear and tear, overheating, knocking, and misfiring. Therefore, it is essential to understand what causes a lean fuel mixture, how to identify it, and how to fix it.

Causes of a Lean Fuel Mixture

There are many factors that can contribute to a lean fuel mixture, and they can be classified into two categories: fuel-related and air-related. Fuel-related factors are those that affect the amount or quality of fuel that reaches the engine, such as:

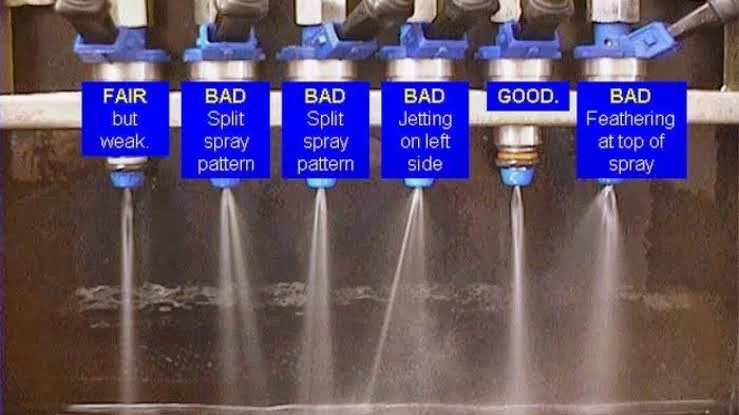

Clogged fuel injectors:

Fuel injectors are devices that spray fuel into the intake manifold or directly into the cylinders. If they are clogged by dirt, debris, or carbon deposits, they can reduce the amount of fuel that is delivered to the engine, resulting in a lean fuel mixture.

Weak fuel pump:

A fuel pump is a device that pumps fuel from the fuel tank to the fuel injectors. If it is weak or faulty, it can fail to provide enough fuel pressure or volume to the injectors, resulting in a lean fuel mixture.

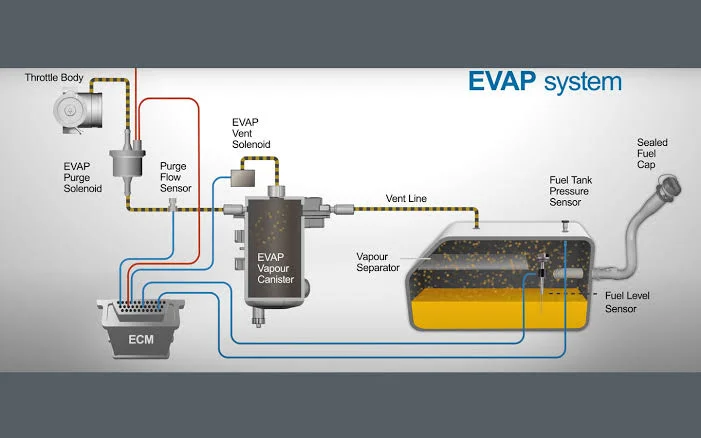

Evaporative emissions (EVAP) system malfunction:

The EVAP system is a system that prevents fuel vapors from escaping into the atmosphere. It consists of a charcoal canister, a purge valve, a vent valve, and a pressure sensor. If any of these components are damaged or leaking, they can allow excess air to enter the fuel system, resulting in a lean fuel mixture.

Air-related factors are those that affect the amount or quality of air that enters the engine, such as:

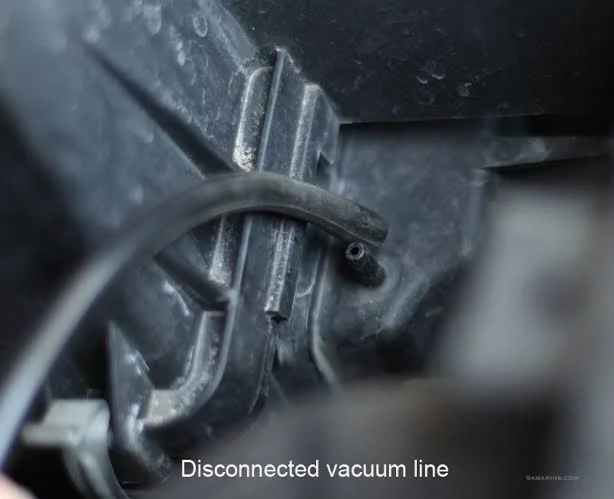

Vacuum leaks:

A vacuum leak is a leak in the intake manifold or any of the hoses or gaskets that connect it to the engine. A vacuum leak can allow unmetered air to enter the engine, resulting in a lean fuel mixture.

Faulty oxygen sensor:

An oxygen sensor is a device that measures the amount of oxygen in the exhaust gas. It sends a signal to the engine computer, which adjusts the air-fuel mixture accordingly. If the oxygen sensor is faulty or contaminated, it can send a false signal to the engine computer, causing it to inject less fuel than needed, resulting in a lean fuel mixture.

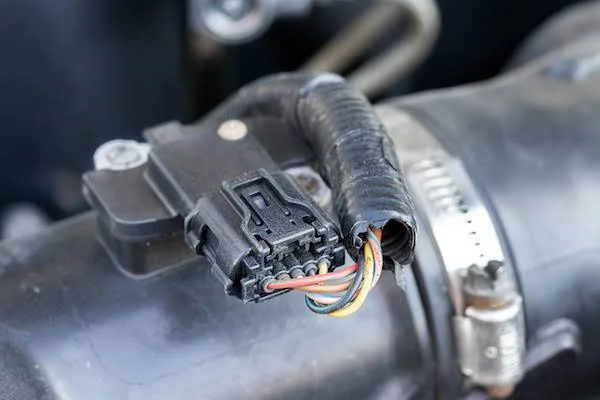

Mass airflow sensor (MAF) malfunction:

A mass airflow sensor is a device that measures the amount of air that enters the engine. It sends a signal to the engine computer, which adjusts the air-fuel mixture accordingly. If the mass airflow sensor is dirty, damaged, or disconnected, it can send a false signal to the engine computer, causing it to inject less fuel than needed, resulting in a lean fuel mixture.

Engine intake restriction:

An engine intake restriction is anything that obstructs the flow of air into the engine, such as a dirty air filter, a collapsed air duct, or a blocked throttle body. An engine intake restriction can reduce the amount of air that enters the engine, resulting in a lean fuel mixture.

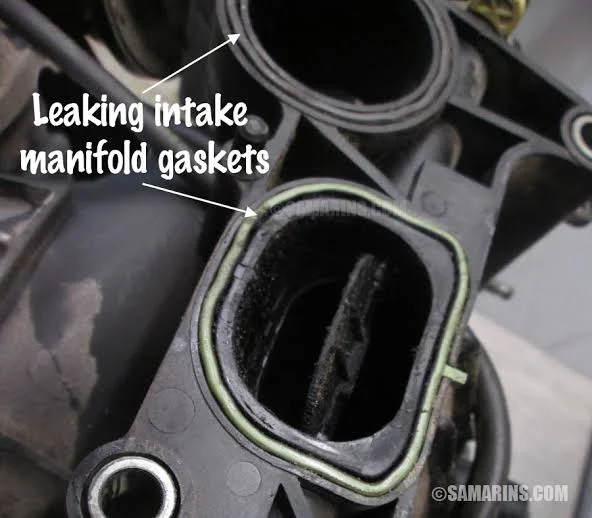

Intake manifold gasket leak:

An intake manifold gasket is a seal that prevents air and fuel from leaking out of the intake manifold. If it is cracked or worn, it can allow air to leak into the intake manifold, resulting in a lean fuel mixture.

Exhaust leaks:

An exhaust leak is a leak in the exhaust manifold or any of the pipes or gaskets that connect it to the engine. An exhaust leak can allow oxygen to enter the exhaust system, which can trick the oxygen sensor into thinking that the air-fuel mixture is too rich, causing the engine computer to inject less fuel than needed, resulting in a lean fuel mixture.

Aftermarket performance modifications:

Aftermarket performance modifications are changes that are made to the engine or the fuel system to enhance the power or efficiency of the vehicle, such as installing a turbocharger, a supercharger, a cold air intake, or a high-flow exhaust. However, these modifications can also alter the air-fuel mixture, and if they are not properly calibrated or tuned, they can cause a lean fuel mixture.

Symptoms of a Lean Fuel Mixture

A lean fuel mixture can cause a variety of symptoms that can affect the performance, efficiency, and health of your engine. Some of the common signs of a lean fuel mixture are:

1. Decreased fuel economy: A lean fuel mixture can reduce the amount of energy that is extracted from the fuel, resulting in lower fuel efficiency and higher fuel consumption.
2. Engine knocking: Engine knocking is a sound that is produced when the fuel-air mixture detonates prematurely or irregularly in the combustion chamber. A lean fuel mixture can increase the temperature and pressure in the combustion chamber, which can cause the fuel to ignite before the spark plug fires, resulting in engine knocking.

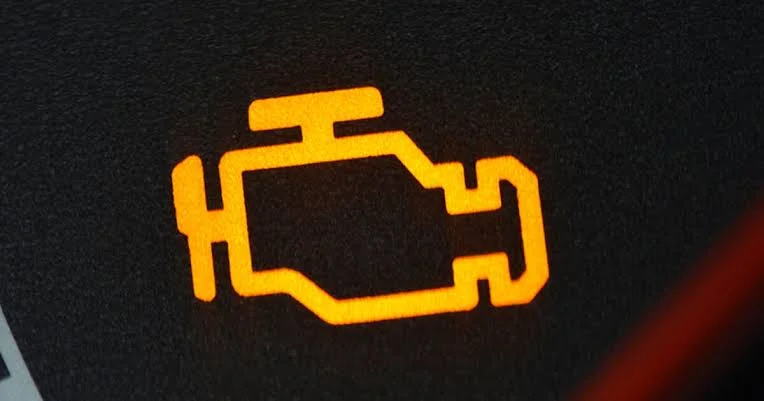

3. Illuminated engine warning light: An illuminated engine warning light is a sign that there is a problem with the engine or the emission system. A lean fuel mixture can trigger the engine warning light, especially if it causes the oxygen sensor to detect a high level of oxygen in the exhaust gas.  The engine warning light may also display a specific trouble code, such as P0171 or P0174, which indicate a system too lean condition in bank 1 or bank 2 of the engine, respectively.
4. Rough idling: Rough idling is a condition where the engine runs unevenly or erratically at low speeds or when the vehicle is stationary. A lean fuel mixture can cause the engine to run leaner than normal, which can affect the idle speed and quality, resulting in rough idling.
5. Reduced engine power: Reduced engine power is a condition where the engine fails to deliver the expected amount of power or acceleration. A lean fuel mixture can reduce the amount of fuel that is available for combustion, resulting in lower engine output and performance, resulting in reduced engine power.
6. Backfiring: Backfiring is a sound that is produced when the fuel-air mixture ignites in the exhaust system instead of the combustion chamber. A lean fuel mixture can cause the fuel to burn incompletely, leaving some unburned fuel in the exhaust system, which can ignite when it encounters a hot surface or a spark, resulting in backfiring.
7. Overheating: Overheating is a condition where the engine temperature exceeds the normal operating range. A lean fuel mixture can increase the temperature in the combustion chamber, which can transfer heat to the engine components, resulting in overheating.
8. Misfires: Misfires are events where the fuel-air mixture fails to ignite in one or more cylinders of the engine. A lean fuel mixture can cause the fuel to vaporize or evaporate before reaching the cylinders, resulting in insufficient fuel for combustion, resulting in misfires.

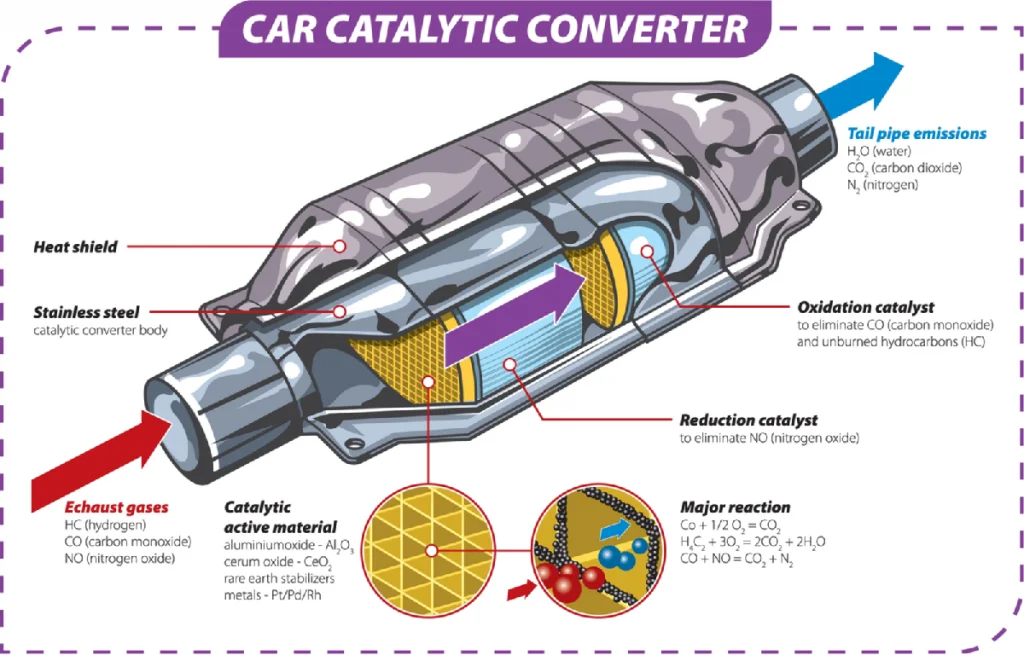

9. Damage to catalytic converter: A catalytic converter is a device that converts harmful gases in the exhaust gas into less harmful substances. A lean fuel mixture can increase the amount of oxygen in the exhaust gas, which can cause the catalytic converter to overheat and melt, resulting in damage to the catalytic converter.
10. Exhaust pipe discoloration: Exhaust pipe discoloration is a change in the color of the exhaust pipe, usually from silver to blue or black. A lean fuel mixture can increase the temperature in the exhaust system, which can cause the metal to oxidize or burn, resulting in exhaust pipe discoloration.

The underlying reasons behind these symptoms are related to the effects of a lean fuel mixture on the combustion process, the emission system, and the engine components. A lean fuel mixture can affect the combustion process by reducing the amount of fuel that is available for burning, resulting in incomplete or irregular combustion, which can cause knocking, backfiring, misfires, and reduced engine power. A lean fuel mixture can affect the emission system by increasing the amount of oxygen in the exhaust gas, which can cause the oxygen sensor to send a false signal to the engine computer, resulting in an illuminated engine warning light, a damaged catalytic converter, and an increased level of harmful gases in the atmosphere. A lean fuel mixture can affect the engine components by increasing the temperature and pressure in the combustion chamber and the exhaust system, which can cause overheating, damage, and discoloration of the engine parts.

Diagnosing and Resolving System Too Lean Issues

If you suspect that your engine is running too lean, you should not ignore the problem, as it can lead to serious engine damage and failure. You should take your vehicle to a professional mechanic as soon as possible, who can diagnose and resolve the system too lean issue in your car. A professional mechanic can use various tools and techniques to pinpoint the exact cause and location of the problem, such as:

• Scanning the engine computer for trouble codes and freeze frame data, which can indicate the severity and frequency of the system too lean condition, as well as the affected bank or cylinder of the engine.
• Performing a visual inspection of the fuel system and the intake system, looking for signs of leaks, damage, or blockage in the fuel injectors, fuel pump, fuel filter, fuel lines, vacuum hoses, intake manifold, throttle body, air filter, air duct, and gaskets.
• Testing the fuel pressure and volume, using a fuel pressure gauge and a fuel flow tester, to determine if the fuel pump and the fuel injectors are delivering enough fuel to the engine.
• Testing the oxygen sensor and the mass airflow sensor, using a scan tool, a multimeter, or an oscilloscope, to measure their voltage, resistance, and frequency, and to check if they are sending accurate signals to the engine computer.
• Performing a smoke test, using a smoke machine, to inject smoke into the intake system or the exhaust system, and to observe if any smoke escapes from any leaks or cracks.
• Performing a compression test, using a compression gauge, to measure the pressure in each cylinder of the engine, and to check if there is any loss of compression due to a damaged piston, valve, or head gasket.

Depending on the results of the diagnosis, the mechanic can recommend and perform the appropriate repair or replacement of the faulty or worn-out components, such as:

1. Cleaning or replacing the fuel injectors, using a fuel injector cleaner, a fuel injector tester, or a fuel injector puller.
2. Replacing the fuel pump, using a fuel pump removal tool, a fuel line disconnect tool, and a new fuel pump assembly.
3. Replacing the fuel filter, using a fuel filter wrench, a fuel line disconnect tool, and a new fuel filter.
4. Replacing the oxygen sensor, using an oxygen sensor socket, a ratchet, and a new oxygen sensor.
5. Replacing the mass airflow sensor, using a screwdriver, a ratchet, and a new mass airflow sensor.
6. Replacing the air filter, using a screwdriver, a ratchet, and a new air filter.
7. Replacing the intake manifold gasket, using a gasket scraper, a torque wrench, and a new intake manifold gasket.
8. Repairing or replacing the vacuum hoses, using a vacuum gauge, a hose cutter, and new vacuum hoses.
9. Repairing or replacing the exhaust pipes or gaskets, using a hacksaw, a pipe cutter, a pipe expander, and new exhaust pipes or gaskets.
10. Replacing the catalytic converter, using a catalytic converter removal tool, a ratchet, and a new catalytic converter.
