How to Fix an Alternator that is Draining a Car Battery

A car battery is a device that stores electrical energy and provides power to start the engine and run the electrical systems of the vehicle while an alternator is a device that generates electrical energy from the engine’s rotation and charges the battery while the vehicle is in use. However, sometimes the alternator can malfunction and cause the battery to drain faster than normal. This can lead to problems such as difficulty starting the vehicle, dimming lights, warning indicators, and reduced performance.

In this article, we will explain how an alternator can drain a car battery and how to fix it.

How an Alternator Can Drain a Car Battery

There are two main ways that an alternator can drain a car battery:

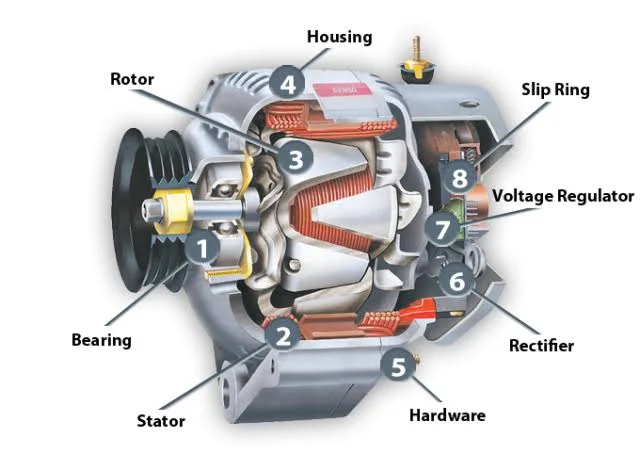

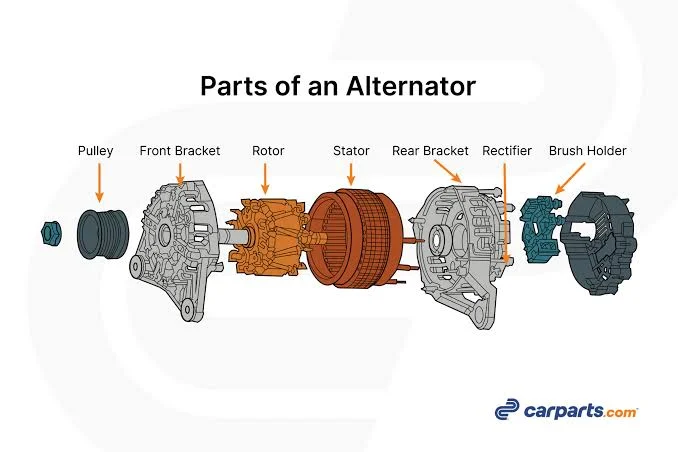

1. The alternator has a short circuit inside that allows power to flow from the battery to the alternator even when the engine is not running. This can happen if the electronic switch that controls the power to the alternator’s field winding fails or if the diodes that prevent reverse current flow are damaged. The field winding is an electromagnet that creates a magnetic field that rotates and induces power in the stator windings. The diodes are components that allow current to flow in one direction only. A short circuit in the alternator can cause a continuous drain on the battery and reduce its charge over time.
2. The alternator does not generate enough power to charge the battery while the vehicle is in use. This can happen if the alternator is worn out, damaged, or has a loose or broken belt or wire. The alternator needs to produce enough power to meet the electrical demands of the vehicle and to replenish the battery’s charge. If the alternator is not working properly, the battery will have to supply more power than it receives and will eventually run out of charge.

How to Fix an Alternator that is Draining a Car Battery

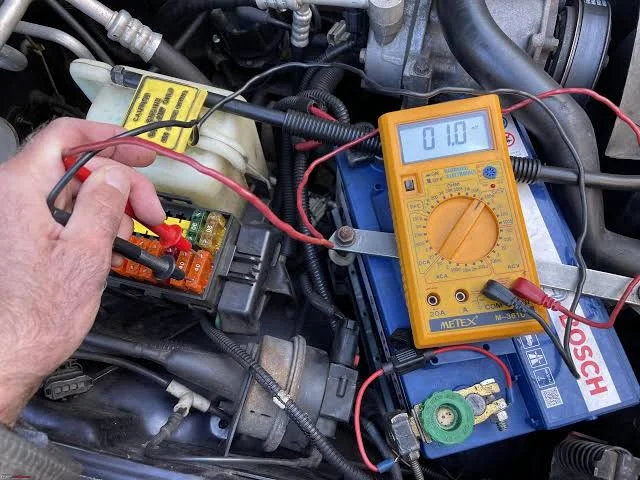

The first step to fix an alternator that is draining a car battery is to diagnose the problem. You can use a multimeter, a device that measures voltage, current, and resistance, to test the battery and the alternator. You can also use a battery tester, a device that measures the battery’s state of charge and health, to check the battery’s condition. Here are some steps to follow:

1. Check the battery’s voltage with the engine off. A fully charged battery should have a voltage of about 12.6 volts. If the voltage is lower than 12 volts, the battery is discharged and needs to be recharged or replaced.
2. Check the battery’s voltage with the engine running. The voltage should increase to about 13.5 to 14.5 volts. This indicates that the alternator is charging the battery. If the voltage does not increase or decreases, the alternator is not working properly and needs to be repaired or replaced.
3. Check the alternator’s output current with the engine running. You can use a clamp-on ammeter, a device that measures current without disconnecting any wires, to measure the current flowing from the alternator to the battery. The current should be between 40 to 80 amps depending on the electrical load of the vehicle. If the current is too low or too high, the alternator is faulty and needs to be repaired or replaced.
4. Check the alternator’s wiring and connections. Look for any signs of corrosion, damage, or looseness. Clean, tighten, or replace any faulty wires or connectors. A bad connection can reduce the alternator’s output and cause the battery to drain.
5. Check the alternator’s belt and pulley. Look for any signs of wear, cracks, or slippage. Adjust, replace, or tighten any faulty belt or pulley. A bad belt or pulley can reduce the alternator’s rotation and output and cause the battery to drain.

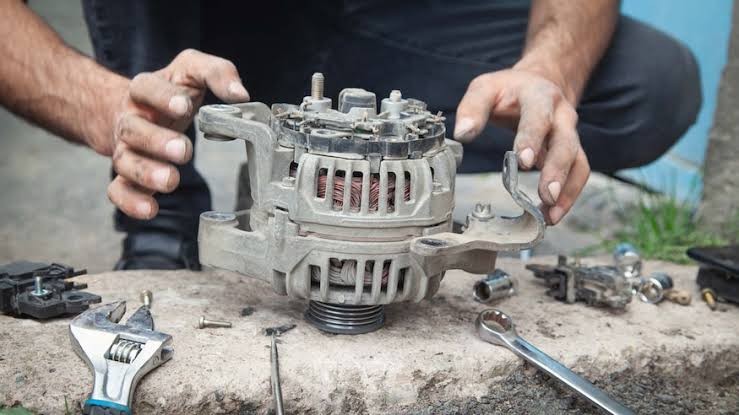

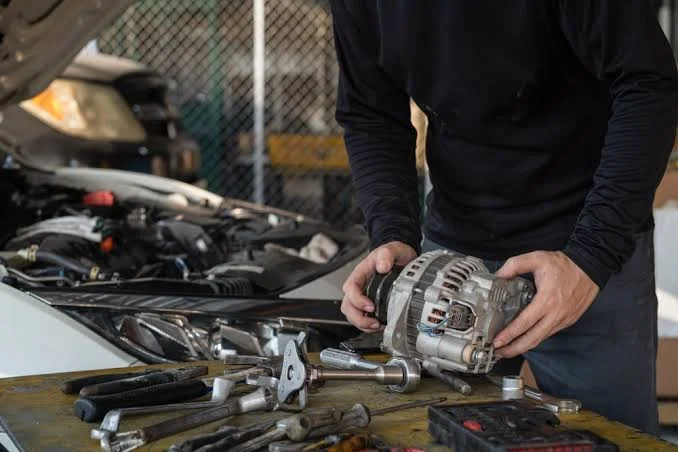

If you have confirmed that the alternator is the cause of the battery drain, you can either repair or replace it. Repairing an alternator may involve replacing the brushes, bearings, regulator, rectifier, or field winding. Replacing an alternator may involve removing the old one and installing a new one. You can either do it yourself or take your vehicle to a professional mechanic. However, before you attempt to repair or replace an alternator, make sure you disconnect the battery’s negative cable to avoid any sparks or shocks.

Conclusion

An alternator that is draining a car battery can cause a lot of trouble and inconvenience. It can prevent you from starting your vehicle, affect its performance, and damage its electrical systems. Therefore, it is important to identify and fix the problem as soon as possible. You can use various tools and methods to test the battery and the alternator and determine the cause of the drain. You can then either repair or replace the alternator yourself or take your vehicle to a mechanic. By fixing an alternator that is draining a car battery, you can ensure that your vehicle runs smoothly and safely.
