Unleashing the Power of Variable Geometry Turbochargers: A Comprehensive Guide

Do you want to make your car faster, stronger, and more efficient? If you do, you might want to learn about turbochargers. Turbochargers are devices that boost the power of your engine by forcing more air into the cylinders. More air means more fuel can be burned, which means more power can be produced.

But not all turbochargers are the same. Some turbochargers are better than others, because they can change their shape and size according to the speed and load of the engine. These turbochargers are called variable geometry turbochargers (VGTs). VGTs are the most advanced and efficient type of turbochargers, because they can optimize the performance of the engine across different conditions.

In this article, we will tell you everything you need to know about VGTs and how they work. We will also tell you why VGTs are better than traditional fixed-geometry turbochargers, and what are the benefits and advantages of using VGTs. By the end of this article, you will be amazed by the power and efficiency of VGTs and how they can improve your car’s performance.

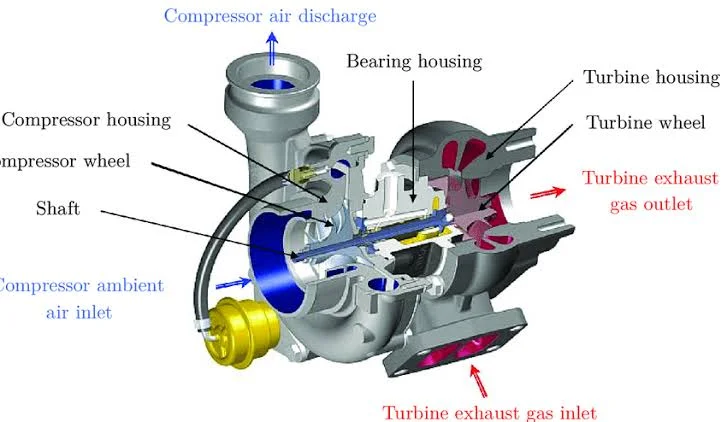

The Anatomy of a Variable Geometry Turbocharger

Before we explain how VGTs work, let’s take a look at the components of a VGT and what they do. A VGT has four main components: the compressor, the turbine, the shaft, and the actuator.

1. The compressor is the part that compresses the air and sends it to the engine. The compressor has a wheel with blades that spin and suck the air in. The compressor also has a housing that covers the wheel and directs the air flow.
2. The turbine is the part that drives the compressor and recovers the exhaust energy from the engine. The turbine has a wheel with blades that spin and extract the energy from the exhaust gas. The turbine also has a housing that covers the wheel and directs the exhaust flow.
3. The shaft is the part that connects the compressor and the turbine and transfers the rotational motion between them. The shaft is supported by bearings that reduce the friction and the wear of the shaft.
4. The actuator is the part that controls the geometry of the turbine and adjusts the angle of the turbine blades. The actuator can be pneumatic or electric, depending on the type of the VGT. The actuator receives the signal from the engine computer and moves the vanes accordingly.

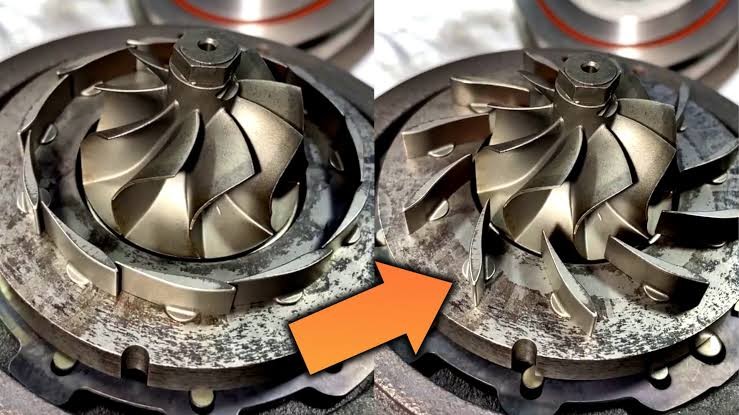

The most important and unique component of a VGT is the turbine. The turbine of a VGT has variable-angle blades, also called vanes, that can change their position and shape according to the engine speed and load. The vanes are attached to a ring that can rotate around the turbine wheel. The ring is connected to the actuator, which moves the ring and the vanes.

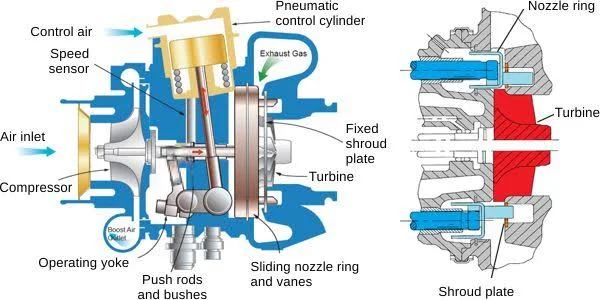

The Mechanism of Variable Geometry Turbocharging

Now that we know the components of a VGT, let’s see how they work together to optimize the turbocharger performance. The main idea behind VGTs is to vary the geometry of the turbine to match the engine speed and load. By changing the angle of the vanes, the VGT can control the amount and the speed of the exhaust gas that enters the turbine. This affects the pressure and the velocity of the exhaust gas, which in turn affects the speed and the power of the turbine and the compressor.

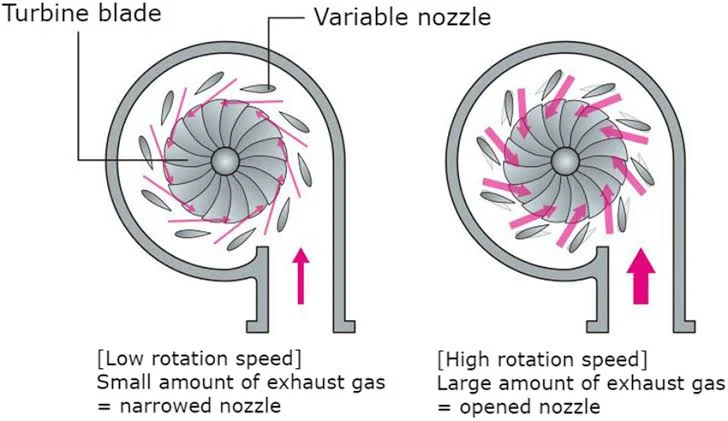

1. When the engine speed and load are low, the VGT closes the vanes to create a smaller and narrower passage for the exhaust gas. This increases the pressure and the velocity of the exhaust gas, which makes the turbine spin faster and produce more power. This also makes the compressor spin faster and produce more boost, which improves the low-end torque and eliminates the turbo lag.
2. When the engine speed and load are high, the VGT opens the vanes to create a larger and wider passage for the exhaust gas. This decreases the pressure and the velocity of the exhaust gas, which makes the turbine spin slower and produce less power. This also makes the compressor spin slower and produce less boost, which prevents the overboost and the engine knock.

By varying the geometry of the turbine, the VGT can provide a wider range of effective boost, which means that the turbocharger can work well at different engine speeds and loads. This improves the performance and the efficiency of the engine, by optimizing the air-fuel mixture and the combustion.

Types of Variable Geometry Turbocharger Actuators

As we mentioned before, the actuator is the part that controls the geometry of the turbine and adjusts the angle of the vanes. There are two main types of VGT actuators: pneumatic actuators and electric actuators. Let’s see how they work and what are their differences.

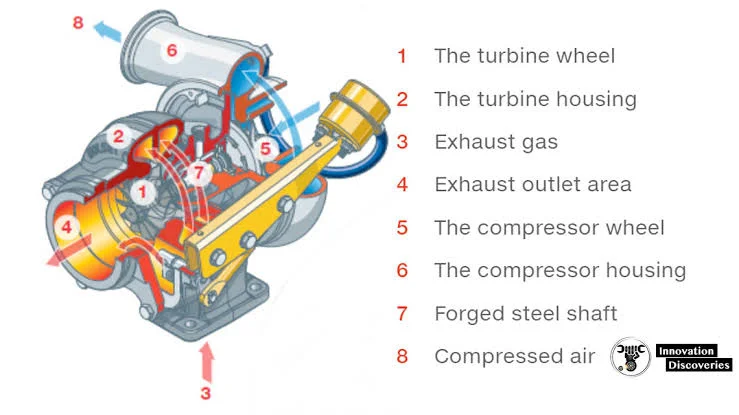

Pneumatic Actuators

Pneumatic actuators are actuators that use compressed air to move the vanes. Pneumatic actuators have a diaphragm, which is a flexible membrane that separates two chambers. One chamber is connected to the engine vacuum, which is the low-pressure area created by the engine intake. The other chamber is connected to the boost pressure, which is the high-pressure area created by the compressor. The diaphragm also has a rod that is attached to the ring and the vanes.

When the engine speed and load are low, the engine computer sends a signal to a valve that opens the vacuum chamber and closes the boost chamber. This creates a pressure difference between the two chambers, which pushes the diaphragm and the rod towards the vacuum chamber. This moves the ring and the vanes to a closed position, which creates a smaller and narrower passage for the exhaust gas.

When the engine speed and load are high, the engine computer sends a signal to a valve that closes the vacuum chamber and opens the boost chamber. This creates a pressure difference between the two chambers, which pushes the diaphragm and the rod towards the boost chamber. This moves the ring and the vanes to an open position, which creates a larger and wider passage for the exhaust gas.

Pneumatic actuators are simple and reliable, but they have some disadvantages. They are affected by the temperature and the pressure of the air, which can cause them to lose accuracy and responsiveness. They are also prone to leaks and clogs, which can reduce their effectiveness and durability.

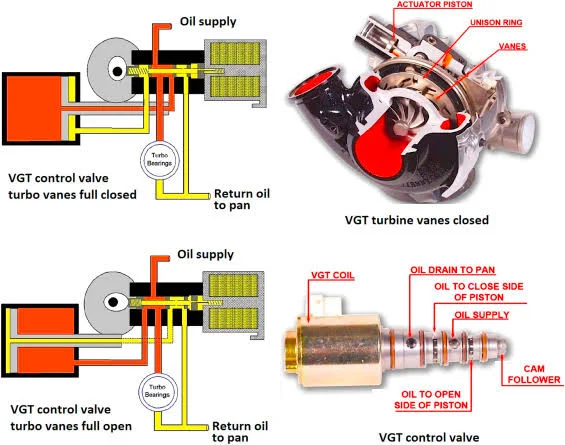

Electric Actuators

Electric actuators are actuators that use an electric motor and a control unit to move the vanes. Electric actuators have a motor, which is a device that converts electrical energy into mechanical energy. The motor has a gear that is connected to the ring and the vanes. The motor also has a sensor that measures the position of the ring and the vanes.

When the engine speed and load are low, the engine computer sends a signal to the control unit, which sends an electric current to the motor. The motor rotates the gear, which moves the ring and the vanes to a closed position, which creates a smaller and narrower passage for the exhaust gas.

When the engine speed and load are high, the engine computer sends a signal to the control unit, which sends an electric current to the motor. The motor rotates the gear, which moves the ring and the vanes to an open position, which creates a larger and wider passage for the exhaust gas.

Electric actuators are more accurate and responsive than pneumatic actuators, because they are not affected by the temperature and the pressure of the air. They are also more durable and less prone to leaks and clogs. However, they are more complex and expensive than pneumatic actuators, and they require more wiring and electronics.

Advantages of Variable Geometry Turbochargers

Variable geometry turbochargers are better than traditional fixed-geometry turbochargers, because they can provide a wider range of effective boost, which improves the performance and the efficiency of the engine. Here are some of the benefits and advantages of using VGTs:

1. Improved low-end torque: VGTs can increase the boost at low engine speeds and loads, which improves the low-end torque and eliminates the turbo lag. This makes the engine more responsive and powerful at low speeds, which is useful for acceleration, overtaking, and hill climbing.
2. Reduced fuel consumption: VGTs can reduce the boost at high engine speeds and loads, which prevents the overboost and the engine knock. This makes the engine more efficient and less wasteful at high speeds, which reduces the fuel consumption and the emissions.
3. Increased power output: VGTs can optimize the air-fuel mixture and the combustion efficiency, which increases the power output of the engine. This makes the engine more capable and versatile, especially for diesel engines, which can benefit from the higher compression ratio and the higher boost pressure.

Potential Issues with Variable Geometry Turbochargers and Troubleshooting Tips

Variable geometry turbochargers are amazing devices, but they are not perfect. They can have some problems and issues, which can affect their performance and efficiency. Some of the common problems associated with VGTs are:

1. Sticking vanes: The vanes of the VGT can stick or jam due to carbon buildup, corrosion, or wear. This can prevent the vanes from moving freely and adjusting to the engine speed and load. This can cause the VGT to lose its variable geometry and act like a fixed-geometry turbocharger, which can reduce the performance and the efficiency of the engine.
2. Actuator malfunctions: The actuator of the VGT can malfunction due to electrical or mechanical faults. This can prevent the actuator from moving the vanes correctly and accurately. This can cause the VGT to have incorrect or inconsistent geometry, which can affect the performance and the efficiency of the engine.
3. Control system issues: The control system of the VGT can have issues due to faulty sensors, wiring, or computers. This can prevent the control system from receiving or sending the correct signals to the actuator and the vanes. This can cause the VGT to have incorrect or inconsistent geometry, which can affect the performance and the efficiency of the engine.

If you have any of these problems with your VGT, you may notice some symptoms, such as:

• Reduced power: Your engine may lose power or speed, which can make your car less responsive and less fun to drive.
• Increased fuel consumption: Your engine may use more fuel than usual, which can make your car less efficient and more expensive to run.
• Illuminated engine warning lights: Your car may show some warning lights on the dashboard, such as the check engine light or the turbocharger malfunction indicator light. These lights indicate that there is something wrong with your engine or your turbocharger.
• Odd noises when shifting: Your car may make some strange noises when shifting gears, such as banging, clunking, or whistling. These noises indicate that there is something wrong with your transmission or your turbocharger.

If you notice any of these symptoms, you should take your car to a mechanic as soon as possible. Faulty VGTs can reduce your fuel economy, diminish your performance, and even damage your engine or your transmission. A mechanic can diagnose and fix your VGTs and restore your car’s performance and efficiency.

Troubleshooting VGT issues

1. Sticking vanes: If your vanes are sticking or jamming, you can try to clean them using a carbon cleaner or a wire brush. You can also try to lubricate them using a penetrating oil or a grease. However, if the vanes are too dirty or damaged, you may need to replace them.
2. Actuator malfunctions: If your actuator is malfunctioning, you can try to test it using a multimeter or a scan tool. You can also try to inspect it for any signs of wear or damage, such as cracks, leaks, or corrosion. However, if the actuator is too faulty or broken, you may need to replace it.
3. Control system issues: If your control system is having issues, you can try to check the sensors, the wiring, and the computers for any faults or errors. You can also try to reset the system by disconnecting the battery or using a scan tool. However, if the control system is too complex or damaged, you may need to consult a professional mechanic.

These are some of the basic troubleshooting steps you can do to diagnose and fix some of the simple VGT problems. However, if you are not confident or experienced in working with electrical or mechanical components, you should leave the job to a professional mechanic. A mechanic can use more advanced tools and techniques to diagnose and fix the VGT problems, such as a pressure gauge, an oscilloscope, or a dynamometer. A mechanic can also perform a test drive to verify the VGT operation and the car performance.

Conclusion

Variable geometry turbochargers are amazing devices that boost the power and the efficiency of your engine by changing their shape and size according to the engine speed and load. They have many benefits and advantages over traditional fixed-geometry turbochargers, such as improved low-end torque, reduced fuel consumption, and increased power output. However, they can also have some problems and issues, such as sticking vanes, actuator malfunctions, and control system issues. These problems can affect the performance and the efficiency of your engine, and even damage your engine or your transmission. Therefore, it is important to maintain your VGTs regularly and pay attention to any symptoms of VGT malfunction. If you have any VGT problems, you should take your car to a mechanic as soon as possible. A mechanic can diagnose and fix your VGTs and restore your car’s performance and efficiency.
