Fueling Your Journey: A Comprehensive Guide to the Fuel Supply System

The fuel supply system is the backbone of every car, ensuring a steady supply of fuel to the engine, the heart of the vehicle. This intricate system encompasses a network of components that work in unison to transport, filter, and deliver fuel from the tank to the combustion chambers. From the fuel pump that draws fuel from the tank to the fuel injectors that atomize it for efficient combustion, each component plays a vital role in keeping your car running smoothly and efficiently.

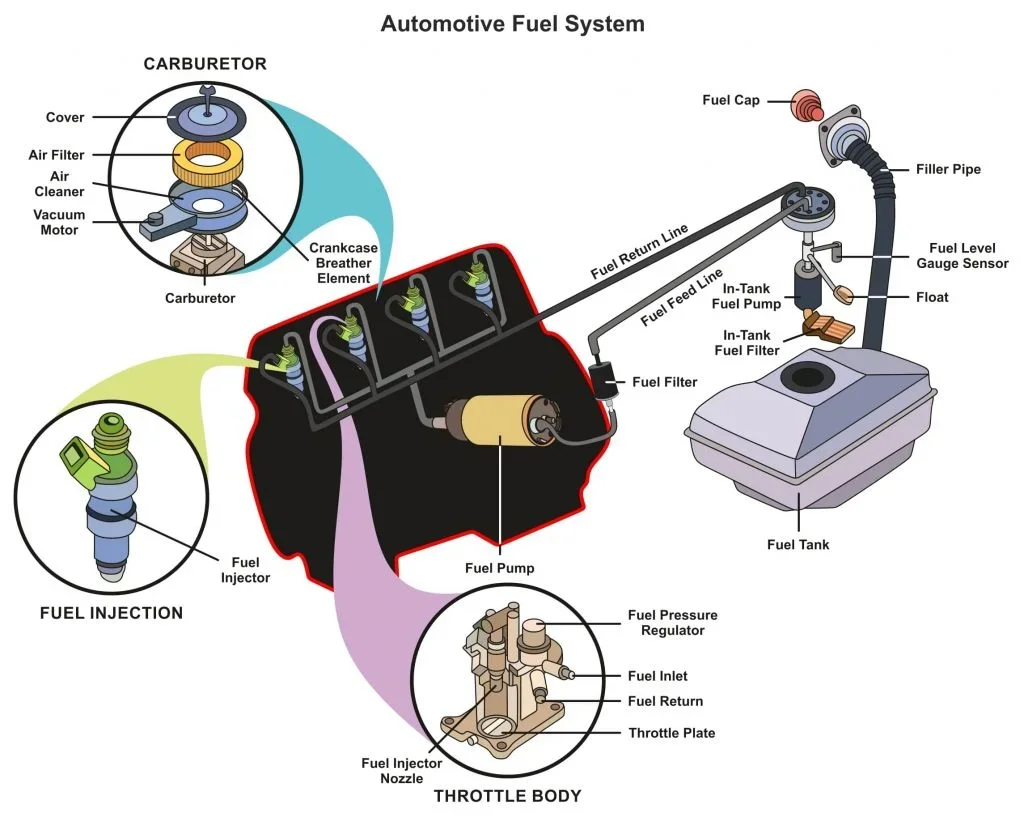

In this article, we will answer these questions and more. We will explore the fuel supply system, the system that transports fuel from the fuel tank to the engine. We will learn about the key components of the fuel supply system, their functions, symptoms of problems, and troubleshooting tips. By the end of this article, you will have a better understanding of how the fuel supply system works and how to maintain it properly.

Unveiling the Fuel Tank: The Storage Reservoir

The fuel tank is the part that stores the fuel for your car. It is usually located at the rear of the car, under the trunk or the back seat. The fuel tank has a few components that help it function properly, such as:

• The fuel tank sender unit: This is a device that measures the amount of fuel in the tank and sends a signal to the instrument panel, where you can see the fuel gauge. The fuel tank sender unit has a float that moves up and down with the fuel level and a resistor that changes the electric current according to the float’s position.
• The fuel filler cap: This is the part that you open when you want to refill your fuel tank. It has a seal that prevents the fuel from evaporating or leaking out of the tank. It also has a vent that allows air to enter the tank as the fuel level drops, preventing a vacuum from forming.
• The fuel pump module: This is a device that contains the fuel pump, the fuel filter, and the fuel pressure regulator. It is usually located inside the fuel tank and can be accessed through an opening in the trunk or the back seat. The fuel pump module delivers fuel to the engine and maintains the fuel pressure.

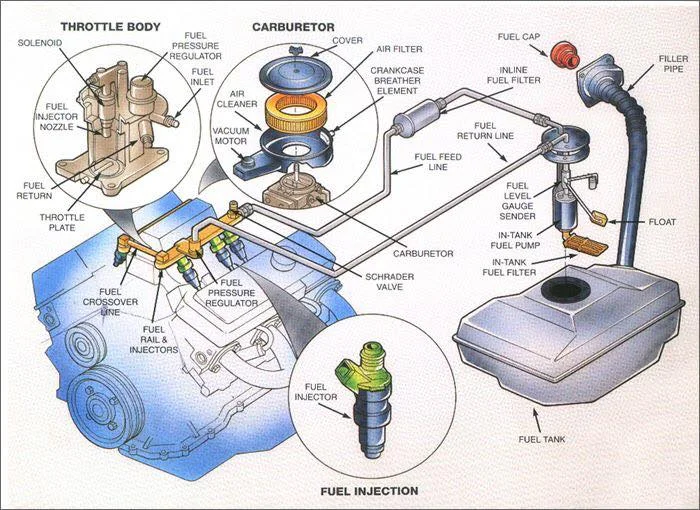

Issues that can affect the fuel tank

• Leaks: This is when the fuel tank has a hole or a crack that allows fuel to escape. This can cause a fire hazard, a loss of fuel, and a drop in fuel pressure. Leaks can be caused by corrosion, damage, or faulty seals. You can detect leaks by looking for wet spots, stains, or smells around the fuel tank area.
• Corrosion: This is when the fuel tank gets rusted or eroded by water, salt, or chemicals. This can weaken the fuel tank and cause leaks or holes. Corrosion can be caused by poor quality fuel, moisture, or exposure to harsh environments. You can prevent corrosion by using good quality fuel, keeping the fuel tank full, and cleaning the fuel tank regularly.
• Contamination: This is when the fuel tank gets filled with dirt, debris, or water. This can clog the fuel filter, damage the fuel pump, and affect the fuel quality. Contamination can be caused by dirty fuel, faulty fuel filler cap, or condensation. You can avoid contamination by using clean fuel, replacing the fuel filler cap, and draining the water from the fuel tank.

The Fuel Pump: The Heart of the Fuel Supply System

The fuel pump is the part that draws fuel from the fuel tank and sends it to the engine. It is the heart of the fuel supply system, as it keeps the fuel flowing and the engine running. There are two main types of fuel pumps: electric fuel pumps and mechanical fuel pumps. Let’s see how they work and what are their differences.

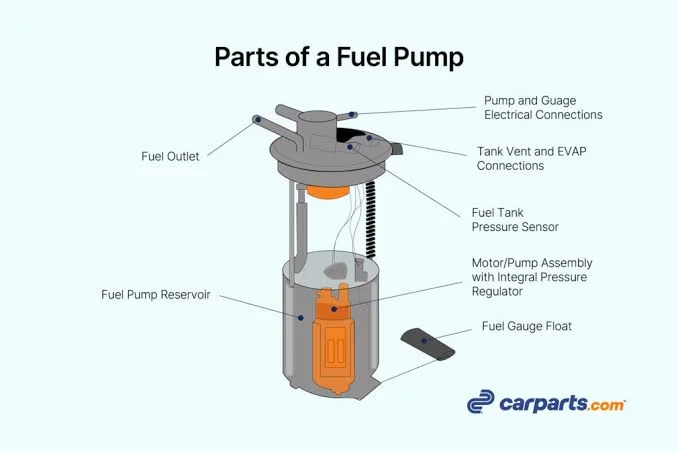

Electric fuel pumps:

These are the most common type of fuel pumps in modern cars. They use an electric motor to create suction and pressure that move the fuel through the fuel lines. They are usually located inside the fuel tank or near it, and are controlled by a relay that receives signals from the engine control unit (ECU). Electric fuel pumps are quiet, efficient, and reliable. However, they can overheat, wear out, or fail due to electrical problems.

Mechanical fuel pumps:

These are the older type of fuel pumps that are still used in some cars. They use a lever or a diaphragm that is moved by the engine’s rotation to create suction and pressure that move the fuel through the fuel lines. They are usually located on the engine block or the cylinder head, and are driven by a camshaft or a crankshaft. Mechanical fuel pumps are simple, durable, and cheap. However, they can leak, lose pressure, or malfunction due to mechanical problems.

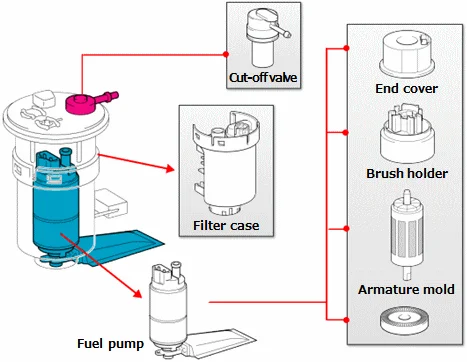

Issues associated with the Fuel Pump

• Overheating: This is when the fuel pump gets too hot and stops working properly. This can cause the fuel pressure to drop and the engine to stall or shut down. Overheating can be caused by low fuel level, faulty relay, or poor ventilation. You can prevent overheating by keeping the fuel tank at least a quarter full, replacing the relay, and cleaning the fuel pump module.
• Wearing out: This is when the fuel pump gets worn out and loses its efficiency and durability. This can cause the fuel flow to decrease and the engine to run poorly or not start at all. Wearing out can be caused by age, mileage, or contamination. You can delay wearing out by using good quality fuel, changing the fuel filter regularly, and replacing the fuel pump when needed.
• Failing: This is when the fuel pump stops working completely and fails to deliver fuel to the engine. This can cause the engine to not start or run at all. Failing can be caused by electrical problems, mechanical problems, or damage. You can avoid failing by checking the fuel pump’s voltage, resistance, and sound with a multimeter, a noid light, or a stethoscope. You can fix failing by replacing the fuel pump with a new one.

Fuel Lines: The Transportation Network

The fuel lines are the parts that transport fuel from the fuel tank to the engine. They are the transportation network of the fuel supply system, as they connect all the components and ensure a smooth flow of fuel. There are different types of fuel lines that are used for different purposes, such as:

• Rigid metal lines: These are the hard and sturdy fuel lines that are made of steel or aluminum. They are used to carry fuel from the fuel tank to the fuel filter, and from the fuel filter to the fuel rail. They can withstand high pressure and temperature, and are resistant to corrosion and damage. However, they can be difficult to bend, cut, or repair.
• Flexible rubber hoses: These are the soft and flexible fuel lines that are made of rubber or plastic. They are used to connect the rigid metal lines to the fuel pump, the fuel filter, the fuel injectors, and the fuel pressure regulator. They can adapt to different shapes and sizes, and are easy to install and replace. However, they can crack, leak, or deteriorate due to heat, oil, or age.

The fuel lines can have some issues that can affect their performance, such as:

1. Leaks: This is when the fuel lines have a hole or a crack that allows fuel to escape. This can cause a fire hazard, a loss of fuel, and a drop in fuel pressure. Leaks can be caused by corrosion, damage, or faulty connections. You can detect leaks by looking for wet spots, stains, or smells along the fuel lines.
2. Cracks: This is when the fuel lines have a split or a break that reduces their strength and durability. This can cause leaks, blockages, or bursts. Cracks can be caused by vibration, stress, or impact. You can spot cracks by inspecting the fuel lines for visible signs of damage or wear.
3. Blockages: This is when the fuel lines have a clog or a restriction that prevents the fuel from flowing freely. This can cause poor fuel delivery, engine hesitation, or stalling. Blockages can be caused by dirt, debris, or corrosion. You can diagnose blockages by checking the fuel pressure and flow with a gauge or a tester.

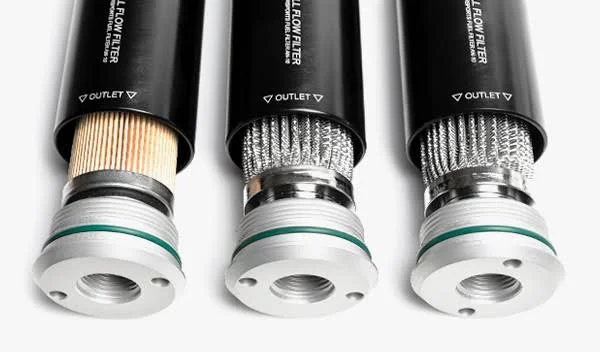

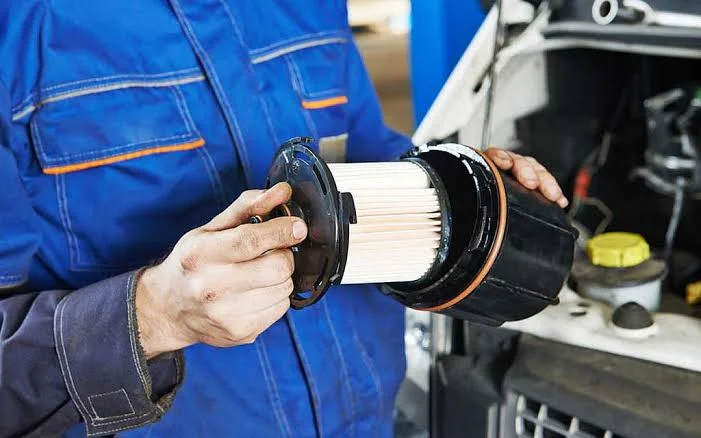

Fuel Filter: The Guardian of Fuel Purity

The fuel filter is the part that removes impurities from the fuel before it reaches the engine. It is the guardian of fuel purity, as it protects the engine from damage and ensures optimal combustion. There are different types of fuel filters that are used for different types of fuel, such as:

1. Paper-based filters: These are the most common type of fuel filters that are made of pleated paper or cellulose. They are used to filter gasoline or petrol, and are usually located along the fuel lines or inside the fuel tank. They can trap small particles and contaminants, and are cheap and disposable. However, they can get clogged, torn, or saturated over time.
2. Micron filters: These are the newer and more advanced type of fuel filters that are made of synthetic materials or metal mesh. They are used to filter diesel or biodiesel, and are usually located near the fuel injectors or the fuel pump. They can trap very fine particles and water, and are durable and reusable. However, they can be expensive, complex, and sensitive to pressure and temperature.

The fuel filter can have some issues that can affect its performance, such as:

• Clogging: This is when the fuel filter gets blocked by dirt, debris, or water. This reduces the flow and pressure of the fuel, resulting in poor fuel delivery and engine performance. The symptoms of clogging include reduced fuel flow, engine hesitation, and stalling. To prevent clogging, you should change the fuel filter regularly, according to the manufacturer’s recommendations. To fix clogging, you can replace the fuel filter with a new one.
• Leaking: This is when the fuel filter fails to seal properly and allows fuel to drip or spray out of the filter. This causes the fuel to evaporate or enter the engine when it is not needed, resulting in rich combustion and performance. The symptoms of leaking include black smoke, strong fuel smell, and increased fuel consumption. To prevent leaking, you should inspect the fuel filter’s seals and o-rings for wear and tear and replace them if necessary. To fix leaking, you can tighten the fuel filter’s connections or replace the fuel filter if it is damaged.

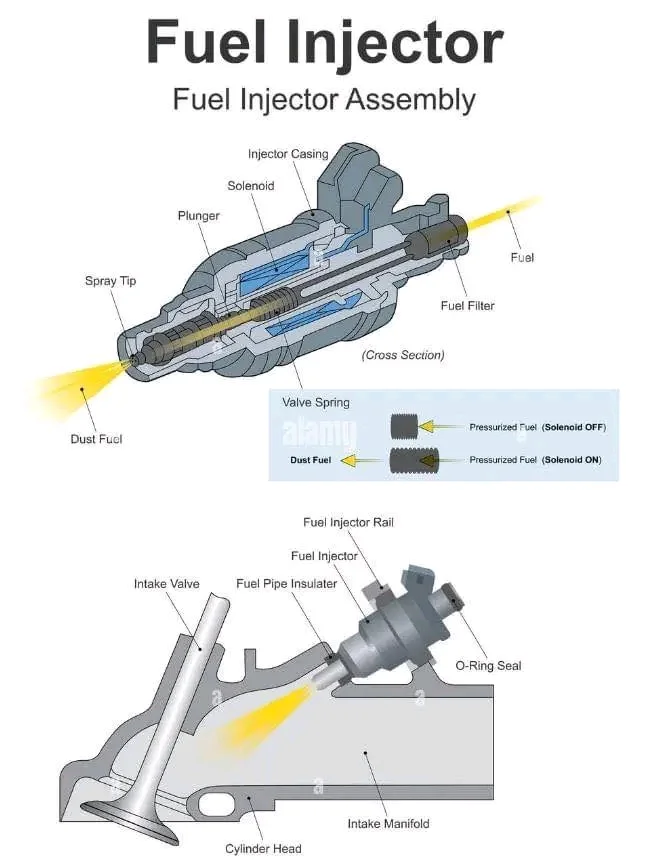

Fuel Injector: The Precision Fuel Delivery Expert

The fuel injector is the part that atomizes fuel and delivers it into the combustion chamber. It is the precision fuel delivery expert, as it controls the amount and timing of the fuel injection, depending on the engine’s conditions. We have already discussed the anatomy and function of the fuel injector in the previous article, so we will not repeat them here. Instead, we will focus on the signs of faulty fuel injectors and how to troubleshoot them.

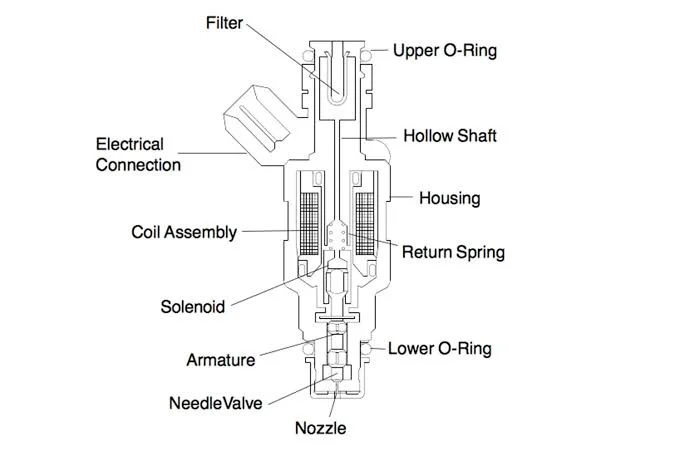

Fuel Injector Issues and Troubleshooting

1. Clogging: This is when the nozzle of the injector gets blocked by dirt, carbon, or other impurities. This reduces the flow and pressure of the fuel, resulting in poor combustion and performance. The symptoms of clogging include rough idling, misfires, and decreased fuel efficiency. To prevent clogging, you should use good quality fuel and change the fuel filter regularly. To fix clogging, you can use a fuel injector cleaner, a liquid that dissolves the deposits and restores the injector’s function.
2. Leaking: This is when the injector fails to seal properly and allows fuel to drip or spray out of the nozzle. This causes the fuel to evaporate or enter the engine when it is not needed, resulting in rich combustion and performance. The symptoms of leaking include black smoke, strong fuel smell, and increased fuel consumption. To prevent leaking, you should inspect the injector’s seals and o-rings for wear and tear and replace them if necessary. To fix leaking, you can tighten the injector’s connections or replace the injector if it is damaged.
3. Malfunctioning solenoid: This is when the solenoid of the injector fails to open or close the nozzle correctly, due to a faulty electrical connection or a defective component. This affects the timing and duration of the fuel injection, resulting in poor combustion and performance. The symptoms of malfunctioning solenoid include engine check light, erratic idling, and loss of power. To prevent malfunctioning solenoid, you should check the wiring and connectors of the injector for corrosion or damage and repair them if needed. To fix malfunctioning solenoid, you can test the injector’s resistance and voltage with a multimeter and replace the injector if it is out of specification.

Fuel Supply System Troubleshooting: Identifying and Resolving Issues

If you suspect that your fuel supply system has a problem, you should not ignore it or delay fixing it. A faulty fuel supply system can cause serious damage to your engine and compromise your safety. Here are some steps that you can follow to troubleshoot your fuel supply system and resolve the issues:

1. Check the fuel level and quality: The first thing that you should do is to make sure that you have enough fuel in your tank and that the fuel is clean and fresh. You can use the fuel gauge on your instrument panel to check the fuel level and the fuel filler cap to check the fuel quality. If the fuel level is low, you should refill your tank as soon as possible. If the fuel quality is poor, you should drain the fuel tank and replace the fuel with a new one.
2. Check the fuel pressure and flow: The next thing that you should do is to check the fuel pressure and flow in your fuel supply system. You can use a fuel pressure gauge or a fuel pressure tester to measure the fuel pressure at different points of the system, such as the fuel pump, the fuel filter, the fuel rail, and the fuel injectors. You can also use a fuel flow meter or a fuel flow tester to measure the fuel flow rate at the same points. You should compare the readings with the specifications given by the manufacturer and look for any discrepancies. If the fuel pressure or flow is too low or too high, you should identify the source of the problem and fix it accordingly.
3. Check the fuel injectors: The last thing that you should do is to check the fuel injectors for any faults or defects. You can use a noid light or a noid tester to check the electrical signal to the fuel injectors. You can also use a stethoscope or a listening device to listen to the sound of the fuel injectors. You should look for any signs of clogging, leaking, or malfunctioning solenoids. If the fuel injectors are faulty, you should clean them, repair them, or replace them as needed.

These are some of the common troubleshooting methods that you can use to diagnose and fix your fuel supply system issues. However, some of the issues may be more complex and require more advanced tools and skills. Therefore, you should always consult with a qualified automotive professional for proper diagnosis and repair. By doing so, you can ensure the optimal function of your fuel supply system and enjoy a smooth and satisfying driving experience.

Conclusion

The fuel supply system is the system that transports fuel from the fuel tank to the engine. It has many components, such as the fuel tank, the fuel pump, the fuel lines, the fuel filter, and the fuel injectors. Each component has a specific function and role in the fuel supply process. However, each component can also have some issues that can affect its performance and require troubleshooting. To ensure the optimal function of the fuel supply system, you should perform regular maintenance and inspection and seek professional assistance if you encounter any problems. By doing so, you can fuel your journey and enjoy a smooth and satisfying driving experience.
