Fuel Injectors: A Comprehensive Guide to Their Anatomy, Function, and Maintenance

Fuel injectors are the tiny, yet crucial components that deliver the precise amount of fuel into an engine's combustion chamber at the optimal time. These unsung heroes play a pivotal role in optimizing fuel combustion, enhancing engine performance, and reducing emissions.

If you own a car, you probably know that it needs fuel to run. But do you know how the fuel gets into the engine and how it affects its performance? In this article, we will explore the amazing world of fuel injectors, the devices that deliver fuel to the engine in a precise and efficient way. We will learn about their components, functions, types, advantages, and potential issues. By the end of this article, you will have a better understanding of how fuel injectors work and how to maintain them properly.

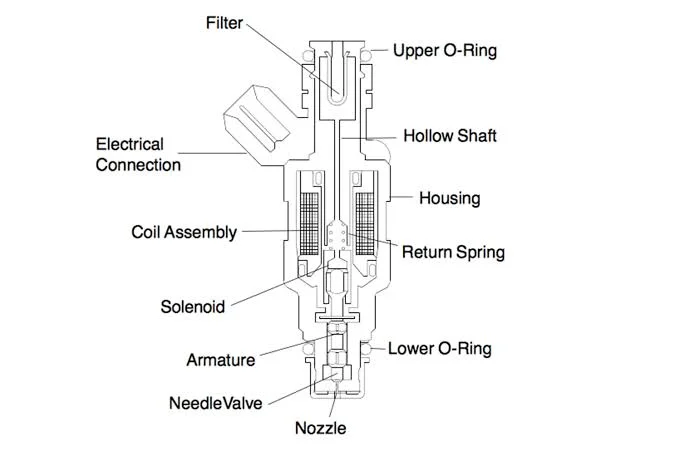

Anatomy of a Fuel Injector

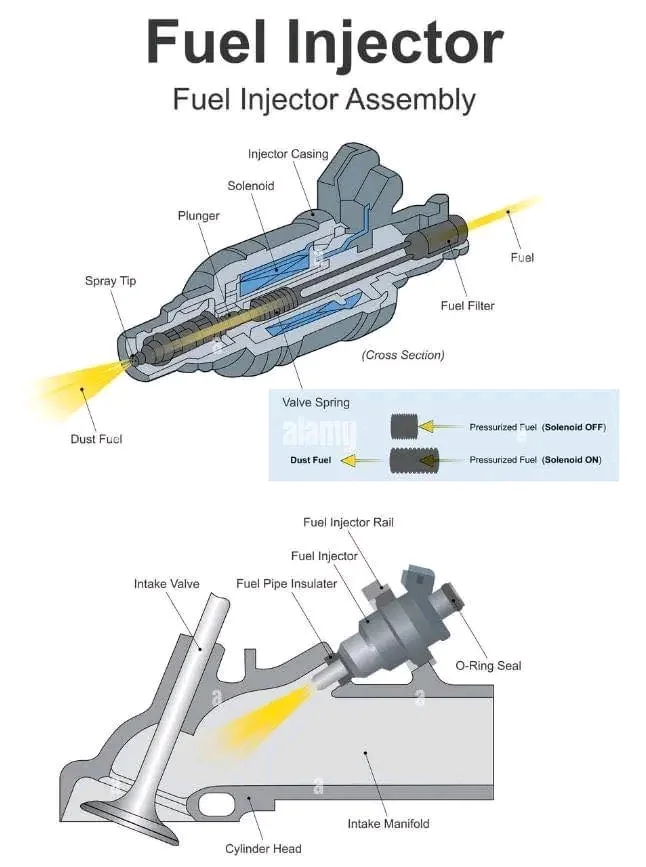

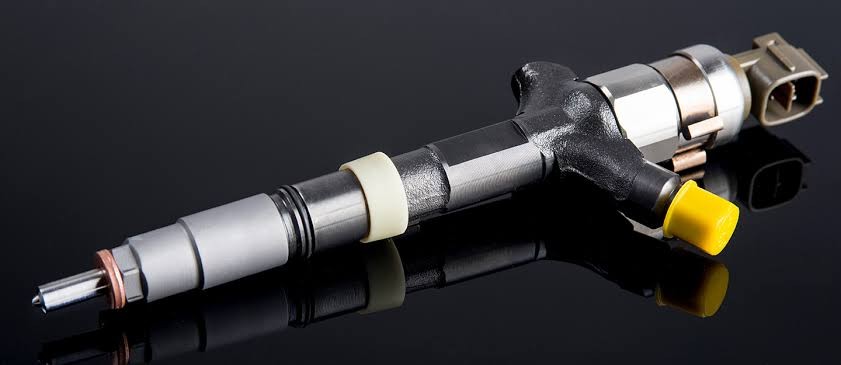

A fuel injector is a small device that is attached to the engine’s cylinder head. It has three main parts: the nozzle, the solenoid, and the filter. Let’s take a closer look at each of them.

• Nozzle: The nozzle is the part that sprays fuel into the combustion chamber, where it mixes with air and ignites. The nozzle has tiny holes that create a fine mist of fuel for better combustion. The nozzle can open and close very quickly, depending on how much fuel the engine needs.
• Solenoid: The solenoid is the part that controls the opening and closing of the nozzle. It is an electromagnet that receives signals from the engine control unit (ECU), the computer that monitors and regulates the engine’s operations. The solenoid can change the duration and frequency of the fuel injection, depending on the engine’s speed, load, and temperature.
• Filter: The filter is the part that prevents dirt and debris from entering the fuel injector. It is usually located at the inlet of the injector, where the fuel comes from the fuel pump. The filter can get clogged over time, reducing the flow and pressure of the fuel.
• Spring: The spring is used to push the plunger back into place after the solenoid is de-energized. This ensures that the nozzle closes properly and prevents fuel from leaking out.
• Armature: The armature is a small piece of metal that is attached to the plunger. The armature is attracted to the solenoid when it is energized, which helps to open the nozzle.
• Coil: The coil is a wire that is wrapped around a metal core. When the coil is energized, it creates a magnetic field that attracts the armature.
• Plunger: The plunger is a component that pressurizes the fuel before it is injected into the combustion chamber. It is typically made of a hard material such as steel or ceramic. The plunger is moved by a spring or a solenoid.
• Electrical connector: The electrical connector is used to connect the injector to the engine's electrical system. This allows the solenoid to be energized and de-energized, which controls the opening and closing of the nozzle.
• O-rings: O-rings are small rubber seals that are used to prevent leaks. There are two O-rings in an injector: one between the nozzle and the body of the injector, and one between the plunger and the body of the injector.

Unveiling the Mechanism of Fuel Injection

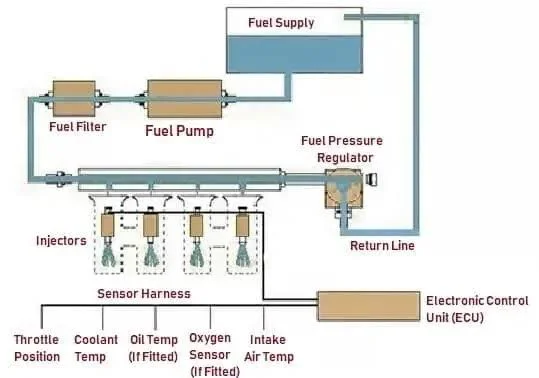

Now that we know the parts of a fuel injector, let’s see how they work together to inject fuel into the engine. Here are the steps involved in the process:

1. The fuel pump draws fuel from the fuel tank and sends it to the fuel rail, a pipe that connects all the injectors.
2. The fuel pressure regulator maintains a constant pressure of the fuel in the fuel rail, regardless of the engine’s demand.
3. The ECU calculates the amount and timing of the fuel injection, based on the inputs from various sensors, such as the oxygen sensor, the throttle position sensor, and the mass airflow sensor.
4. The ECU sends an electrical signal to the solenoid of the injector, telling it when and how long to open the nozzle.
5. The solenoid activates the electromagnet, which pulls a plunger that opens the nozzle.
6. The fuel under high pressure passes through the nozzle and sprays into the combustion chamber, where it mixes with air and ignites.
7. The solenoid deactivates the electromagnet, which releases the plunger that closes the nozzle.
8. The cycle repeats for each injection, up to thousands of times per minute.

Types of Fuel Injection Systems: Catering to Different Needs

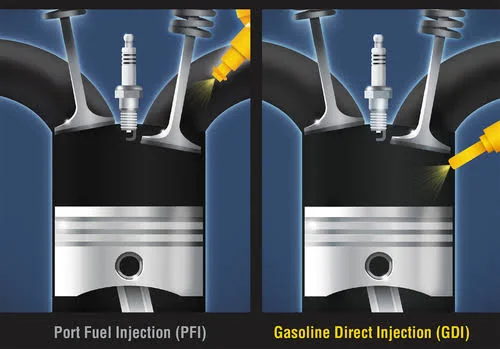

There are two main types of fuel injection systems that are used in modern engines: port fuel injection (PFI) and direct injection (DI). They differ in the location and timing of the fuel injection. Let’s compare them and see their pros and cons.

Port Fuel Injection (PFI) Injectors

PFI is the most common type of fuel injection system. It injects fuel into the intake manifold, before it enters the combustion chamber. The fuel mixes with air in the intake manifold and forms a homogeneous mixture that is distributed evenly to each cylinder. PFI is simple, reliable, and inexpensive. However, it has some drawbacks, such as lower fuel efficiency, higher emissions, and lower power output.

Direct Injection Injectors

DI is the newer and more advanced type of fuel injection system. It injects fuel directly into the combustion chamber, after the air has entered. The fuel forms a stratified mixture that is concentrated near the spark plug, where it ignites. DI is more complex, sophisticated, and expensive. However, it has some advantages, such as higher fuel efficiency, lower emissions, and higher power output.

Advantages of Fuel Injectors

Fuel injectors have revolutionized the way engines deliver fuel and improve their performance. Here are some of the benefits of using fuel injectors:

• Fuel injectors can deliver precise amounts of fuel at the optimal time, depending on the engine’s conditions. This improves the combustion efficiency and reduces the waste of fuel.
• Fuel injectors can reduce the fuel consumption and emissions of the engine, due to their precise control over the fuel delivery. This saves money and protects the environment.
• Fuel injectors can enhance the engine performance and power output, due to their optimized fuel mixture. This increases the speed and acceleration of the car.

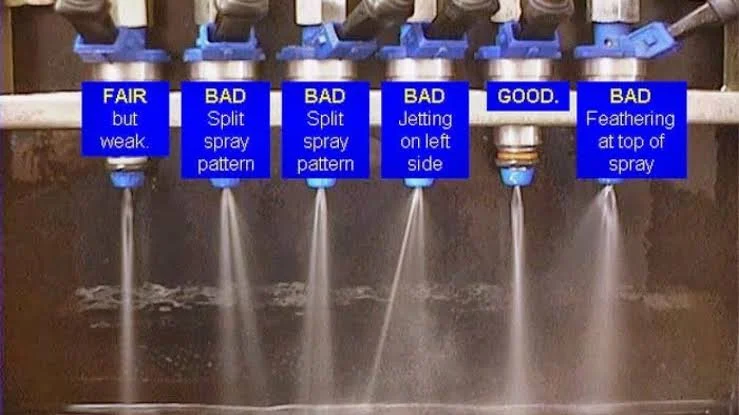

Potential Issues with Fuel Injectors and Troubleshooting Tips

Fuel injectors are not perfect and can have some problems over time. Here are some of the common issues that can affect fuel injectors and how to troubleshoot them:

1. Clogging: This is when the nozzle of the injector gets blocked by dirt, carbon, or other impurities. This reduces the flow and pressure of the fuel, resulting in poor combustion and performance. The symptoms of clogging include rough idling, misfires, hesitation, and decreased fuel efficiency. To prevent clogging, you should use good quality fuel and change the fuel filter regularly. To fix clogging, you can use a fuel injector cleaner, a liquid that dissolves the deposits and restores the injector’s function.
2. Leaking: This is when the injector fails to seal properly and allows fuel to drip or spray out of the nozzle. This causes the fuel to evaporate or enter the engine when it is not needed, resulting in rich combustion and performance. The symptoms of leaking include black smoke, strong fuel smell, and increased fuel consumption. To prevent leaking, you should inspect the injector’s seals and o-rings for wear and tear and replace them if necessary. To fix leaking, you can tighten the injector’s connections or replace the injector if it is damaged.
3. Malfunctioning solenoid: This is when the solenoid of the injector fails to open or close the nozzle correctly, due to a faulty electrical connection or a defective component. This affects the timing and duration of the fuel injection, resulting in poor combustion and performance. The symptoms of malfunctioning solenoid include engine check light, erratic idling, and loss of power. To prevent malfunctioning solenoid, you should check the wiring and connectors of the injector for corrosion or damage and repair them if needed. To fix malfunctioning solenoid, you can test the injector’s resistance and voltage with a multimeter and replace the injector if it is out of specification.

Conclusion

Fuel injectors are amazing devices that deliver fuel to the engine in a precise and efficient way. They have many components, functions, types, and advantages that make them essential for modern engines. However, they can also have some issues that can affect their performance and require troubleshooting. To ensure the optimal function of fuel injectors, you should perform regular maintenance and inspection and seek professional assistance if you encounter any problems. By doing so, you can unleash the power of fuel injectors and enjoy a smooth and satisfying driving experience.
