P0049 Turbocharger or Supercharger Turbine Overspeed

One of the problems that you may encounter with a turbocharged or a supercharged engine is DTC Code P0049. This is a code that indicates that the turbocharger or supercharger turbine is spinning too fast, exceeding the safe limit. This can cause serious damage to the engine and the turbocharger or supercharger, as well as affect the performance and drivability of your vehicle.

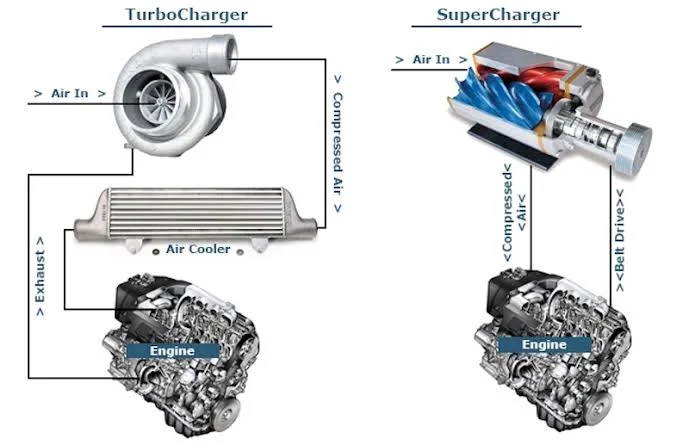

Do you want to boost your vehicle’s performance and efficiency? If so, you may have considered installing a turbocharger or a supercharger in your engine. These are devices that force more air and fuel into the engine, creating more power and speed. However, these devices also come with their own challenges and risks, especially if they are not working properly.

In this article, we will help you understand the causes and solutions of the DTC Code P0049. We will explain what this code means, what causes it, what symptoms it may produce, how to diagnose it, how to fix it, and how to prevent it from happening again. By reading this article, you will be able to address this code promptly and effectively, and restore your vehicle’s performance and safety.

Understanding P0049: Causes and Symptoms

The turbocharger or supercharger turbine is the part that spins rapidly to compress the air that enters the engine. The speed of the turbine is controlled by a device called a turbo speed sensor, which measures the rotational speed of the turbine and sends a signal to the PCM (Powertrain Control Module). The PCM then adjusts the boost pressure, or the amount of air pressure that is generated by the turbocharger or supercharger, by using a device called a wastegate or a blow-off valve. The wastegate or the blow-off valve regulates the flow of exhaust gas or intake air that drives the turbine, preventing it from spinning too fast or too slow.

When the PCM detects that the turbo speed sensor signal is too high, indicating that the turbine is spinning faster than the maximum limit, it will store the DTC Code P0049. This code means that the turbocharger or supercharger turbine is overspeeding, which can damage the turbine and the engine. The PCM may also reduce the engine power or put the vehicle in limp mode, to protect the engine from further damage.

Possible causes of the DTC Code P0049 are:

1. A failing turbo speed sensor, which sends inaccurate or erratic signals to the PCM
2. Modifications like a tuner chip, which increase the boost pressure beyond the safe limit
3. Damaged wiring or loose connections on the boost sensor/speed sensor circuit, which interfere with the signal transmission

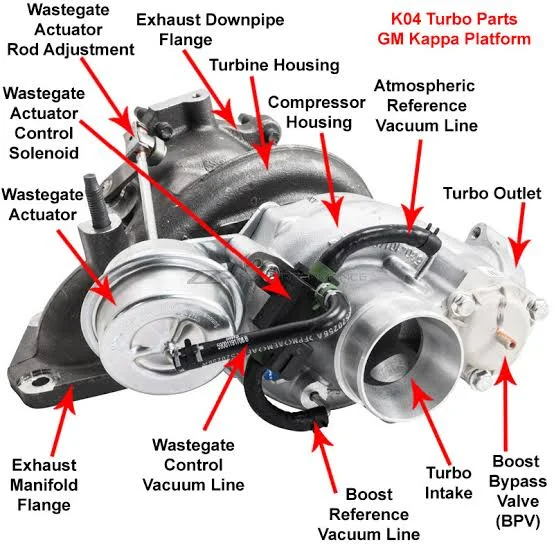

4. A malfunctioning turbocharger wastegate or supercharger blow-off valve, which fails to regulate the boost pressure properly
5. A PCM error, which affects the boost control strategy or calculation

Symptoms that may accompany the DTC Code P0049 are:

• An illuminated check engine light, which alerts you of the code
• An overboost or underboost condition, which means that the boost pressure is too high or too low
• A limp mode, which limits the engine power and speed to prevent further damage
• A possible spark detonation, which is a loud knocking or pinging sound that occurs when the air-fuel mixture ignites prematurely in the engine

Diagnosing P0049: A Step-by-Step Guide

To diagnose the cause of the DTC Code P0049, you will need a diagnostic scanner or a code reader, which is a device that connects to the vehicle’s OBD-II (On-Board Diagnostics) port and displays the stored fault codes. You will also need some basic tools and skills to inspect and test the turbocharger or supercharger and related components. You can follow these steps to diagnose the code:

1. Perform a visual inspection of the turbocharger or supercharger and related components, such as the turbo speed sensor, the wastegate or the blow-off valve, the wiring, and the connectors. Look for any signs of damage, wear, or leaks, and repair or replace any faulty parts.
2. Check the wiring and connections for any faults or loose connections, and repair or replace them if necessary. Make sure that the wiring is not shorted, corroded, or broken, and that the connections are secure and clean.
3. Connect the diagnostic scanner or the code reader to the vehicle’s OBD-II port, and turn the ignition on. Retrieve the stored fault codes and write them down. You may also see other codes related to the turbocharger or supercharger system, such as P0045, P0046, P0047, or P0048, which indicate different problems with the boost control circuit. You will need to address these codes as well.
4. Perform relevant tests using the diagnostic scanner or the code reader, such as the turbo speed sensor test, the wastegate or the blow-off valve test, or the PCM test. Follow the instructions on the device’s screen, and compare the test results to the specifications in the vehicle’s manual. If the test results are out of specification, replace the faulty component.

If you are not sure how to perform the tests, or if you need further assistance, consult with a qualified mechanic. A mechanic can use more advanced tools and techniques to diagnose and fix the problem.

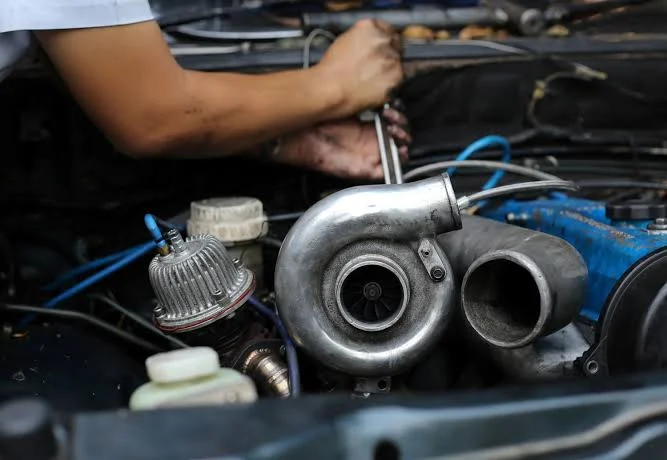

Resolving P0049: Repair and Prevention

Once you have diagnosed the cause of the DTC Code P0049, you can proceed to repair the problem and clear the code. Depending on the cause, you may need to replace one or more components, such as the turbo speed sensor, the wastegate or the blow-off valve, the wiring, or the PCM. You can follow these steps to repair the problem and clear the code:

1. Replace the faulty component, following the instructions in the vehicle’s manual or the repair guide. Make sure that the replacement component is compatible with your vehicle’s make, model, and year, and that it is installed correctly and securely.
2. Reconnect the diagnostic scanner or the code reader to the vehicle’s OBD-II port, and turn the ignition on. Clear the stored fault codes using the device’s menu, and turn the ignition off.
3. Start the engine and drive the vehicle for a few miles, and check if the check engine light comes back on. If it does, repeat the diagnostic and repair process until the problem is fixed. If it does not, the problem is resolved.

To prevent the DTC Code P0049 from happening again, you should take some preventive measures to minimize the risk of encountering turbocharger or supercharger turbine overspeed issues. Some of the preventive measures are:

1. Maintain regular maintenance schedules for the turbocharger or supercharger and related components, such as the turbo speed sensor, the wastegate or the blow-off valve, the wiring, and the connectors. Follow the recommendations in the vehicle’s manual or the service guide, and check and replace the components as needed.
2. Avoid modifications that may put excessive strain on the turbocharger or supercharger, such as a tuner chip, a larger turbocharger or supercharger, or a higher boost pressure. These modifications may increase the performance of your vehicle, but they may also damage the engine and the turbocharger or supercharger, and trigger the DTC Code P0049.
3. Address any wiring or connection issues promptly, and repair or replace any faulty wiring or connectors. Wiring or connection issues can interfere with the signal transmission between the turbo speed sensor and the PCM, and cause the DTC Code P0049.
4. Use high-quality components and seek professional assistance for repairs. Do not use cheap or incompatible components, or attempt to repair the turbocharger or supercharger or related components by yourself, unless you have the proper tools and skills. You may end up causing more damage to the engine and the turbocharger or supercharger, and trigger the DTC Code P0049.

Conclusion

The DTC Code P0049 is a code that indicates that the turbocharger or supercharger turbine is spinning too fast, exceeding the safe limit. This can cause serious damage to the engine and the turbocharger or supercharger, as well as affect the performance and drivability of your vehicle. Therefore, it is important to address this code promptly and effectively, and restore your vehicle’s performance and safety.

In this article, we have explained the meaning and causes of the DTC Code P0049, the symptoms that may accompany it, how to diagnose it, how to fix it, and how to prevent it from happening again. By following the steps and tips in this article, you will be able to understand and resolve the DTC Code P0049, and enjoy your vehicle’s performance and efficiency.

If you encounter the DTC Code P0049 or suspect any turbocharger or supercharger-related issues, do not hesitate to seek professional assistance. A qualified mechanic can help you diagnose and fix the problem, and provide you with expert advice and guidance. Contact your local mechanic today, and get your vehicle back on track.
