P0045, P0046, P0047, and P0048: Turbo or Supercharger Boost Control A Circuit

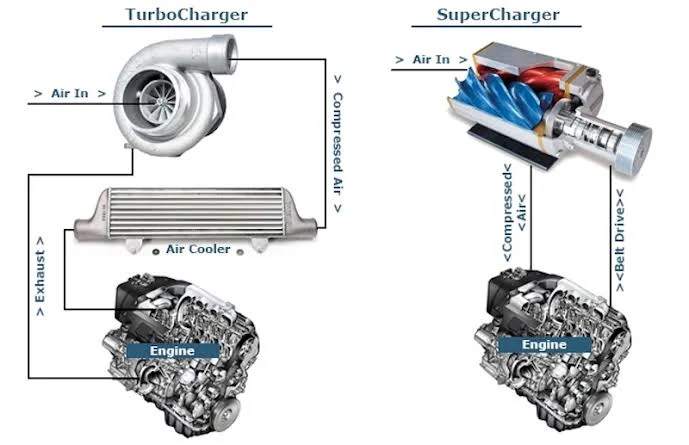

If you are looking for ways to improve your vehicle’s performance, you may have heard of turbochargers and superchargers. These are devices that increase the amount of air and fuel that enter the engine, resulting in more power and efficiency. However, these devices also require a complex system of sensors, valves, and solenoids to regulate the boost pressure, or the amount of air pressure that is generated by the turbocharger or supercharger.

This system is called the boost control circuit, and it is monitored by the vehicle’s computer or control module.

When the boost control circuit detects a problem, it will store a Diagnostic Trouble Code (DTC) in the computer’s memory. A DTC is a code that indicates the type and location of a fault in the vehicle’s system. You can retrieve the DTC by using a scan tool or a code reader, which will display the code on a screen. The code will usually start with a letter followed by four digits, such as P0045.

In this article, we will explain the meaning and causes of four DTC codes that are related to the boost control circuit: P0045, P0046, P0047, and P0048. These codes indicate that there is an issue with the turbocharger or supercharger boost control circuit “A”, which is the primary circuit that controls the boost pressure. By understanding these codes, you will be able to diagnose and fix the problem, and restore your vehicle’s performance.

P0045: Turbo/Supercharger Boost Control A Circuit Open

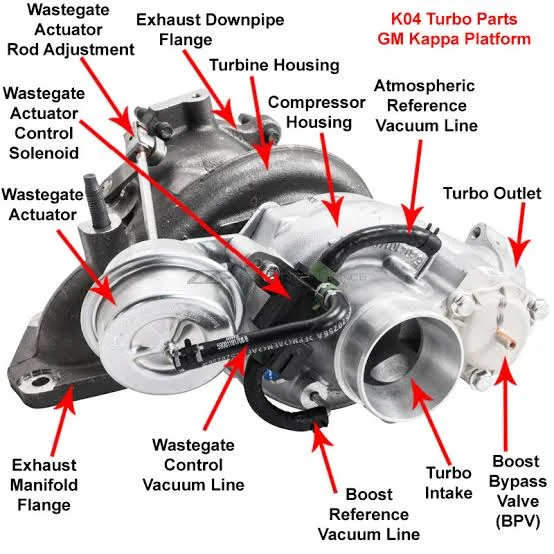

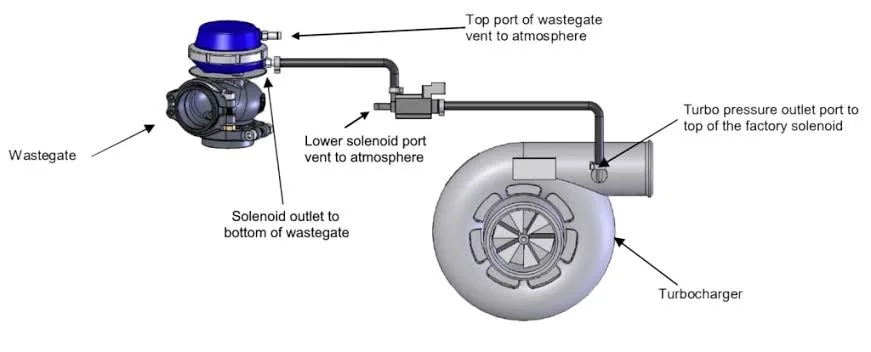

The boost control circuit uses a device called a solenoid to control the flow of pressurized air from the turbocharger or supercharger to the engine. A solenoid is an electromagnet that opens and closes a valve when it receives an electrical signal from the control module. The solenoid regulates the boost pressure by adjusting the position of a wastegate, which is a valve that bypasses some of the exhaust gas from the turbocharger, or a bypass valve, which is a valve that recirculates some of the intake air from the supercharger.

When the control module detects that the boost control circuit “A” is open, it will store the DTC P0045. An open circuit means that there is a break or a disconnection in the electrical wiring that connects the solenoid to the control module. This prevents the solenoid from receiving the signal to operate the wastegate or the bypass valve, resulting in a loss of boost pressure and performance.

Possible causes of an open boost control circuit are:

• Damaged or corroded wiring or connectors in the boost control circuit
• A blown fuse or a faulty relay in the boost control circuit
• A defective or unplugged boost control solenoid
• A faulty boost pressure sensor or a boost control switch
• A malfunctioning control module

P0046: Turbocharger/Supercharger Boost Control “A” Circuit Range/Performance

The boost control circuit is designed to operate within a certain range of boost pressure, depending on the engine’s speed and load. The control module monitors the boost pressure using a sensor, and compares it to the desired or target boost pressure. If the actual boost pressure deviates from the target boost pressure by more than a specified amount, the control module will store the DTC P0046. This code indicates that there is a problem with the range or performance of the boost control circuit “A”.

Possible causes of boost control circuit range/performance issues are:

1. A stuck or malfunctioning wastegate or bypass valve, which prevents the boost pressure from being adjusted properly
2. A defective or misadjusted boost control solenoid, which fails to operate the wastegate or the bypass valve correctly
3. A faulty or contaminated boost pressure sensor, which sends inaccurate or erratic signals to the control module
4. A damaged or restricted intake system, which affects the airflow to the turbocharger or supercharger
5. A faulty or incompatible turbocharger or supercharger, which produces too much or too little boost pressure
6. A software or hardware problem in the control module, which affects the boost control strategy or calculation

P0047: Turbocharger/Supercharger Boost Control “A” Circuit Low

The boost control circuit is designed to maintain a minimum level of boost pressure, depending on the engine’s operating conditions. The control module monitors the boost pressure using a sensor, and compares it to the minimum or threshold boost pressure. If the actual boost pressure falls below the threshold boost pressure, the control module will store the DTC P0047. This code indicates that the boost pressure is too low, which may cause a lack of power and performance.

Possible causes of low boost pressure are:

• Leaks in the intake system, such as hoses, pipes, clamps, or gaskets, which allow the pressurized air to escape
• Damaged or worn turbocharger or supercharger components, such as blades, bearings, or seals, which reduce the efficiency and output of the device
• A faulty or clogged wastegate or bypass valve, which allows too much exhaust gas or intake air to bypass the turbocharger or supercharger
• A defective or misadjusted boost control solenoid, which fails to close the wastegate or the bypass valve properly
• A faulty or contaminated boost pressure sensor, which sends low or inaccurate signals to the control module
• A software or hardware problem in the control module, which affects the boost control strategy or calculation

Diagnosing the cause of low boost pressure and DTC P0047:

1. Check the intake system for any leaks, cracks, or loose connections, and repair or replace any faulty parts
2. Inspect the turbocharger or supercharger for any signs of damage, wear, or contamination, and repair or replace any faulty parts
3. Test the wastegate or bypass valve for proper operation, and adjust or replace it if necessary
4. Test the boost control solenoid for resistance and voltage, and replace it if it is out of specification
5. Test the boost pressure sensor for resistance and voltage, and replace it if it is out of specification
6. Check the control module for any software updates or error codes, and reprogram or replace it if necessary

P0048: Turbocharger/Supercharger Boost Control “A” Circuit High

The boost control circuit is designed to prevent a maximum level of boost pressure, depending on the engine’s operating conditions. The control module monitors the boost pressure using a sensor, and compares it to the maximum or limit boost pressure. If the actual boost pressure exceeds the limit boost pressure, the control module will store the DTC P0048. This code indicates that the boost pressure is too high, which may cause engine damage or malfunction.

Possible causes of high boost pressure are:

• A stuck or malfunctioning wastegate or bypass valve, which prevents the exhaust gas or intake air from bypassing the turbocharger or supercharger
• A defective or misadjusted boost control solenoid, which fails to open the wastegate or the bypass valve properly
• A faulty or contaminated boost pressure sensor, which sends high or inaccurate signals to the control module
• A software or hardware problem in the control module, which affects the boost control strategy or calculation

Diagnosing the causes of high boost pressure and DTC P0048:

• Inspect the wastegate or bypass valve for proper operation, and adjust or replace it if necessary
• Test the boost control solenoid for resistance and voltage, and replace it if it is out of specification
• Test the boost pressure sensor for resistance and voltage, and replace it if it is out of specification
• Check the control module for any software updates or error codes, and reprogram or replace it if necessary

Conclusion

Turbochargers and superchargers are great devices for enhancing your vehicle’s performance, but they also require a sophisticated system of boost control to regulate the boost pressure. If the boost control circuit malfunctions, it will store a DTC code in the computer’s memory, which will help you identify and fix the problem. By understanding the meaning and causes of the four DTC codes related to the boost control circuit: P0045, P0046, P0047, and P0048, you will be able to diagnose and repair the boost control system, and restore your vehicle’s performance.
