Milling Machine Basics: A Complete Guide for Beginners

A milling machine is a machine tool that uses a rotating cutting tool to remove material from a workpiece. Milling machines can perform various operations, such as shaping, drilling, boring, and cutting. Milling machines are widely used in manufacturing, engineering, and hobby applications.

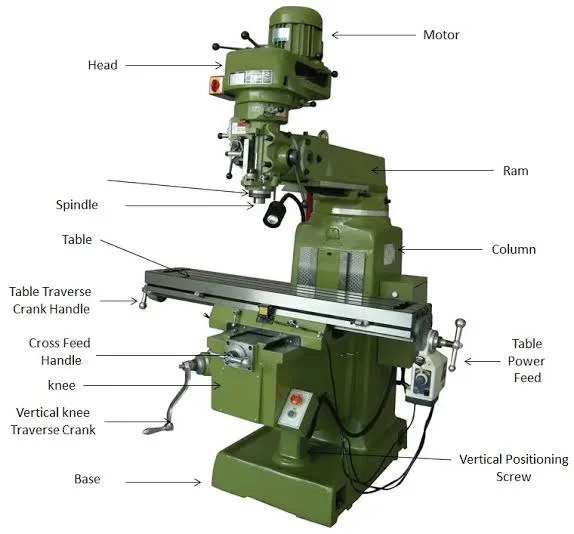

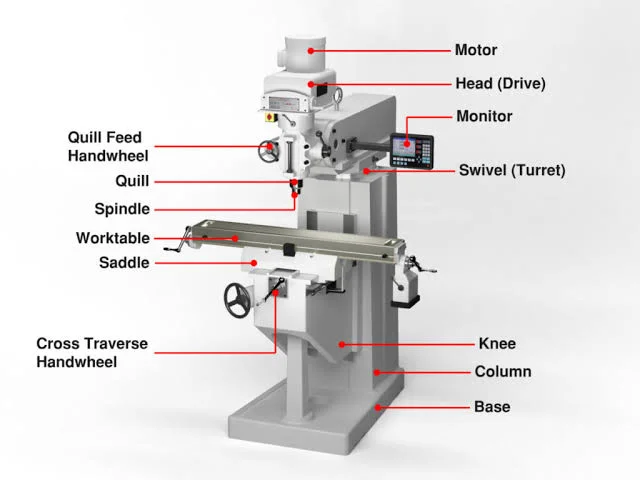

There are different types of milling machines, such as horizontal, vertical, universal, and CNC milling machines. Horizontal milling machines have a spindle that is parallel to the worktable, while vertical milling machines have a spindle that is perpendicular to the worktable. Universal milling machines can rotate the spindle in any direction, while CNC milling machines are controlled by a computer program.

Using a milling machine has many benefits, such as creating precise and complex shapes, reducing waste, and increasing productivity. However, operating a milling machine also requires some safety precautions, such as wearing protective equipment, following instructions, and checking the machine regularly.

If you are a beginner and want to learn how to operate a milling machine, this article will guide you through the basic steps, common operations, troubleshooting tips, and related topics. Let’s get started!

Steps to Operating a Milling Machine

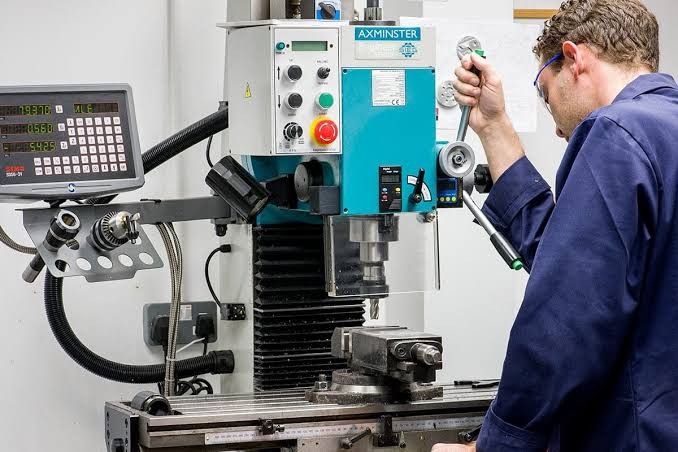

1. Prepare the workpiece. The first step is to secure the workpiece in the milling machine vise. The workpiece is the piece of material that you want to machine. Make sure that the workpiece is properly centered and clamped in place. You can use a dial indicator or a center finder to check the alignment of the workpiece. You can also use a parallel or an angle plate to support the workpiece if needed.

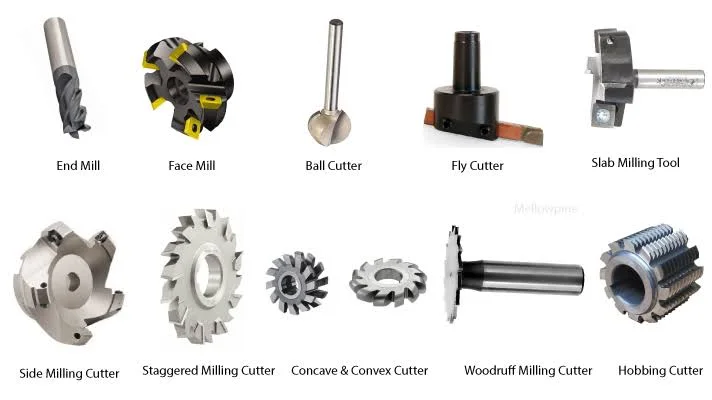

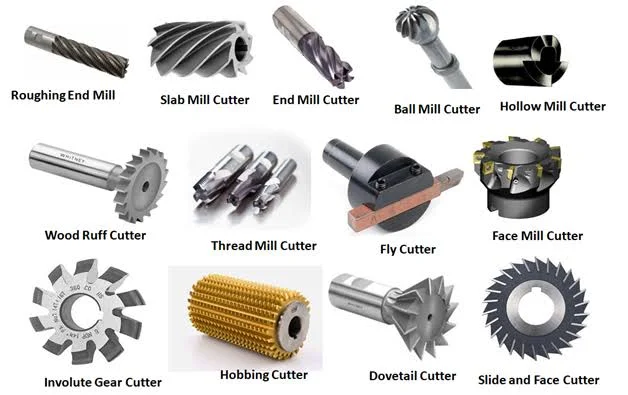

2. Select the appropriate cutting tool. The next step is to choose the correct cutting tool for the material you are machining and the operation you are performing. The cutting tool is the part of the machine that removes material from the workpiece.  There are different types of cutting tools, such as end mills, face mills, drills, reamers, and taps. Each cutting tool has a specific shape, size, and number of teeth. You should select the cutting tool that matches the geometry and dimensions of the workpiece and the desired surface finish and accuracy. You should also check the condition of the cutting tool and make sure that it is sharp and free of damage.
3. Set the milling machine parameters. The third step is to adjust the spindle speed, feed rate, and depth of cut. The spindle speed is the number of revolutions per minute (RPM) that the spindle makes. The feed rate is the speed at which the workpiece moves relative to the cutting tool. The depth of cut is the amount of material that is removed in one pass of the cutting tool. You should set the milling machine parameters according to the specifications of the cutting tool, the material, and the operation. You can use a formula, a chart, or a calculator to determine the optimal values for the spindle speed, feed rate, and depth of cut. You should also use a dial or a digital readout to measure and control the milling machine parameters.
4. Start the milling machine and begin machining. The fourth step is to start the milling machine and begin machining. You should turn on the power switch, the coolant system, and the spindle motor. You should also engage the feed mechanism and the spindle brake.  Then, you should slowly move the cutting tool into the workpiece, following the desired machining path. You can use the handwheel, the power feed, or the CNC controller to move the cutting tool. You should also use a dial or a digital readout to monitor the position and movement of the cutting tool.
5. Monitor the machining process. The fifth step is to monitor the machining process. You should be aware of any changes in the machining process, such as changes in sound, vibration, or cutting force. You should also check the quality and accuracy of the machined surface and the dimensions of the workpiece. You should use a caliper, a micrometer, or a gauge to measure and verify the workpiece. You should also use a magnifying glass, a microscope, or a surface roughness tester to inspect the workpiece. If you notice any problems or errors, you should stop the milling machine and make the necessary adjustments or corrections.
6. Stop the milling machine when finished machining. The last step is to stop the milling machine when finished machining. You should turn off the spindle motor, the coolant system, and the power switch. You should also disengage the feed mechanism and the spindle brake. Then, you should retract the cutting tool and remove the workpiece from the milling machine vise. You should also clean the milling machine and the cutting tool and store them properly.

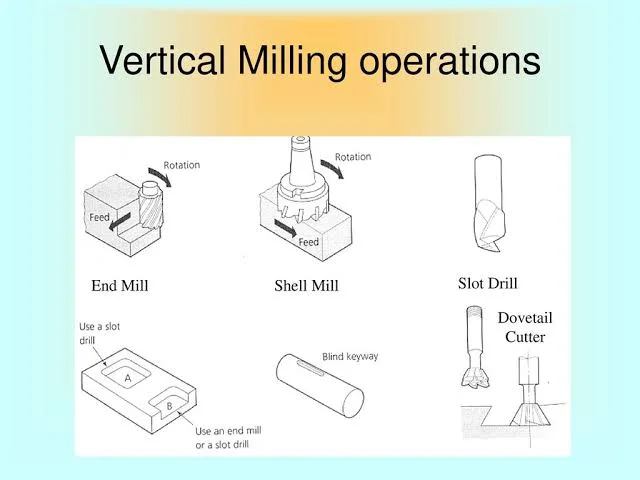

Common Milling Machine Operations

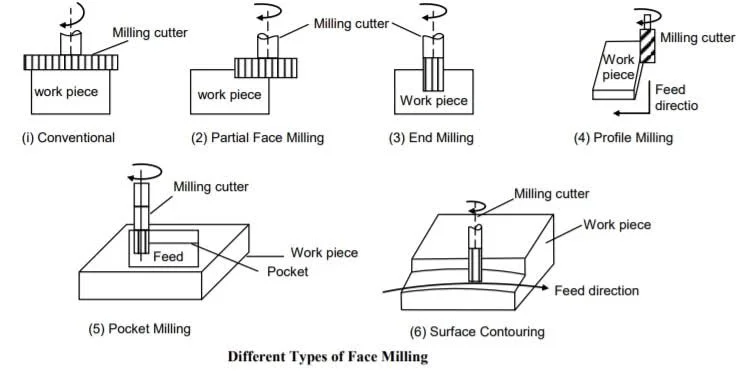

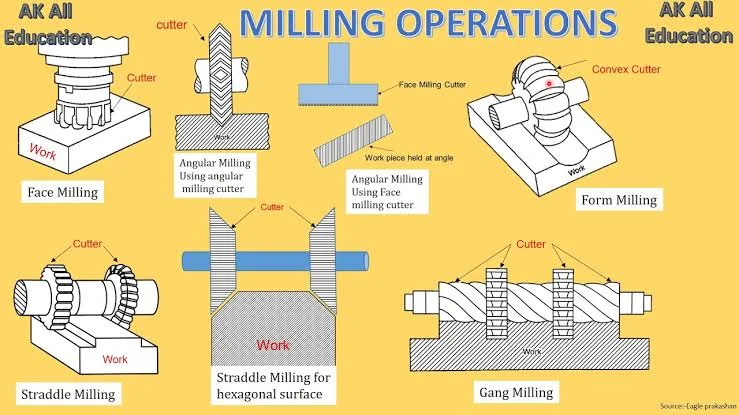

There are many operations that you can perform with a milling machine, such as face milling, end milling, peripheral milling, slotting, parting off, drilling, boring, and reaming. Here are some brief explanations of these operations:

• Face milling is the operation of machining a flat surface on the face of the workpiece. You can use a face mill, which is a large cutting tool with multiple teeth, to perform face milling. Face milling can create a smooth and accurate surface finish.
• End milling is the operation of machining a flat or curved surface on the end of the workpiece. You can use an end mill, which is a small cutting tool with one or more teeth, to perform end milling. End milling can create various shapes and profiles, such as slots, pockets, and contours.
• Peripheral milling is the operation of machining a flat or curved surface on the side of the workpiece. You can use an end mill or a face mill to perform peripheral milling. Peripheral milling can create various shapes and profiles, such as grooves, flutes, and chamfers.
• Slotting is the operation of machining a narrow and deep groove on the workpiece. You can use a slot mill, which is a special type of end mill with two or more teeth, to perform slotting. Slotting can create slots for keys, splines, and dovetails.
• Parting off is the operation of machining a thin and narrow piece of material from the workpiece. You can use a parting tool, which is a special type of cutting tool with a narrow and sharp edge, to perform parting off. Parting off can separate a workpiece into two or more parts.

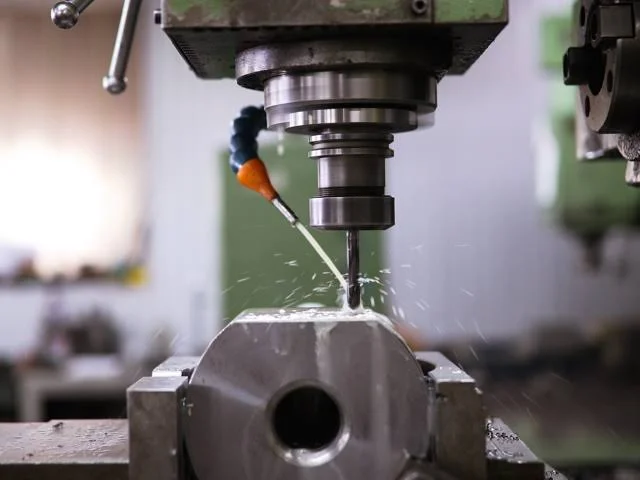

• Drilling is the operation of machining a round hole on the workpiece. You can use a drill, which is a cutting tool with a pointed tip and spiral flutes, to perform drilling. Drilling can create holes for bolts, screws, and pins.
• Boring is the operation of machining a larger and more accurate hole on the workpiece. You can use a boring tool, which is a cutting tool with a single or multiple teeth, to perform boring. Boring can enlarge and improve the quality of existing holes.
• Reaming is the operation of machining a smoother and more precise hole on the workpiece. You can use a reamer, which is a cutting tool with multiple teeth and a tapered end, to perform reaming. Reaming can refine and finish the holes created by drilling or boring.

Troubleshooting Tips

Sometimes, you may encounter some problems or difficulties when operating a milling machine, such as tool breakage, poor surface finish, chatter, vibration, and workpiece movement. Here are some troubleshooting tips to help you solve these problems:

1. Tool breakage is the problem of the cutting tool breaking or cracking during machining. This can be caused by excessive cutting force, improper cutting parameters, poor tool quality, or insufficient coolant. To prevent or fix tool breakage, you should reduce the spindle speed, feed rate, and depth of cut, choose the right cutting tool for the material and operation, check the condition and sharpness of the cutting tool, and use enough coolant to lubricate and cool the cutting tool and the workpiece.
2. Poor surface finish is the problem of the machined surface being rough, uneven, or scratched. This can be caused by dull or damaged cutting tool, incorrect cutting parameters, improper workpiece alignment, or insufficient coolant.  To improve the surface finish, you should sharpen or replace the cutting tool, adjust the spindle speed, feed rate, and depth of cut, center and clamp the workpiece properly, and use enough coolant to flush away the chips and reduce the friction and heat.
3. Chatter is the problem of the cutting tool or the workpiece vibrating or oscillating during machining. This can be caused by loose or worn machine parts, improper cutting parameters, poor tool geometry, or excessive overhang. To eliminate or reduce chatter, you should tighten and check the machine parts, such as the spindle, the vise, and the cutting tool, choose the optimal cutting parameters, such as the spindle speed, feed rate, and depth of cut, select the appropriate tool geometry, such as the rake angle, the clearance angle, and the number of teeth, and minimize the overhang of the cutting tool and the workpiece.
4. Vibration is the problem of the whole machine shaking or rattling during machining. This can be caused by unbalanced or misaligned machine parts, improper cutting parameters, poor machine foundation, or external disturbances. To prevent or minimize vibration, you should balance and align the machine parts, such as the spindle, the motor, and the pulleys, select the suitable cutting parameters, such as the spindle speed, feed rate, and depth of cut, secure and level the machine foundation, and isolate the machine from any external sources of vibration, such as other machines, vehicles, or people.
5. Workpiece movement is the problem of the work piece moving or slipping during machining. This can be caused by insufficient clamping force, improper workpiece geometry, or excessive cutting force. To avoid or correct workpiece movement, you should increase the clamping force, use a suitable workpiece shape and size, and reduce the spindle speed, feed rate, and depth of cut.

Conclusion

Operating a milling machine is not a difficult task, but it requires some knowledge and skills. You should always follow the safety precautions and instructions when using a milling machine. You should also know the basic steps, common operations, troubleshooting tips, and related topics of milling machine operation. By doing so, you can create various products and projects with a milling machine.
