U0020 Low Speed CAN Communication Bus Performance

U0020 Low Speed CAN Communication Bus Performance means that there is a problem with the low speed CAN communication bus in your car. But what does that mean and how can you fix it?

In this article, we will explain everything you need to know about the U0020 DTC code, including:

1. What is the low speed CAN communication bus and how does it work?
2. What are the symptoms and causes of a U0020 DTC code?
3. How can you diagnose and repair a U0020 DTC code?
4. What are some tips for preventing CAN bus problems in the future?
5. What are some common vehicles that experience the U0020 DTC code?

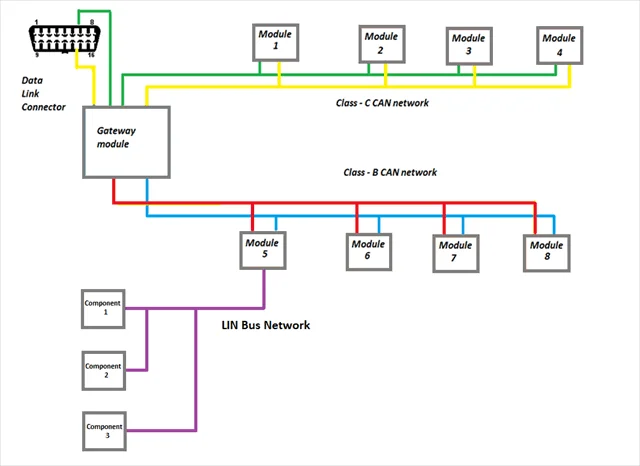

What is the low speed CAN communication bus and how does it work?

The CAN communication bus is a network of wires and modules that allows different parts of your car to communicate with each other. CAN stands for Controller Area Network and it is a standard protocol for data transmission in vehicles.

There are different types of CAN busses in your car, depending on the speed and the function of the data. The low speed CAN bus is one of them and it is used for data that does not require high speed or high priority, such as the door locks, the windows, the seat heaters, the radio, and the air conditioning.

The low speed CAN bus operates at a speed of 125 kbps (kilobits per second) and it uses a single wire with a resistor at each end. The resistor helps to maintain the voltage level and to prevent electrical interference.

The low speed CAN bus connects to different modules in your car, such as the Body Control Module (BCM), the Instrument Panel Cluster (IPC), the Radio, and the Heating, Ventilation, and Air Conditioning (HVAC) module. These modules send and receive data on the low speed CAN bus using a message identifier (ID) and a data field. The message ID is a number that indicates the source and the destination of the data, and the data field is the actual information that is being transmitted.

For example, if you press the button to lock your car doors, the BCM will send a message with a specific ID and a data field that contains the command to lock the doors. The IPC will receive the message and display a confirmation on the dashboard. The Radio will also receive the message and mute the sound. The HVAC module will also receive the message and adjust the temperature accordingly.

What are the symptoms and causes of a U0020 DTC code?

A U0020 DTC code means that there is a performance problem with the low speed CAN communication bus. This means that the data on the low speed CAN bus is not being transmitted or received correctly or in a timely manner. This can cause various problems with the functions and features that are connected to the low speed CAN bus.

Some of the symptoms of a U0020 DTC code are:

• The check engine light may come on.
• The door locks, windows, seat heaters, radio, or air conditioning may not work properly or at all.
• The dashboard may display warning messages or incorrect information.
• The car may not start or stall.

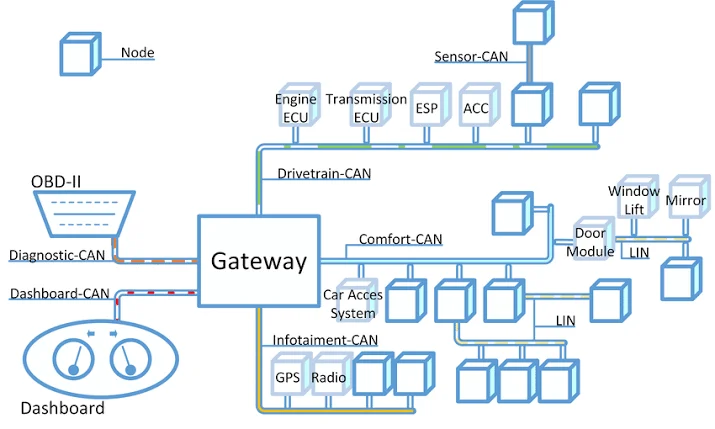

Some of the causes of a U0020 DTC code are:

• Electrical problems: Faulty wiring, blown fuses, or a broken relay can all cause communication problems on the low speed CAN bus. These problems can affect the power supply, the ground connection, or the signal quality of the low speed CAN bus.
• Mechanical problems: A damaged connector or a broken CAN bus line can also cause communication problems. These problems can create an open circuit, a short circuit, or a high resistance on the low speed CAN bus.
• Software problems: A software glitch in one of the modules on the low speed CAN bus can also cause communication problems. This can happen due to a corrupted memory, a faulty update, or a compatibility issue.

How to diagnose a U0020 DTC code

To diagnose a U0020 DTC code, you will need some tools and skills, such as:

• A scan tool that can read and clear DTC codes and display live data from the low speed CAN bus.

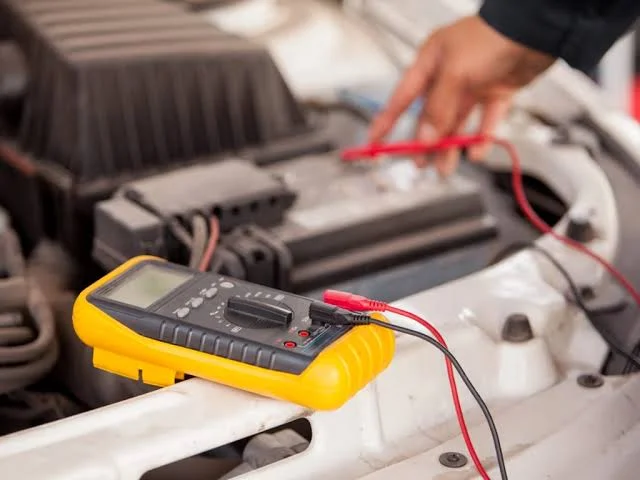

• A multimeter that can measure voltage, resistance, and continuity.
• A wiring diagram that shows the layout and the connections of the low speed CAN bus and the modules.
• A basic knowledge of how the low speed CAN bus and the modules work.

The steps to diagnose a U0020 DTC code are:

• Check the wiring: Inspect the wiring harness for any signs of damage or corrosion. Look for any loose, broken, or frayed wires. Check the fuses and the relays for any signs of overheating or melting. Use the multimeter to test the voltage and the resistance of the wires. Compare the readings with the specifications in the wiring diagram. If you find any abnormal readings, repair or replace the faulty wiring.
• Check the connectors: Make sure that all of the connectors on the low speed CAN bus are properly seated and secure. Look for any bent, broken, or corroded pins. Use the multimeter to test the continuity of the connectors. Compare the readings with the specifications in the wiring diagram. If you find any abnormal readings, repair or replace the faulty connectors.
• Check the CAN bus line: Use the scan tool to test the CAN bus line for any breaks or shorts. The scan tool will display the message ID and the data field of the messages on the low speed CAN bus. You can also use the scan tool to send and receive messages on the low speed CAN bus. If you find any missing or corrupted messages, or if you cannot send or receive messages, there may be a break or a short in the CAN bus line. Use the multimeter to test the resistance of the CAN bus line. Compare the readings with the specifications in the wiring diagram. If you find any abnormal readings, repair or replace the CAN bus line.
• Check the modules: If the wiring, connectors, and CAN bus line are all in good condition, then you will need to test the modules on the low speed CAN bus to see if one of them is causing the communication problem. You can use the scan tool to communicate with each module individually and check their status and data. You can also use the scan tool to perform a self-test on each module and check for any error codes. If you find any faulty or incompatible modules, update the software or replace the module.

How to repair a U0020 DTC code

To repair a U0020 DTC code, you will need to follow the steps below:

• Repair any faulty wiring. If you find any damaged or corroded wires, you will need to splice, solder, or replace them. Make sure to use the correct gauge and color of the wires and to secure them properly. You may also need to replace any blown fuses or broken relays that are related to the low speed CAN bus.
• Replace any damaged connectors. If you find any bent, broken, or corroded pins, you will need to replace the whole connector or the individual pins. Make sure to use the correct type and size of the connectors and to align them correctly. You may also need to clean any dirt or debris from the connectors and apply some dielectric grease to prevent corrosion.
• Repair any breaks or shorts in the CAN bus line. If you find any open or short circuits in the CAN bus line, you will need to locate the exact spot and repair it. You can use a wire stripper, a soldering iron, and some heat shrink tubing to fix the CAN bus line. Make sure to match the color and the polarity of the wires and to insulate them properly. You may also need to reroute the CAN bus line to avoid any sharp edges or heat sources that may damage it.
• Update the software on the module that is causing the communication problem. If you find that one of the modules on the low speed CAN bus is causing the communication problem, you may need to update the software on the module. You can use the scan tool to download and install the latest software version from the manufacturer’s website. Make sure to follow the instructions carefully and to have a stable power supply during the update process. You may also need to reset the module after the update.

Summary

The U0020 DTC code is a common problem that affects the low speed CAN communication bus in your car. It can cause various issues with the functions and features that are connected to the low speed CAN bus, such as the door locks, the windows, the seat heaters, the radio, and the air conditioning. The U0020 DTC code can be caused by electrical, mechanical, or software problems. To diagnose and repair the U0020 DTC code, you will need some tools and skills, such as a scan tool, a multimeter, a wiring diagram, and a basic knowledge of how the low speed CAN bus and the modules work.

Tips for preventing CAN bus problems

To prevent CAN bus problems in the future, you can follow some tips, such as:

• Regularly inspect and maintain your car. Check the wiring, connectors, and CAN bus line for any signs of wear and tear. Replace any damaged or corroded parts as soon as possible. Keep your car clean and dry to prevent dirt and moisture from affecting the electrical components.
• Use quality and compatible parts. When you need to replace or upgrade any parts on the low speed CAN bus, make sure to use quality and compatible parts from reputable brands. Avoid using cheap or counterfeit parts that may not meet the specifications or standards of the low speed CAN bus.
• Avoid modifying or tampering with the low speed CAN bus. Unless you are a professional or an expert, do not attempt to modify or tamper with the low speed CAN bus or the modules. Doing so may cause more problems or damage the low speed CAN bus or the modules. If you need to make any changes or adjustments, consult a mechanic or a technician.

When to see a mechanic

If you are not confident or comfortable with diagnosing and repairing the U0020 DTC code yourself, you should see a mechanic as soon as possible. A mechanic will have the tools and the skills to fix the U0020 DTC code and restore the functions and features of the low speed CAN bus. A mechanic will also be able to advise you on how to prevent the U0020 DTC code from happening again.

Additional Information

Some of the common vehicles that experience the U0020 DTC code are:

1. Ford F-150
2. Chevrolet Silverado
3. Dodge Ram
4. Toyota Camry
5. Honda Accord
