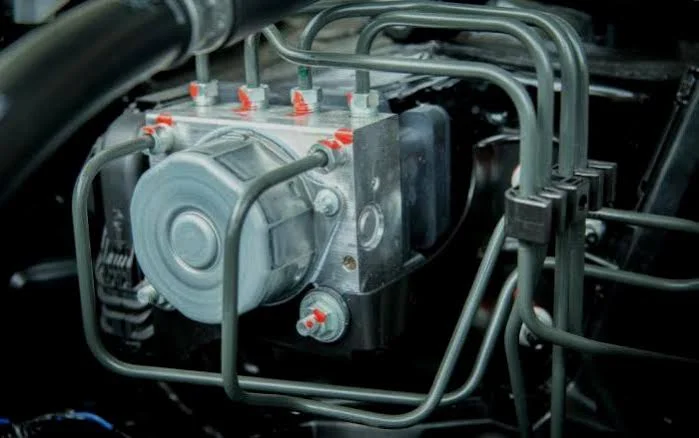

C0110 - Pump Motor Circuit Malfunction

A pump motor circuit malfunction (DTC code C0110) is a common problem that can affect your ABS system and your braking performance. It means that there is a problem in the electrical connection between the pump motor and the ABS control module. The pump motor is the part that creates the pressure that controls the brakes. If the pump motor fails, the ABS system will not work properly.

Do you know what the ABS light on your dashboard means? It means that there is a problem with your anti-lock braking system (ABS). The ABS is a very important feature that helps you stop your car safely and quickly. It does this by using a pump motor to create pressure that controls the brakes.

But what if the pump motor stops working? This can cause a serious problem for your ABS and your braking performance. You may see a code called DTC C0110 on your scanner. This code means that there is a malfunction in the pump motor circuit. In this article, we will explain what this code means, what causes it, how to diagnose it, how to fix it, and how to prevent it.

What is DTC Code C0110?

DTC code C0110 is a generic diagnostic trouble code (DTC) that is used by most vehicles manufactured after 1996. It indicates that the anti-lock braking system (ABS) control module has detected a malfunction in the pump motor circuit. The pump motor circuit is the electrical connection between the pump motor and the ABS control module.

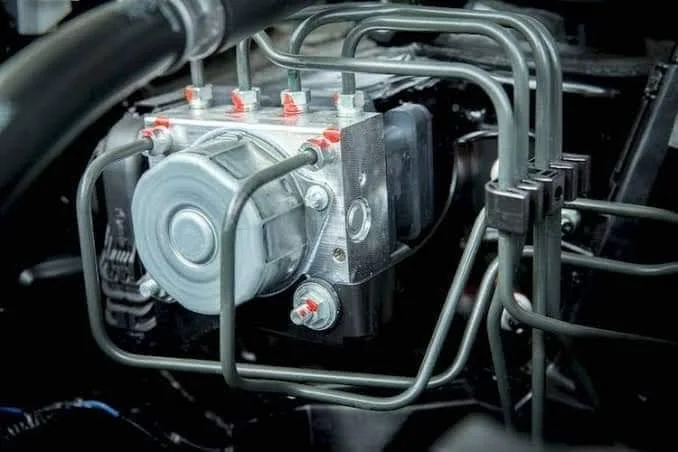

The ABS pump motor is responsible for creating the hydraulic pressure that is needed to operate the ABS system. If the pump motor fails, the ABS system will not be able to function properly. This can affect your braking performance and safety.

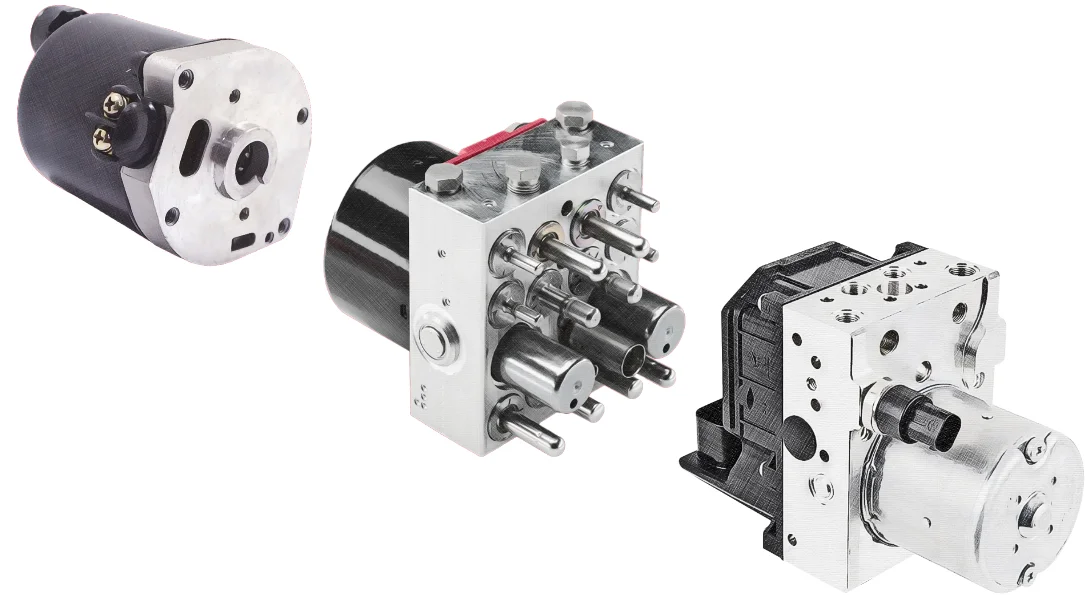

What are the Symptoms of a Pump Motor Circuit Malfunction?

The symptoms of a pump motor circuit malfunction can vary depending on the make and model of your vehicle. However, some common symptoms include:

1. Illuminated ABS warning light: This is the most obvious sign that there is something wrong with your ABS system. The ABS light will turn on when the ABS control module detects a problem in the pump motor circuit. The light may stay on or flash depending on the severity of the problem.
2. Reduced braking performance: If the pump motor fails, the ABS system will not be able to create the necessary pressure to control the brakes. This can result in longer stopping distances, increased brake pedal effort, or brake lock-up. You may also feel a pulsation or vibration in the brake pedal when you apply the brakes.
3. Abnormal noises coming from the ABS system: If the pump motor is damaged or shorted, it may make a loud or grinding noise when it operates. You may hear this noise when you start the engine, when you apply the brakes, or when you turn off the ignition.

If you experience any of these symptoms, it is important to have your ABS system diagnosed by a qualified mechanic as soon as possible. Driving with a faulty ABS system can be dangerous and may cause further damage to your vehicle.

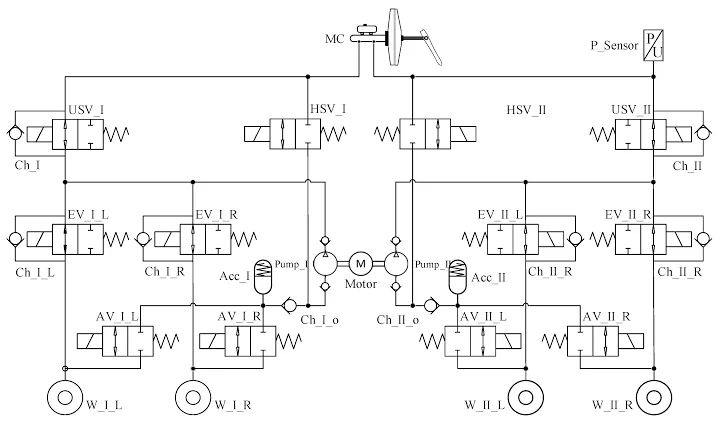

What are the Causes of a Pump Motor Circuit Malfunction?

There are several possible causes of a pump motor circuit malfunction. Some of the most common causes are:

• Faulty pump motor: The pump motor may fail due to wear and tear, overheating, water intrusion, or physical damage. A faulty pump motor may not create enough pressure, create too much pressure, or not work at all.
• Faulty ABS control module: The ABS control module is the computer that controls the ABS system. It monitors the wheel speed sensors, the brake pedal switch, and the pump motor circuit. If the ABS control module is damaged or corrupted, it may not be able to communicate with the pump motor or send the correct signals to the pump motor.
• Faulty wiring harness: The wiring harness is the bundle of wires that connects the pump motor to the ABS control module. If the wiring harness is damaged, corroded, or loose, it may cause a short circuit, an open circuit, or a poor connection in the pump motor circuit. This can prevent the pump motor from receiving or sending the correct signals to the ABS control module.
• Corrosion or damage to electrical connectors: The electrical connectors are the plugs that connect the wiring harness to the pump motor and the ABS control module. If the electrical connectors are corroded, dirty, or damaged, they may cause a poor connection or a loss of contact in the pump motor circuit. This can affect the communication and the power supply between the pump motor and the ABS control module.
• Low brake fluid level: The brake fluid is the liquid that transfers the pressure from the pump motor to the brake calipers. If the brake fluid level is low, it may cause air to enter the ABS system. This can reduce the pressure and the effectiveness of the ABS system.

How to Diagnose a Pump Motor Circuit Malfunction?

To diagnose a pump motor circuit malfunction, you will need a scanner that can read ABS codes. You will also need a multimeter, a test light, and a wiring diagram of the ABS system. Here are the steps to diagnose a pump motor circuit malfunction:

• Step 1: Scan the ABS system for codes. Connect the scanner to the diagnostic port of your vehicle and turn on the ignition. Follow the instructions on the scanner to read the ABS codes. If you see the code C0110, it means that there is a malfunction in the pump motor circuit. You may also see other codes related to the ABS system, such as wheel speed sensor codes or brake pedal switch codes. Note down all the codes and clear them from the memory.
• Step 2: Inspect the ABS control module for damage or corrosion. Locate the ABS control module under the hood or under the dashboard of your vehicle. Check the module for any signs of physical damage, water intrusion, or corrosion. If the module is damaged or corroded, it may need to be replaced.
• Step 3: Check the wiring harness for damage or corrosion. Follow the wiring harness from the ABS control module to the pump motor. Check the wires for any signs of damage, such as cuts, frays, burns, or melted insulation. Also check the wires for any signs of corrosion, such as green or white deposits, rust, or moisture. If the wiring harness is damaged or corroded, it may need to be repaired or replaced.
• Step 4: Check the electrical connectors for corrosion or damage. Disconnect the electrical connectors from the pump motor and the ABS control module. Check the connectors for any signs of corrosion, dirt, or damage. Also check the pins and sockets for any signs of bending, breaking, or melting. If the electrical connectors are corroded or damaged, they may need to be cleaned or replaced.
• Step 5: Check the brake fluid level. Locate the brake fluid reservoir under the hood of your vehicle. Check the fluid level and make sure it is between the minimum and maximum marks. If the fluid level is low, top it off with the correct type of brake fluid for your vehicle. Do not overfill the reservoir. If the fluid level is too low, check for any leaks in the brake system.
• Step 6: Test the pump motor for continuity. Reconnect the electrical connectors to the pump motor and the ABS control module. Set the multimeter to the ohms setting and connect the probes to the terminals of the pump motor. The pump motor should have a resistance of about 1 to 2 ohms. If the resistance is too high or too low, it means that the pump motor is faulty and needs to be replaced.

How to Fix a Pump Motor Circuit Malfunction?

To fix a pump motor circuit malfunction, you will need to replace the faulty component that is causing the problem. Depending on the cause of the malfunction, you may need to replace the pump motor, the ABS control module, the wiring harness, or the electrical connectors. You may also need to top off the brake fluid if it is low. Here are the steps to fix a pump motor circuit malfunction:

• Step 1: Replace the faulty pump motor. Disconnect the electrical connectors from the pump motor and the ABS control module. Remove the bolts or screws that secure the pump motor to the vehicle. Remove the pump motor and install the new one. Secure the pump motor with the bolts or screws and reconnect the electrical connectors.
• Step 2: Replace the faulty ABS control module. Disconnect the electrical connectors from the ABS control module. Remove the bolts or screws that secure the ABS control module to the vehicle. Remove the ABS control module and install the new one. Secure the ABS control module with the bolts or screws and reconnect the electrical connectors.
• Step 3: Repair or replace the faulty wiring harness. Disconnect the electrical connectors from the pump motor and the ABS control module. Follow the wiring harness from the ABS control module to the pump motor. Repair any damaged or corroded wires by splicing, soldering, or crimping. Replace any wires that are beyond repair. Reconnect the electrical connectors to the pump motor and the ABS control module.
• Step 4: Clean or replace the corroded or damaged electrical connectors. Disconnect the electrical connectors from the pump motor and the ABS control module. Clean any corrosion or dirt from the connectors with a wire brush, a contact cleaner, or a baking soda solution. Replace any connectors that are damaged or broken. Reconnect the electrical connectors to the pump motor and the ABS control module.
• Step 5: Top off the brake fluid. Locate the brake fluid reservoir under the hood of your vehicle. Check the fluid level and make sure it is between the minimum and maximum marks. If the fluid level is low, top it off with the correct type of brake fluid for your vehicle. Do not overfill the reservoir.

How to Prevent a Pump Motor Circuit Malfunction?

To prevent a pump motor circuit malfunction, you should inspect and maintain your ABS system regularly. Here are some tips to prevent a pump motor circuit malfunction:

• Inspect the ABS system for damage or corrosion: Check the ABS control module, the pump motor, the wiring harness, and the electrical connectors for any signs of physical damage, water intrusion, or corrosion. If you notice any damage or corrosion, have it repaired or replaced by a qualified mechanic.
• Keep the brake fluid level topped off: Check the brake fluid level regularly and make sure it is between the minimum and maximum marks. If the fluid level is low, top it off with the correct type of brake fluid for your vehicle. Do not overfill the reservoir. Low brake fluid level can cause air to enter the ABS system and reduce the pressure and the effectiveness of the ABS system.
• Have the ABS system serviced regularly by a qualified mechanic: Have your ABS system checked and serviced at least once a year or according to the manufacturer’s recommendations. A qualified mechanic can perform a thorough inspection and diagnosis of the ABS system and fix any problems before they become serious. A regular service can also help extend the life and performance of the ABS system.

Conclusion

A pump motor circuit malfunction (DTC code C0110) is a common problem that can affect your ABS system and your braking performance. It means that there is a problem in the electrical connection between the pump motor and the ABS control module. The pump motor is the part that creates the pressure that controls the brakes. If the pump motor fails, the ABS system will not work properly.

The symptoms of a pump motor circuit malfunction can include an illuminated ABS warning light, reduced braking performance, and abnormal noises coming from the ABS system. The causes of a pump motor circuit malfunction can include a faulty pump motor, a faulty ABS control module, a faulty wiring harness, corrosion or damage to electrical connectors, or a low brake fluid level.

To fix a pump motor circuit malfunction, you will need to replace the faulty component that is causing the problem. You may also need to top off the brake fluid if it is low. To prevent a pump motor circuit malfunction, you should inspect and maintain your ABS system regularly. You should also have your ABS system serviced by a qualified mechanic at least once a year or according to the manufacturer’s recommendations.
