Decoding the Engine Control Unit (ECU): Inputs, Outputs, and Sensor Interactions
In the world of automotive technology, understanding the Engine Control Unit (ECU) is crucial. This article explores the intricate web of inputs, outputs, and sensor interactions, decoding the secrets behind optimal engine performance.
An Engine Control Unit (ECU) is an electronic control module that manages the functions of the engine and its components in a modern vehicle. Here is some information on its inputs, outputs, and how different sensors work together in point form:

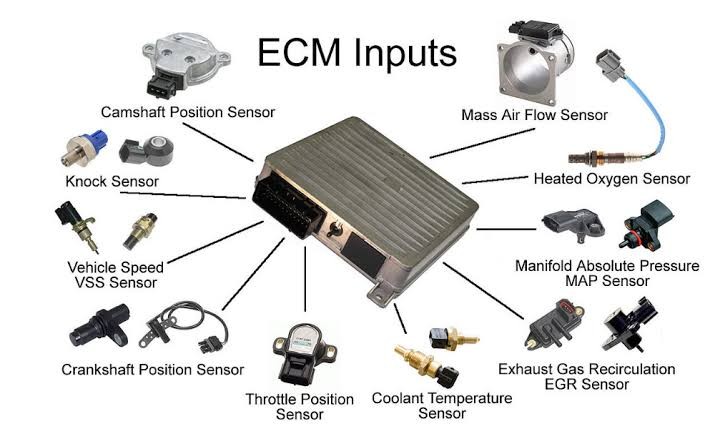

Inputs to the ECU:
- Throttle position sensor (TPS) measures the position of the accelerator pedal to determine how much fuel and air the engine needs.
- Mass airflow sensor (MAF) measures the amount of air entering the engine to adjust the fuel injection accordingly.
- Oxygen sensor (O2) measures the amount of oxygen in the exhaust to help regulate the air-to-fuel ratio.
- Coolant temperature sensor (CTS) monitors the temperature of the engine coolant to adjust the fuel injection and ignition timing.
- Crankshaft position sensor (CKP) detects the position and speed of the crankshaft to determine ignition timing and fuel injection timing.
Outputs from the ECU:
- Fuel injectors to deliver fuel to the engine.
- Ignition coils to generate the spark needed to ignite the fuel mixture.
- Idle air control (IAC) valve to control the amount of air entering the engine at idle.
- Variable valve timing (VVT) system to adjust the timing of the intake and exhaust valves for optimal performance.
- Transmission control module (TCM) to control the shifting of the automatic transmission.
How different sensors work together:
- The TPS and MAF sensors work together to determine how much fuel and air the engine needs at any given time.
- The O2 sensor helps regulate the air-to-fuel ratio by providing feedback to the ECU on the amount of oxygen in the exhaust.
- The CTS helps the ECU adjust the fuel injection and ignition timing based on the engine temperature.
- The CKP sensor provides the ECU with information on the position and speed of the crankshaft to optimize ignition and fuel injection timing.
- All of these sensors work together to help the ECU manage the engine's performance, ensuring optimal fuel efficiency, power output, and emissions.
In summary, the ECU is a critical component of a modern vehicle that manages the engine's performance through a variety of sensors and output devices. The inputs to the ECU include sensors that measure the throttle position, airflow, oxygen level, engine temperature, and crankshaft position. The outputs from the ECU control the fuel injectors, ignition coils, idle air control valve, variable valve timing system, and transmission control module. These sensors and outputs work together to ensure the engine runs smoothly and efficiently.
