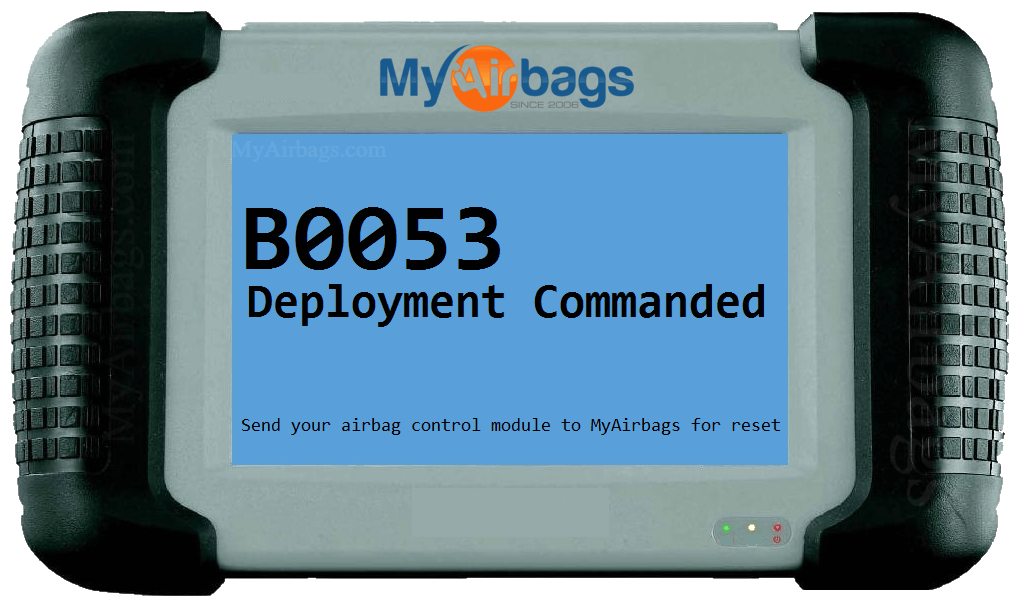

B0053: Deployment Commanded with Loop Malfunctions Present

DTC code B0053 is related to the deployment commanded with loop malfunctions present. The deployment commanded means that the airbag control module has detected a collision or a malfunction in the airbag system and has commanded one or more airbags to deploy. The loop malfunctions present means that there are problems in the circuits that connect the airbag control module to the airbag modules.

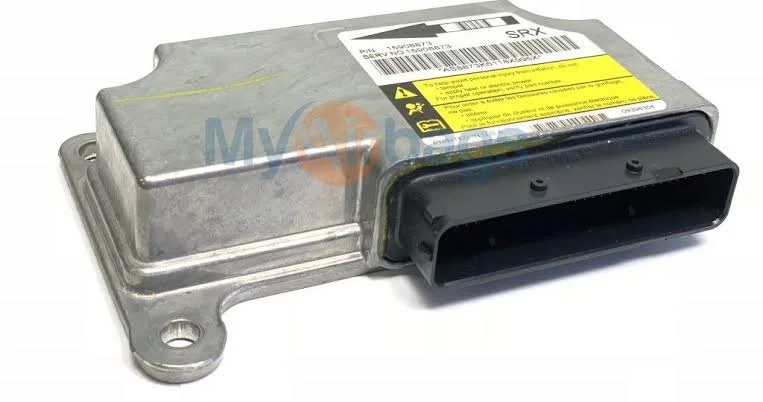

The airbag control module is the device that controls the deployment of the airbags in your car. The airbags are safety features that inflate when the airbag control module detects a collision. The airbags help protect you and your passengers from injuries by cushioning the impact.

The airbag control module works by receiving signals from various sensors in your car, such as the impact sensors, the seat belt sensors, the occupant classification sensors, and the rollover sensors. Based on these signals, the airbag control module decides which airbags to deploy and how fast to deploy them.

The airbag control module also stores the DTC codes when it detects a problem in the airbag system. DTC code B0053 indicates that the airbag control module has commanded the deployment of one or more airbags but there are loop malfunctions present in the airbag system. This means that there are abnormal electrical conditions in the circuits that prevent the proper operation of one or more airbag modules.

What does it mean when the Airbag Deployment System is Commanded but there are Loop Malfunctions Present?

When the airbag deployment system is commanded but there are loop malfunctions present, it means that there is a serious problem in the airbag system that can affect your safety in case of a collision. Depending on the type and location of the loop malfunctions, one or more of the following scenarios may occur:

1. No deployment or delayed deployment of one or more airbags: This means that one or more airbags will not inflate or will inflate too late when a collision occurs. This can result in severe injuries or even death for you and your passengers.
2. False deployment or continuous deployment of one or more airbags: This means that one or more airbags will inflate without a collision or will keep inflating after a collision. This can cause injuries, damage to your car, and fire hazards.
3. Incorrect deployment of one or more airbags: This means that one or more airbags will inflate with too much or too little force, or at the wrong angle or direction. This can cause injuries and reduce the effectiveness of the airbags.

What are the Symptoms of DTC Code B0053?

Some of the common symptoms of DTC code B0053 are:

• Check engine light or airbag warning light on

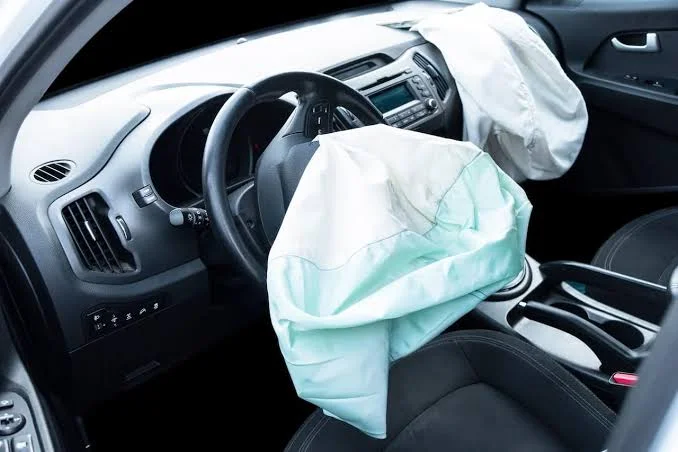

• One or more deployed airbags
• No deployment or delayed deployment of one or more airbags
• False deployment or continuous deployment of one or more airbags
• Incorrect deployment of one or more airbags
• Other DTC codes related to the airbag system

These symptoms may vary depending on the severity and frequency of the problem. In some cases, you may not notice any symptoms at all until your car fails an inspection or test.

What are the Causes of DTC Code B0053?

Some of the possible causes of DTC code B0053 are:

• Faulty airbag control module: The airbag control module is the device that controls the deployment of the airbags in your car. If the airbag control module is damaged or malfunctioning, it may command the deployment of one or more airbags but fail to communicate with the airbag modules properly. This can result in loop malfunctions in the airbag system.
• Damaged or corroded wiring or connectors in the airbag system: The wiring and connectors in the airbag system are responsible for transmitting the signals between the airbag control module and the airbag modules. If the wiring or connectors are damaged or corroded, they may cause a short circuit, an open circuit, or a voltage drop in the airbag system. This can interfere with the communication and operation of the airbag modules and cause loop malfunctions.
• Loose or broken ground wire in the airbag system: The ground wire in the airbag system is responsible for providing a stable and consistent electrical connection between the airbag control module and the chassis of your car. If the ground wire is loose or broken, it may cause a poor ground connection or a voltage fluctuation in the airbag system. This can affect the performance and accuracy of the airbag modules and cause loop malfunctions.
• Blown fuse in the airbag system: The fuse in the airbag system is responsible for protecting the electrical components of the airbag system from overcurrent or short circuit. If the fuse is blown, it may cut off the power supply to one or more components of the airbag system. This can prevent the proper operation and communication of the airbag modules and cause loop malfunctions.
• Faulty sensor in the airbag system: The sensor in the airbag system is responsible for detecting various conditions and parameters related to a collision, such as the impact force, the seat belt status, the occupant position, and the vehicle rollover. If the sensor is faulty, it may send incorrect or inconsistent signals to the airbag control module. This can cause the airbag control module to command an inappropriate or unnecessary deployment of one or more airbags and cause loop malfunctions.

These causes may be due to normal wear and tear, exposure to heat or moisture, physical damage, or electrical interference. In some cases, these DTC codes may be triggered by other problems in your car that affect the operation of the airbag control module.

How to Diagnose DTC Code B0053

To diagnose DTC code B0053, you will need some tools and equipment such as:

1. A scan tool or code reader
2. A digital multimeter
3. A wiring diagram of your car
4. A repair manual of your car

The diagnosis process involves the following steps:

• Connect the scan tool or code reader to your car’s diagnostic port and retrieve the DTC codes and freeze frame data. Freeze frame data is a snapshot of the car’s condition when the DTC code was set. It can help you identify the possible causes and conditions of the problem.
• Clear the DTC codes and test drive your car to see if they come back. If they do not come back, the problem may be intermittent or resolved. If they do come back, proceed to the next step.
• Locate the airbag module and its components on your car. Refer to the wiring diagram and repair manual of your car for guidance.
• Inspect the airbag module and its wiring and connectors for any signs of damage, corrosion, loose connections, or broken wires. Repair or replace any faulty components as needed.
• Test the airbag module for proper operation using the scan tool or code reader. Refer to the repair manual of your car for the specifications and procedures. If there is any fault in the airbag module, replace it.
• Test the wiring and connectors in the airbag system for continuity and voltage using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any open or short circuit, repair or replace the wiring or connectors as needed.
• Test the ground wire in the airbag system for continuity and resistance using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any open or high resistance, repair or replace the ground wire as needed.
• Test the fuse in the airbag system for continuity and voltage using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any blown fuse, replace it.
• Test the sensors in the airbag system for proper operation using the scan tool or code reader. Refer to the repair manual of your car for the specifications and procedures. If there is any fault in the sensors, replace them.
• Clear the DTC codes and test drive your car to see if they come back. If they do not come back, you have successfully diagnosed and repaired DTC code B0053. If they do come back, you may have missed something or there may be another problem in your car that requires further diagnosis.

How to Fix DTC Code B0053

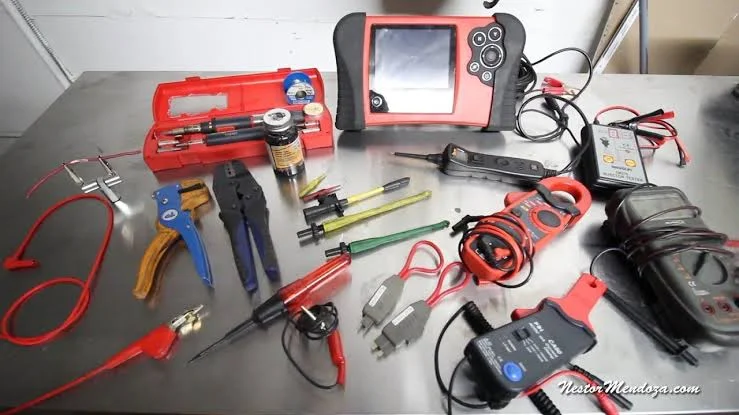

To fix DTC code B0053, you will need some parts and tools such as:

1. A new airbag module
2. A new fuse
3. A new sensor
4. A scan tool or code reader
5. A digital multimeter
6. A wiring diagram of your car
7. A repair manual of your car
8. Basic hand tools

The repair process involves the following steps:

Disconnect the negative battery cable to prevent any electrical shocks or damage.

• Remove any components that may obstruct access to the airbag module and its components on your car. Refer to the repair manual of your car for guidance.
• Disconnect the electrical connector from the airbag module.
• Remove the mounting bolts or screws that secure the airbag module to the dashboard.
• Remove the airbag module from the dashboard.
• Install a new airbag module in reverse order of removal.
• Reconnect the electrical connector to the airbag module.
• Reinstall any components that were removed earlier.
• Replace any blown fuse in the airbag system with a new one of the same rating.
• Replace any faulty sensor in the airbag system with a new one that is compatible with your car’s make and model.
• Reconnect the negative battery cable.
• Clear any DTC codes using a scan tool or code reader.
• Test drive your car to see if DTC code B0053 is resolved.

Safety Precautions

Before you attempt to fix DTC code B0053, you should take some important safety precautions to avoid any injuries or damage to your car. Some of these precautions are:

1. Wear protective gloves, goggles, and clothing when working on the airbag system.
2. Disable the airbag system by disconnecting the negative battery cable and waiting for at least 10 minutes before working on the airbag module or its components.
3. Do not touch or tamper with the airbag module or its components while they are connected to the battery or the ignition is on.
4. Do not use any electrical test equipment or devices on the airbag module or its components.
5. Do not expose the airbag module or its components to heat, moisture, or direct sunlight.
6. Do not drop, hit, or shake the airbag module or its components.
7. Do not attempt to repair an airbag module or its components. Always replace them with new ones.
8. Dispose of any deployed or damaged airbag module or its components according to your local regulations.

Conclusion

DTC code B0053 is related to the deployment commanded with loop malfunctions present. This code indicates that the airbag control module has detected a collision or a malfunction in the airbag system and has commanded one or more airbags to deploy but there are loop malfunctions present in the airbag system. This can affect your safety in case of a collision.

Some of the symptoms of this code are check engine light or airbag warning light on, one or more deployed airbags, no deployment or delayed deployment of one or more airbags, false deployment or continuous deployment of one or more airbags, incorrect deployment of one or more airbags, and other DTC codes related to the airbag system.

Some of the causes of this code are faulty airbag control module, damaged or corroded wiring or connectors in the airbag system, loose or broken ground wire in the airbag system, blown fuse in the airbag system, and faulty sensor in the airbag system.

To diagnose and fix this code, you will need some tools and equipment such as a scan tool or code reader, a digital multimeter, a wiring diagram of your car, a repair manual of your car, basic hand tools, and some parts such as a new airbag module, a new fuse, and a new sensor. You will also need to follow some safety precautions when working on the airbag system.
