B0045: Left Front Side Deploy Loop Short to Ground or Voltage Out of Range

DTC B0045 is related to the left front side deploy loop. The left front side deploy loop is part of the airbag system in your car. The airbag system is a safety feature that protects you and your passengers from injuries in case of a collision. The airbag system consists of several components, such as the airbag modules, the sensors, the wiring, and the control unit.

The left front side deploy loop is the circuit that connects the left front side airbag module to the control unit. The left front side airbag module is located in the left front door panel. It contains an inflatable bag that deploys when the control unit detects a side impact.

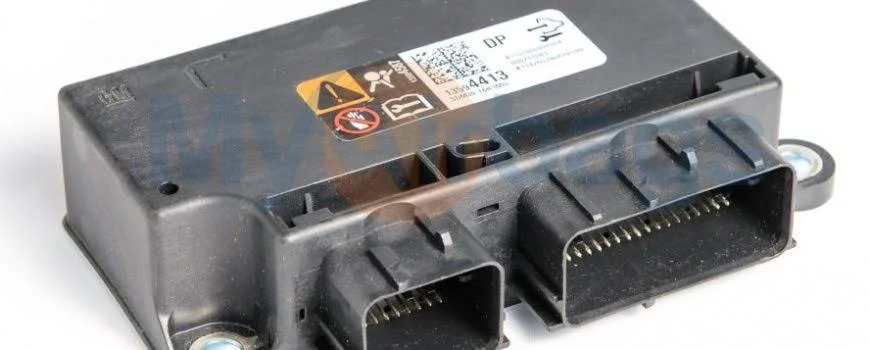

The control unit is the brain of the airbag system. It monitors the signals from the sensors and decides when to deploy the airbags. The control unit also stores the DTC codes when it detects a problem in the airbag system.

DTC B0045 indicates that there is a short to ground or voltage out of range in the left front side deploy loop. This means that there is an abnormal electrical condition in the circuit that prevents the proper operation of the left front side airbag module. This can affect your safety in case of a collision.

What are the Symptoms of DTC B0045?

Some of the common symptoms of DTC B0045 are:

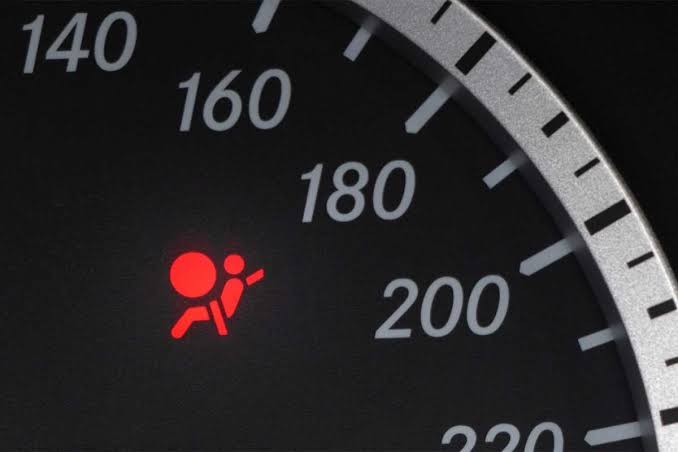

• Check engine light or airbag warning light on
• No deployment or delayed deployment of the left front side airbag in case of a collision
• False deployment or continuous deployment of the left front side airbag
• Other DTC codes related to the airbag system

These symptoms may vary depending on the severity and frequency of the problem. In some cases, you may not notice any symptoms at all until your car fails an inspection or test.

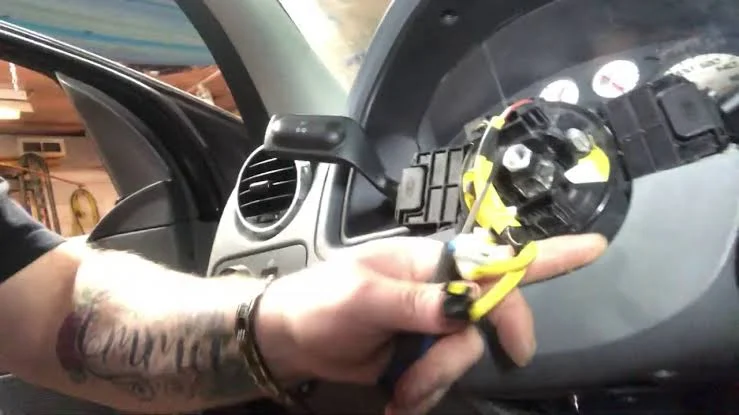

What are the Causes of DTC B0045?

Some of the possible causes of DTC B0045 are:

• Faulty left front side airbag module
• Damaged or corroded wiring or connectors in the left front side deploy loop
• Loose or broken ground wire in the left front side deploy loop
• Blown fuse in the left front side deploy loop
• Faulty control unit

These causes may be due to normal wear and tear, exposure to heat or moisture, physical damage, or electrical interference. In some cases, these DTC codes may be triggered by other problems in your car that affect the operation of the airbag system.

How to Diagnose DTC B0045

To diagnose DTC B0045, you will need some tools and equipment such as:

• A scan tool or code reader
• A digital multimeter
• A wiring diagram of your car
• A repair manual of your car

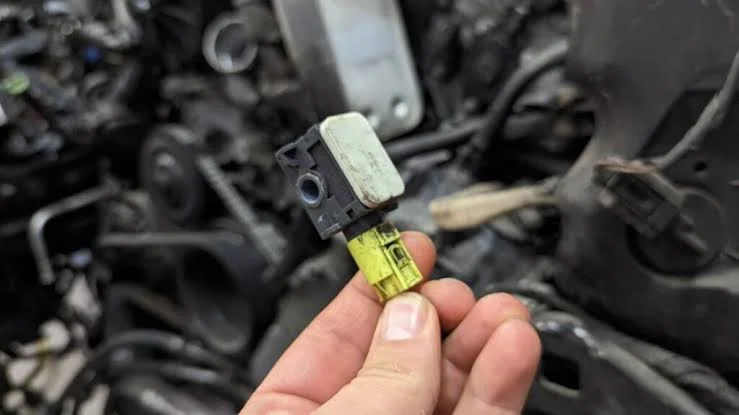

The diagnosis process involves the following steps:

• Connect the scan tool or code reader to your car’s diagnostic port and retrieve the DTC codes and freeze frame data. Freeze frame data is a snapshot of the car’s condition when the DTC code was set. It can help you identify the possible causes and conditions of the problem.
• Clear the DTC codes and test drive your car to see if they come back. If they do not come back, the problem may be intermittent or resolved. If they do come back, proceed to the next step.
• Locate the left front side deploy loop and its components on your car. Refer to the wiring diagram and repair manual of your car for guidance.
• Inspect the left front side airbag module and its wiring and connectors for any signs of damage, corrosion, loose connections, or broken wires. Repair or replace any faulty components as needed.
• Test the left front side airbag module for resistance and operation using the digital multimeter. Refer to the repair manual of your car for the specifications and procedures. If the module is out of range or does not operate properly, replace it.
• Test the wiring and connectors in the left front side deploy loop for continuity and voltage using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any open or short circuit, repair or replace the wiring or connectors as needed.
• Test the ground wire in the left front side deploy loop for continuity and resistance using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any open or high resistance, repair or replace the ground wire as needed.
• Test the fuse in the left front side deploy loop for continuity and voltage using the digital multimeter. Refer to the wiring diagram and repair manual of your car for the specifications and procedures. If there is any blown fuse, replace it.
• Test the control unit for proper operation using the scan tool or code reader. Refer to the repair manual of your car for the specifications and procedures. If there is any fault in the control unit, replace it.
• Clear the DTC codes and test drive your car to see if they come back. If they do not come back, you have successfully diagnosed and repaired DTC B0045. If they do come back, you may have missed something or there may be another problem in your car that requires further diagnosis.

How to Fix DTC B0045

To fix DTC B0045, you will need some parts and tools such as:

• A new left front side airbag module
• A new fuse
• A new control unit
• A scan tool or code reader
• A digital multimeter
• A wiring diagram of your car
• A repair manual of your car
• Basic hand tools

The repair process involves the following steps:

• Disconnect the negative battery cable to prevent any electrical shocks or damage.
• Remove any components that may obstruct access to the left front side deploy loop and its components on your car. Refer to the repair manual of your car for guidance.
• Disconnect the electrical connector from the left front side airbag module.
• Remove the mounting bolts or screws that secure the left front side airbag module to the door panel.
• Remove the left front side airbag module from the door panel.
• Install a new left front side airbag module in reverse order of removal.
• Reconnect the electrical connector to the left front side airbag module.
• Reinstall any components that were removed earlier.
• Replace any blown fuse in the left front side deploy loop with a new one of the same rating.
• Replace any faulty control unit with a new one that is compatible with your car’s make and model.
• Reconnect the negative battery cable.
• Clear any DTC codes using a scan tool or code reader.
• Test drive your car to see if DTC B0045 is resolved.

Tips for Preventing DTC B0045

To prevent DTC B0045 from happening again, you should follow some preventive measures such as:

• Perform regular maintenance on your car according to your manufacturer’s recommendations.
• Check your battery voltage and condition regularly and replace it when needed.
• Avoid driving over rough roads or hitting potholes or curbs that can damage your airbag system.
• Avoid exposing your car to extreme temperatures or humidity that can affect your electrical system.
• Have your car inspected by a professional mechanic regularly and fix any problems as soon as possible.

Conclusion

DTC B0045 is related to the left front side deploy loop. This code indicates that there is a short to ground or voltage out of range in the circuit that prevents the proper operation of the left front side airbag module. This can affect your safety in case of a collision.
