Car Security Systems: What They Are and How to Install Them

Car security systems are devices that protect your car from theft, vandalism, or unauthorized access. They can alert you or the authorities if someone tries to break into your car, or prevent the car from starting without the proper key or code. Car security systems can also provide other features, such as remote start, keyless entry, trunk release, panic button, and more.

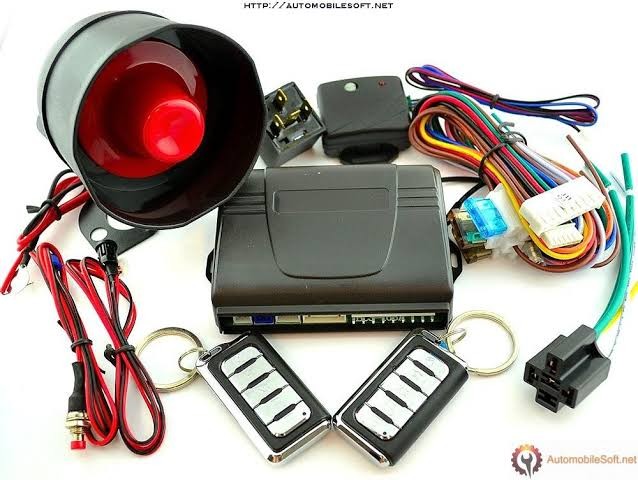

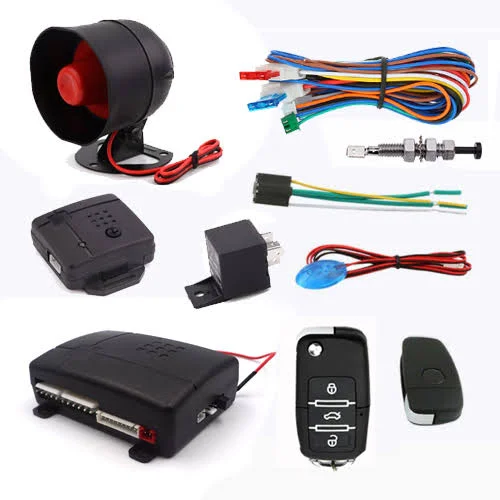

There are many types of car security systems available in the market, but they all have some common components, such as:

• A control unit, which is the brain of the system. It receives signals from the sensors and activates the siren, lights, or other outputs. It also communicates with the remote control or key fob.
• A siren, which makes a loud noise to scare off intruders and attract attention. Some sirens can produce different sounds or tones to indicate different situations.
• A remote control or key fob, which allows you to arm or disarm the system, lock or unlock the doors, start the engine, or trigger other functions. Some remote controls have an LCD screen that shows the status of the system or alerts you of any events.
• Sensors, which detect any attempt to open the doors, hood, trunk, or windows of the car. Some sensors can also sense motion, shock, vibration, tilt, glass breakage, or pressure changes inside the car.
• Wiring and connectors, which connect all the components together and to the car’s electrical system.

Installing a car security system can be a challenging task, especially if you are not familiar with your car’s wiring and electronics. However, with some planning and preparation, you can do it yourself by following these steps:

1. Read the manual of the car security system that you bought and gather all the tools and materials that you will need. You will need a wire stripper, a wire cutter, a crimping tool, electrical tape, zip ties, a drill, a screwdriver, a multimeter or a test light, and some extra wires and connectors.
2. Disconnect the negative terminal of the car battery to avoid any short circuits or damage to the electrical components. Make sure you have the radio code if your car has one.
3. Remove the panels under the dashboard on the driver’s side to access the wires and find a suitable place to mount the control unit. You want to hide it as much as possible from potential thieves, but also make sure it is not too close to any heat sources or moving parts. You can use screws or zip ties to secure it in place.
4. Mount the siren under the hood of the car in a location where it can be heard clearly but not easily seen or reached. You can use screws or zip ties to attach it to a metal bracket or frame. Drill a hole through the firewall (the metal wall that separates the engine compartment from the cabin) to run a wire from the siren to the control unit. Use a rubber grommet or sealant to protect the wire from rubbing against the metal edge of the hole.
5. Mount any additional sensors that you want to install in your car security system. For example, if you want to install door sensors, you can use the existing switches that turn on the dome light when you open the doors. If you want to install shock sensors, you can mount them on metal surfaces near each wheel or door. If you want to install motion sensors, you can mount them on the ceiling or near the rearview mirror. Follow the instructions of each sensor and run wires from them to the control unit.

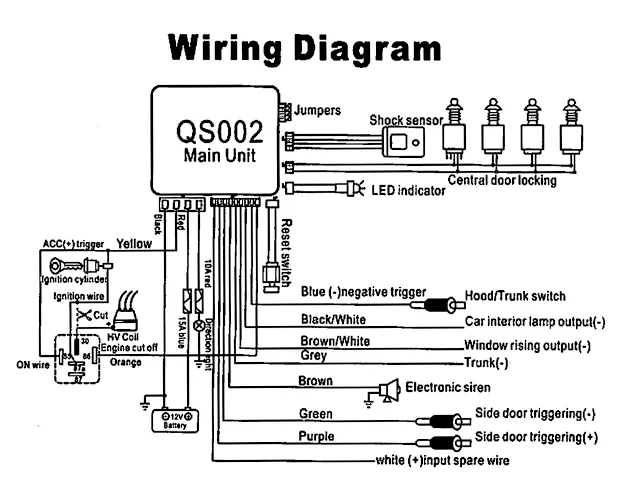

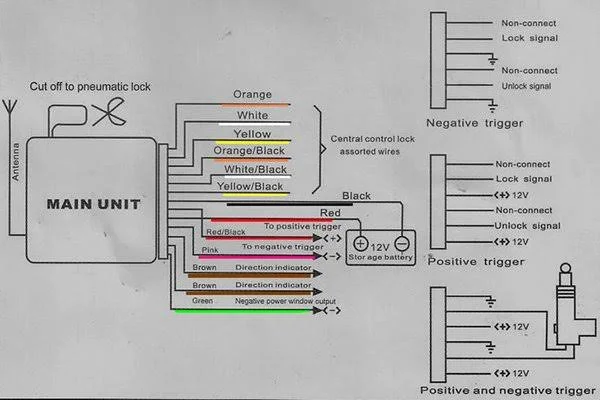

6. Wire the alarm into the car’s locking system. You will need to find out which wires control the lock and unlock functions of your car’s doors. You can use a multimeter or a test light to test each wire and see which one has power when you press the lock or unlock button on your original remote control or key fob. You will also need to find out if your car has positive (+) or negative (-) trigger wires for these functions. Positive trigger wires have power when they are activated (locked or unlocked), while negative trigger wires lose power when they are activated. You will need to connect these wires to the corresponding wires of your car security system’s harness using crimp connectors or soldering.

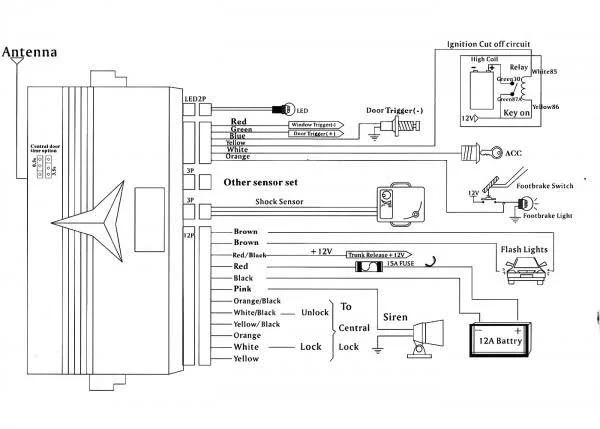

7. Wire any other outputs that you want to use with your car security system. For example, if you want to use a trunk release feature, you will need to find out which wire controls this function in your car and connect it to the corresponding wire of your car security system’s harness. If you want to use a starter kill feature, which prevents your car from starting without disarming the alarm first, you will need to find out which wire carries power from the ignition switch to the starter motor and cut it in half. Then connect one end of this wire to the starter kill output of your car security system’s harness and the other end to the starter kill input of the control unit. This way, the control unit will act as a switch that interrupts the power to the starter motor when the alarm is armed.
8. Connect the power and ground wires of your car security system to the car battery. The power wire is usually red and the ground wire is usually black. You can use a fuse tap or a wire tap to connect the power wire to a fuse that has power only when the car is on (such as the radio fuse). This way, you can avoid draining your car battery when the alarm is not in use. You can connect the ground wire to any metal surface that is connected to the chassis of the car, such as a bolt or a screw. Make sure the connections are tight and secure.
9. Reconnect the negative terminal of the car battery and test your car security system. Use your remote control or key fob to arm and disarm the system, lock and unlock the doors, start the engine, or trigger any other functions. Check if all the sensors and outputs are working properly and if the siren and lights are responding accordingly. Adjust the sensitivity of the sensors if needed. If you encounter any problems or errors, refer to the troubleshooting section of your car security system’s manual or contact the manufacturer for assistance.

Congratulations! You have successfully installed a car security system in your car. Now you can enjoy a peace of mind knowing that your car is protected from theft, vandalism, or unauthorized access. Remember to always arm your alarm when you leave your car and keep your remote control or key fob with you at all times. Happy driving!
