Crankshaft Position Sensor: Everything You Need to Know

Have you ever wondered how your car knows when to fire the spark plugs and inject the fuel? How does it keep track of the speed and position of the engine? The answer is the crankshaft position sensor, a small but vital component that monitors the heartbeat of your car.

What is a crankshaft position sensor?

A crankshaft position sensor is a device that measures the rotational speed and angular position of the crankshaft, which is the part of the engine that converts the up-and-down motion of the pistons into circular motion. The crankshaft position sensor sends a signal to the engine control unit (ECU), which uses this information to control the timing of the ignition and fuel injection systems.

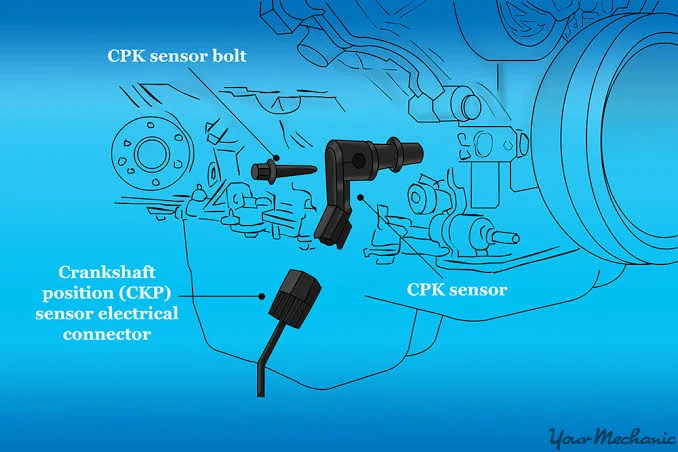

Where is the crankshaft position sensor located?

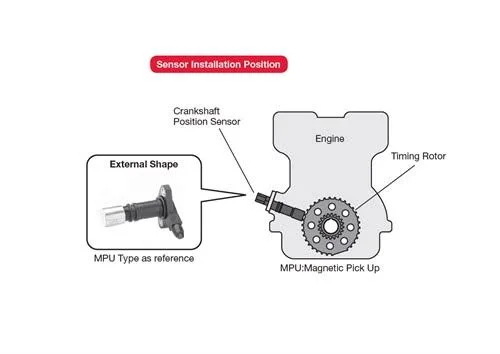

The location of the crankshaft position sensor varies depending on the type and model of your car, but it is usually found near the front or rear of the engine, attached to the engine block or the transmission bell housing. The sensor may be mounted on a bracket or bolted directly to the engine. The sensor is connected to the ECU by a wiring harness.

What does the crankshaft position sensor do?

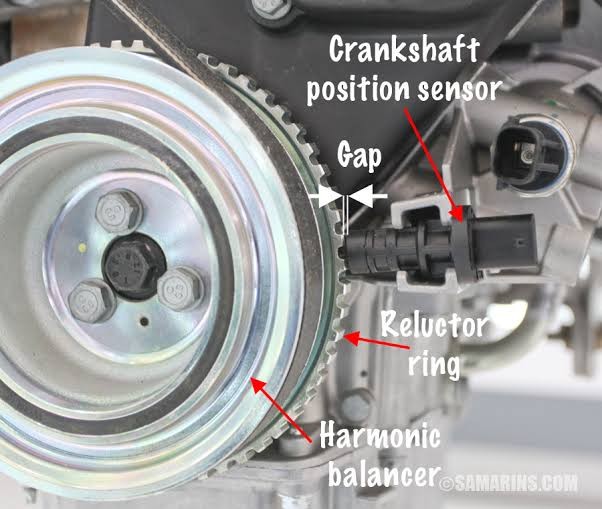

The crankshaft position sensor works by detecting the movement of a metal or magnetic object, such as a toothed wheel, a reluctor ring, or a trigger plate, that is attached to the crankshaft. Depending on the type of sensor, it may use an inductive coil or a Hall effect switch to generate an electrical signal that varies with the rotation of the crankshaft. The signal is then sent to the ECU, which interprets it as a series of pulses that correspond to the position and speed of the crankshaft.

Why is the crankshaft position sensor important?

The crankshaft position sensor is important because it allows the ECU to synchronize the ignition and fuel injection systems with the movement of the pistons. By knowing when each piston reaches its top dead center (TDC) and bottom dead center (BDC) positions, the ECU can determine when to fire each spark plug and inject each fuel injector. This ensures optimal combustion and performance, as well as lower emissions and better fuel economy.

How the crankshaft position sensor works

There are two main types of crankshaft position sensors: inductive and Hall effect. Each type has its own advantages and disadvantages, but they both serve the same function: to measure the rotation of the crankshaft.

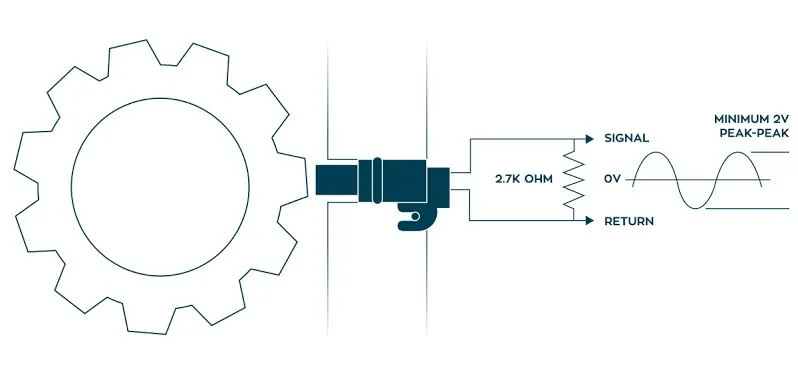

• Inductive crankshaft position sensors

An inductive crankshaft position sensor consists of a coil of wire wrapped around a magnet. When a metal object, such as a toothed wheel or a reluctor ring, passes by the coil, it induces a voltage in the coil that varies with the speed and direction of the object. The voltage is then converted into a digital signal by an electronic circuit and sent to the ECU.

Inductive sensors are simple, cheap, and durable, but they have some drawbacks. They are sensitive to dirt, moisture, and heat, which can affect their accuracy and reliability. They also require a minimum speed to generate a signal, which means they may not work well at low engine speeds or during cranking.

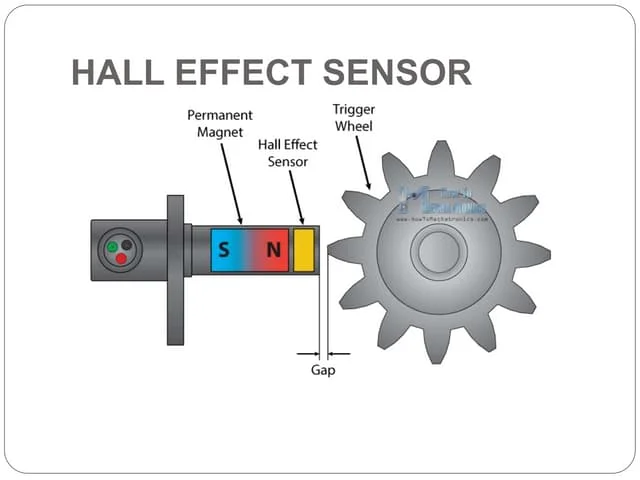

• Hall effect crankshaft position sensors

A Hall effect crankshaft position sensor uses a semiconductor device that changes its electrical resistance when exposed to a magnetic field. When a magnetic object, such as a trigger plate or a magnetized wheel, passes by the device, it alters the magnetic field around it, which causes a change in voltage across the device. The voltage is then converted into a digital signal by an electronic circuit and sent to the ECU.

Hall effect sensors are more accurate, reliable, and responsive than inductive sensors, but they are also more expensive and complex. They require a constant power supply and a reference voltage to operate, which means they may consume more energy and generate more heat than inductive sensors.

Symptoms of a bad crankshaft position sensor

A bad crankshaft position sensor can cause various problems with your car’s engine performance and drivability. Some of the common symptoms include:

• Illuminated check engine light: If your car’s computer detects a problem with your crankshaft position sensor or its circuit, it will turn on your check engine light and store a trouble code in its memory. You can use a scan tool to read this code and find out what’s wrong with your sensor.
• Engine misfires: If your crankshaft position sensor sends an incorrect or erratic signal to your ECU, it may cause your spark plugs to fire at the wrong time or not at all. This can result in incomplete combustion and engine misfires, which can damage your catalytic converter and other components.
• Hard starting: If your crankshaft position sensor fails completely or intermittently, it may prevent your ECU from receiving any signal from your sensor. This can make it difficult or impossible for your car to start, especially when the engine is cold or hot.
• Stalling: If your crankshaft position sensor loses its signal while your car is running, it may cause your engine to stall suddenly and unexpectedly. This can be dangerous and inconvenient, especially if you are driving at high speeds or in heavy traffic.
• Rough idle: If your crankshaft position sensor sends a weak or inconsistent signal to your ECU, it may cause your engine to run rough and unevenly at idle. You may notice vibrations, noises, or fluctuations in your engine speed.
• Reduced fuel economy: If your crankshaft position sensor affects your ignition and fuel injection timing, it may cause your engine to consume more fuel than necessary. This can lower your gas mileage and increase your emissions.
• Poor acceleration: If your crankshaft position sensor limits your engine’s power output, it may cause your car to accelerate slowly or sluggishly. You may feel a lack of responsiveness or torque when you step on the gas pedal.

How to test the crankshaft position sensor

If you suspect that your crankshaft position sensor is faulty, you can test it using a multimeter or a scan tool. Here are the steps to follow:

1. Using a multimeter

A multimeter is a device that measures voltage, resistance, and current. You can use it to check the resistance and voltage of your crankshaft position sensor and its wiring.

• Locate your crankshaft position sensor and disconnect its electrical connector.
• Set your multimeter to measure resistance (ohms) and touch the probes to the terminals of the sensor. Compare the reading with the specifications in your car’s manual. If the resistance is out of range, replace the sensor.
• Set your multimeter to measure AC voltage (volts) and reconnect the sensor’s connector. Start your car and let it idle. Touch the probes to the terminals of the connector. Compare the reading with the specifications in your car’s manual. If the voltage is too low, too high, or erratic, replace the sensor.

2. Using a scan tool

A scan tool is a device that connects to your car’s computer and reads its data and trouble codes. You can use it to monitor the signal from your crankshaft position sensor and check for any errors.

• Plug your scan tool into the diagnostic port under your dashboard and turn on the ignition.
• Select “live data” or “data stream” on your scan tool and look for “crankshaft position” or “CKP” on the screen.
• Start your car and let it idle. Observe the reading from your crankshaft position sensor. It should be a steady stream of pulses that vary with the engine speed. If the reading is missing, erratic, or out of range, replace the sensor.

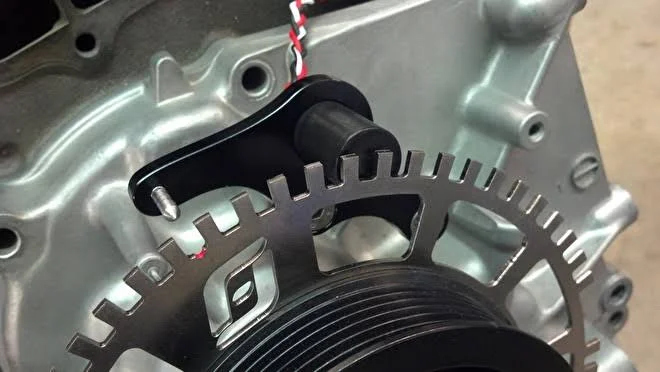

How to replace the crankshaft position sensor

If you have confirmed that your crankshaft position sensor is bad, you can replace it yourself or take it to a mechanic. Replacing the sensor is not very difficult, but it may require some tools and time. Here are the steps to follow:

• Park your car on a level surface and turn off the ignition. Disconnect the negative battery cable for safety.
• Locate your crankshaft position sensor and disconnect its electrical connector.
• Remove any bolts or screws that secure the sensor to the engine or transmission.
• Pull out the old sensor and inspect it for any damage or wear.
• Compare the new sensor with the old one and make sure they are identical.
• Install the new sensor in reverse order of removal and tighten any bolts or screws to the specified torque.
• Reconnect the electrical connector and the battery cable.
• Start your car and check for any leaks, noises, or warning lights.

How to maintain the crankshaft position sensor

The crankshaft position sensor is a durable component that can last for many years without any problems. However, there are some things you can do to keep it in good condition and prevent any issues:

• Keep your engine clean and free of debris: Dirt, oil, grease, water, and other contaminants can damage or interfere with your crankshaft position sensor and its wiring. You can use a degreaser spray or a brush to clean your engine regularly and remove any dirt from around the sensor.
• Regularly check the sensor for damage or wear: You can inspect your crankshaft position sensor visually for any cracks, corrosion, loose connections, or broken wires. You can also test it using a multimeter or a scan tool as described above. If you notice any signs of trouble, replace the sensor as soon as possible.

The importance of the crankshaft position sensor for engine health and performance

The crankshaft position sensor is one of the most important sensors in your car’s engine management system. It monitors the heartbeat of your engine and ensures that it runs smoothly and efficiently.

By keeping track of the rotation and position of the crankshaft, the sensor helps the ECU to adjust the ignition and fuel injection timing according to the engine’s needs. This improves the engine’s power, efficiency, and emissions.

The crankshaft position sensor also helps the ECU to detect and prevent any problems with the engine’s operation. For example, if the sensor detects a misfire, a knock, or a loss of compression, it can alert the driver by turning on the check engine light and storing a trouble code. It can also adjust the engine’s parameters to prevent further damage or reduce the risk of a breakdown.

Without a functioning crankshaft position sensor, your car’s engine would not be able to run properly or safely. You would experience poor performance, increased fuel consumption, and higher emissions. You may also face difficulty in starting or driving your car, or even damage your engine beyond repair.

Conclusion

The crankshaft position sensor is a small but essential component that monitors the heartbeat of your car. It measures the speed and position of the crankshaft and sends this information to the ECU, which uses it to control the ignition and fuel injection systems. The crankshaft position sensor is important for your engine’s health and performance, as well as for your safety and comfort.

To keep your crankshaft position sensor in good condition, you should keep your engine clean and free of debris, regularly check the sensor for damage or wear, and test it using a multimeter or a scan tool. If you notice any symptoms of a bad crankshaft position sensor, such as an illuminated check engine light, engine misfires, hard starting, stalling, rough idle, reduced fuel economy, or poor acceleration, you should replace the sensor as soon as possible.

By taking care of your crankshaft position sensor, you can ensure that your car runs smoothly and efficiently for a long time. You can also avoid costly repairs and enjoy a better driving experience.
