Understanding Clutches: Types, Advantages, and Disadvantages of the Friction Clutch

Clutches are an integral component of manual transmission vehicles, allowing drivers to change gears smoothly and efficiently. There are several types of clutches available, but the most common is the friction clutch.

While many drivers understand the basics of how a clutch works, few truly understand the advantages and disadvantages of different types of clutches and how they can impact the performance of a vehicle. In this blog post, we will take an in-depth look at the friction clutch, including its types, advantages, and disadvantages. We will also explore how a friction clutch works and why it is such an important component of manual transmission vehicles. So, whether you are a car enthusiast looking to learn something new or a mechanic trying to brush up on your knowledge, this guide to friction clutches is a must-read.

What is a clutch?

A clutch is a mechanical device that is typically used in vehicles to connect and disconnect the transmission from the engine. It is a crucial component in the operation of a manual transmission vehicle as it allows the driver to change gears while the vehicle is in motion and to start the vehicle from a standstill.

A clutch is made up of several components including a clutch disc, pressure plate, flywheel, and release bearing. The clutch disc is located between the flywheel and the pressure plate and is responsible for transmitting power from the engine to the transmission. The pressure plate applies pressure to the clutch disc, allowing it to engage and transmit power to the transmission.

When the clutch pedal is depressed, the pressure plate is disengaged from the clutch disc, allowing the driver to change gears or come to a stop without stalling the engine. Overall, a clutch is a vital component in the operation of manual transmission vehicles and understanding its types, advantages, and disadvantages is crucial for any vehicle owner or driver.

Types of Clutches

Clutches are essential components in an automobile, and there are many different types of clutches available. The most common type is the friction clutch, which is used in most manual transmission vehicles. However, there are other types of clutches available, such as hydraulic, electromagnetic, and centrifugal clutches. Each type of clutch has unique characteristics that make it ideal for specific applications.

Hydraulic clutches are often used in heavy-duty vehicles, such as trucks and buses. These clutches use hydraulic fluid to engage and disengage the clutch, making them ideal for large and heavy vehicles. Electromagnetic clutches are used in applications where the clutch needs to engage and disengage rapidly, such as in high-speed machinery. These clutches use an electric current to engage and disengage the clutch.

Centrifugal clutches are used in small engines, such as those found in lawn mowers and go-karts. These clutches use centrifugal force to engage and disengage the clutch, making them ideal for small engines where a manual clutch would be impractical.

It's important to understand the different types of clutches available so that you can choose the right clutch for your specific needs. Each type of clutch has its own advantages and disadvantages, so it's important to consider your specific application before making a choice.

What is a Friction Clutch?

A friction clutch is a type of clutch that is commonly used in vehicles to engage and disengage the power transmission between the engine and the transmission. It is called a friction clutch because it works based on the principle of friction between two surfaces, one of which is connected to the engine's input shaft and the other to the transmission's output shaft. When the clutch is engaged, both surfaces are pressed together, allowing power to be transferred from the engine to the transmission. When the clutch is disengaged, the surfaces are separated, cutting off the power transmission.

Friction clutches are mainly composed of two parts: the clutch plate and the pressure plate. The clutch plate is made up of a friction material that is riveted or bonded to a metal plate. The pressure plate, on the other hand, is a heavy-duty spring-loaded plate that applies pressure to the clutch plate. When the driver presses the clutch pedal, the pressure plate is released, which separates the clutch plate from the flywheel, disconnecting the engine from the transmission.

The main advantage of a friction clutch is its simplicity and reliability. It is a very basic mechanical component that has been used for decades in various vehicles. It also has a smooth and gradual engagement, making it easy for the driver to operate. However, the friction material on the clutch plate can wear out over time, reducing its effectiveness and eventually requiring replacement. Additionally, friction clutches can experience slippage under heavy loads, reducing their efficiency and potentially damaging the clutch components. Overall, the friction clutch is a reliable and effective component that has proven its worth in the automotive industry.

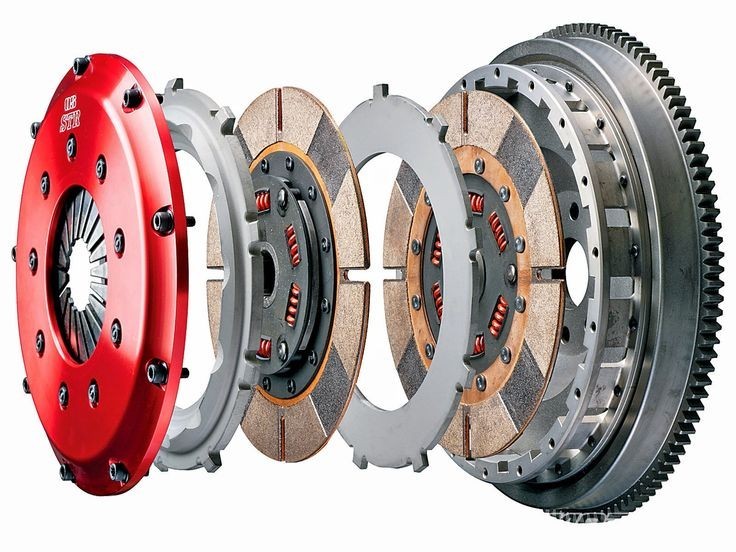

Components of a Friction Clutch

A friction clutch is an essential component of many automobiles and machines that transmit power from the engine to the wheels or other components. The clutch consists of several components that work together to engage and disengage the engine from the transmission. The main components of a friction clutch include the flywheel, clutch friction plates, clutch pressure plate, release bearing, and clutch cover.

The flywheel is a heavy, rotating disc that is bolted to the engine crankshaft. It provides a smooth surface for the clutch friction plates to engage when the clutch is engaged. The clutch friction plates are thin, circular discs lined with friction material that is sandwiched between the flywheel and the pressure plate.

The clutch pressure plate is held against the flywheel by a set of springs or a hydraulic system. When the clutch pedal is pressed, the pressure plate is released, which separates the clutch friction plates from the flywheel and disengages the engine from the transmission. The release bearing is a small, round bearing that pushes against the pressure plate to release it from the flywheel.

The clutch cover is a metal cover that encloses the clutch assembly and keeps dirt and debris from getting inside. It is usually held in place by several bolts or screws and is easily removable for clutch servicing.

Understanding the components of a friction clutch is important when it comes to diagnosing and fixing any issues that may arise. With proper maintenance and care, a friction clutch can last for many years and provide reliable performance.

Advantages of Friction Clutch

Friction clutches offer several advantages over other types of clutches. One of the main advantages is their ability to handle high torque and power transfer. Friction clutches are designed with materials that can withstand high temperatures and pressure, making them ideal for use in heavy-duty applications.

Another advantage of friction clutches is their smooth engagement and disengagement. This allows for precise and smooth shifting, making them ideal for use in vehicles and machinery that require quick and accurate gear changes.

Friction clutches are also known for their durability and longevity. With proper maintenance, they can last for many years without needing to be replaced. This makes them a cost-effective option for many industries that require reliable clutch systems.

In addition, friction clutches are relatively simple in design and easy to maintain. They are also widely available, making it easy to find replacement parts when needed.

Overall, the advantages of friction clutches make them a popular choice for a wide range of applications, from automotive to industrial machinery.

Disadvantages of Friction Clutch

Friction clutches are widely used in automobiles and other machines that require transmitting power from the engine to the wheels or other parts. However, like any other technology, friction clutches also have their disadvantages that should be taken into consideration while selecting the type of clutch for your machine.

One of the main disadvantages of friction clutches is that they tend to wear out over time. As the clutch is engaged and disengaged repeatedly, the friction material on the clutch disc wears down. This can lead to reduced performance of the clutch and eventually, it may fail to engage completely.

Another disadvantage of friction clutches is that they can generate a lot of heat, especially during heavy use. This heat can cause the friction material to wear down even faster and can also damage the clutch components. This is why it is important to use the correct type of friction material for your clutch and to avoid excessive slipping or overheating.

Friction clutches can also be prone to slipping, which can cause the engine to rev without transferring power to the wheels. This can be dangerous, especially when driving on steep inclines or in wet or slippery conditions. Therefore, it is important to ensure that the clutch is correctly adjusted and maintained to avoid slipping.

In conclusion, while friction clutches are widely used and have many advantages, it is important to be aware of their disadvantages and to take appropriate measures to maintain and operate them correctly. This will ensure that your machine operates safely and efficiently.

How a Friction Clutch Works

A friction clutch is a type of mechanical device that is used in vehicles to transmit power from the engine to the transmission. It works by using friction to engage and disengage the engine from the transmission.

The friction clutch typically consists of a flywheel, a clutch disc, and a pressure plate. The flywheel is attached to the engine, and the clutch disc is sandwiched between the flywheel and the pressure plate. The pressure plate is connected to the transmission.

When the clutch pedal is pressed, the pressure plate is released, which allows the clutch disc to disengage from the flywheel. This separates the engine from the transmission and allows the vehicle to come to a stop or shift gears.

When the clutch pedal is released, the pressure plate applies pressure to the clutch disc, which creates friction and engages the engine to the transmission. This allows the vehicle to move forward or continue driving.

The friction clutch is a simple and effective way to transmit power from the engine to the transmission. It is widely used in manual transmission vehicles, and its design has been refined over the years to provide better performance, durability, and reliability. However, it does have some disadvantages, including wear and tear on the clutch disc and pressure plate, as well as the potential for clutch slippage and overheating.

Signs of a Bad Friction Clutch

A friction clutch is an essential part of a vehicle's transmission system, and a malfunctioning clutch can cause serious problems and even accidents on the road. It's important to know the signs of a bad clutch so that you can take action to fix the problem before it becomes a major issue. Here are some common signs that your friction clutch may be going bad:

1. Difficulty shifting gears: If you're having trouble getting your vehicle into gear or shifting gears smoothly, it could be a sign that your clutch is not engaging or disengaging properly.

2. Slipping clutch: A slipping clutch occurs when the clutch fails to fully engage with the flywheel, causing the engine to rev up without any corresponding increase in vehicle speed. This can be particularly dangerous when driving in traffic or uphill.

3. Burning smell: If you smell a burning odor, it could be a sign that your clutch is overheating due to excessive slipping. This can cause damage to the clutch and other parts of the transmission system.

4. Unusual noises : If you hear grinding or squealing noises when you depress the clutch pedal, it could be a sign that there is a problem with the clutch assembly or release mechanism.

If you notice any of these signs, it's important to have your vehicle inspected by a qualified mechanic as soon as possible. A worn or damaged friction clutch can cause serious damage to your vehicle and put you and other drivers at risk on the road.

How to Replace a Friction Clutch

Replacing a friction clutch can be a daunting task, but with the right tools and some basic knowledge of mechanics, it is something that can be done at home. Here are the basic steps to replace a friction clutch:

1. Remove the transmission: The friction clutch is located between the engine and the transmission, so the transmission needs to be removed to access the clutch.

2. Remove the pressure plate: The pressure plate is held in place by several bolts. Loosen the bolts gradually and in a crisscross pattern to avoid warping the pressure plate.

3. Remove the clutch disc: The clutch disc is sandwiched between the pressure plate and the flywheel. It may be held in place by clips or screws, which need to be removed before the disc can be taken out.

4. Inspect the flywheel: The flywheel should be checked for wear and damage. If it is worn or damaged, it should be resurfaced or replaced.

5. Install the new clutch: The new clutch disc should be aligned with the flywheel and installed in the same way the old one was removed. The pressure plate should be installed and the bolts tightened gradually and in a crisscross pattern.

6. Reinstall the transmission: Once the new clutch is installed, the transmission can be put back in place.

It is important to note that replacing a friction clutch can be a complex and time-consuming process. It is recommended that you have a good understanding of mechanics and access to the proper tools before attempting this task. If you are not confident in your ability to replace a friction clutch, it is best to seek the help of a professional mechanic.

Frequently Asked Questions about Friction Clutches

Friction clutches are an essential component of many types of machinery and vehicles, and understanding their operation and maintenance is crucial for anyone who works with them. Here are some frequently asked questions about friction clutches:

1. What is a friction clutch?

A friction clutch is a type of clutch that uses friction to transmit power between two rotating shafts. It consists of a friction plate, also known as the clutch disc, that is pressed against a flywheel or pressure plate by a spring or hydraulic mechanism.

2. What are the advantages of friction clutches?

Friction clutches are relatively simple and reliable, and can be used in a wide range of applications. They are also relatively inexpensive and easy to replace.

3. What are the disadvantages of friction clutches?

Friction clutches can wear out quickly if they are not properly maintained. They also tend to slip under heavy loads, which can cause excessive heat and damage to the clutch components.

4. How do I know if my friction clutch needs to be replaced?

Signs that your friction clutch may need to be replaced include slipping or grabbing when engaging the clutch, difficulty shifting gears, and abnormal noises or vibrations coming from the clutch area.

5. How do I maintain my friction clutch?

Regular maintenance is key to keeping your friction clutch in good working order. This includes checking the clutch pedal free play, inspecting the clutch disc and pressure plate for wear, and checking the fluid level in hydraulic clutch systems.

By understanding the types, advantages, and disadvantages of friction clutches, as well as how to maintain them, you can ensure that your machinery or vehicle operates smoothly and reliably.
